Panasonic, SS52, TA1400, G3 Control, 6-Axis, PLC/HMI, wire feeder, torch, enclosure, 2012

New Age Robotics SS52 Custom Built Robotic MIG Welding Cell:

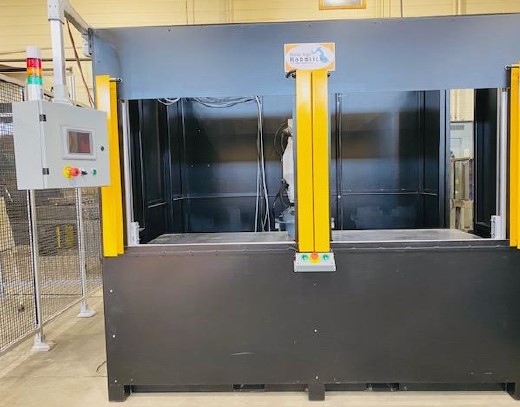

• Production robotics cell with two side-by-side windows, mounted on a Monoblock frame for easy forklift access.

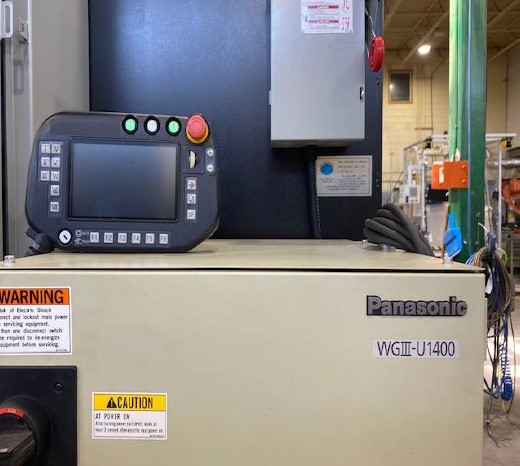

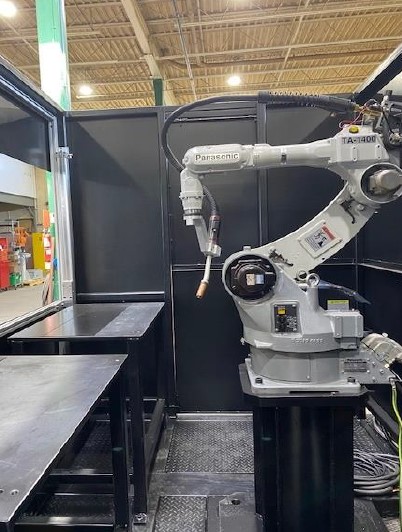

• Panasonic reconditioned robot TA-1400 with WG3 Controller and digitally integrated welder, robotic feeder and robotic torch (six months warranty on welding package).
• Electrical control panel including Allen-Bradley CompactLogix PLC, Allen Bradley 700 Panel View Plus HMI.
• Requires 30 KVA/ 3ph/ 575V service, compressed air min. 70 psi.
• Works with four sensors on each side table.
• Works with pneumatic one stage clamping plus eject or two stage clamping plus eject fixtures.
• More complex fixtures might require additional PLC and panel view programming, additional hardware, additional sensors, not included in price.
• Safety features include: light curtains, sliding doors for operator protection, access doors with redundant safety switches, Allen-Bradley programmable safety relay, palm or finger touch buttons for cycle start on each side.
• Auto mode system recovery.
• TCP (tool center point) fixture, 15 mm gauge, pneumatic wire cutter.
• Quick tool (TCP) recalibration function allows fast recovery in case welding torch has been distorted after collision. This allows production personnel to distinguish between robot and torch position distortion or part fit-up and tooling problems.
• Tip exchange monitoring function, Panel View indicates tip change required. Robot records arc on time.
• Status of pneumatic clamps, sensors, work conditions clearly indicated on Panel View, green if normal condition, red in case of fault.
• Fault finding facilitated by Panel View diagnostic messages.
• Pneumatic remote I/O valves (optional) eliminate excessive wiring between fixtures and electrical panel.

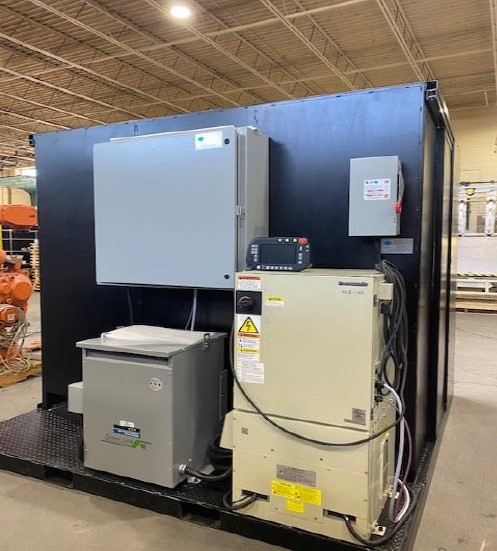

• 30 KVA, 600D/208Y-120VAC, 3 phase transformer (other voltages available on request).
• Operator LED lights above each side of fixture.
• 110V, 3A outlet for programming computer.
• Cell complies with current robotic safety standards; Ontario electrical approval (QPS).
Optional items:
• Reconditioned nozzle cleaner with TCP check point and anti-spatter sprayer (installed & programmed)
• Tooling, integration
• Robot programming and system operation training
• Smoke hood, eight-inch diameter duct fitting.
• Aluminum tabletops
