Ozemek, spiral pipe mill, 2235mm x 20mm, complete, 2004

2235MM X 20MM API OZEMEK SPIRAL PIPE MILL YEAR 2004 (MOBIL SPIRAL MILL WITH
OPTIONAL 30,690 FT/2 MOBIL BUILDING
STANDARDS:
-OIL & GAS PIPES: API 5L, ISO 3183, EN 10208-1/2
-WATER PIPES: EN 10217-1, EN 10224, AWWA C200
-PILING PIPES: ASTM A252, EN 10219-1/2
OUTSIDE DIAMETER RANGE: 323.9MM - 2235.2MM
WALL THICKNESS: 4MM - 20MM
PIPE LENGTH: 6M - 16M
MAX COIL WIDTH: 1500MM
OUTSIDE DOUBLE TANDEM SUBMERGED ARC WELDING EQUIPMENT:
-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE
-LINCOLN AC 1200 POWER SOURCE (1200 A), NA-4 CONTROL UNIT- 1 PIECE
-META VISION LASER SEAM TRACKING SYSTEM - 1 PIECE
INSIDE DOUBLE TANDEM SUBMERGED ARC WELDING EQUIPMENT:
-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE
-LINCOLN AC 1200 POWER SOURCE (1200 A), NA-4 CONTROL UNIT- 1 PIECE
-META VISION LASER SEAM TRACKING SYSTEM - 1 PIECE
SKELP END WELDING UNIT:
-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE
SKELP END CUTTING UNIT:
-HYPERTHERM, HPR 260 XD, HIGH PERFORMANCE PLASMA ARC CUTTING SYSTEM (260 A)- 1
PIECE
PIPE CUTTING UNIT:
-HYPERTHERM, HPR 260 XD, HIGH PERFROMANCE PLASMA ARC CUTTING SYSTEM (260 A) -
1 PIECE
COMPLETE MILL FEATURING:
(1) EDGE MILLING MACHINE
(1)MILLING SYSTEM FOR EXTERNAL WELDING
(4) LINCOLN WELDING MACHINES
(2) METAVISION LASER SEAM TRACKING SYSTEMS
(2) HYPERTHERM PLASMA CUTTING SYSTEMS
WELD ENGINEERING FLUX RECOVERY SYSTEM

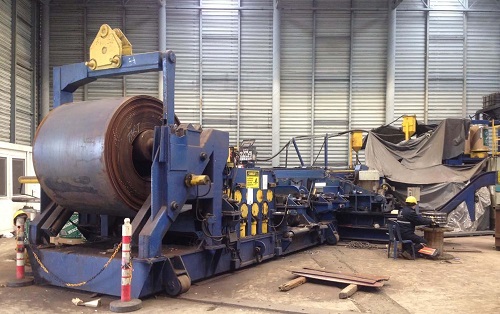

UNCOILER
EDGE GUIDES
FLATTENER
EDGE GUIDES
CROSS SEAM WELDER WITH HYDRAULIC CLAMPING
EDGE GUIDES
EDGE GUIDES
EDGE MILLING MACHINE
EDGE GUIDES
MAIN DRIVE ROLL
PRE-BENDER
FORMING ROLL
PLASMA CUT-OFF
RUN OUT CONVEYOR
MOBIL OD SHOT BLAST UNIT
MOBIL SPIRAL MILL WITH OPTIONAL 30,690 FT/2 MOBIL BUILDING
90' SPAN X 35 TON OVERHEAD CRANE
