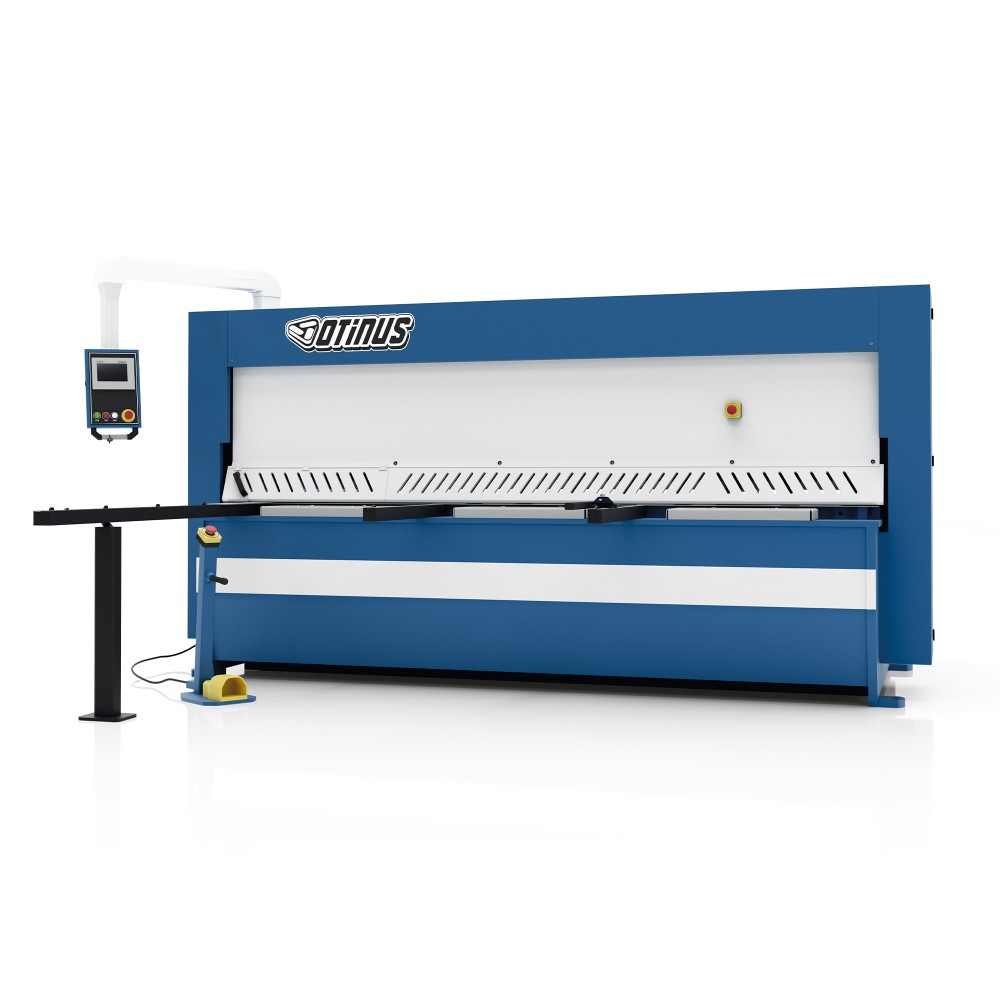

Otinus, Hydraulic Guillotine Shear, 1/4" x 10.2', Otinus Cybtouch Controller

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specification

• Capcity ≤450 N/mm2: 6 mm
• Capcity ≤750 N/mm2: 4 mm
• Maximum cutting length for carbon steel: 10 ft 2 in
• Rake Angle: 1.6 °
• Motor Power: 11.0 kW
• Number of Holddowns: 17 pcs.
• Strokes Per Minute: 20 cuts/min
• Capcity of Oil Tank: 42 gal
• Backgauge Range: 2,5 ft
• Backgauge Motor: 0.55 kW
• Approx. Weight 12300 lb

Controller CybTouch 8w

• Automatic calculations of the shear functions upon material specifications.
• Automatic blade gap.
• Automatic back gauge correction.
• Automatic back gauge foldaway.
• 2/3- position sheet support.
• Return to sender function (RTS).
• Front or back gauge management.
• Parking position (foldaway function).
• Hold-downs pressure management.
• System pressure management.
• Large cutting sequences and programs can be memorized.vivid colors.
• Simple pages, large keys, clear display with all the information the operator needs.
• Intuitive and user-friendly interface.
• Complete programming of parts in seconds.
