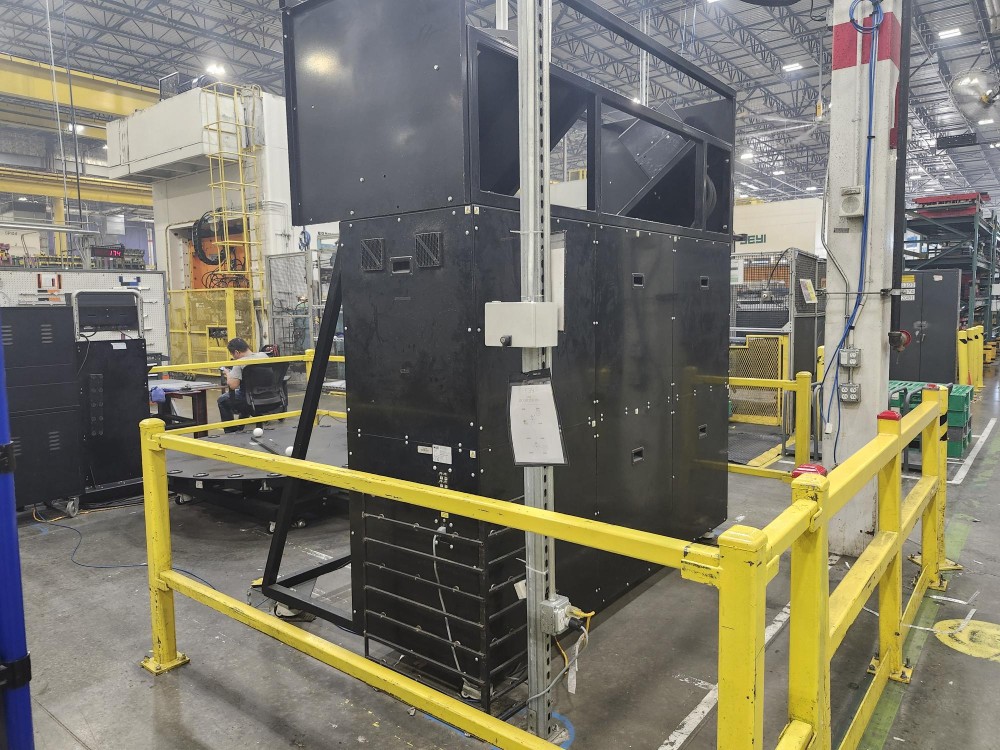

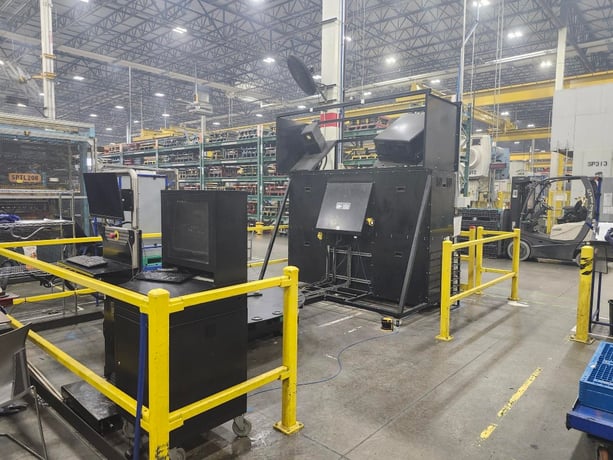

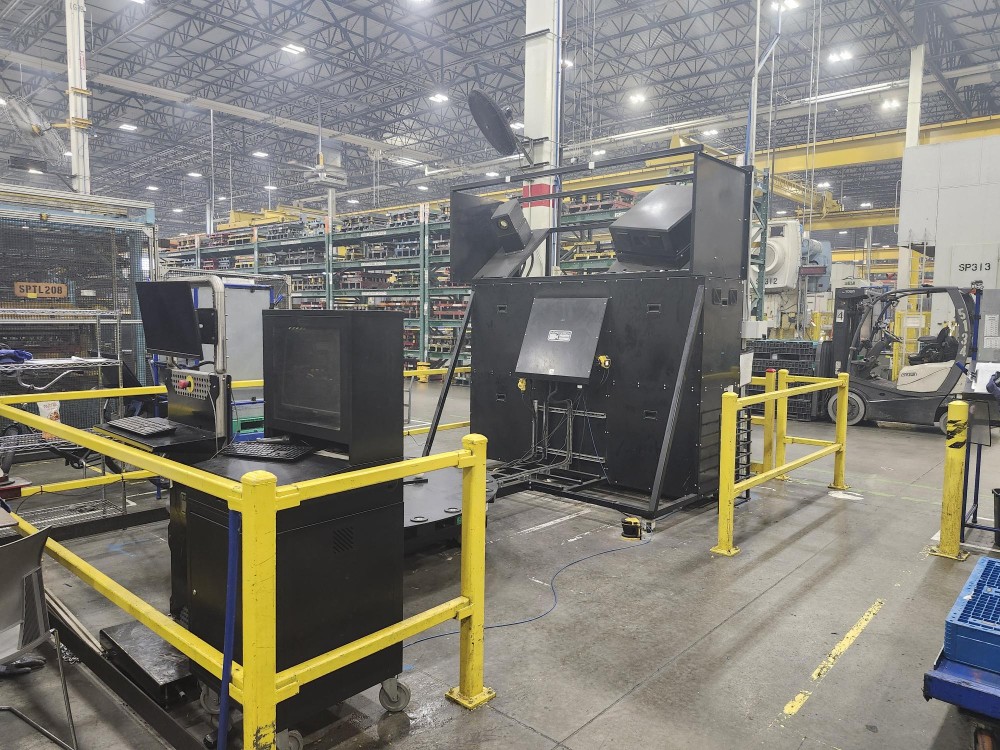

OptiScan #2000, 78" diameter table +/-.00138, 2023

OptiScan 2000 78” Dia Table +/-.00138

Year: 2023

Description Specification/Scope of Supply
Repeatability** 35 microns
Point Spacing Better than 210 microns
Scanning speed*** > 250,000 points per second
Scanning time*** < 10 seconds
Processing time**** < 5 seconds
Peripheral equipment USB lighting controller, Standard Computer Interface
Required Operating System Windows 10
Software included 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of cross-sections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software.
Free 3D Inspection Software Fully compatible with off the shelf free 3D inspection software. Functionality includes comparison to 3D solid models, dimensioning, GD&T, cross-sections, full surface deviation inspection, merging of scans, customizable reports, automatic alignment of scan to CAD, point cloud meshing, processing and filtering, extraction of nominal data from CAD model, comparison of 2 scans.
Advanced 3D inspection software option (Geomagic Control) Available on request. Comparison to 3D solid models, GD&T, SPC, cross-sections, full surface and edge inspection, creation of report templates, automated merging of point clouds, automatic alignment of scan to CAD, automatic point cloud processing and filtering, automatic detection or repositioning spheres, macro creation for full automation, automatic extraction of nominal data from CAD model, comparison of 2 scans.
3D reverse engineering (advanced package) Available on request. Creation of 3D solid models from scan data.
Calibration Kit Included as standard, retro-reflective reference markers mounted onto steel plate with repositioning frame
Accuracy Verification Object Included as standard, calibrated ball bar
OptiScan construction Camera and projector assemblies mounted on floating carbon fibre chassis
OptiScan enclosure ABS Carbon fibre effect
Repositioning markers Set of 24 loose magnetic photogrammetric markers to allow repositioning
Camera > 18 megapixels
Projection source LED/laser projector
Data cables HDMI and USB3
Power supply 110-240V 50/60Hz
Power consumption 1.5 Amp maximum at 230 Volt, 3 Amp max at 110 Volt
EC directives Compliant with Machinery, Low voltage and EMC Directives
Paint color (powder paint) Light table RAL 5013 (colbalt blue)
Ambient operating conditions 5-35 degree C
