Onsrud #98E18, Extreme Series CNC routers, 5' 8' table, 24k RPM, 18 HP, 12 ATC, NC-4 laser tool setter, 2023

New 2023 model with 5x8 (60" x 96") work envelope, in stunning condition and less than 20 hours runtime. American-made 3-axis fixed-bridge CNC router optimized for high-speed machining of wood, plastics, composites, and non-ferrous materials. Equipped with Fanuc 0i controller, 18 HP HSD spindle, and full enclosure for production environments.
C.R. ONSRUD MODEL 98E18 "Extreme Series" CNC ROUTER New 2023 5' × 8' Table
Like new. Never used in production. Less than 20 hours run time.
Original Acquisition Price: $355,990.00
------------------------------------------------------------
Description
- C.R. Onsrud Model 98E18 "Extreme Series" CNC Router
- 5' × 8' work envelope

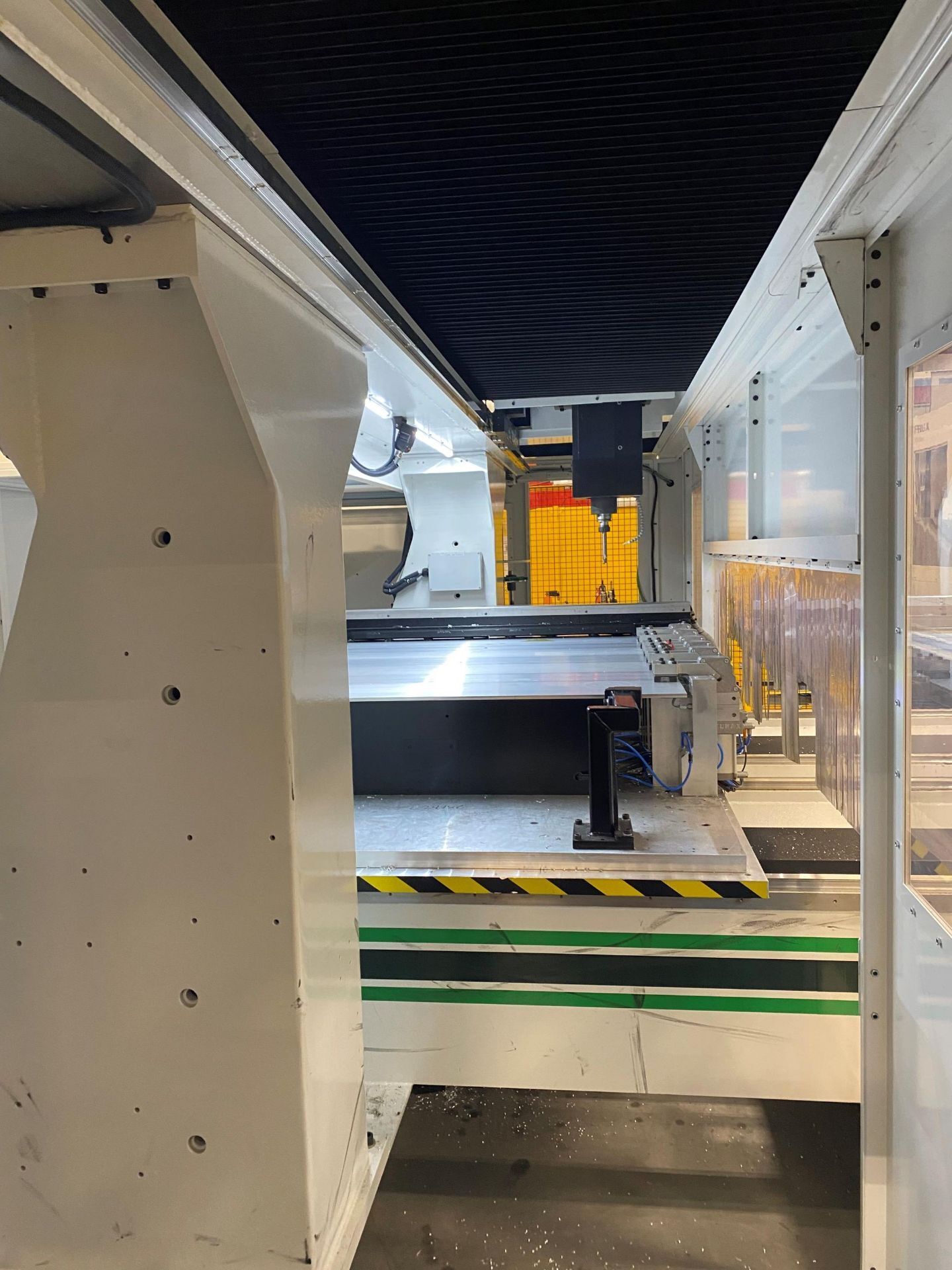

- Aluminum flat/base table ground, cast tool plate (supports bolt pattern, matrix, or T-slot layouts; replaces standard vacuum table)
- 28" Z-stroke
Clearance with 3-axis head: 31"
- Includes 8' × 5' aluminum base table
------------------------------------------------------------
Controller

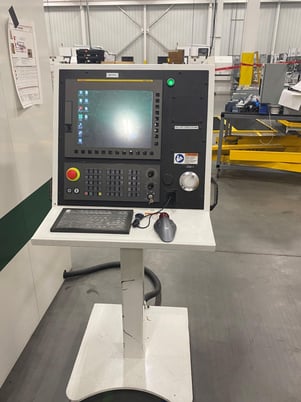

- Fanuc 0i Machine Controller System with Panel-i HMI
- Industrial PLC-based CNC control with high-resolution touchscreen
- Large Fanuc digital drives and servos
- Network capability and full remote diagnostics
- M-code controlled vacuum zones
- 4-port network hub
- Standard controller package included
------------------------------------------------------------
Spindle / Head
- 18 HP spindle (13.5 kW), 24,000 RPM
Fully programmable & reversible
HSK-63F tool interface
Quick-change spindle capable of routing & drilling
- Integrated 2-position dust extraction transition
Chip evacuation through dedicated chamber and hood
Includes 8" dust transition
- Programmable air blast (M-code controlled)
------------------------------------------------------------
Isolation Transformer
- 6-tap non-compensating isolation transformer for power matching
------------------------------------------------------------
Lubrication System
- Automatic grease lubrication system
------------------------------------------------------------
Electrical Cabinet Cooling
- Air-conditioned electronics cabinets
------------------------------------------------------------

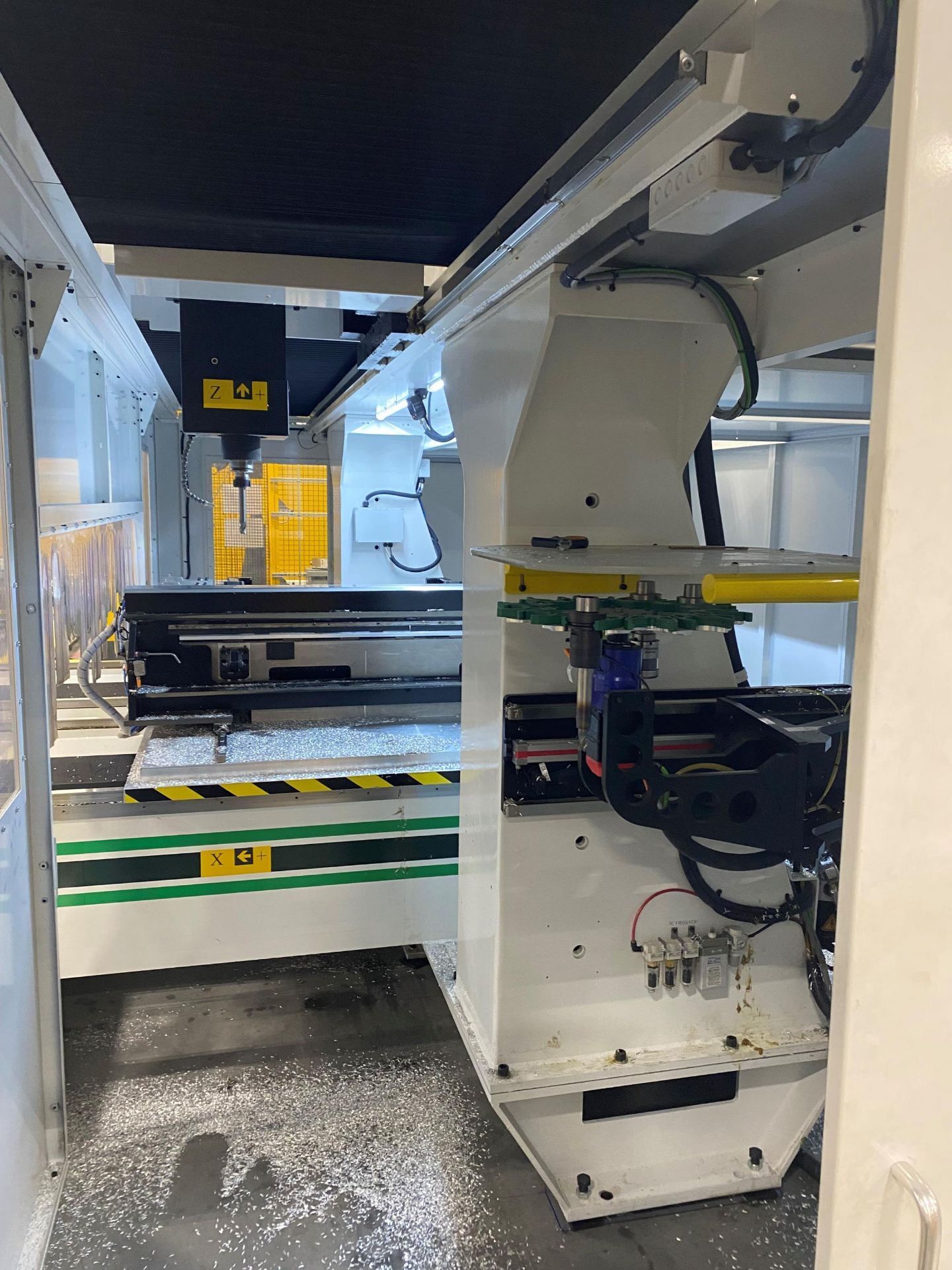

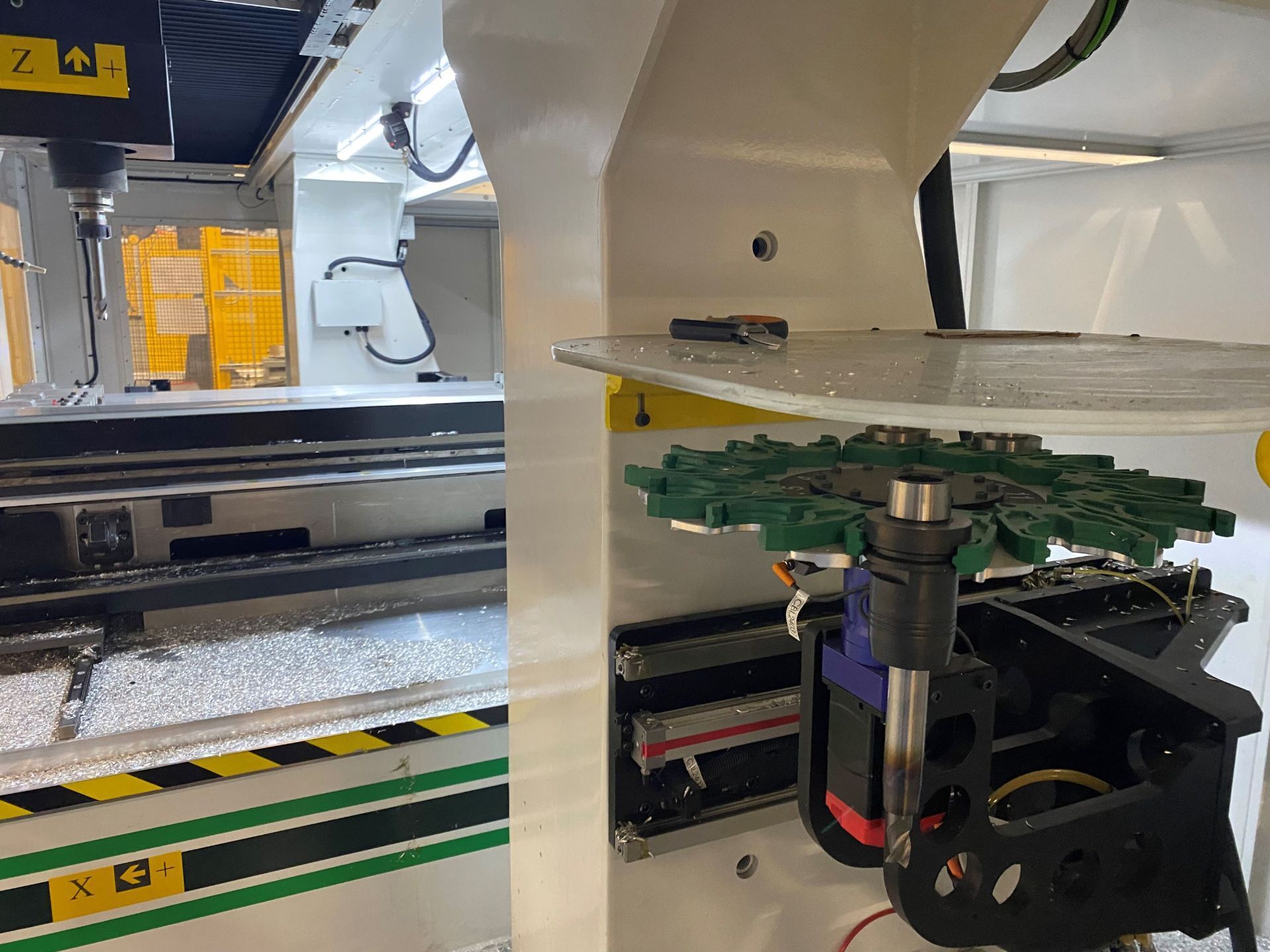

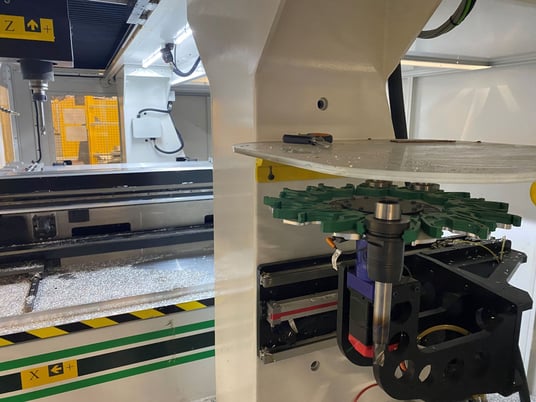

Tool Changer
- 12-tool dynamic automatic rotary tool changer
Fully servo controlled
Fast, reliable tool changes
Able to store aggregate tooling
------------------------------------------------------------

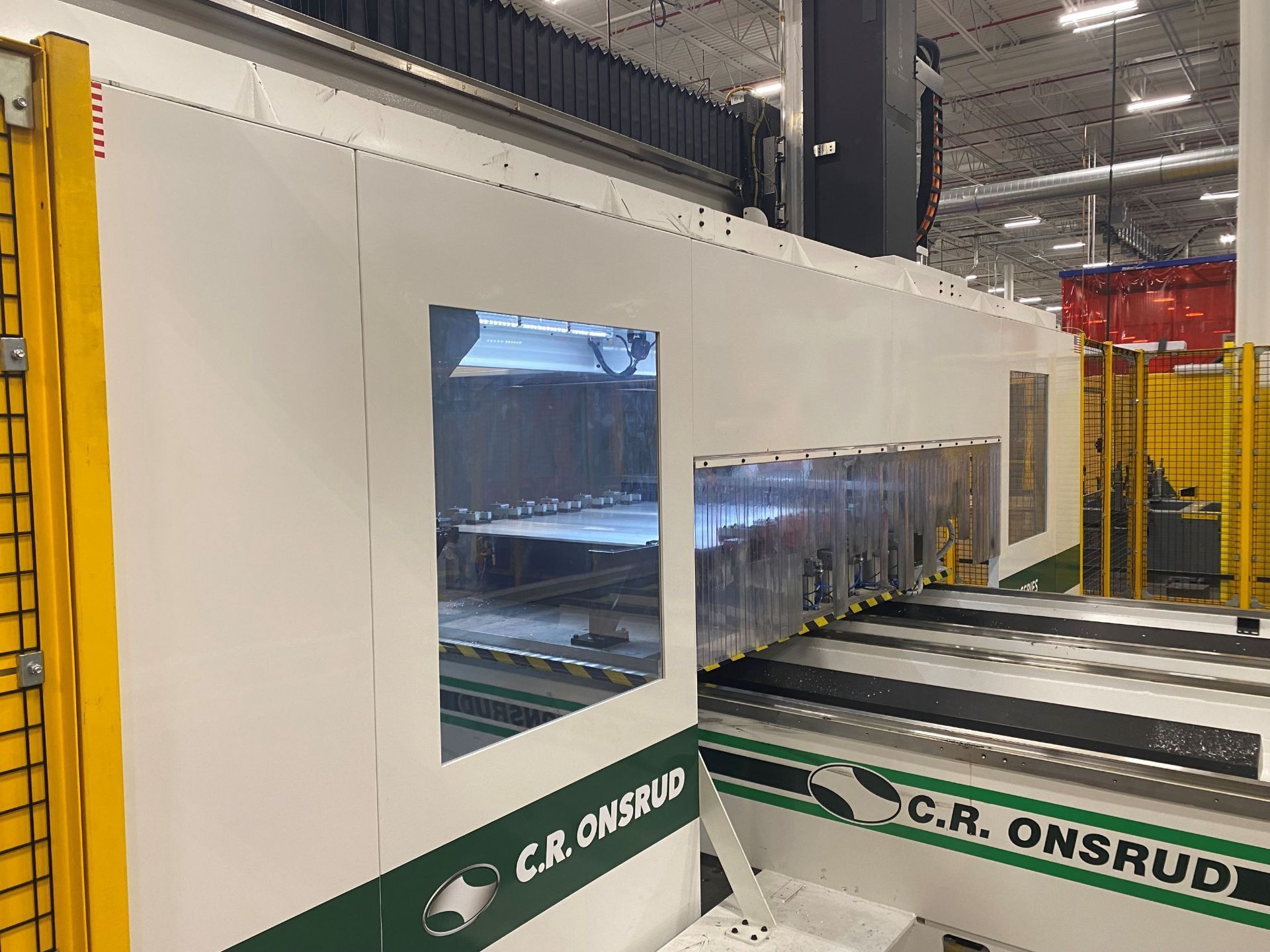

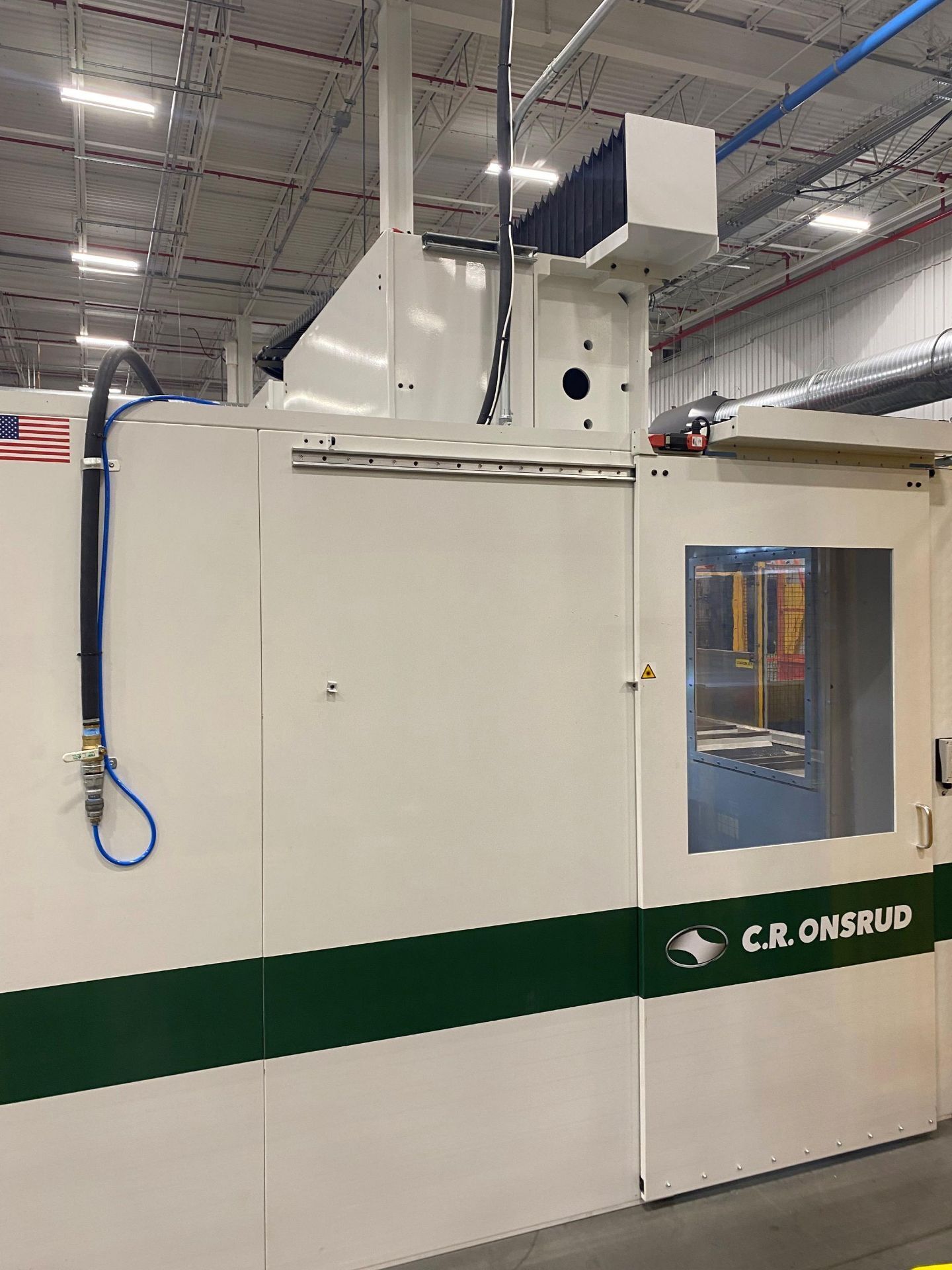

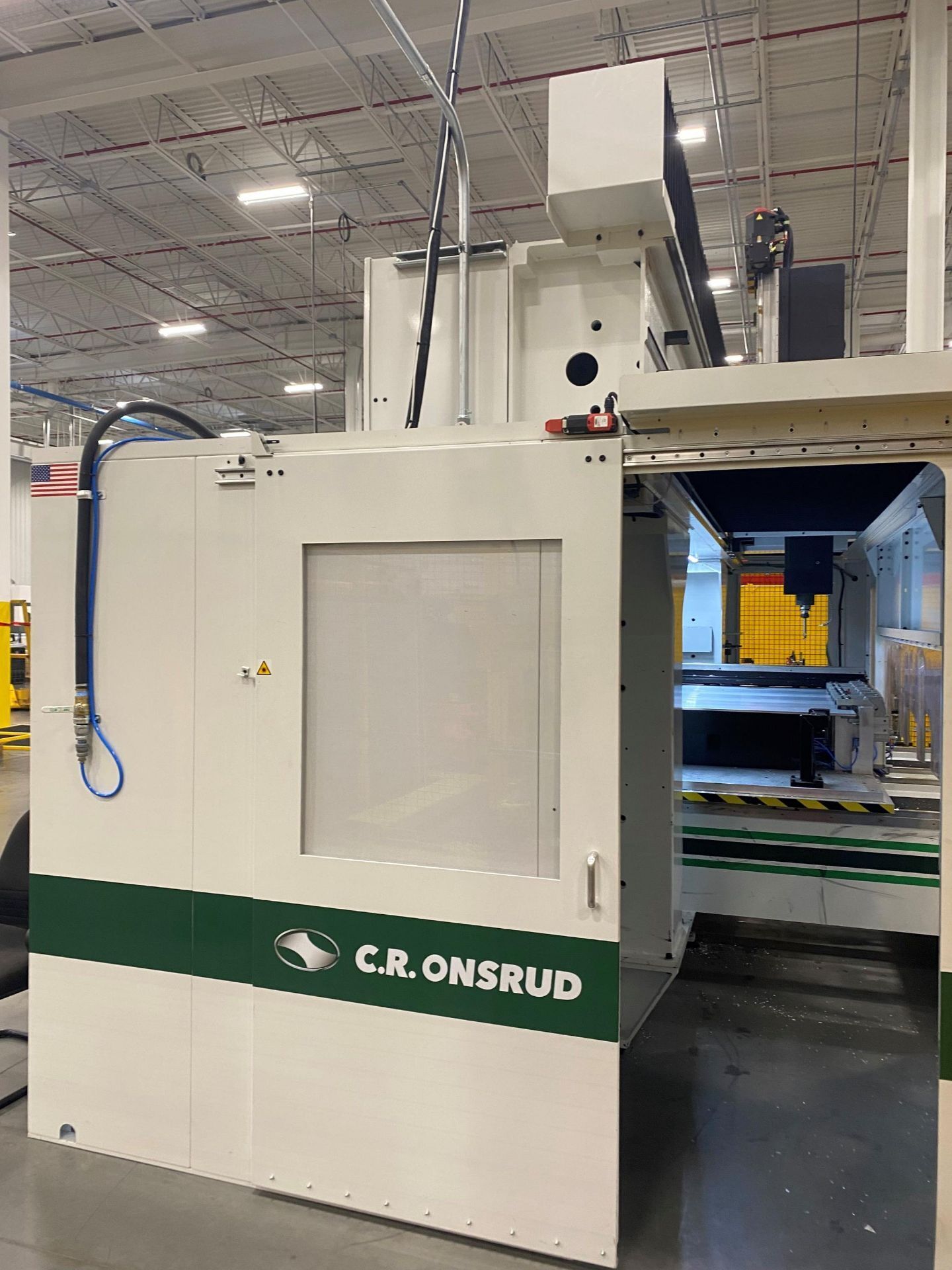

Machine Enclosure
- Steel-roof enclosure allowing full table travel
- Dual interlocked entry doors
------------------------------------------------------------
Extended Frame
- E-Series extended frame (+24")
- Allows full table travel while enclosed
- Requires 12' wide door for installation
------------------------------------------------------------
Additional I/O
- Additional I/O module for expanded machine functions
------------------------------------------------------------
Energy Chain Protection
- Flexible debris-resistant protective sleeve
------------------------------------------------------------
Machine Monitoring & Integration
- Robotic integration & automation hardware (PN-to-PN coupler; Anybus if used)
- Osync machine analytics: real-time data, OEE dashboards, diagnostics, alerts, predictive maintenance
- Control prep for robot: enables Fanuc robot communication features
------------------------------------------------------------
Enhancement Options
- RMI-Q RF receiver (compatible with Renishaw probing)
- Enhanced machine accuracy: laser precision alignment
- 3-axis laser compensation: bi-directional and straightness compensation (includes control activation)
------------------------------------------------------------
Auxiliary Options
- 3D CAD model for simulation (IGES/STEP)
- 3D CAD model for shop layout planning (IGES/STEP)
- Machine status stack light (4-color: green, yellow, red, blue)
------------------------------------------------------------
Tool Measurement System
- NC-4 laser tool setter
Automatic tool length & diameter measurement
Certain profiled tooling may require orientation adjustment
