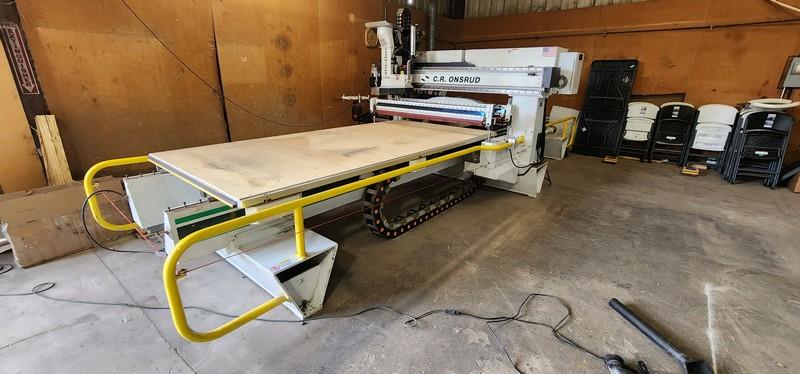

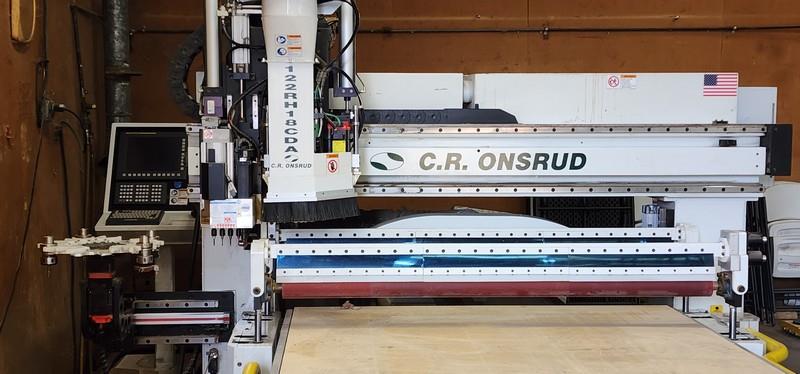

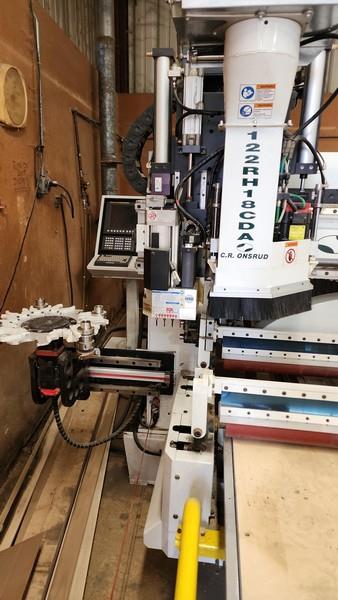

Onsrud #122RH18CDA, CNC Router w/Roller Hold-Down, 5' x 10' Work Envelope, 10 HP, 24000 RPM, 12-Tool ATC, 2017

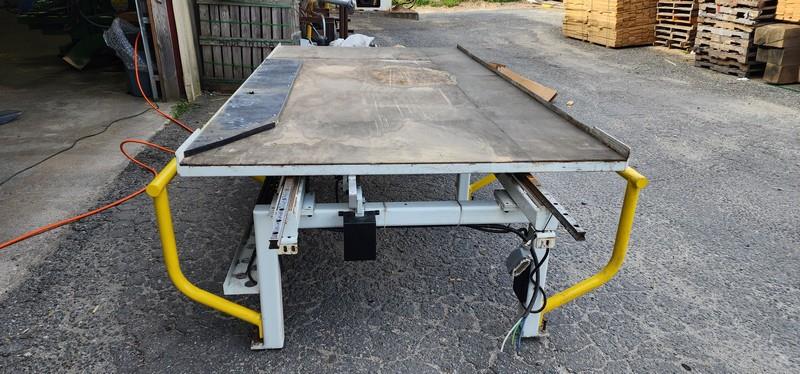

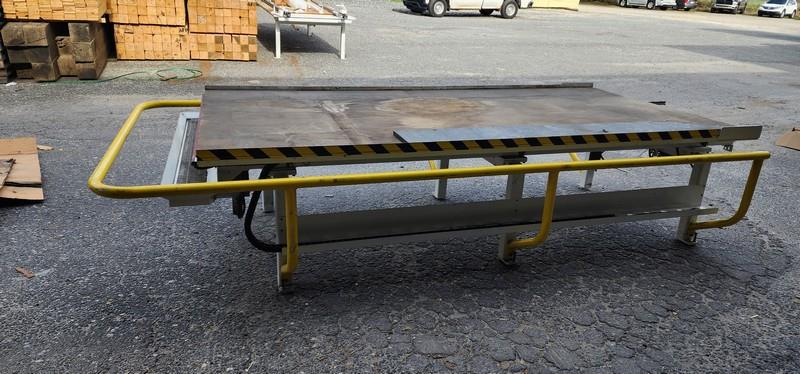

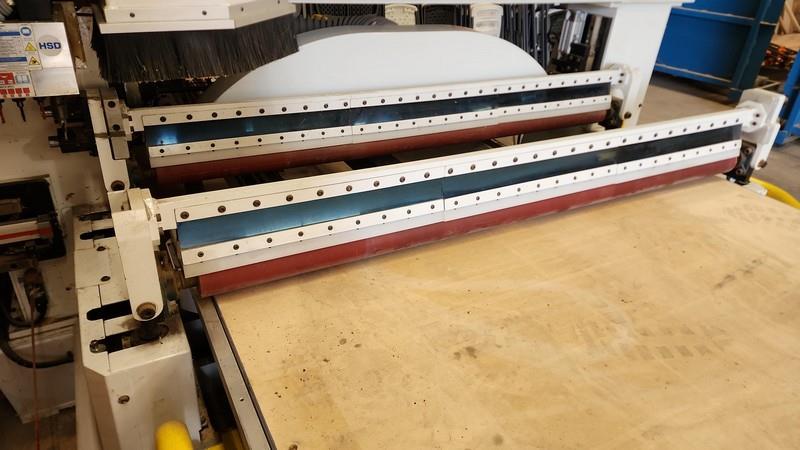

C.R. ONSRUD 122RH18CDA Roller Hold Down Series with Roller Hold-Down, Boring, ATC, "C" axis, Loading & Off Loading: 5 x10 - Work Envelope. Manufactured in the USA. Designed and engineered utilizing Finite Element Analysis. Fabricated base consisting of heavy steel construction, cast iron bridge and fabricated vertical supports. All structural components are stress relieved utilizing thermal heat treatment. -- Specifications:Fixed bridge design with single moving table allows for up to – 4,000 IPM programmable feed rates. and 1G of acceleration. High precision ball-screw drive for all axis movements. -- Aluminum Universal Vacuum Table System - Includes: 4"; intake manifold, high-capacity vacuum plumbing, high-flow 45mm wide waffle patterns, with Onsrud’s Unique High Flow Vacuum Inlets, to offer maximum vacuum airflow & absolutely minimal airflow restriction for excellent part holding. -- High Flow Vacuum Zone - Pneumatic Ball Valve, actuated via Push Button or PLC Controlled -- 10' x 5' worktable with, 11-inches of Z stroke - 14"; under bridge clearance & 11"; Z axis stroke. -- Table includes pressure sensitive safety stop “edge switch"; on front and rear. In addition, a 360-degree emergency stop cable surrounds the machine. Industrial machine control system with full 3D capability (multi-axis interpolation). -- Operator Interface:FANUC 0i Machine Controller System - Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High-Res touch screen. Fanuc 0i is not a PC with a control card but is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance. -- Full remote diagnostic troubleshooting capabilities. M-code controlled vacuum zones. Provided with 4-port network hub. Network capability, FANUC Digital Drives & Servos. Air-Conditioned Electronics Cabinet. -- Machining:18 HP Spindle - 4-Pole, 13.5kW, 18HP – 24,000 RPM fully programmable & reversible, variable speed, HSK 63F tool interface, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates w/override capability. -- (1) 12 Tool - Dynamic Automatic Rotary Tool Changer - Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools. -- C-Axis Ability for Use with Aggregates - Adds a continuous rotation, rotational C-axis to Aggregate Tool Changer & Capability. Includes Aggregate Anti-Rotation Spindle Adapter Ring Option. -- Boring:9 Spindle Drilling Block Package - (Multi-Spindle Line Drills) Includes 9 independent or simultaneous firing. Vertical spindles arranged to drill up to 5 holes at a time in the X axis or 5 holes at a time in Y axis. -- Features:Roller Hold Down Option - 2 Rollers on each side of the cutting spindles, automatically extend & retract as rollers roll off cutting table, for holding down warped sheet stock such as low-grade plywood. Each roller’s pressure can be r
