1 / 3
Click to zoom in
1 / 3
For Sale by Cleveland Machinery Sales Inc
Surplus Record Dealer Since 1984
Location: Cleveland, OH
Contact Frank Petitt
Phone Number: 216...> Show Phone Number 216-741-8900
Let the seller know you found their listing on Surplus Record!
Description
Machine Height 10' 6"
Net Weight 13,227 lbs.
Electrode Holder Travel 15 3/4"
Maximum Weight of Electrode 2,200 lb.
Max. Distance between Electrolholder/Table 43 1/4"
Carriage - Longitudinal Travel X 59"
Carriage - Transverse Travel Y 39 1/4"

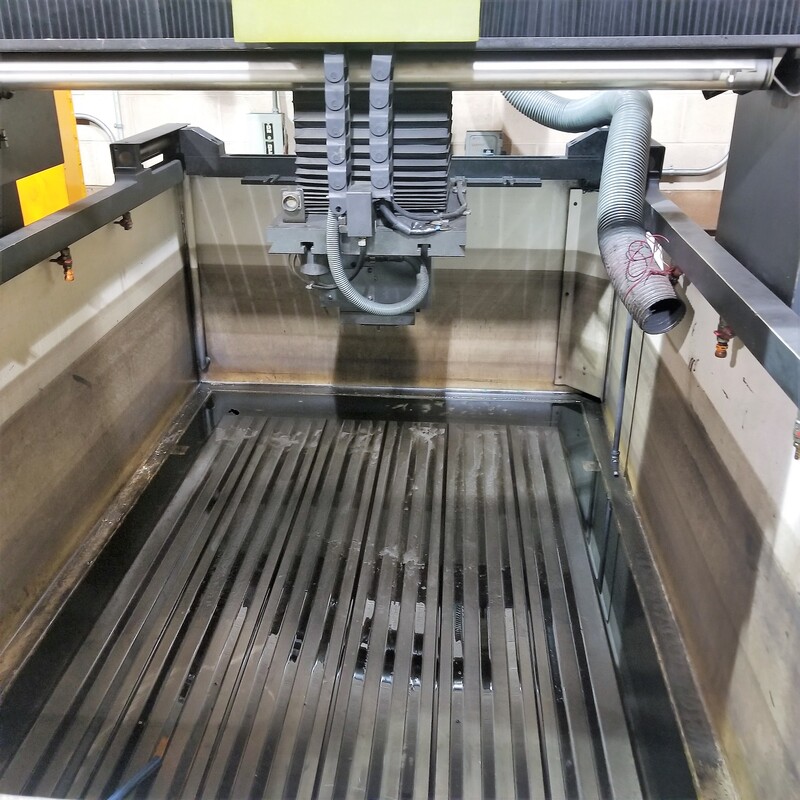

Table - Dimensions of Worktank 98 1/4" x 59" x 33.6"
Table - Dimensions of Table 78 3/4" x 46 1/2"
Table - Admissible Weight on Table Approximately 22,000 lbs.
Net Weight 13,227 lbs.
Electrode Holder Travel 15 3/4"
Maximum Weight of Electrode 2,200 lb.
Max. Distance between Electrolholder/Table 43 1/4"
Carriage - Longitudinal Travel X 59"
Carriage - Transverse Travel Y 39 1/4"
Table - Dimensions of Worktank 98 1/4" x 59" x 33.6"
Table - Dimensions of Table 78 3/4" x 46 1/2"
Table - Admissible Weight on Table Approximately 22,000 lbs.
Get Your Price from Cleveland Machinery Sales Inc!
