Omron DIN Rail Power Supply S8VK-S12024

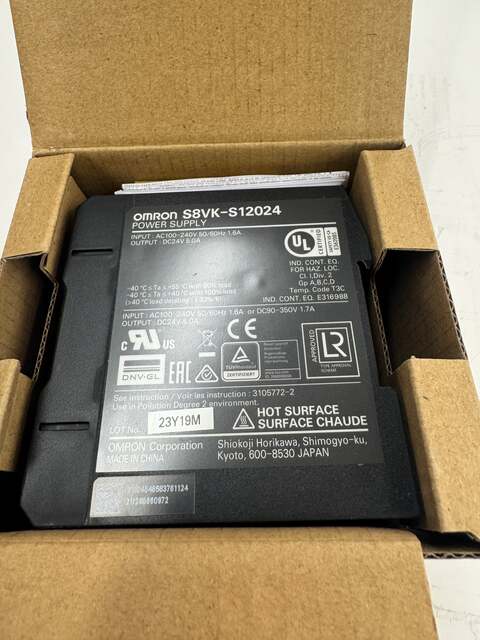

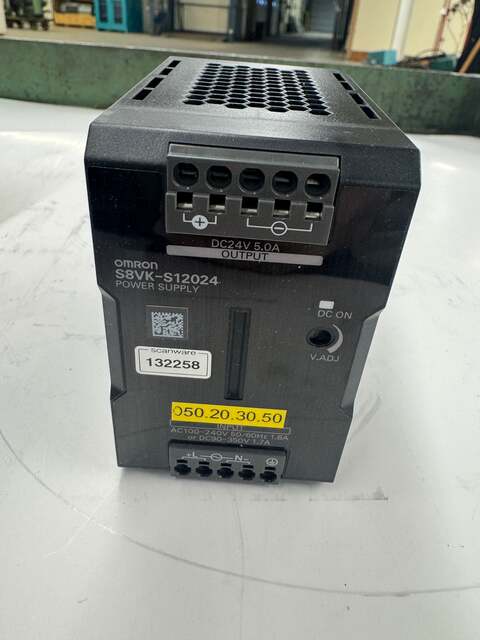

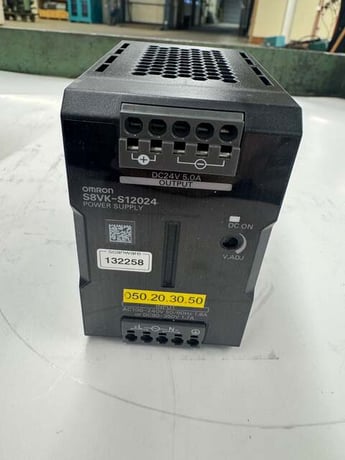

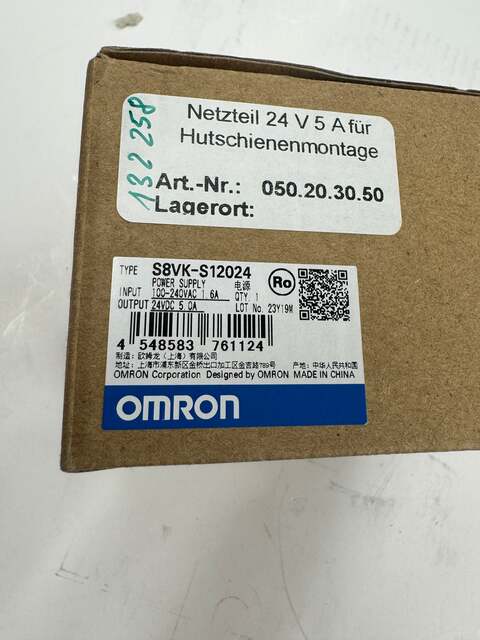

The Omron S8VK-S12024 is a compact DIN rail mounted switching power supply rated at 120W with a 24VDC, 5.0A output. Input accepts AC 100 to 240V at 50/60Hz, 1.6A, or DC 90 to 350V at 1.7A, making it compatible with a wide range of single-phase AC or DC supply environments. Output terminals are push-in type for tool-free wiring. The unit features a voltage adjustment trimmer (V.ADJ) and a DC ON status indicator LED on the front face. Temperature rating spans minus 40 degrees C to plus 55 degrees C at 80% load, and minus 40 degrees C to plus 40 degrees C at full load, with a derating factor of 1.33% per degree K above 40 degrees C. Certifications include UL, CE, DNV-GL, EAC, and TUV Rheinland. Rated for industrial continuous equipment (IND. CONT. EQ.) use in hazardous locations Class I, Division 2, Groups A, B, C, D, Temperature Code T3C per nameplate. Part number S8VK-S12024. Lot number 23Y19M. Machine builder article reference 050.20.30.50, internal lot reference 132258. Unit is presented in its original Omron retail packaging.

Stock # 0326-1160
