Description

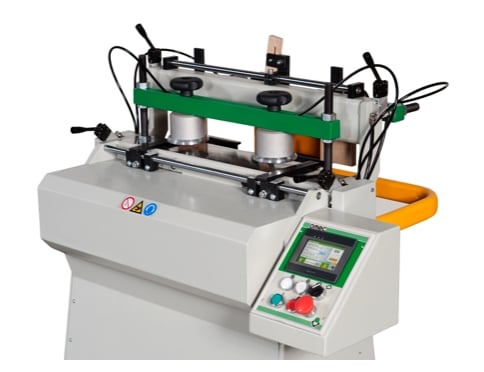

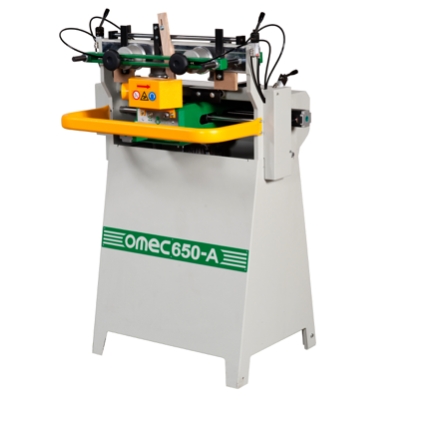

- Omec Model 650A Automatic Dovetailer
- Technical Data:
- On board machine installed power: 2.33 HP
- Working pressure Mpascal: 0.7
- Number of spindles: 1
- Spindle revolutions: 16,500 rpm

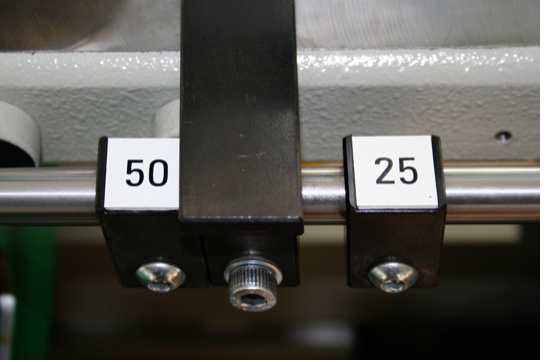

- Center to center of indents: 25mm & 50 mm
- Dovetail production: 40 boxes per hour
- Speed, variable 0-2000 mm/minute
- Workpiece Limits
- Lengths: Min. 200mm Max. 1500mm
- Width: Min. 60mm Max. 400mm
- Indent Height: Min. 8.5mm Max. 16mm
- Front Thickness: Min. 8mm Max. 60mm
- Side Thickness: Min. 7mm Max. 25mm
- Standard Equipment
- Integral Width cutter installed on the machine in HM (carbide)
- Tool kit for adjustments and maintenance
- User's and instruction manual
- Pneumatic clamps
- Servo/ballscrew driven X & Y axis movement
- Dual zone machining areas
- Dust collection port
- Solid carbide tooling
- Programmable TouchScreen CNC control to regulate the number of joints, depth of grooves, height of pins, speed of cut, tool compensation, as well as placement of the joint
- Fine tuning of the fit to be saved for later recall
- All parts are loaded from the front without the need of accessing the back of the dovetailer with the exception of maintenance
