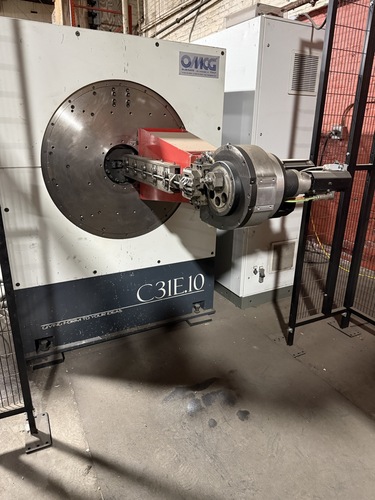

OMCG #31-E10, CNC Wire Bending Machine, Wire Straightener, Decoiler, 2019

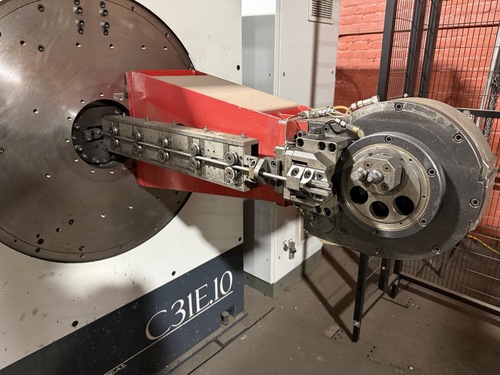

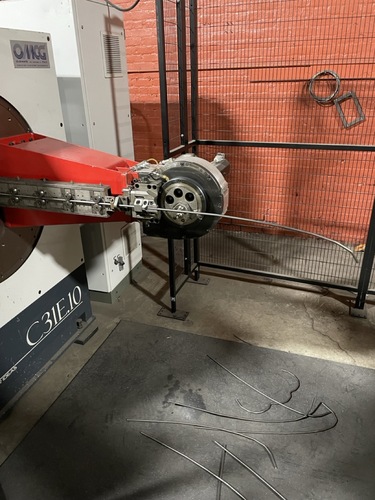

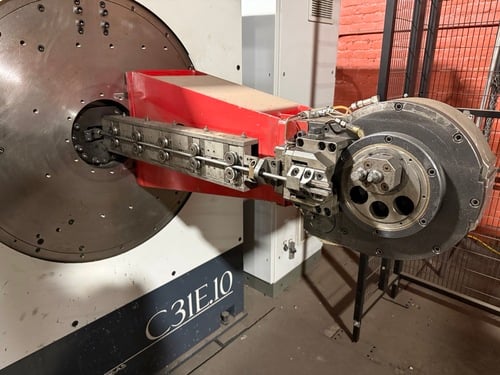

Mechanical & Operational Specs
Wire diameter (steel/stainless steel): 0.12–0.39”
Tube Ø × thickness (steel/stainless steel) max.: 0.39 × 0.08”
Nominal tensile strength: 600 N/mm²
Axes: 5
Max bending radii (on mandrel): 2
Max bending radii (on insert): 2
Radius change: Electric
Max flat frame side length: 29.92”

Feed Axis (X)
Material feed length: 0 to infinity
Feed precision: ±0.004”
Max feed speed: 456 ft/mi

Bending Axis (Y)
Bending precision: ±0.2°
Bending time (90° bend): 0.4 s
Bending time (180° bend): 0.6 s
Radius generation: Available
Rotation: ±166°
Wire guide arm length: 33.46”

Rotating Platform Axis (Z)
Precision: ±0.2°
Max rotation angle: +180° / –160°
Max rotation speed: 424°/s

Eccentric Bend Center Axis (B)
Axis rotation: R30

Power, Dimensions & Weight
Electrical supply:
US: 208–480 V, 3‑phase, 60 Hz
Total installed power: 28 kW
Required power: 12 kW
Average consumption: 7 kWh
Compressed air requirement: 90 psi (6 bar) @ 100 NI/min
Dimensions (L × W × H, incl. guards & straightener): 201” × 104” × 71”
Weight: 9039 lbs

Equipped With:
OMCG 4FA Wire Straightener D 4–10 mm (10+10 rolls OD 55 mm)

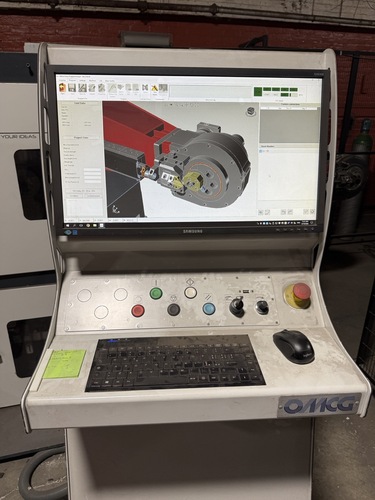

Easy Programming 4 software
Safety guards with door and safety switch standard
Set of maintenance tools and wrenches
OMCG | 220 V 25KVA three-phase transformer (with cover)

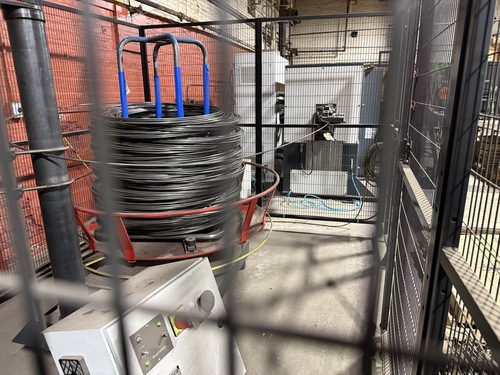

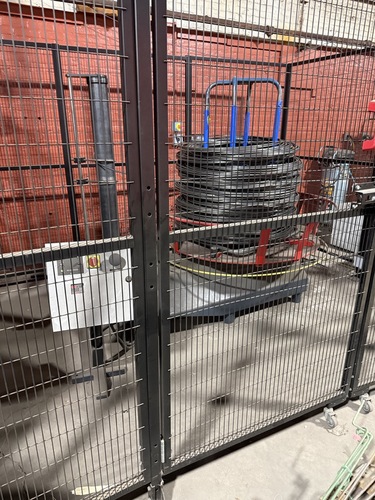

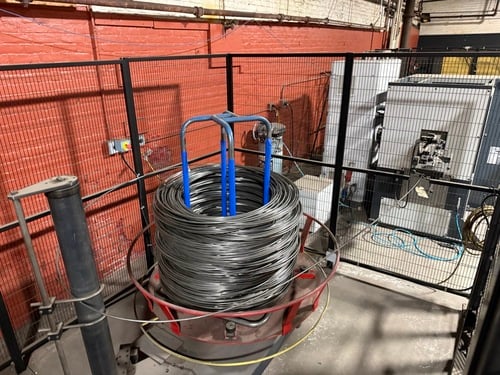

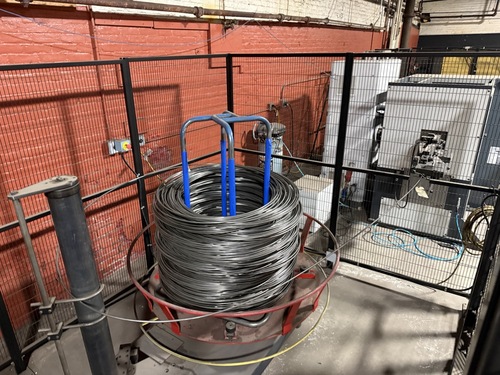

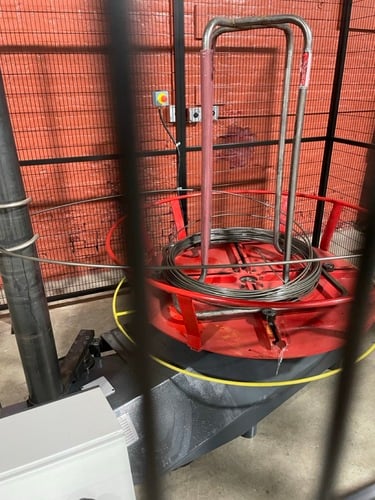

OMCG SM02 Motorized Decoiler/Payoff 2200 kg (4850 lb)
Safety guards with doors and safety switch
Tooling Available
