Omax, Laminar filter, CLS, gravitational, sediment pump, sediment rake, splash diverter

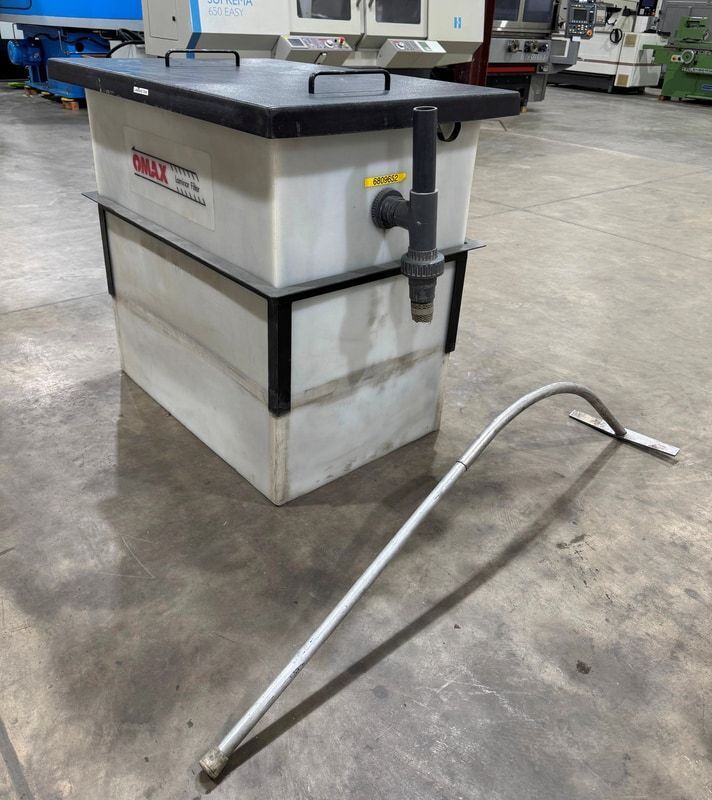

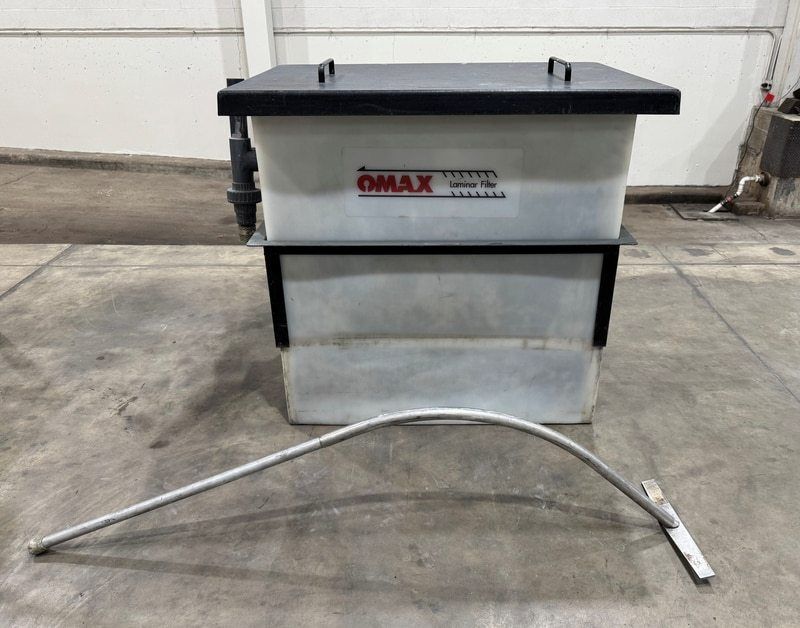

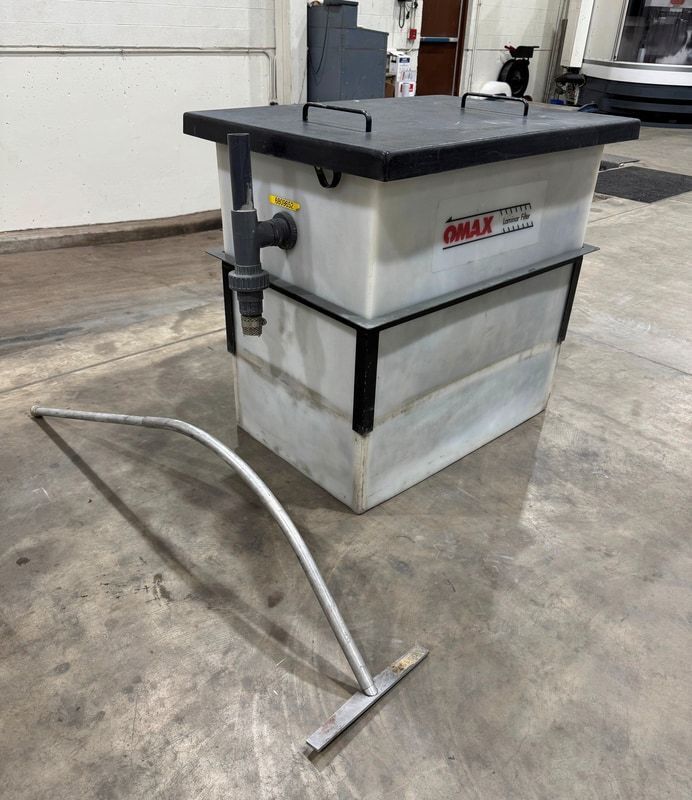

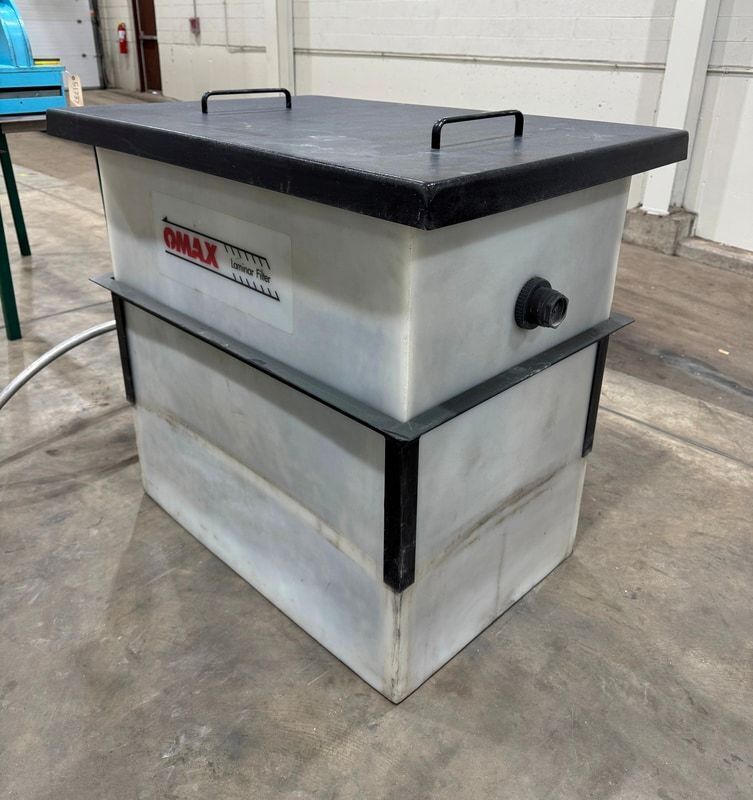

"This settling tank efficiently cleans overflow water from the Catcher Tank for required recycling through a Closed Loop System (CLS) or for environmental disposal. When water enters the OMAX Laminar Filter, an ideal gravitational filtering process begins in the unit. The accessory contains angled plates that organize waterflow in a slow moving laminar manner. Small, lightweight particles fall a short distance before contacting the plates, where they stick together and are trapped. Clean water exits to a CLS or a disposal drain while sediment falls to the bottom of the tank, where routine removal is made easy with the integrated sediment pump system."
~ From OMAX Literature
SPECIFICATIONS:
Construction............Rust Proof
Submersible Sediment Pump:
- Power............1/4 HP
- Electrics............120V/1Ph/60Hz
Dimensions - Actual............41"L x 30"W x 40"H
Weight - Approximate............200 Lbs.
EQUIPPED WITH:
New In Box - Submersible Sediment Pump
Hoes for Submersible Sediment Pump
Sediment Rake
Splash Diverter

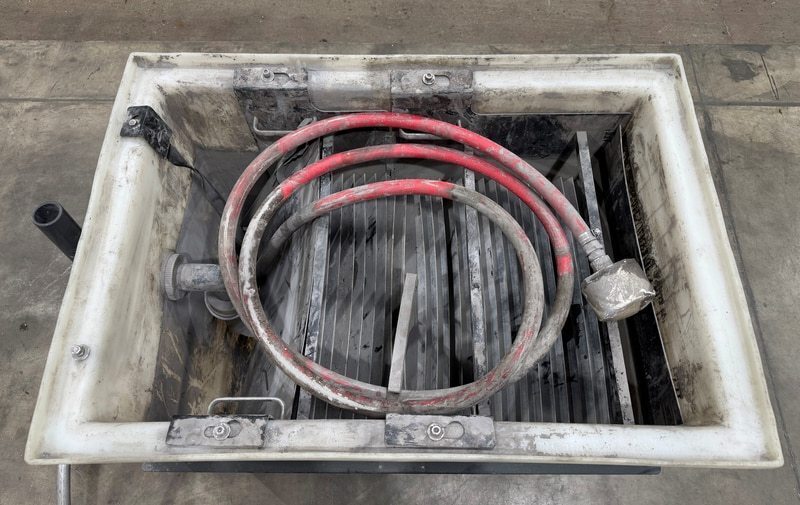

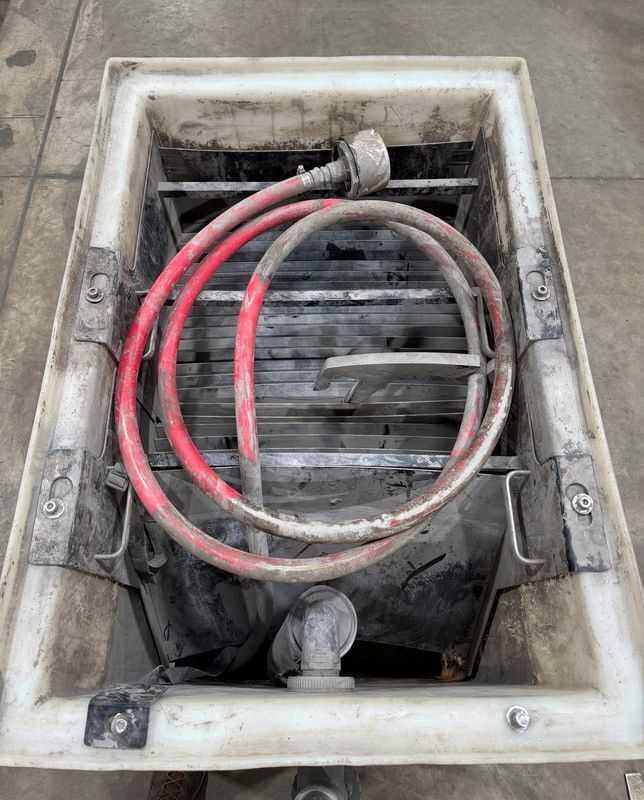

Angled Filter Plates
Removable Module for Angled Filter Plates
*Preliminary Specifications, Pending Confirmation
