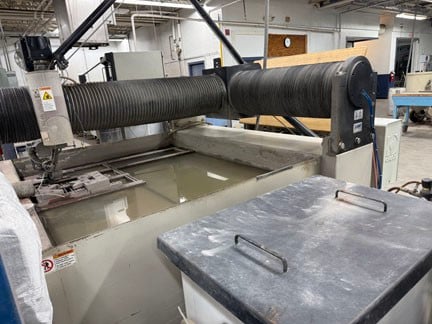

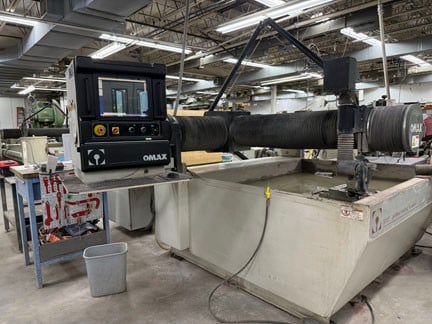

Omax #5555, precision waterjet, 50 HP, 4' x 4' table, 2013

Used OMAX Model 5555 Precision WaterJet

With Omax 50 HP Variable Frequency Drive Pump

Manufactured - 2013, Approximate Hours 8,800

MACHINE CONFIGURATION

Table Size: 65” W x 80” L

Cutting Capacity: 55” x 55”

Table Weight Capacity: 250 Lbs/Sq Ft

Machine Slat Height: 4”

Machine Weight Empty: 6,300 Lbs.

Operating Weight: 13,000 Lbs.

Machine Height: 118”

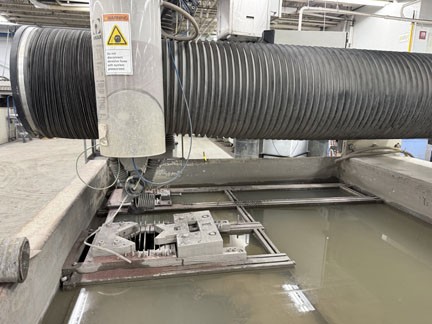

NOZZLE CONFIGURATION

Jewel: .014” - .016” Orifice

Mixing Tube: .030” - .042” Carbide Ceramic

Garnet Flow: .75 - 1.8 Lbs/Minute

DRIVE SYSTEM

Closed Loop Digital Drives

Brushless AC Servo Motors

Pre-Loaded Ball Screws, Linear Bearings, Hardened & Ground Ways

Round Bellows Completely Enclosing Each Axis

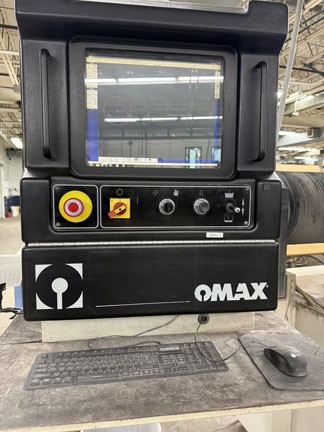

CONTROL

PC Based Control

Windows Software

Omax Full Integrated CAD/CAM Software

Select Multiple Home Positions

Import Over 40 File Formats

Full Material Library

6 Cut Qualities

Heads Up Traversing

Array Nesting

Auto Tool Path Generation

Material Stack Height Calculator

Intelli-Trace – Dynamic Pierce, Corner Passing, Tilt Forward Automatic Functions

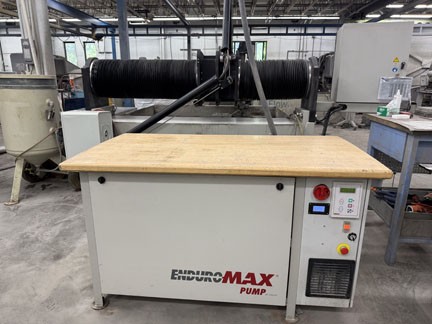

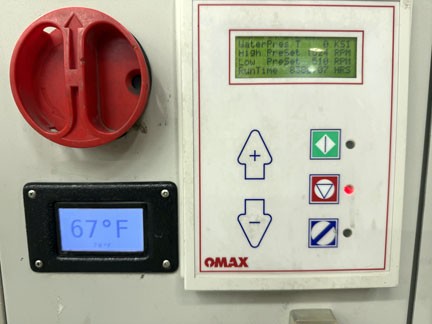

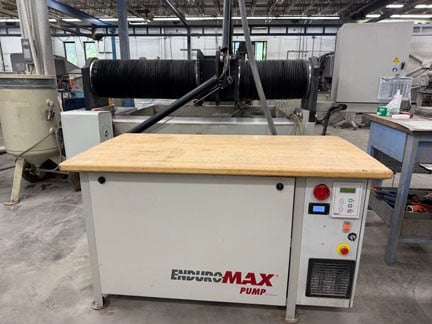

PUMP

Omax 5060 50 HP EnduroMax Pump 3/60/460 Volt

Variable Frequency Drive Pump

High/Low Pressure Pierce/Cut for Soft & Brittle Material

Less Electric & Water than Intensifier Pump

Easy to Maintain

EQUIPPED WITH:

-Tilt-A-Jet Taper Compensation Head

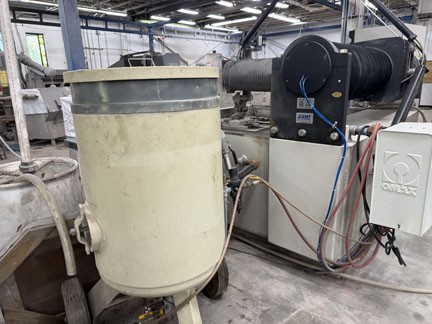

-600 Lbs Garnet Hopper

-Water Level Control

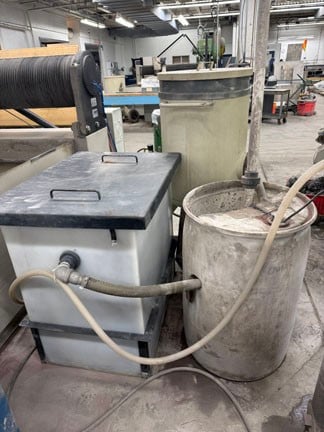

-Drain Water Laminar Filter

Location: In Plant, VT

Terms: Payment Prior to Shipment

OPTIONAL Installation, Setup, Training, Maintenance (Not included in price)

• We have over 28 years of Omax waterjet experience with (5) factory trained technicians on staff. We can offer setup & training on the machine, additional factory accessories, preventative maintenance, and factory parts. We can customize a program around an individual’s need.

One thing we do different than any other used machinery dealer in the country, we actually bring in used Omax & Maxiem waterjets, tear the machines down, and fully recondition them. (Many dealers just clean, slap on a coat of paint if necessary, and get things working). We start with the base tank and build our way back up cleaning, painting, reconditioning/repairing/replacing, bringing each component into tolerance until we have a complete machine which is as close as you can find to a new machine in tolerance. It takes more time, a lot more effort, and more expense, but the end result is well worth it.

• Preventative Maintenance: Yearly Maintenance, Pump rebuilding, Machine cutting issues resolved
• Machine Laser Calibration
• Operator Training equal to New Machine Purchase
• Over $250,000 in Omax Parts in Stock – St. Louis, MO
