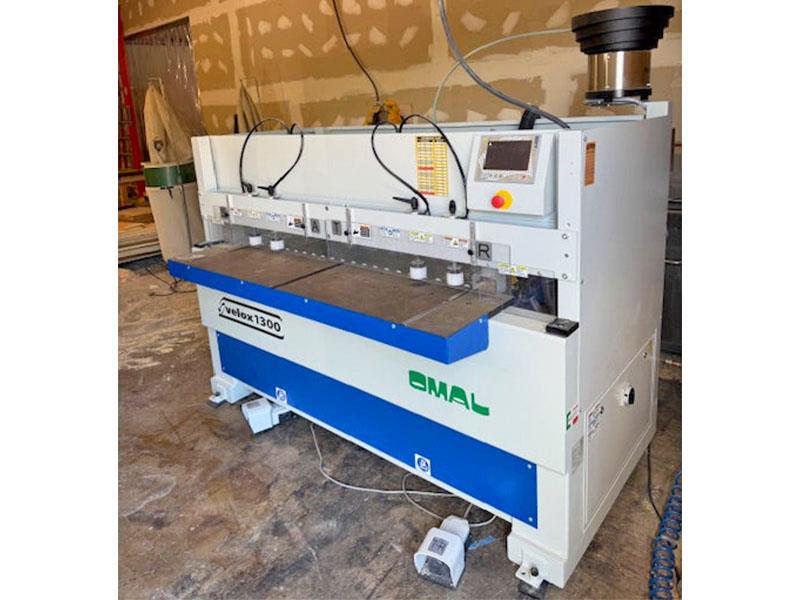

Omal #Velox-1300, CNC bore, glue & dowel inserter, PLC Control, 2023

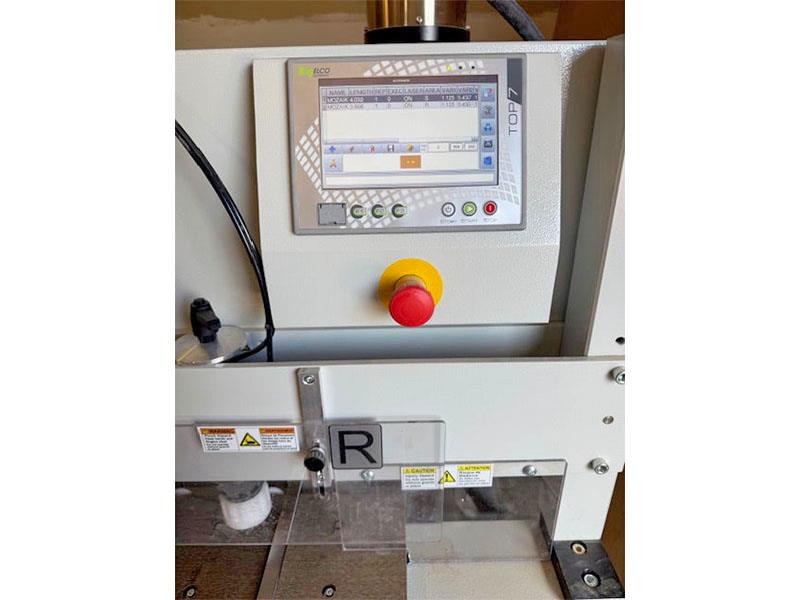

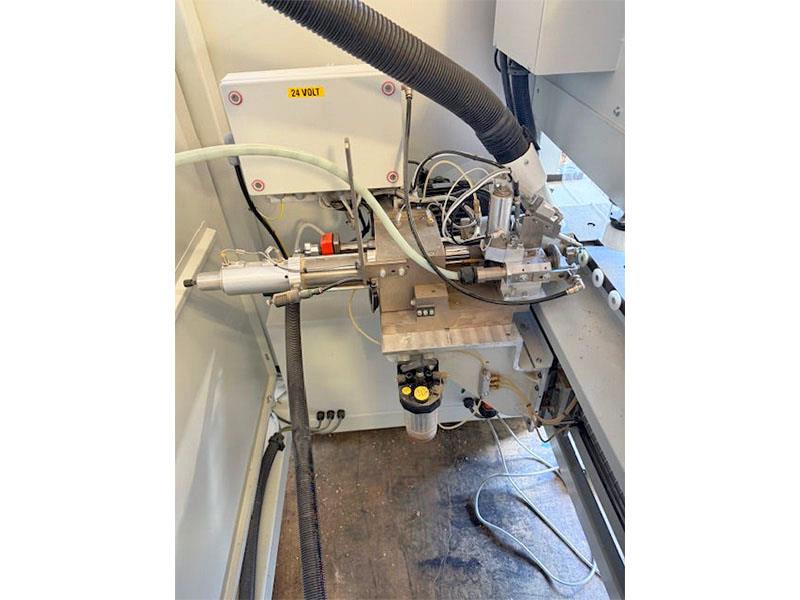

OMAL - VELOX 1300: CNC Bore, Glue & Dowel Inserter + Optional Laser Measuring Device SpecificationsPLC Controlled automatic step-by-step: Boring, glue injection, & dowel insertion into: Panel components, drawer parts, chair pieces, etc. at random spacing. Features"Optional" Auto Laser measuring device with: Parametric Control & Touchscreen PLC Control. Working Capacity51" (1,300 mm) In "X" Axis work area; 1.57" "Y" Axis stroke with: Manual depth setting; 1.57" "Z" Axis stroke with: Manual vertical settings. -- 10 mm - 30 mm (0.39" - 1.18") Material thickness capacity in the "Z" axis. -- Machine is currently set up for: 8 mm Dia. x 30 mm long max. dowel dimension.Work Areas(2) Loading zones with: Cycle time of (1) second for each bore, glue & dowel insertion when holes are on 32 mm intervals. -- Equipped with: Brushless motor; ball nut & ball screw for quick positioning.Dowel InserterOMAL "SURE SHOT" Revolver System guarantees: Dowel is inserted every time. (1) Dowel insertion unit with: 8 mm Diameter dowel capacity. -- Standard dowel dimension: 8 mm x 35 mm; max. dowel length: 40 mm; max. dowel projection: 14 mm.Operator InterfaceTouchscreen control for: Writing & storing programs and is programmable in the "X" Axis. -- Graphics programming 2.5 D with: Simultaneous working display; automatic mirror image (left & right) programming; parametric programming; graphical aid.Internal self-diagnosis; historical report of alarms. Complete with:(2) Working zones: (1) Horizontal drilling unit; (1) gluing; (1) dowel insertion unit.(1) 8-Liter cap. high pressure Glue Tank; (1) 8-liter cap. Water Tank (for cleaning); (1) vibratory Dowel Hopper; (4) pneumatic holddown Clamps; dual foot pedal controls. -- Actual Model: OMAL - VELOX 1300
