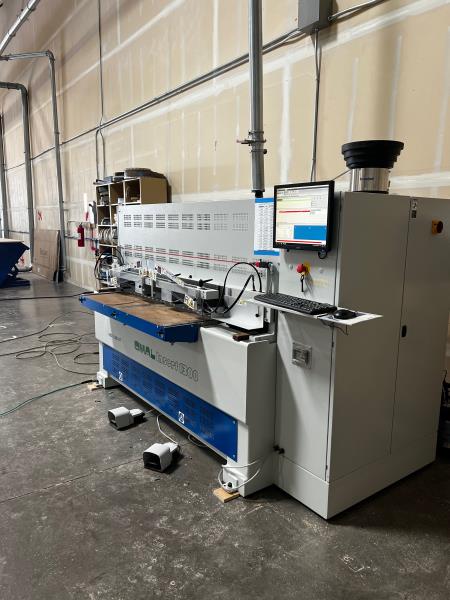

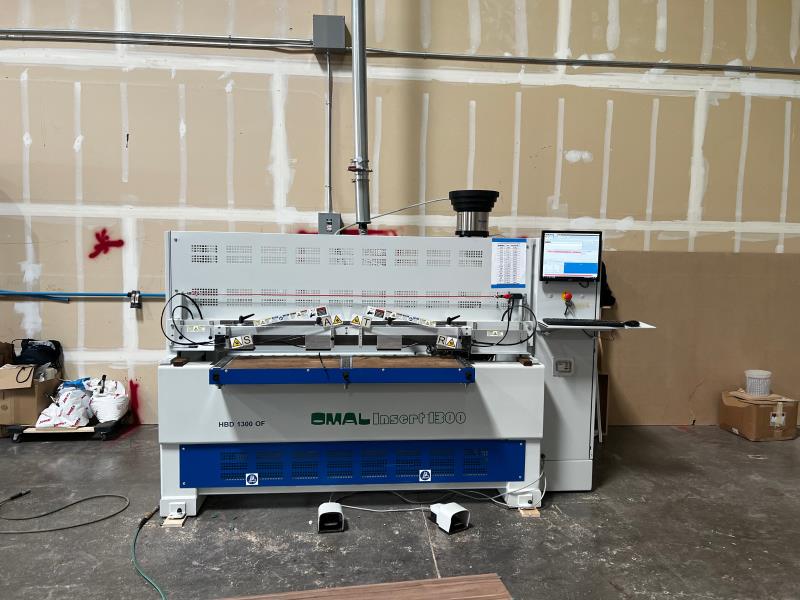

Omal #HBD-1300, CNC bore glue & dowel inserter, PLC Control, 164 FPM, 14.5" diameter vibratory dowel hopper, (4) 2.75" x 5.5" pneumatic holddowm clamps, 2020

OMAL - HBD 1300: CNC Bore, Glue, and Dowel Inserter -- SpecificationsPLC Controlled automatic step-by-step; boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc., at random spacing. -- Positioning Speed: Carriage travel speed: 164 FPM (50 MPM).Equipped with: Brushless motor; ball nut, ball screw for quick positioning. -- Working Capacity1,300 mm (51.18") In the X-Axis work area; 1.57" Y-Axis stroke with: Manual depth setting; 1.57" Z-Axis stroke with: Manual vertical settings.10 mm - 30 mm (0.39" - 1.18") Material thickness capacity in the Z-Axis. -- Work Areas15-1/2" x 50" x 33-1/2" H Table; (2) 23-1/2" loading zones with: Cycle time of (1) Sec for each: Bore, glue, & dowel insertion when holes are on 32 mm intervals. -- Working Units2-Spindle Drill Head & (1) dowel Insertion unit with: 8 mm Dia. dowel capacity.Standard dowel dimension of: 8 mm x 35 mm; max. dowel length: 40 mm; max. dowel projection 14 mm. -- Operator Interface17" Touchscreen control for: Writing & storing programs; programmable in the X-axis.2.5 D Graphics programming with: Simultaneous working display; automatic mirror image (left & right) programming; parametric programming; graphical aids.Internal self-diagnosis; historical report of alarms. -- Complete with:(1) Electronic control programmable gluing unit; (1) dowel insertion unit; (1) 2-gal. (8-liter) cap., high pressure glue tank; (1) 2-gal (8-liter) cap. water tank (for cleaning).(1) 14-1/2" Dia. vibratory Dowel Hopper; (4) 2-3/4" x 5-1/2" pneumatic holddown clamps; dual foot pedal controls. -- Actual Model: OMAL - HBD 1300
