Description
Okuma and Precihole Automated Barrel Cell - for Deep Hole Gun Drilling

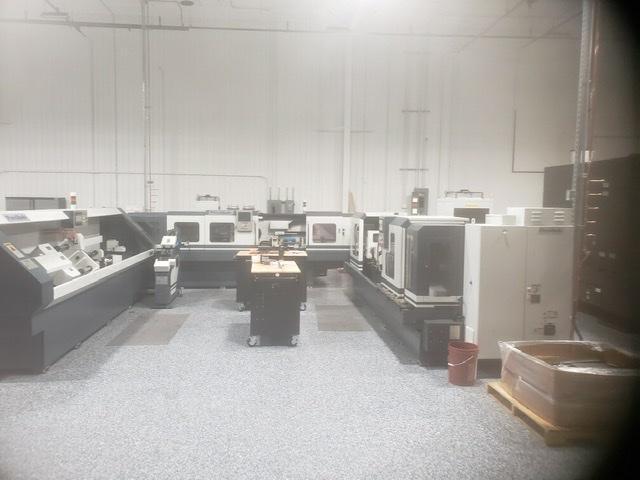

Okuma & Precihole Automated Barrel Cell with Deep Hole Gun Drilling
New: 2021
Step 1: Incoming Inspection
Hardness Gauge
Step 2: Gun Drilling:

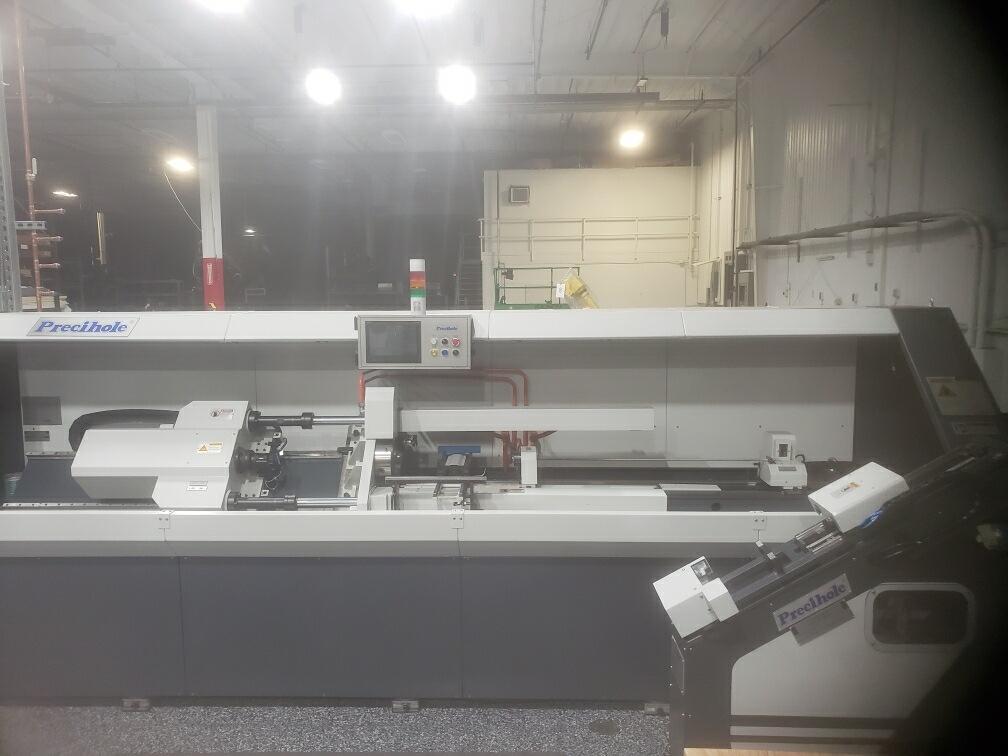

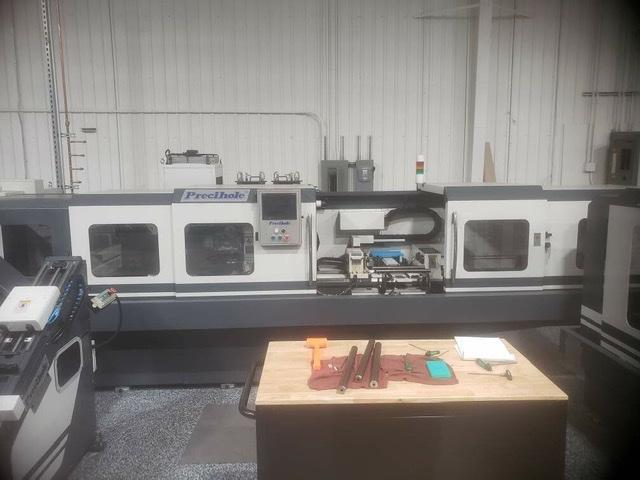

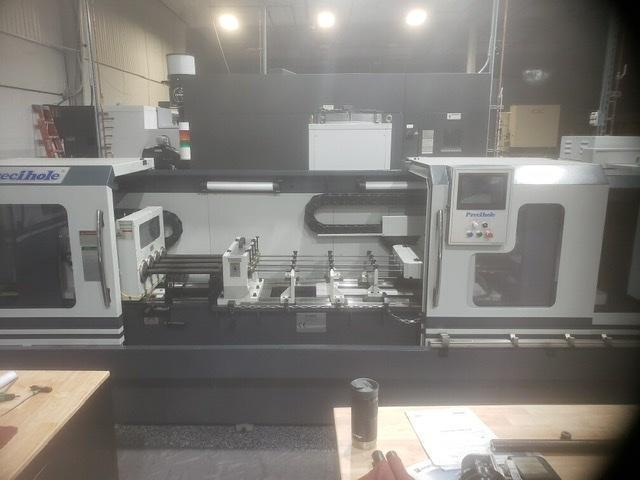

Precihole GVN 12C/4 600
Step 3: Reaming
Precihole PRVN12/2-600
Step 4: Rifling
Precihole BRVN 12/1-600
QA Rifling
Keyence Camera, Air Gauge Control, Air Gauges
Step 5: OD Turning

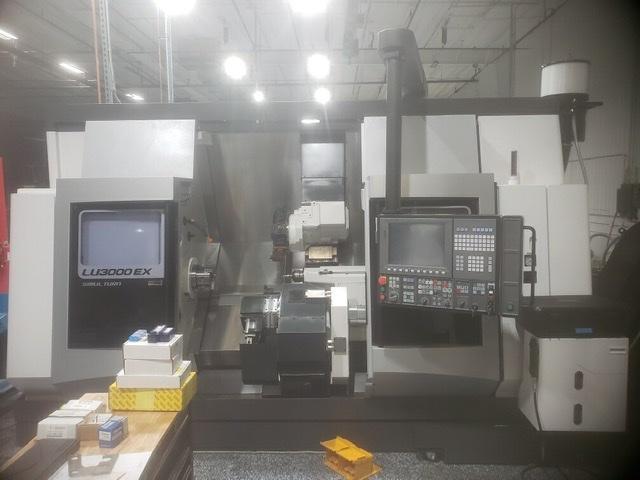

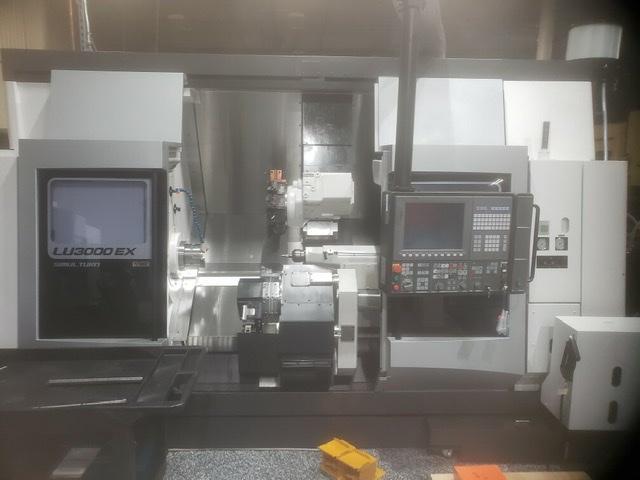

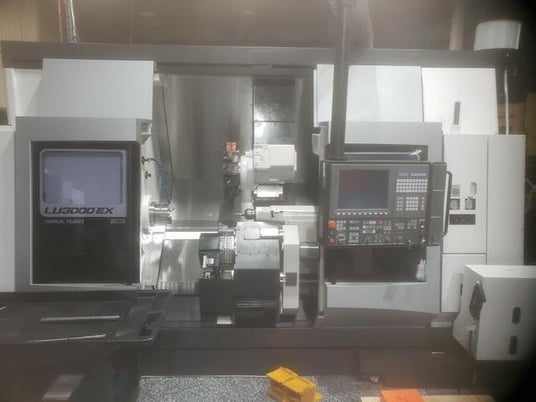

Okuma LU3000 x2
QA OD Turning
Vici Vision
Step 6: Feed Ramps

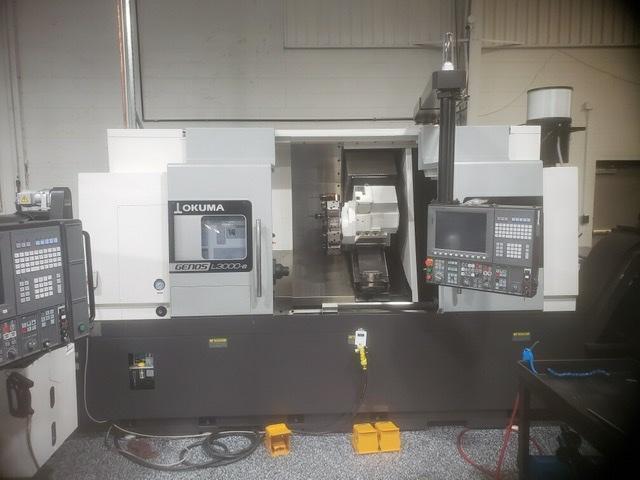

Okuma L3000
QA Feed Ramps
Go/No Go Gauging + Surface Finish Gauge

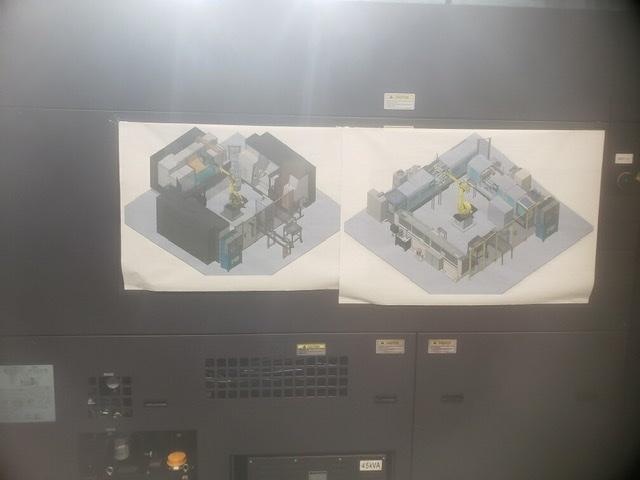

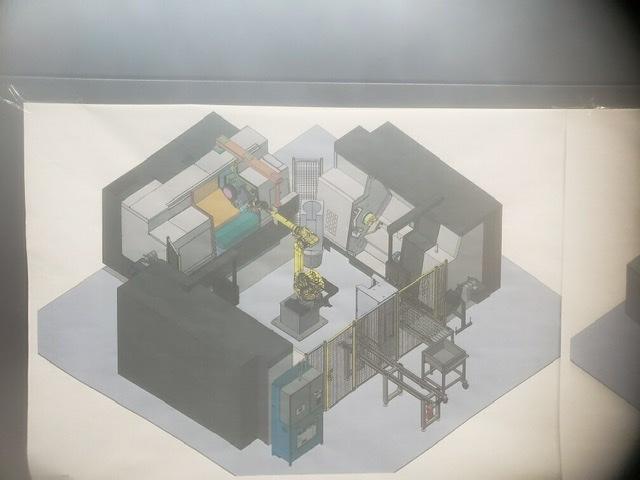

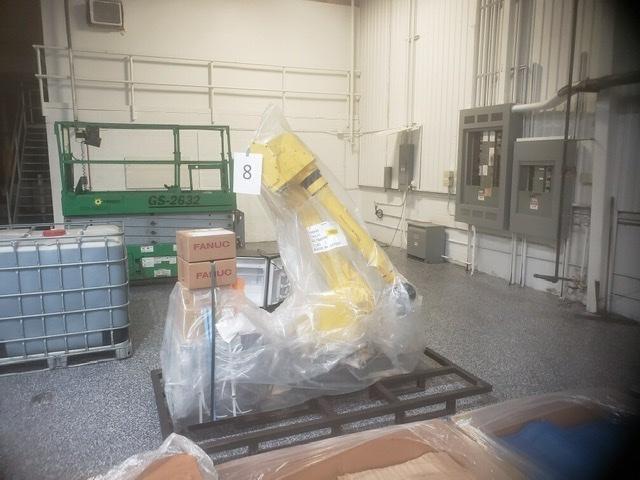

Automation:
QA Automation Step 4 Rifling
QA Automation Step 5 OD Turning
Cost as built:
Total Manual: $2,024356.25
Total Automation: $655,925.00
Grand total: $2,680,281.25
Okuma & Precihole Automated Barrel Cell with Deep Hole Gun Drilling
New: 2021
Step 1: Incoming Inspection
Hardness Gauge
Step 2: Gun Drilling:
Precihole GVN 12C/4 600
Step 3: Reaming
Precihole PRVN12/2-600
Step 4: Rifling
Precihole BRVN 12/1-600
QA Rifling
Keyence Camera, Air Gauge Control, Air Gauges
Step 5: OD Turning
Okuma LU3000 x2
QA OD Turning
Vici Vision
Step 6: Feed Ramps
Okuma L3000
QA Feed Ramps
Go/No Go Gauging + Surface Finish Gauge
Automation:
QA Automation Step 4 Rifling
QA Automation Step 5 OD Turning
Cost as built:
Total Manual: $2,024356.25
Total Automation: $655,925.00
Grand total: $2,680,281.25
Get Your Price from Machnet!
