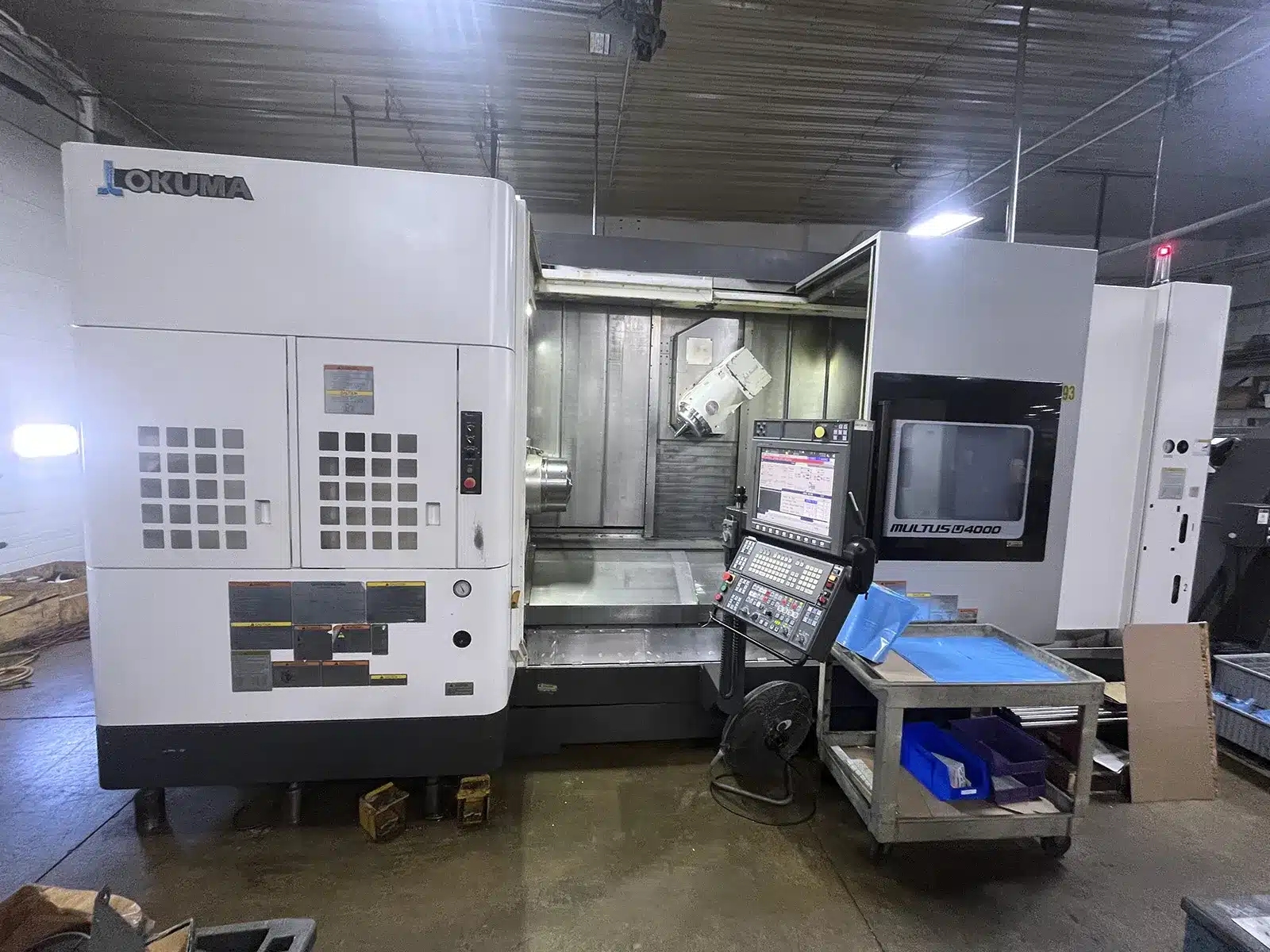

Okuma #Multus-U4000-2SW/2000, OSP-P300S Control, Big Bore A2-11 main spindle, Capto C6, 2015

2015 Okuma Multus U4000 2SW/2000

machine specifications
Control: Okuma OSP-P300S
Main Spindle
Spindle Nose:A2-11
Maximum Speed: 3,000 RPM
spindle power: 22 HP (continuous) / 43 HP (30-minute)
Spindle Bore (Big Bore): 4.41″
Sub-Spindle: A2-8
Maximum Turning Diameter: 25.6″
Maximum Turning Length: 78.7″
B-Axis Milling Head:
B-axis range: -30° to +210°
Milling Spindle Speed: 12,000 RPM
Axis Configuration: 8-Axis / Simultaneous 5-Axis Machining
AUTOMATIC TOOL CHANGER: 80 Tools – Capto C6
Machine Construction: Heavy-duty box-way design for high-torque cutting

machine equipped with
Big Bore A2-11 Main Spindle
5-Axis Machining Package
NC B-Axis Contouring
C-Axis Synchronization
Lower Turret Milling Function
Negative Tool Radius Compensation
Lathe Tool Indexing – Multi-Edge
Z-Axis Auto Zero Offset
C-Axis Auto Zero Offset
Hydraulic Oil Temperature Regulator
Rapid Traverse Override Switch
80-Station ATC – Capto C6 (with Barfeeder Cover)
Renishaw RMP60 Automatic Part Probing
Touchsetter
Used Tool List Display
