Manufacturer: Okuma
Model: MA-600HII
Year: 2018
Automatic Tool Changer: 110
Longitudinal" X: 39.3
Cross" Y: 35.4
Vertical" Z: 39.3
RPM: 6000
Stock # X3X3969
1 / 10
Click to zoom in
1 / 10
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

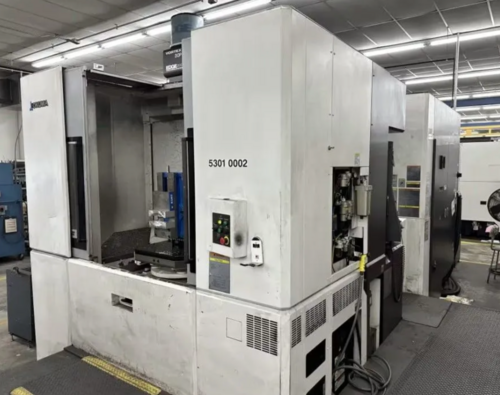

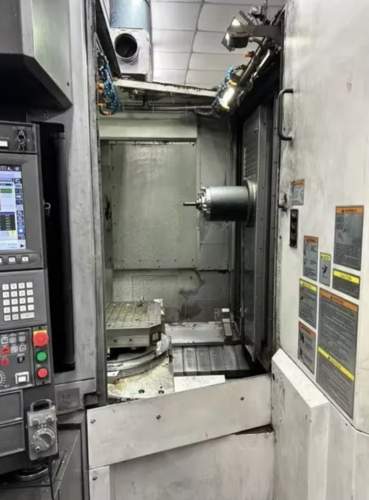

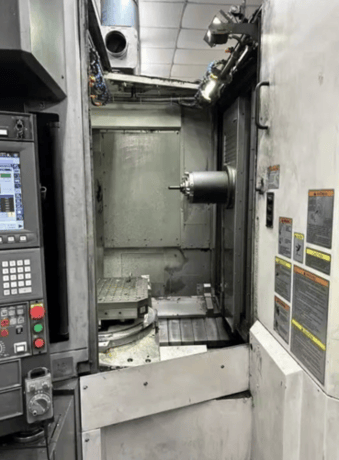

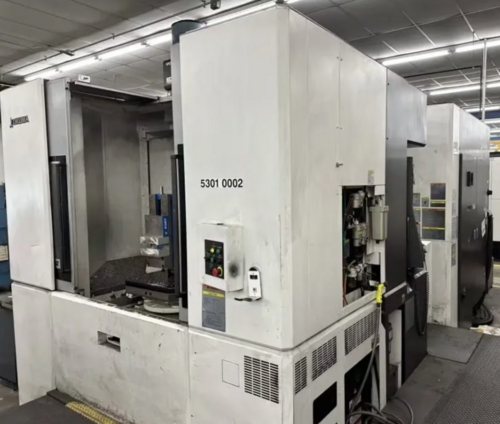

Used Horizontal Machining Center, equipped with full 4th axis and coolant thru spindle, offers X/Y/Z travels of 39.37"/35.43"/39.37" and rapid traverse of 2,362 ipm. Holds 110 tools, max workpiece size: 41.34" x 47.24", weight 2,645 lbs. Only 3,125 hours.
Capacity & Travels
X-Axis Travel: 39.37" (1,000 mm)
Y-Axis Travel: 35.43" (900 mm)
Z-Axis Travel: 39.37" (1,000 mm)
Max Machining Volume: 39.37" x 35.43" x 39.37" (1,000 x 900 x 1,000 mm)
Max Workpiece Size: 41.34" diameter x 47.24" height (1,050 x 1,200 mm)
Max Workpiece Weight: 2,645 lbs (1,200 kg)

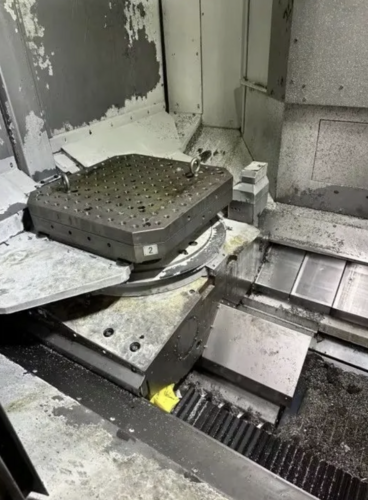

Pallet System
Pallet Size: 24.80" x 24.80" (630 x 630 mm)
Table Indexing: 1-degree (or 360,000 positions with full 4th-axis rotary table)
Pallet Changer: 2-pallet rotary shuttle (APC)
Spindle
Spindle Taper: CAT50 / SK-50 Big-Plus
Spindle Speed: 50 6,000 RPM
Spindle Motor: 40/30 HP (30/22 kW)
Spindle Torque: 606 Nm
Tooling & Performance

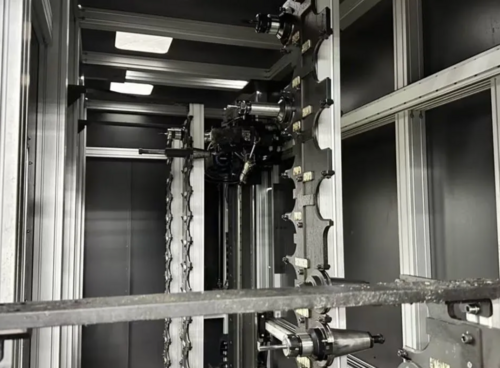

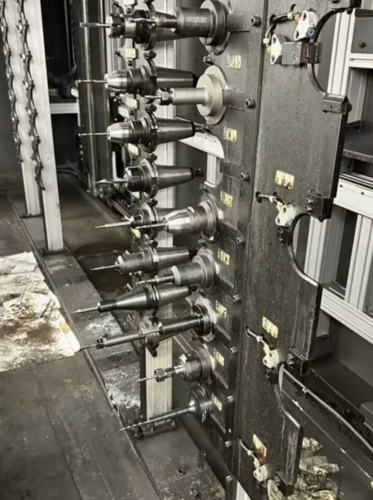

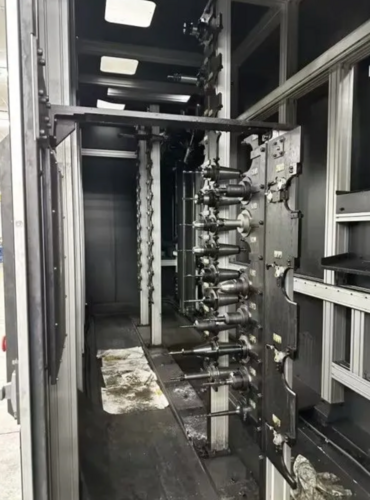

Tool Capacity: 110 tools
Max Tool Weight: 55 lbs (25 kg)
Chip-to-Chip Time: ~4.4 seconds
Rapid Traverse (X, Y, Z): 2,362 ipm (60 m/min)
Footprint & Weight
Approximate Weight: ~52,900 to 55,000 lbs (24,000 to 25,000 kg)
Approximate Dimensions: 182" L x 130" W x 118" H (dependent on ATC and chip conveyor configuration)
Capacity & Travels
X-Axis Travel: 39.37" (1,000 mm)
Y-Axis Travel: 35.43" (900 mm)
Z-Axis Travel: 39.37" (1,000 mm)
Max Machining Volume: 39.37" x 35.43" x 39.37" (1,000 x 900 x 1,000 mm)
Max Workpiece Size: 41.34" diameter x 47.24" height (1,050 x 1,200 mm)
Max Workpiece Weight: 2,645 lbs (1,200 kg)
Pallet System
Pallet Size: 24.80" x 24.80" (630 x 630 mm)
Table Indexing: 1-degree (or 360,000 positions with full 4th-axis rotary table)
Pallet Changer: 2-pallet rotary shuttle (APC)
Spindle
Spindle Taper: CAT50 / SK-50 Big-Plus
Spindle Speed: 50 6,000 RPM
Spindle Motor: 40/30 HP (30/22 kW)
Spindle Torque: 606 Nm
Tooling & Performance
Tool Capacity: 110 tools
Max Tool Weight: 55 lbs (25 kg)
Chip-to-Chip Time: ~4.4 seconds
Rapid Traverse (X, Y, Z): 2,362 ipm (60 m/min)
Footprint & Weight
Approximate Weight: ~52,900 to 55,000 lbs (24,000 to 25,000 kg)
Approximate Dimensions: 182" L x 130" W x 118" H (dependent on ATC and chip conveyor configuration)
