Okuma #LU-45, 33" swing, 24" chuck, 10" bore, 10 station turret, follow rest, OSP-E100L, 2002

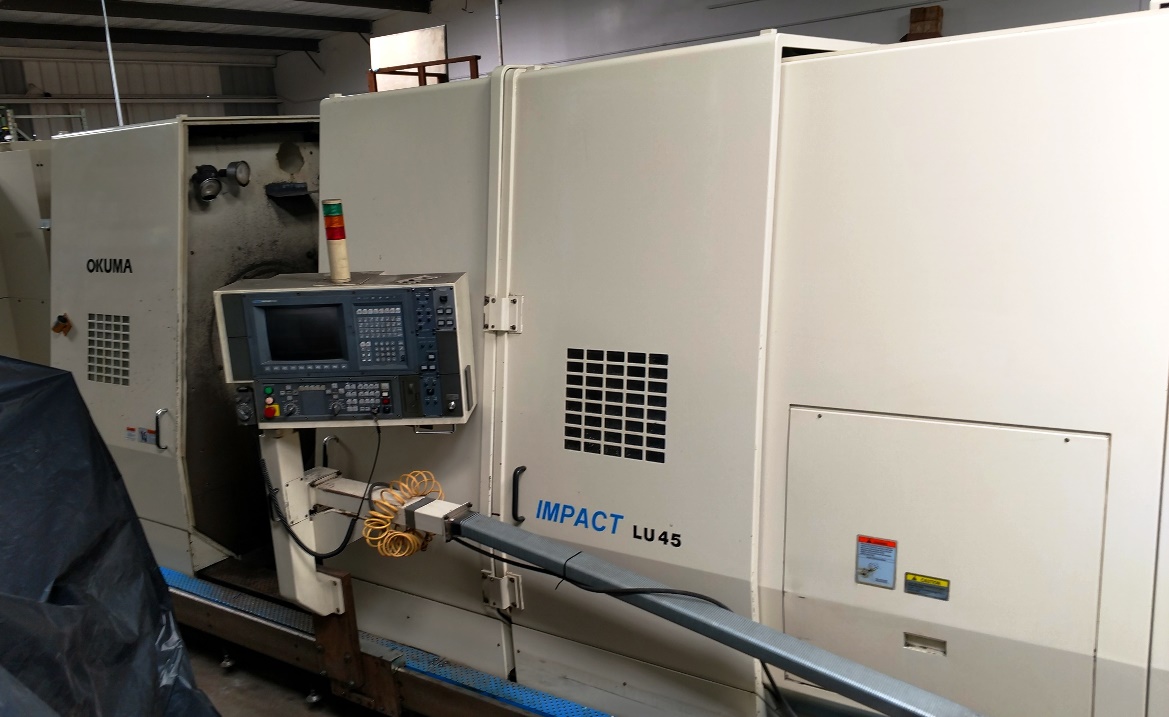

OKUMA LU45-N CNC LATHE

SPECIIFICATIONS:

Model LU45

CNC control OSP-E100L

Serial number/YOM 102386 /12 of 2002

Swing over bed 33"

Max. turning diameter

XA/XB 23"/18”

Center distance 121”

Travels, Z axis 120"

X-axis 26"

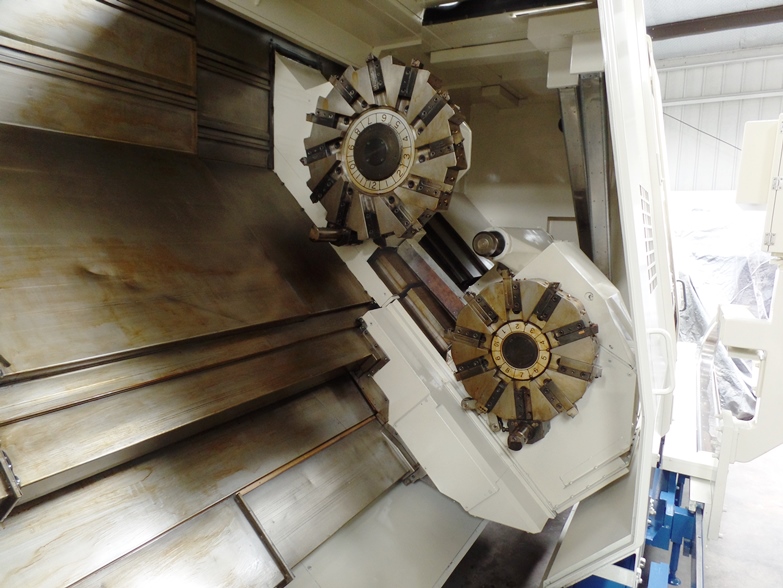

Turret stations 12 upper/8 lower

Follow rest Yes, on lower turret

Spindle bore 10.23”

Spindle nose A-2-20

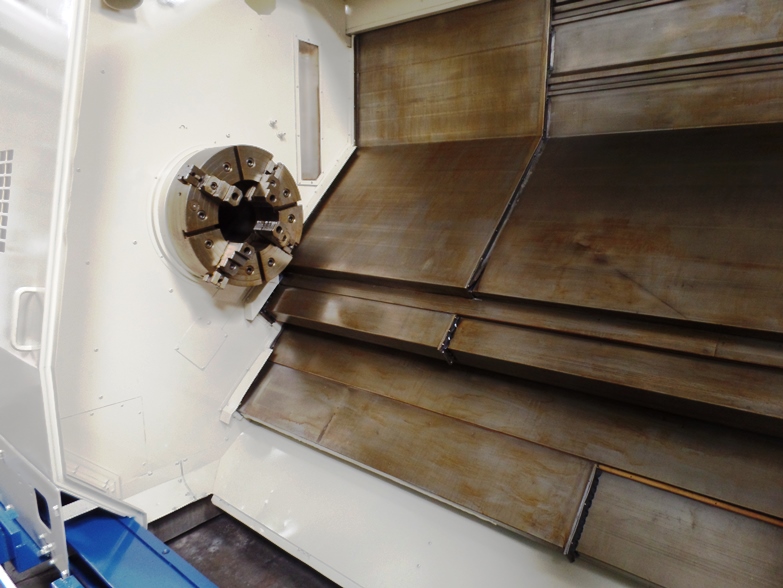

Chucks (2) 24” Noble 4-jaw F& R with 12.5” bore

Spindle speed 31-900 rpm.

Spindle nose A2-20

Quill diameter 5.12", MT No. 5

Main motor (Cont./30 Min) 50 HP / 60 HP

Electrics 220/480/3/60

Machine weight 56,217 lbs.

Programming:

¨ Conventional two-axis programming steps and language.

¨ OSP makes the conversions for the lower turret .

¨ Machining is executed in the order of “P-codes” (P1--Pn ) as assigned

by the programmer.
