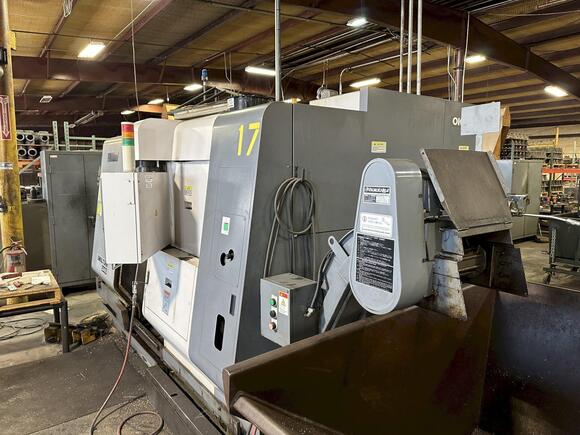

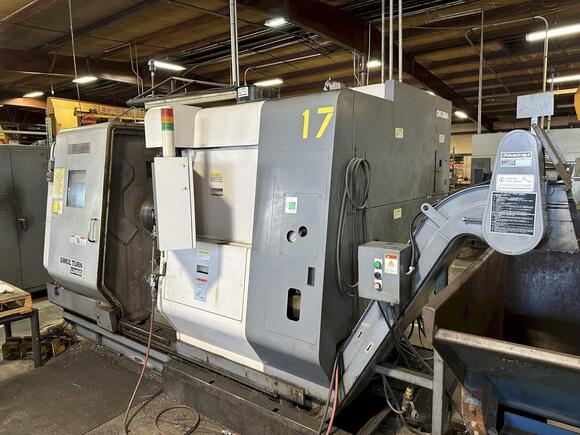

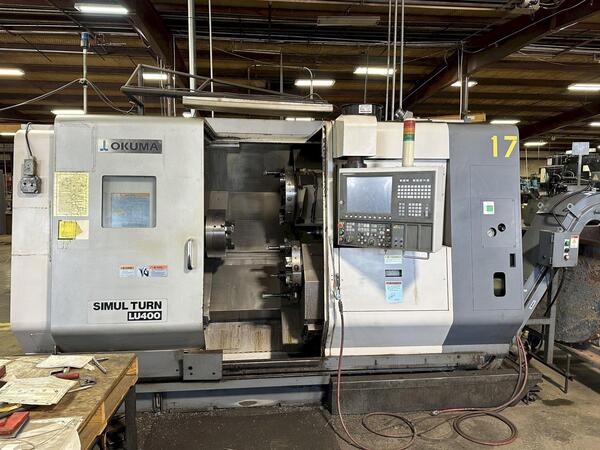

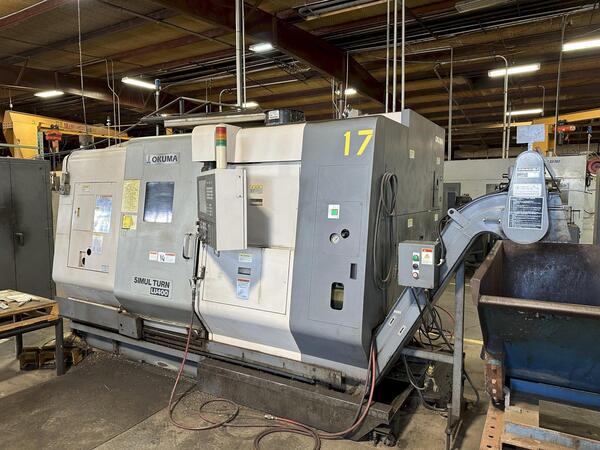

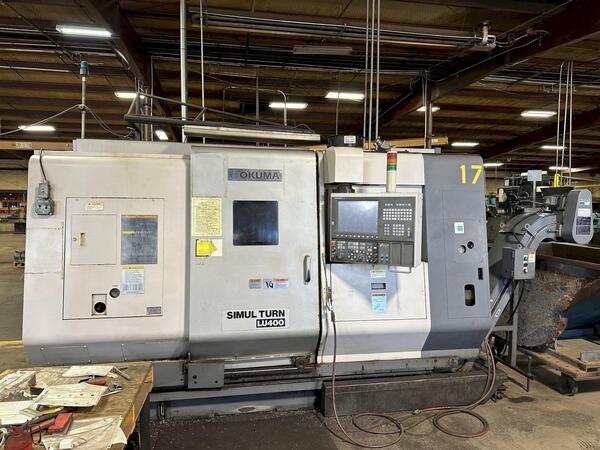

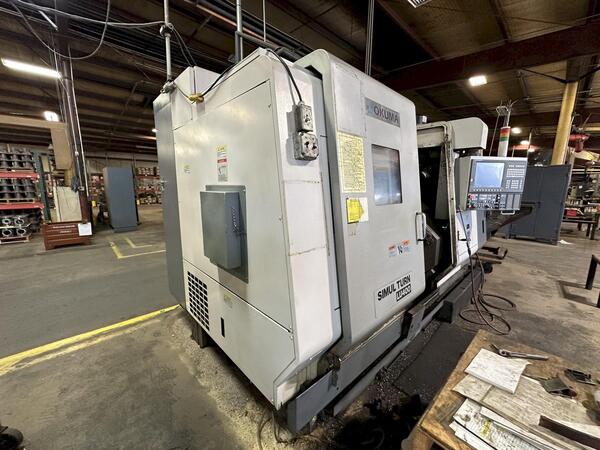

Manufacturer: Okuma
Model: LU-400/2SC650
Year: 2006
Swing: 25.5
Bar Capacity: 3.1
Centers: 26.5
Stock # 20736
1 / 10
Click to zoom in
1 / 10
For Sale by Harris Machine Tools, Inc.
Surplus Record Dealer Since 1986
Location: Houston, TX
Contact Sales Dept.
Phone Number: 713...> Show Phone Number 713-462-5800
Let the seller know you found their listing on Surplus Record!
Description
Capacity:
Max Turning Diameter: 16.54
Max Turning Length: 25.59
Max Bar Capacity: 3.15/4.33?
Max Swing over bed: 25.59
Max Swing over carriage: 16.54
Distance between Centers:26.59
Max Weight between Centers: 1320 lbs
Travels:
X Axis Travel Upper: 11.73
X Axis Travel Lower: 7.67
Z Axis Travel Upper: 26.57
Z Axis Travel Lower: 26.38
Rapid Traverse X Axis: 984 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle:
Spindle Bore: 3.5
Spindle Nose: A2-8
Spindle Speed: 45-3800 RPM
Main Spindle Power: 35 HP

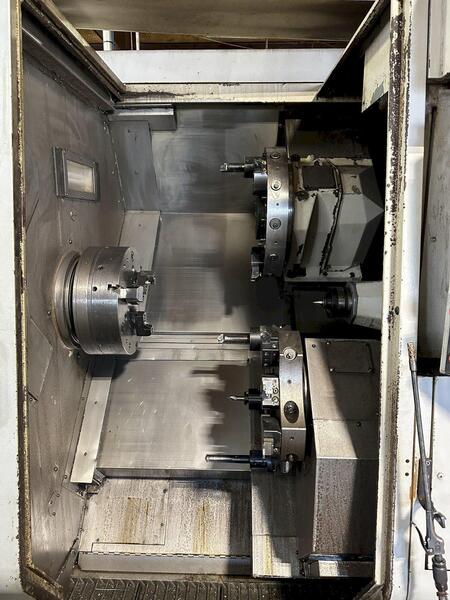

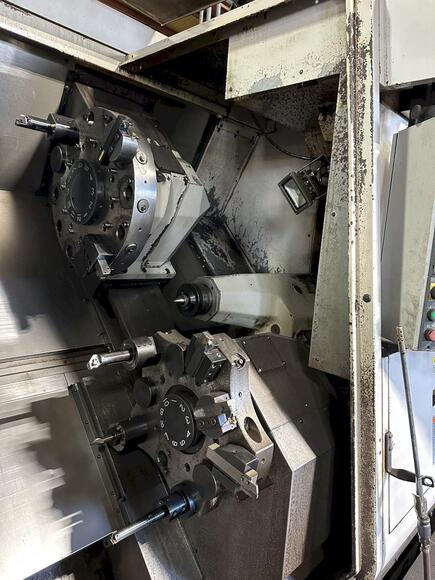

Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 10 Stations
Turret Index Time: 0.2 Second
Tailstock:
Taper: MT 5
Tailstock Quill Dia: 3.94
Tailstock Quill Travel: 5.91
General:
Power: 40 kva, 220/480v 3-Phase
Overall Dimensions: 137 X 85 X 86 High
Overall Dimensions: 169 X 85 X 86 with Chip Conveyor
Weight: 19,800 lbs
Max Turning Diameter: 16.54
Max Turning Length: 25.59
Max Bar Capacity: 3.15/4.33?
Max Swing over bed: 25.59
Max Swing over carriage: 16.54
Distance between Centers:26.59
Max Weight between Centers: 1320 lbs
Travels:
X Axis Travel Upper: 11.73
X Axis Travel Lower: 7.67
Z Axis Travel Upper: 26.57
Z Axis Travel Lower: 26.38
Rapid Traverse X Axis: 984 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle:
Spindle Bore: 3.5
Spindle Nose: A2-8
Spindle Speed: 45-3800 RPM
Main Spindle Power: 35 HP
Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 10 Stations
Turret Index Time: 0.2 Second
Tailstock:
Taper: MT 5
Tailstock Quill Dia: 3.94
Tailstock Quill Travel: 5.91
General:
Power: 40 kva, 220/480v 3-Phase
Overall Dimensions: 137 X 85 X 86 High
Overall Dimensions: 169 X 85 X 86 with Chip Conveyor
Weight: 19,800 lbs
Get Your Price from Harris Machine Tools, Inc.!
