Manufacturer: Okuma
Model: LU-35-2SC/850
Year: 2002
Swing: 29.1
Chuck: 18
Bar Capacity: 3.0
Centers: 33.4
Stock # 10174
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

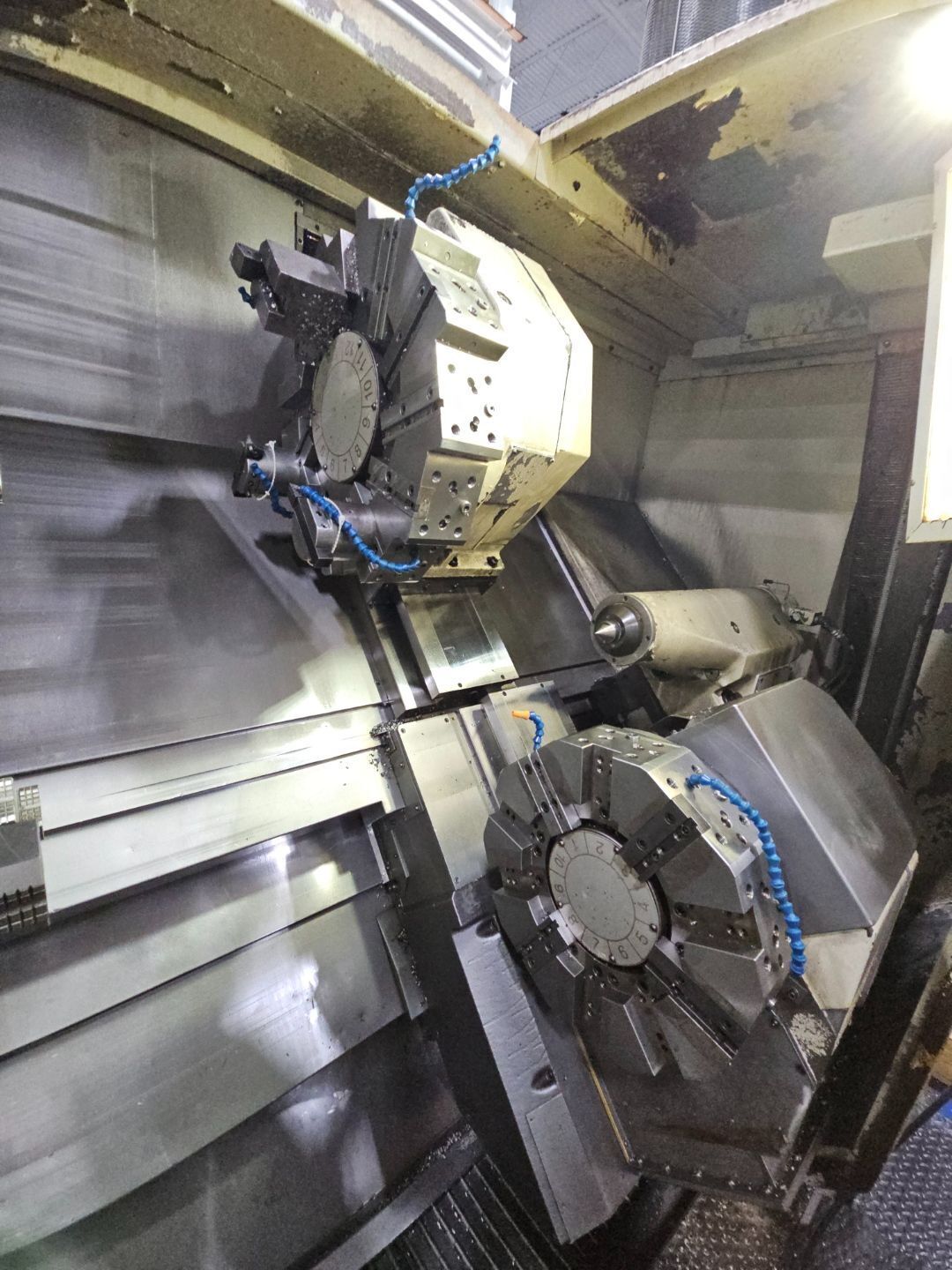

OKUMA LU 35 2SC / 850 CNC 4 AXIS UNIVERSAL LATHE, 2002 model, used. Features 18" chuck, max spindle speed of 3200 RPM, and 50 HP. Equipped with OKUMA OSP P100L CNC Control and chip conveyor. Machine weight: 20,800 lbs.
Swing Over Bed: 29.13"
Turning Diameter, Shaft Diameter: 18.90"
Machining Length: 0
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 15"
Spindle Nose 1, 2: A2 - 8
Spindle Bore Diameter 1, 2: 3.5"
Spindle Bar Capacity 1, 2: 3
Spindle Speeds 1, 2: 3200 RPM
Gear Ranges: 2
Spindle Horsepower 1, 2: 50 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 14.96", 9.84"
Z - Axis Travel 1, 2: 36.2", 34.4"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 591, 591 IPM
Rapid Traverse Rates Z1, Z2: 787, 787 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12, 10
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 12,800 LBS.
C - Axis Travel 1, 2: 0.0000
Swing Over Bed: 29.13"
Turning Diameter, Shaft Diameter: 18.90"
Machining Length: 0
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 15"
Spindle Nose 1, 2: A2 - 8
Spindle Bore Diameter 1, 2: 3.5"
Spindle Bar Capacity 1, 2: 3
Spindle Speeds 1, 2: 3200 RPM
Gear Ranges: 2
Spindle Horsepower 1, 2: 50 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 14.96", 9.84"
Z - Axis Travel 1, 2: 36.2", 34.4"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 591, 591 IPM
Rapid Traverse Rates Z1, Z2: 787, 787 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12, 10
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Programmable Tailstock: 0
Tailstock Travel: 0
Machine Weight: 12,800 LBS.
C - Axis Travel 1, 2: 0.0000
