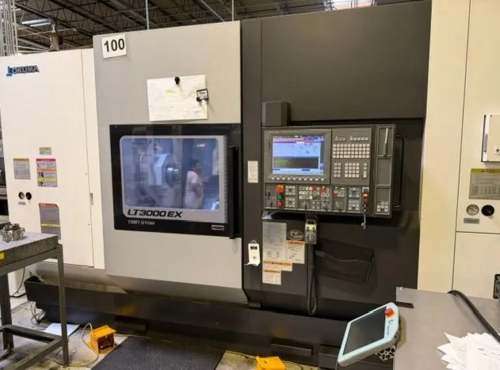

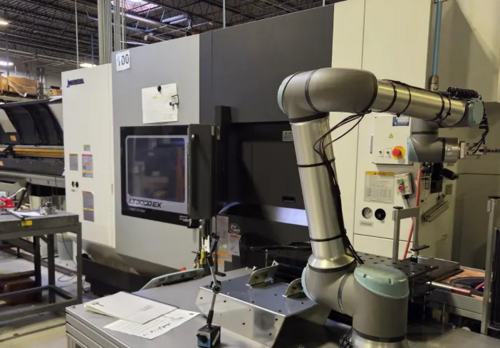

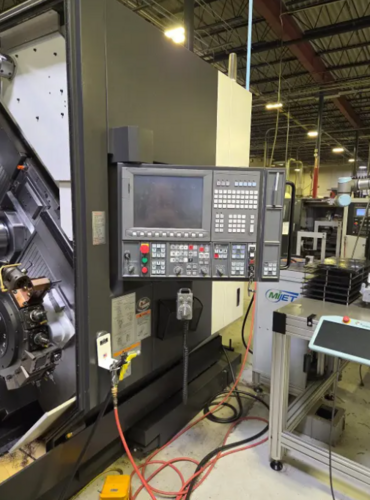

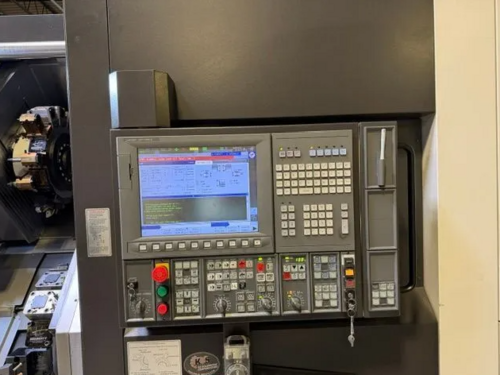

Okuma #LT-3000-EX-3TMY, CNC Turning Center, 21.7" swing, 30/20 HP, 50-4200 RPM, 17.7" diameter x 34" L, OSP-P300LA THiNC Control, 16 station, 2021

17.7” X 34” CNC Turning Center with Okuma OSP-P300LA THiNC Control, (3) 16 Station Radial Turrets (2 Upper + 1 Lower), Y - Axis on All Three Turrets, Hainbuch TOPlus 52 Mini Main Spindle Chuck, Hainbuch TOPlus 40 Mini Sub-Spindle Chuck, Big Bore Configuration on Both Spindles (3.58” Bore), TAS-C Thermo Active Stabilization, Chuck Open / Close During Rotation, Collision Avoidance System, Hi-Cut Pro, LAP-4 (Canned Lathe Cycles and Sub - Routine Calling), Load Monitor, MT Connect Capability, Negative Tool Radius Compensation, Pitch Error Compensation, Spindle Sync Tapping (Live Tooling Spindle), Tool Wear Compensation, Liquid Cooled Headstocks (Both Spindles), Chuck Air Blow, Coordinate Conversion / C-X Countouring, Helical Cutting for X - C - Z, Synchronized Tapping, Universal Hardwired Barfeeder Interface, FMB 8-80/12’ Bar Feeder w/ Two Channel Sets (1.375” & 1.5”), Okuma Tool Touchsetter (Automatic Type), MP-1200 Mist Collection System (Fixed Pressure), Splash Gun, Side - Mounted Hinge Chip Conveyor, Chuck Air Blow and Sub - Spindle work Ejector.
GENERAL SPECIFICATIONS
Capacity
Swing Over Bed: 21.65”
Swing Over Saddle: 21.65”
Distance Between Spindle Noses: 47.24”
Max. Recommended Turning Diameter: 17.7”
Max. Recommended Turning Length: 34.02”
Coolant Tank Capacity: 88.8 Gallons
Floor Space (W/o Chip Conveyor): 157” X 108” X 105”
Machine Weight: 29,260 Lbs
Axis Travels
X - Axis (All Turrets): 10.04”
Y - Axis (When Equipped): 4.92” (+2.755” / -2.165”)
ZA - Axis: 18.9”
ZB - Axis: 36.61”
ZC - Axis: 18.9”
W - Axis: 37.01”
Rapid Traverse
X - Axis: 1,181 IPM
Y - Axis: 788 IPM
Z - Axis: 1,574 IPM
W - Axis: 1,574 IPM
Main Spindle (Big Bore Configuration)
Spindle Motor: 30 / 20 HP
Max. Torque: 315 / 207 Ft-Lbs
Spindle Nose: A2-8
Speed Range: 50 - 4,200 RPM
Spindle Bore Diameter: 3.58”
Spindle Bearing Inner Diameter: 5.51”
Actuation: Kitagawa

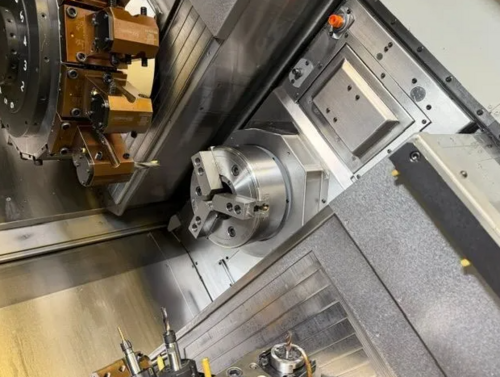

Sub - Spindle (Big Bore Configuration)
Spindle Motor: 30/20 HP
Max. Torque: 315/207 Ft-Lbs
Spindle Nose: A2-8
Speed Range: 50 - 4,200 RPM
Spindle Bore Diameter: 3.58”

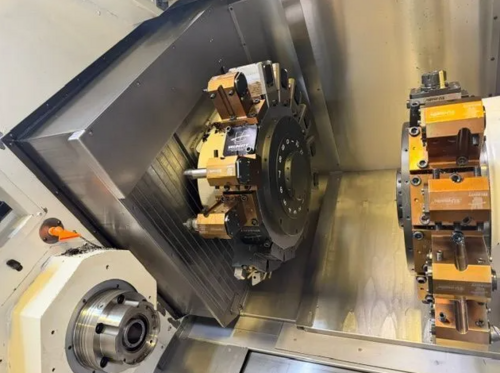

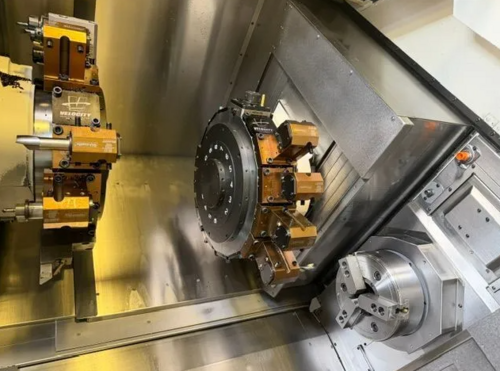

Turret (Three Total)

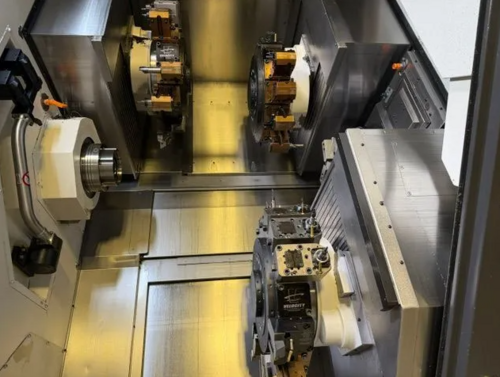

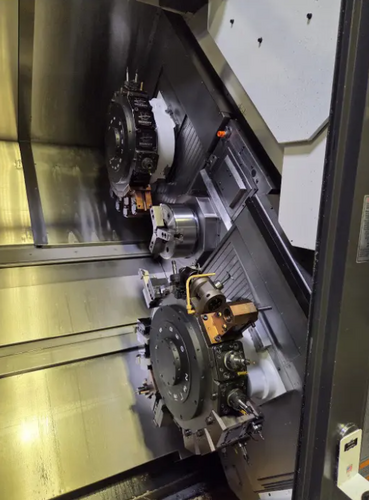

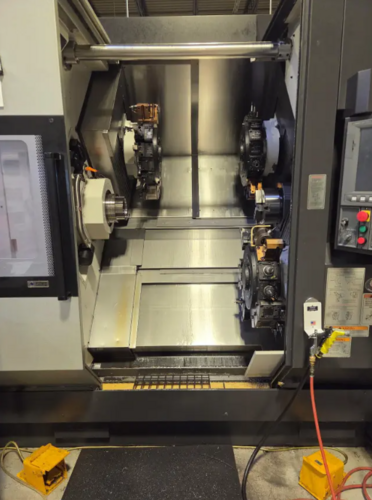

Configuration: 2 Upper Turrets + 1 Lower Turret
All 16 Station Radial Type Turrets (Multitasking)
Turret Coupling: Crown Gear Engagement
Turret Clamping: Hydraulic Non-Lift
Indexing Time: 1 Sec / Station (1.4 Sec / 180°)
Through-Tool Coolant Prep: 7MPa (1,000 PSI)
Live Tooling on All Stations: Yes
Y - Axis on All Three Turrets: Yes
Live Tooling (M - Spindle)
Motor Power: 9.5 / 5.5HP
Speed Range: 50 - 60,000 RPM
Collet Type: ER32
Max Collet Grip Diameter: 0.75”
Live Tool Stations: All 16 Stations on Each Turret
Synchronized Tapping: Included
INCLUDES: Okuma OSP-P300LA THiNC Control, (3) 16 Station Radial Turrets (2 Upper + 1 Lower), Y - Axis on All Three Turrets, Hainbuch TOPlus 52 Mini Main Spindle Chuck, Hainbuch TOPlus 40 Mini Sub-Spindle Chuck, Big Bore Configuration on Both Spindles (3.58” Bore), TAS-C Thermo Active Stabilization, Chuck Open / Close During Rotation, Collision Avoidance System, Hi-Cut Pro, LAP-4 (Canned Lathe Cycles and Sub - Routine Calling), Load Monitor, MT Connect Capability, Negative Tool Radius Compensation, Pitch Error Compensation, Spindle Sync Tapping (Live Tooling Spindle), Tool Wear Compensation, Liquid Cooled Headstocks (Both Spindles), Chuck Air Blow, Coordinate Conversion / C-X Countouring, Helical Cutting for X - C - Z, Synchronized Tapping, Universal Hardwired Barfeeder Interface, FMB 8-80/12’ Bar Feeder w/ Two Channel Sets (1.375” & 1.5”), Okuma Tool Touchsetter (Automatic Type), MP-1200 Mist Collection System (Fixed Pressure), Splash Gun, Side - Mounted Hinge Chip Conveyor, Chuck Air Blow and Sub - Spindle work Ejector.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
