Description

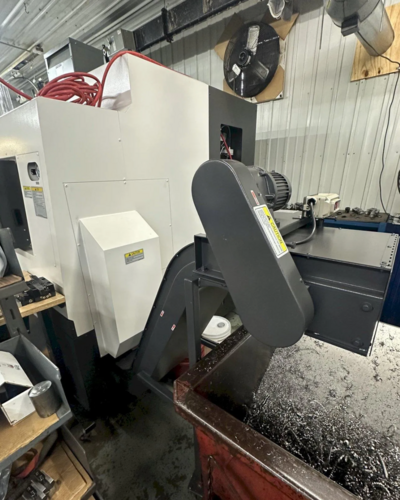

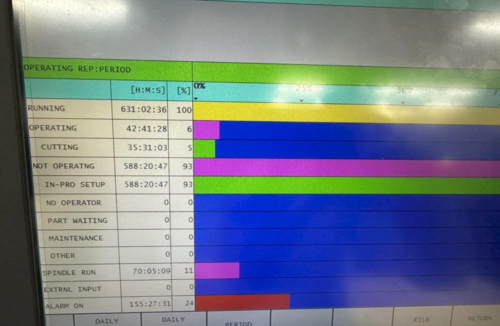

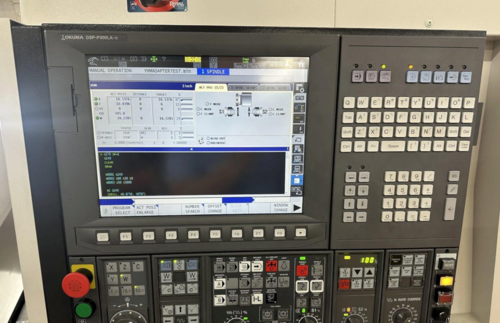

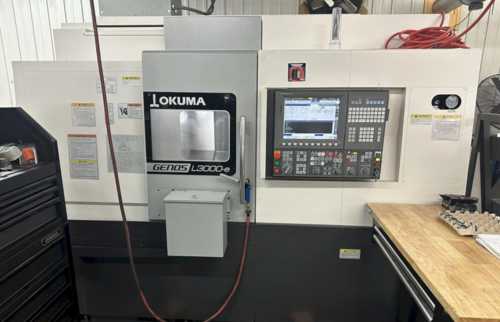

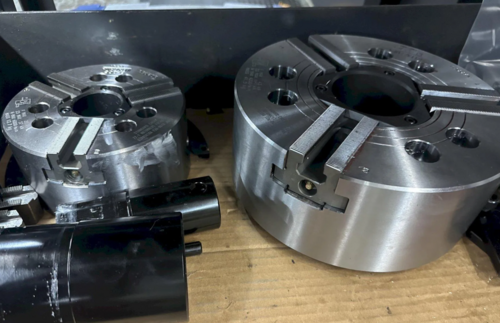

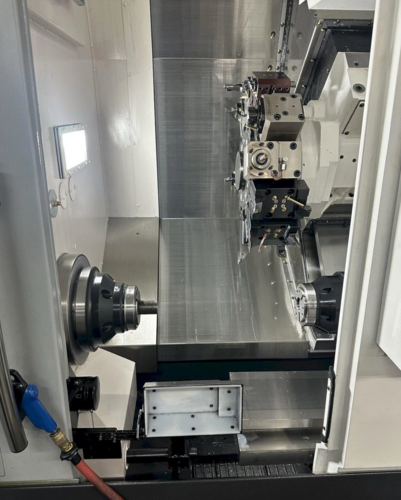

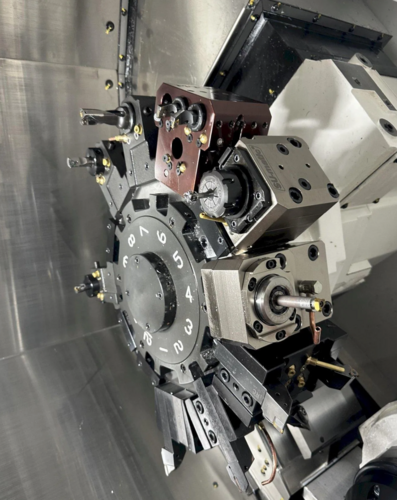

CNC Lathe, used, with 5-axis, 20.47" swing, and 15.35" turning diameter. Includes OSP-P300LA-e CNC control, chip conveyor, 10" main spindle chuck, 6" sub spindle chuck, parts catcher, live tooling, and Y axis. Only 35 cutting hours.
# Axis 5
Swing 20.47 in 519.94 mm
Turning Diameter 15.35 in 389.89 mm
Center Distance 20.47 in 519.94 mm
Chuck Size 10 in 254.00 mm
Bar Capacity 3.15 in 80.01 mm
X Axis Travel 9.25 in 234.95 mm
Y Axis Travel 3.94 in 100.08 mm
Z Axis Travel 18.11 in459.99 mm
B Axis Travel (Sub Spindle)20.47 in519.94 mm
C Axis Index 0.001
Spindle Nose A2-8
Spindle Speed 3,800 rpm
Main Motor 30 hp
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Sub Spindle Nose 140 Flat
Sub Spindle Chuck 6 in 152.40 mm
Sub Spindle Bar Capacity 2.09 in 53.09 mm
Sub Spindle Speed 6,000 rpm
Sub Spindle Motor (HP) 10 hp
Turret Capacity 12 12
Machine Dimensions 120" x 79" x 90"
Machine Weight 13200 lb 5,987.41 kg
# Axis 5
Swing 20.47 in 519.94 mm
Turning Diameter 15.35 in 389.89 mm
Center Distance 20.47 in 519.94 mm
Chuck Size 10 in 254.00 mm
Bar Capacity 3.15 in 80.01 mm
X Axis Travel 9.25 in 234.95 mm
Y Axis Travel 3.94 in 100.08 mm
Z Axis Travel 18.11 in459.99 mm
B Axis Travel (Sub Spindle)20.47 in519.94 mm
C Axis Index 0.001
Spindle Nose A2-8
Spindle Speed 3,800 rpm
Main Motor 30 hp
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Sub Spindle Nose 140 Flat
Sub Spindle Chuck 6 in 152.40 mm
Sub Spindle Bar Capacity 2.09 in 53.09 mm
Sub Spindle Speed 6,000 rpm
Sub Spindle Motor (HP) 10 hp
Turret Capacity 12 12
Machine Dimensions 120" x 79" x 90"
Machine Weight 13200 lb 5,987.41 kg
Get Your Price from Toolquip Inc!
