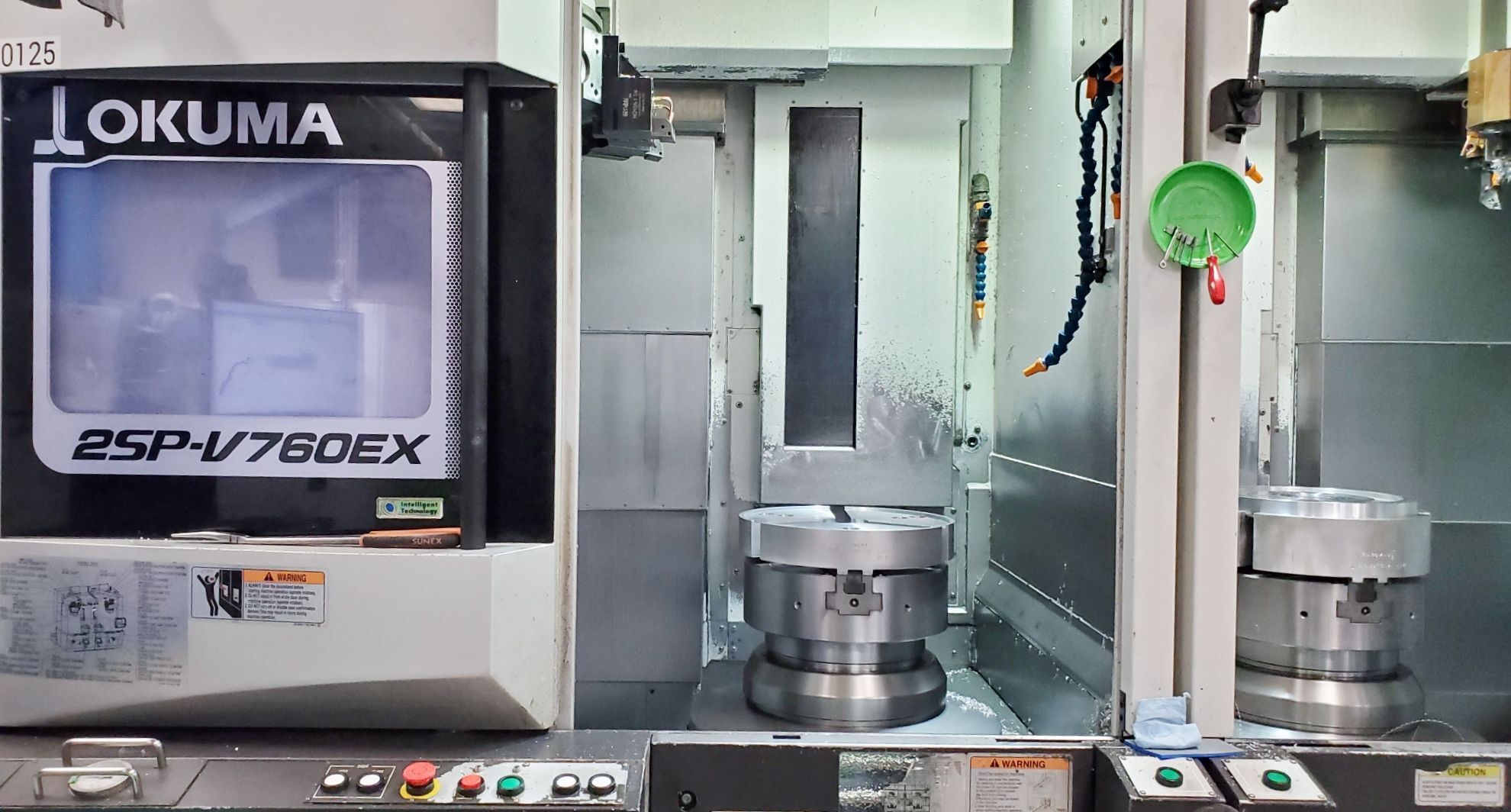

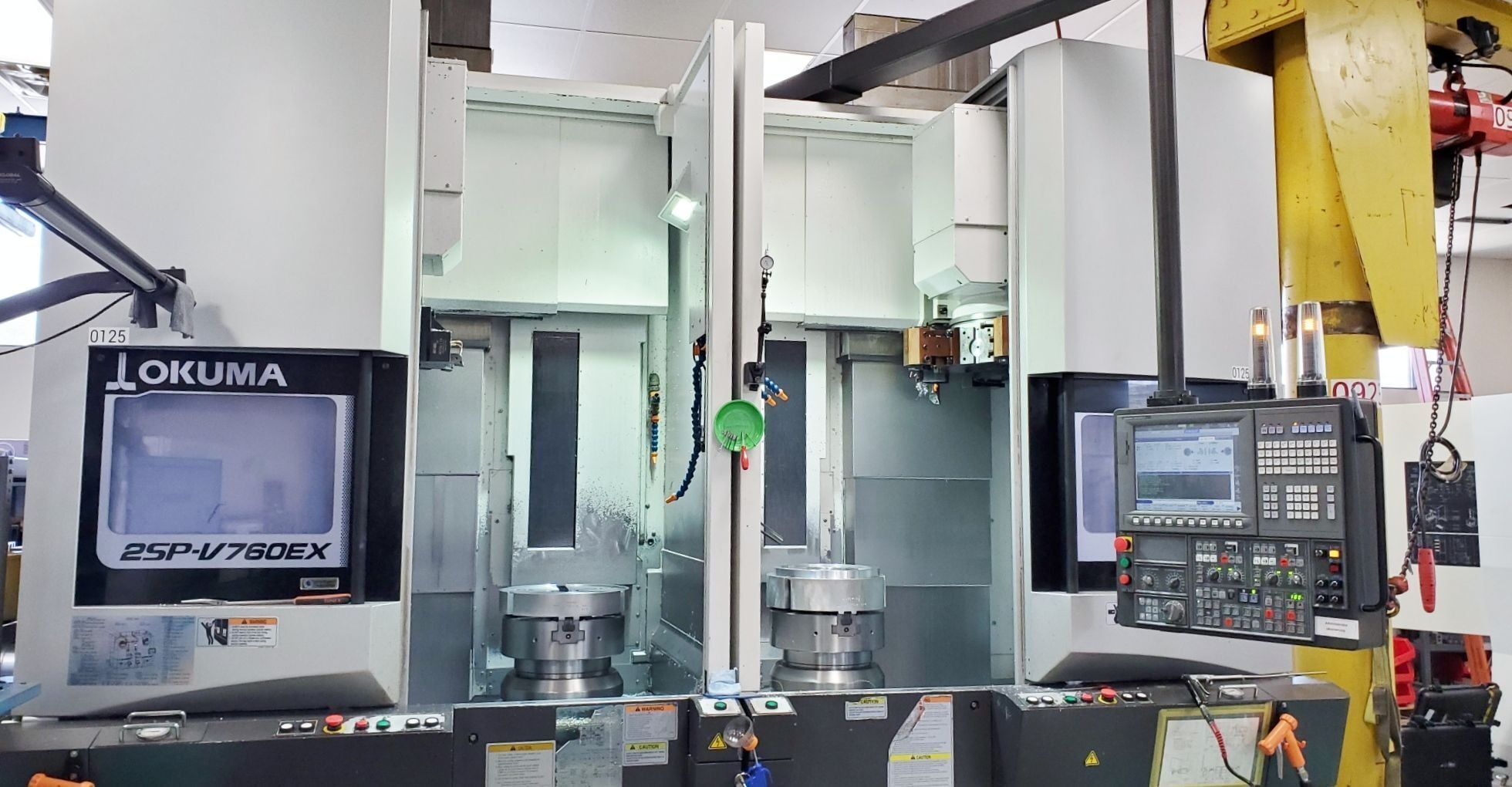

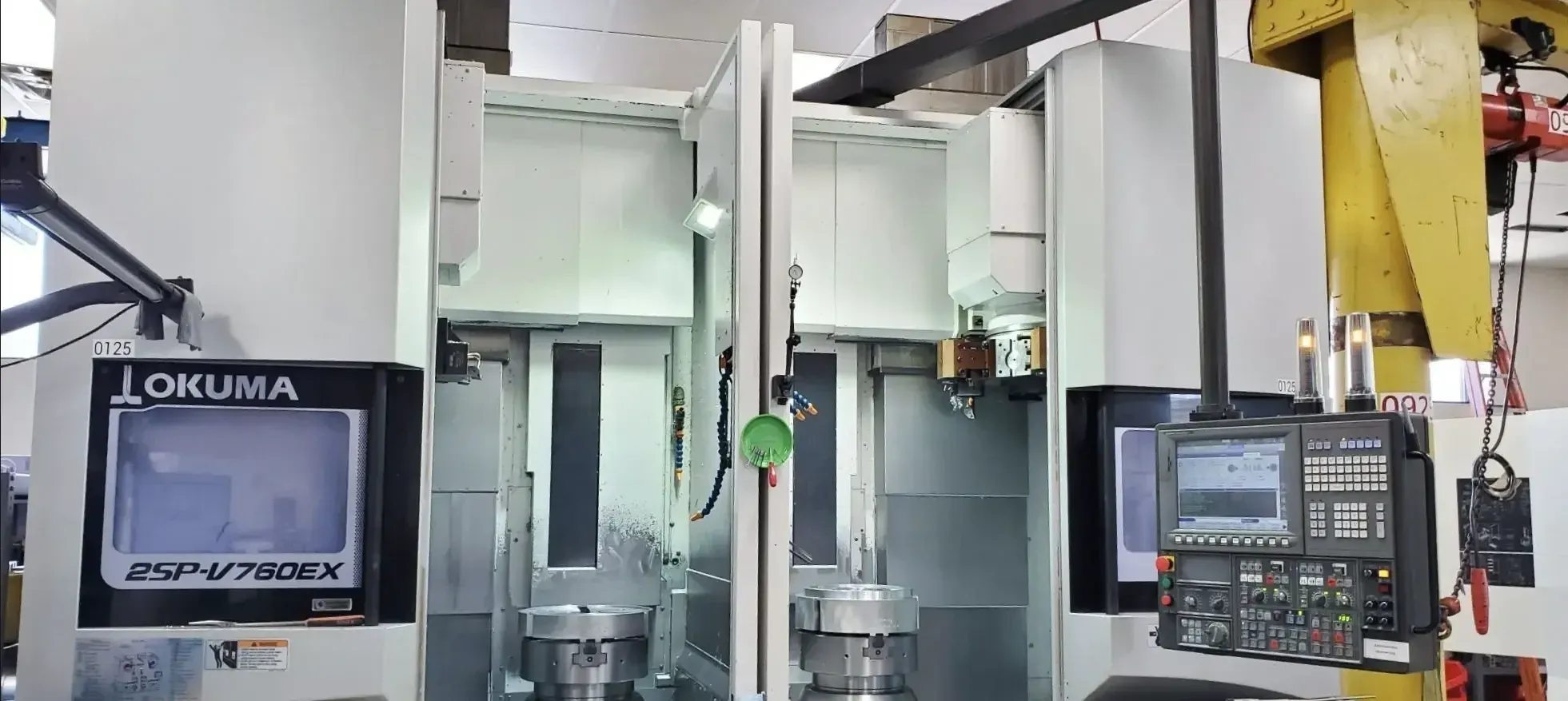

Okuma #2SP-V760EX, twin spindle CNC vertical lathe, 31.5" swing, 29.92" diameter, (2) 18" chucks, (2) 12 turrets, live milling, 40 HP, 2000 RPM, 2021

2021 OKUMA 2SP-V760EX
SPECIFICATIONS:
MAX SWING.............. 31.5"
MAX CUTTING DIAMETER... 29.92"
MAX CUTTING LENGTH..... 30.31"
CHUCK SIZE............. 18"
MAX WEIGHT ON TABLE.... 1,100 lb
X-AXIS TRAVEL.......... 15.35"
Z-AXIS TRAVEL.......... 30.31"
SPINDLE SPEED.......... 2,000 RPM
SPINDLE MOTOR.......... 40 hp
LIVE TOOLING SPEED..... 4,000 RPM
LIVE TOOLING MOTOR..... 10 hp
TURRET POSITIONS....... 12
EQUIPPED WITH:
TWIN-SPINDLE VERTICAL LATHE
OKUMA OSP-P300LA CONTROL
(2) 40HP, A2-11, 2,000 RPM SPINDLES

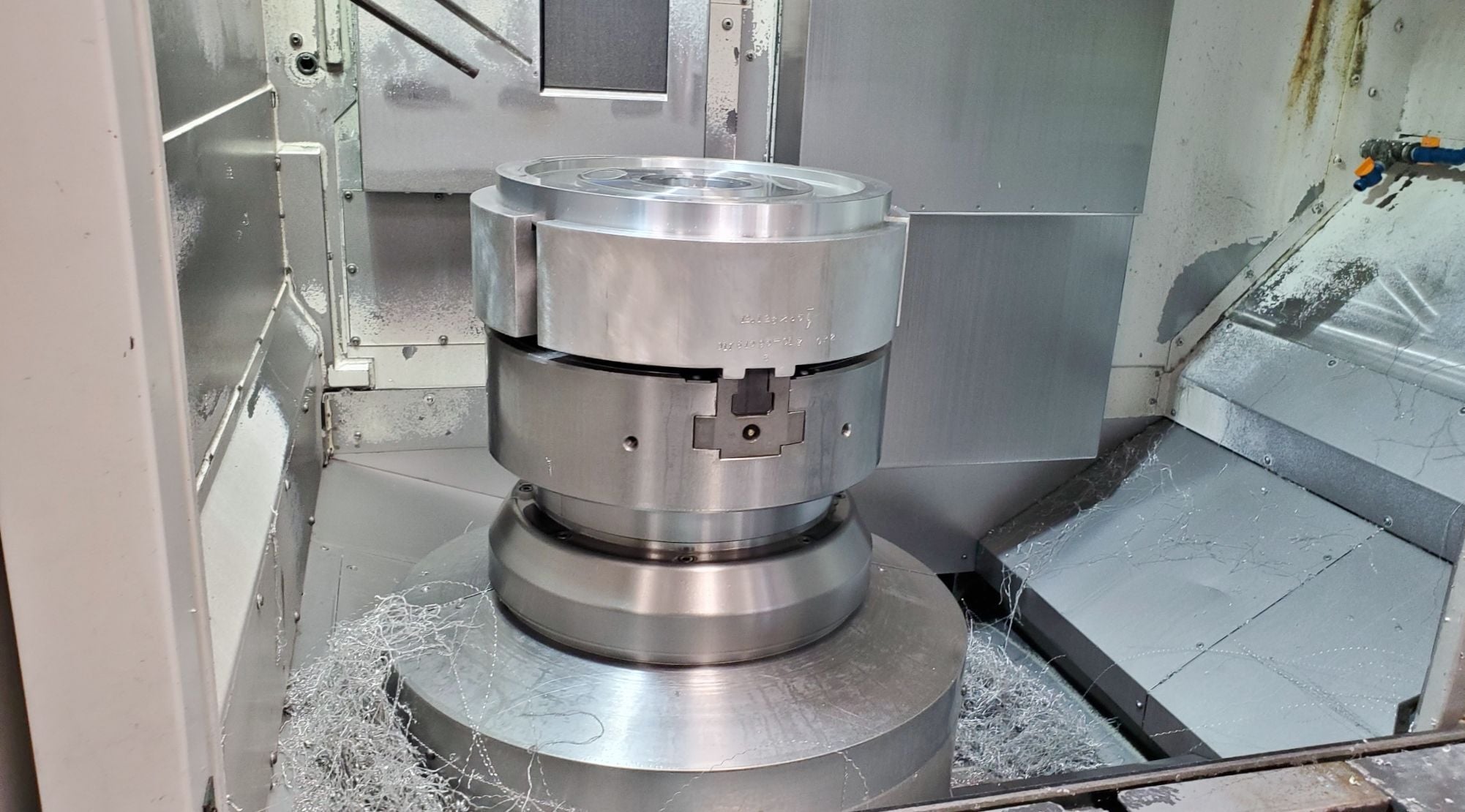

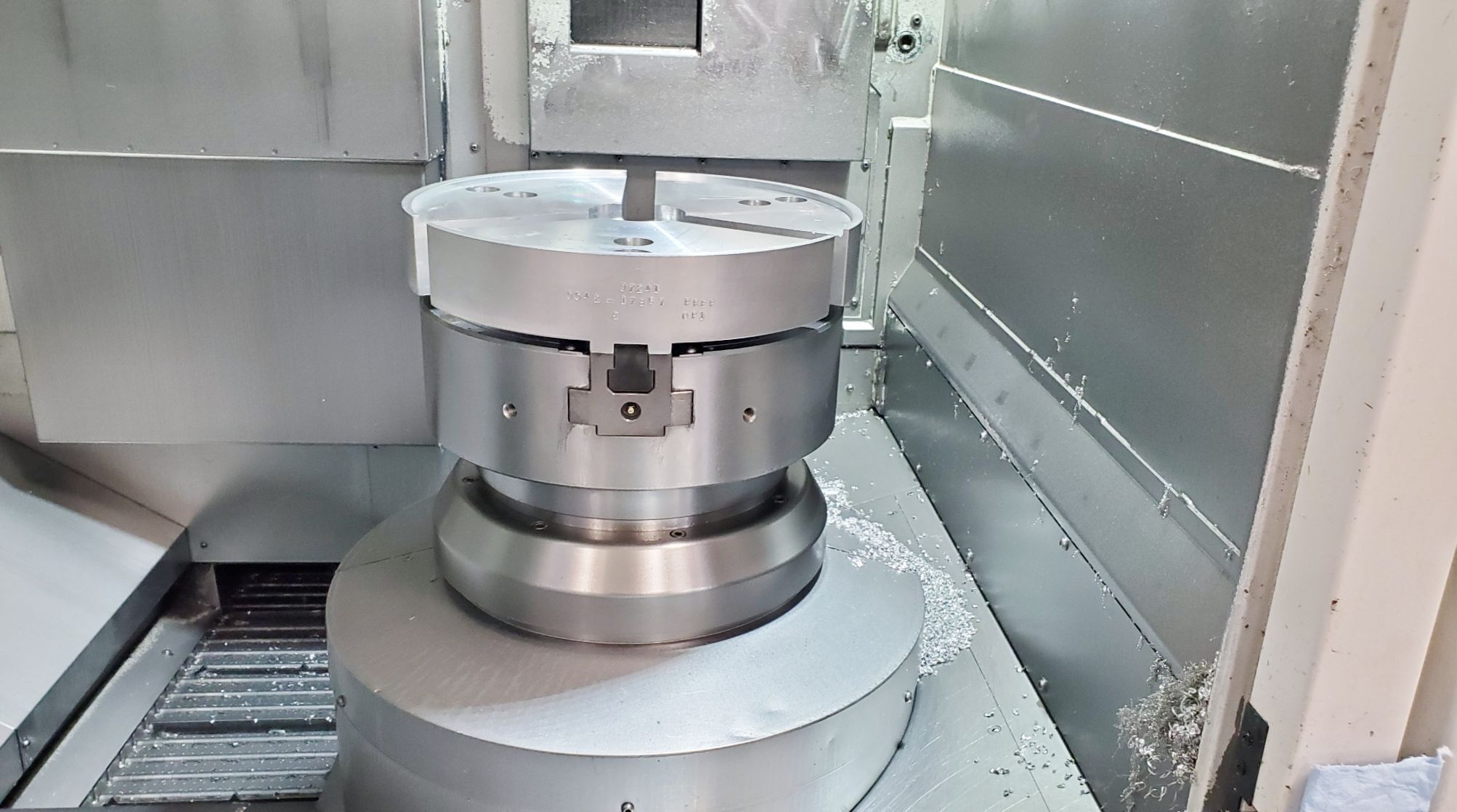

(2) 18, 3-JAW, CLOSED CENTER HYDRAULIC CHUCKS
(2) 12-STATION TURRETS
LIVE MILLING (BOTH TURRETS)
TOUCH SETTER (BOTH SPINDLES)
REAR DISCHARGE CHIP CONVEYOR
(2) 300 PSI COOLANT PUMPS (MP SYSTEMS)
PREPPED FOR HIGH-PRESSURE COOLANT (1,000 PSI)
THERMAL COMPENSATION
ADVANCED ONE-TOUCH IGF
HELICAL CUTTING (FOR X/Z/C AXES)
NEGATIVE TOOL RADIUS COMPENSATION
(4) AXIAL LIVE TOOL HOLDERS
(4) RADIAL LIVE TOOL HOLDERS
AN ASSORTMENT OF STATIC TOOL HOLDERS

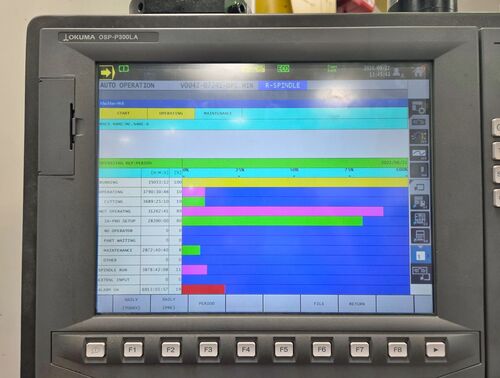

** AS OF SEPTEMBER 2026, CUTTING TIME 3,689 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** OSP DATA CARD AVAILABLE UPON REQUEST
** FULL REPLACEMENT COST, AS EQUIPPED - $700,000
** IN PLANT, UNDER POWE, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** MACHINE IS AVAILABLE TO BE REMOVED AT THE END OF NOVEMBER/EARLY DECEMBER UPON ARRIVAL OF NEW MACHINE
