Manufacturer: Okk
Model: VB53A
Year: 2016
Automatic Tool Changer: 30
Longitudinal" X: 41.0
Cross" Y: 20.0
Vertical" Z: 20.0
RPM: 20000
Stock # Q11600
1 / 10
Click to zoom in
1 / 10
For Sale by Great American Eqpt Co
Surplus Record Dealer Since 1991
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 513...> Show Phone Number 513-771-2111
Let the seller know you found their listing on Surplus Record!
Description

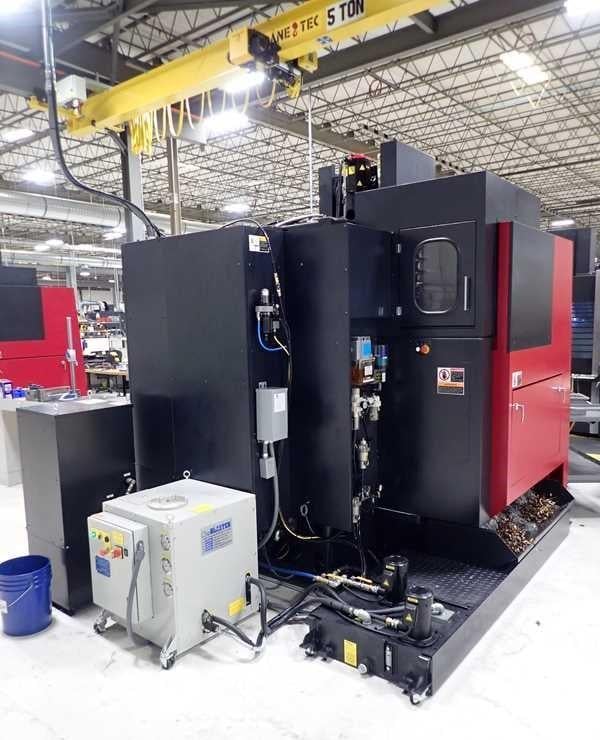

OKK VB53a MILLING MACHINE
Model VB53a, S/N 482, New 2016
Stock# Q11600
Model VB53a, S/N 482, New 2016
Stock# Q11600
EQUIPPED WITH:

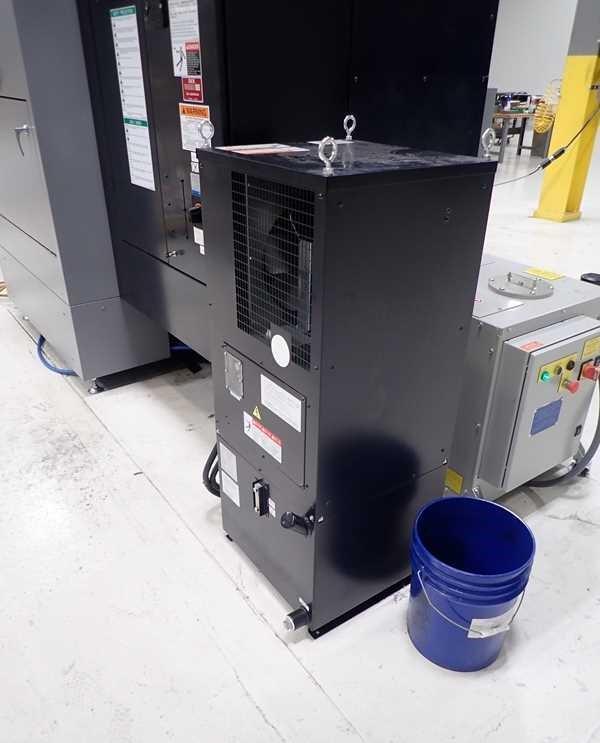

Fanuc 31i-B CNC Control with 512kb Memory, Hyper HQ Mode B and Custom Macro 600, 20000 Spindle RPM, 30-Station Automatic Tool Changer, CAT 40 Big+, Blum Laser for Part Setting, Over-Sized Roller Guide Ways, Fine Pitch Ball Screws, Linear Scale Feedback XYZ, Through Spindle Coolant, ChipBlaster High Pressure Coolant, Spindle Chiller, Chip Conveyor & Coolant System.
FEATURES:
Designed for Tool & Die, its surface finishing capability, fewer vibration stripes by accel and decel, and less quadrant projections features a number of technological innovations. Fine Pitch ball screw reduces the maximum rapid speed but increases the overall precision of the entire system along with a rigid machine base. The VB53 employs an external, isolated oil cooler, which removes a common source of vibration from the machine, resulting in high die quality. Countermeasures for thermal displacement are designed to provide precision capability. The coolant shelter prevents the casting from being exposed to either cutting chips or coolant. Additionally, standard equipment like the 0.05-micron scale feedback linear scale enhances the positioning accuracy through all possible applications.
CATALOG SPECIFICATIONS:
| # Axis | 3 |
| Table Size | 49.61" x 23.62" |
| Table Load Capacity | 2,646 LBS |
| X-Axis (Longitudinal Travel) | 41.34" |
| Y-Axis (Cross Travel) | 20.87" |
| Z-Axis (Vertical Travel) | 20.08" |
| Max/Min Clearance Tabletop to Spindle Nose | 25.98" / 5.91" |
| Feed Rates, All Axes | 0.04 - 787 IPM |
| Rapid Traverse Rate, All Axes | 787 IPM |
| Spindle Horsepower | 20 HP |
| Spindle Speed Range | 100 - 20,000 RPM |
| Spindle Taper | CAT 40 BIG+ |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 30 |
| Machine Hours | 4579 |
| Electrics | 220/3/60 |
| Approximate Machine Dimensions | 99" x 99" |
| Approximate Machine Height | 115" |
| Approximate Machine Weight | 15,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
Get Your Price from Great American Eqpt Co!
Buyers Who Viewed This Listing Also Viewed:
Mori Seiki #NVD5000-1B/40, CNC vertical machining center, 30 automatic tool changer, 40.2" X, 20.1" Y, 20.1" Z, 20000 RPM, #40, 25 HP, MSX-501III, 52" x23.6" tbl., rigid tap, tool presetter, thru spindle coolant, 2007
Category: Vertical CNC Machining Centers
Seller: MachineStation
Location: Lake Elsinore, CA
Mfr: Mori Seiki
Model: NVD5000-1B/40
Year: 2007
Disclaimer: All and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all prior to purchase. Accessories shown are included only if listed on the invoice., Equipment is sold AS-IS, WHERE-IS. All sales are final., s:, MSX-501III ( FANUC ) CNC Control, 3,225 Hours ...more
JUST ADDED!
Hardinge #GX-1000, CNC Vertical Machining Center, 40" X, 21" Y, 21" Z, 44.1" x 21.25" table, 20 HP, 10,000 RPM, CAT 40 Big Plus, 30 automatic tool changer, 2011
Category: Vertical CNC Machining Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Hardinge
Model: GX 1000
Year: 2011
Used Vertical Machining Center, s a 40" X, 21" Y, 21" Z travel, 20 hp power, 10,000 RPM, 30 ATC, and CAT 40 Big Plus taper. Table measures 44.1" W x 21.25" L., 2011 HARDINGE GX 1000, X. 40", Y. 21", Z. 21", Power. 20 hp, RPM. 10,000 RPM, # ATC. 30, Taper. CAT 40 Big Plus, Table-W. 44.1", Table-L. 21.25", # Axis. 3.
JUST ADDED!

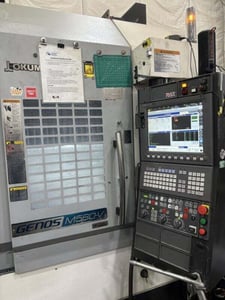

Okuma #M560-V, CNC vertical machining center, 41.3" X, 22" Y, 18.1" Z, 51.18" x 22.05" table, 30 HP, 15000 RPM, 32 automatic tool changer, thru spindle coolant, 2016
