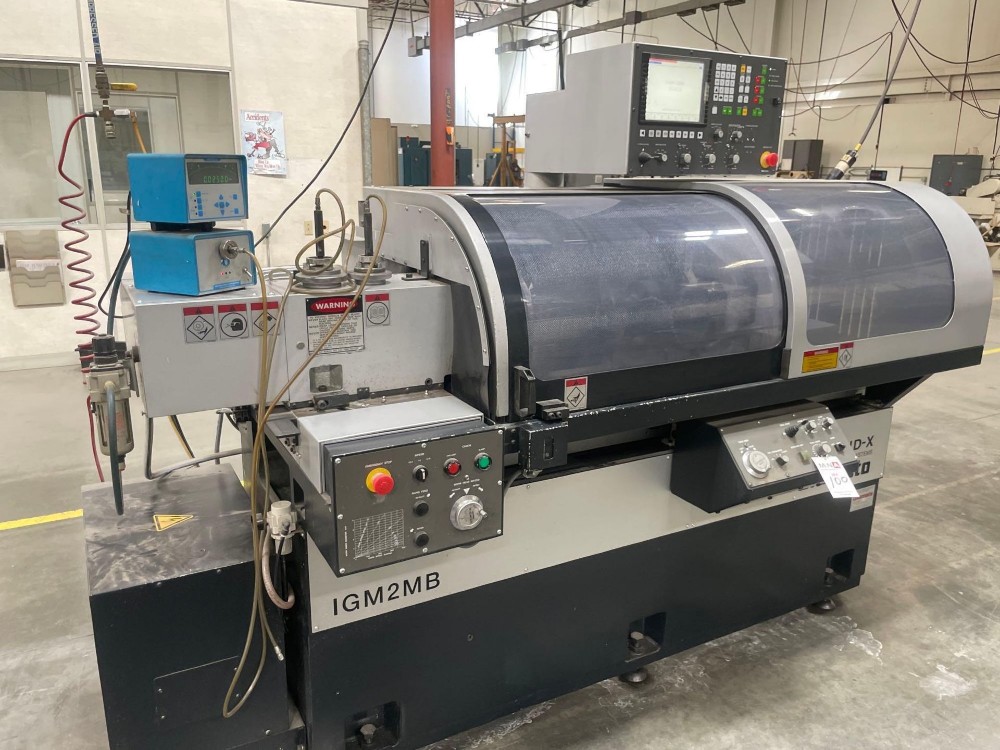

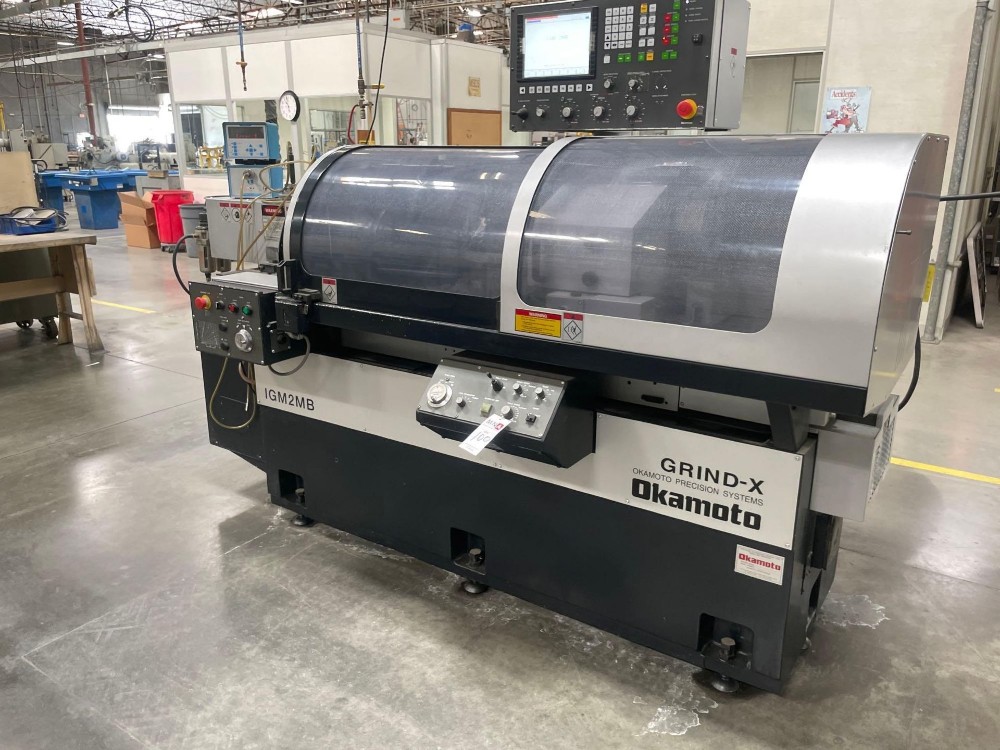

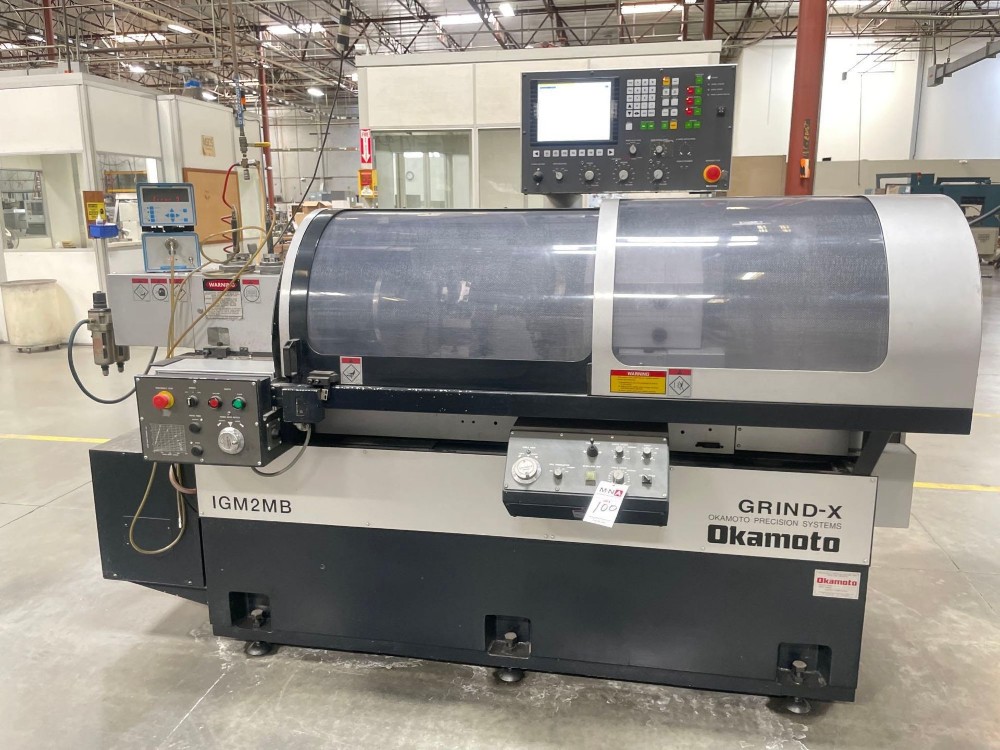

Okamoto #IGM-2MB, precision ID grinders, programmable MDI control, 2019, 2017 (2 available)

Okamoto IGM-2MB Precision ID Grinders, Programmable MDI Control, New 2019 AND 2017, 2-MACHINES AVAILABLE

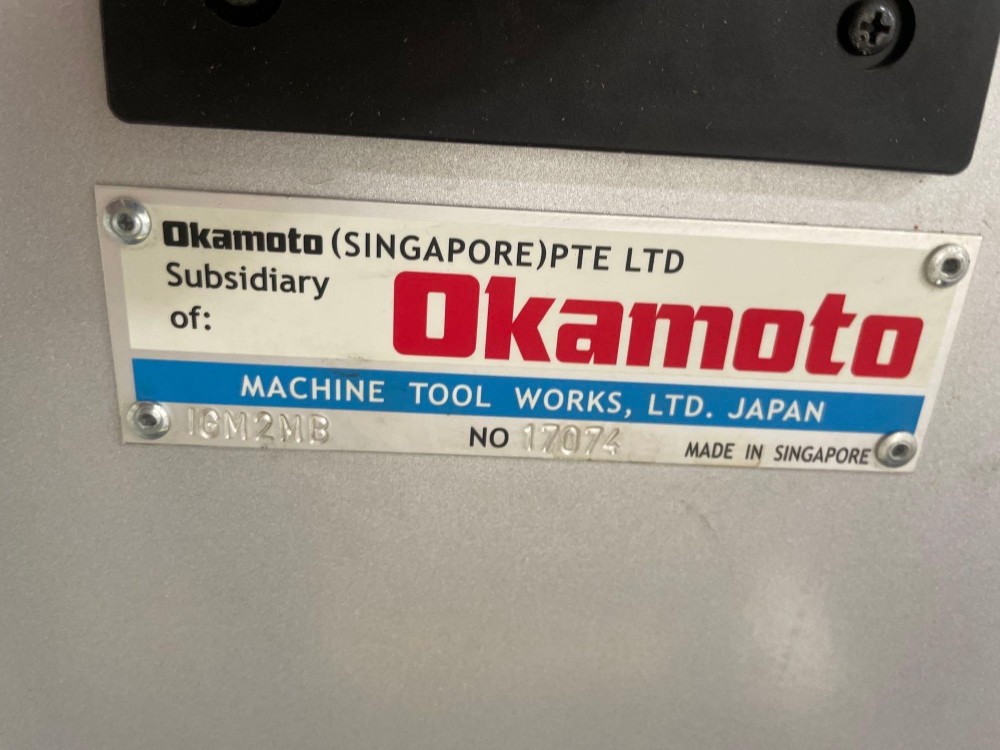

Serial Number 17074 and 17039

CATALOG SPECIFICATIONS:

Internal Grinding Range 0.24 - 8.0 inch Diameter

Grinding Stroke 0.00 - 8.0 inch

Swing Inside the Chuck Cover 14.0 inch

Swing Over the Table 24.0 inch

Table Maximum Travel 20.0 inch

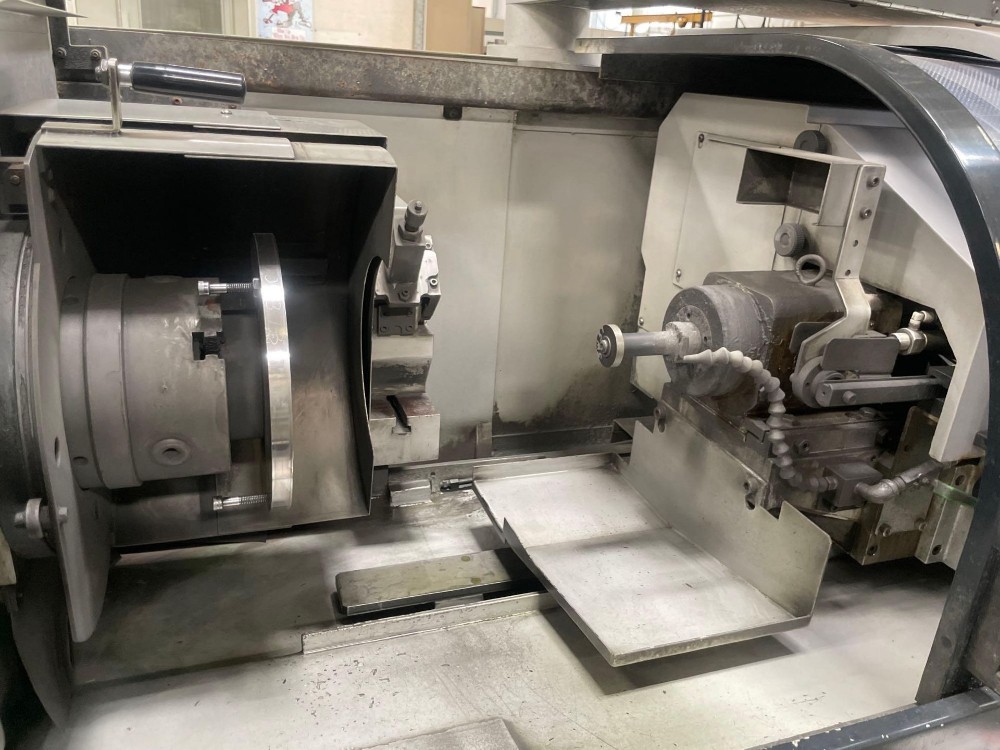

Workhead:

Spindle Speed 50 - 850 RPM

Swivel Angle -5 - +15 Degrees

Maximum Crossfeed Travel 9.4 inch

Motors:

Work head 2.0 HP

Grinding Wheel Spindle 5.0 HP

Floor Space (L x W x H): 96 “x 54” x 69”

Net Weight: 6,160 lbs.

Machine Features

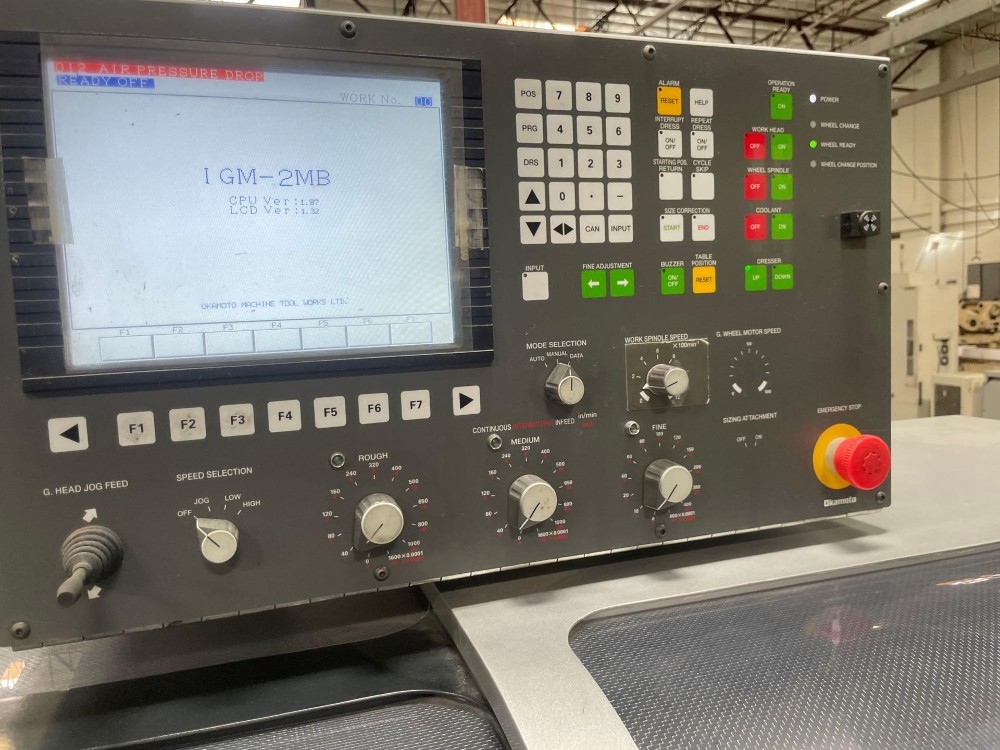

User friendly control with conversational software. Teach function allows easy set-up of grinding processes. The MDI Controller is made by Okamoto and uses a unique Micro Processor control system that promotes Fast Easy Set-Up. Rough, Medium Grind, Dress and Fine Grind in one set-up.

MDI Controls ... Facilitate Set-Up and Editing Functions, High Speed Table Shortens Positioning Cycle Time and High Speed Table Reciprocation Reduces Grinding Cycle Time.

The linear slide and ball screw table motion delivers high-speed table movement speed up to 800 ipm.

36 program storage capacity.

Rigid construction. Superb Accuracy.

EQUIPPED WITH:

Automatic Grinding Cycle

Size Compensation

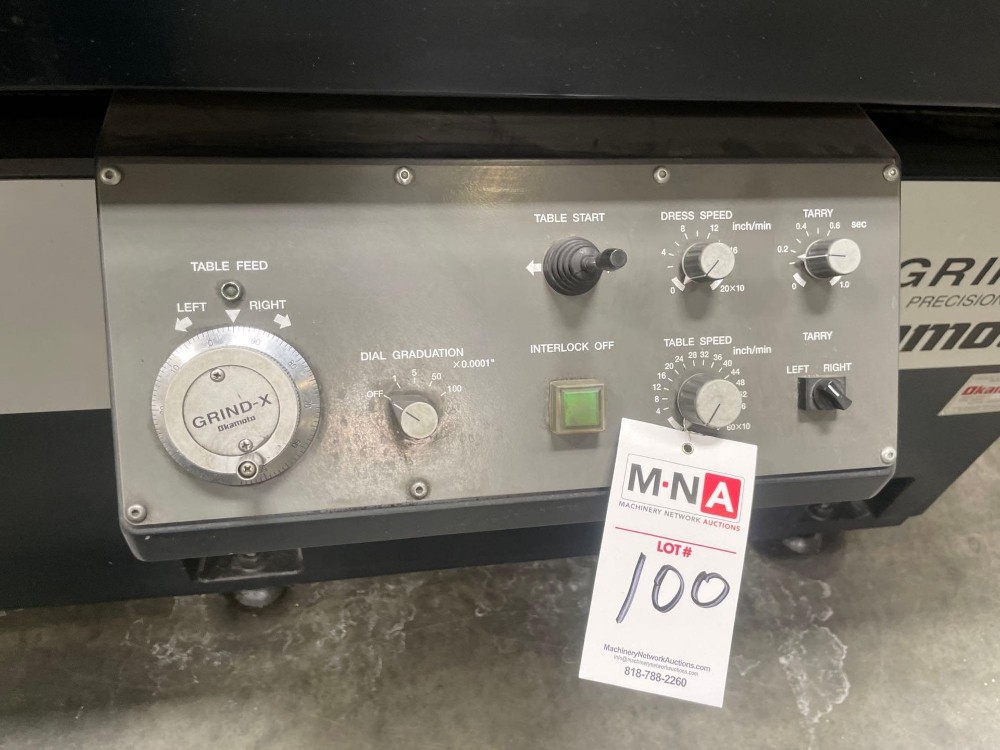

Wheelhead, Table and Speed Setting Dials

Continuous/Intermittent Feed

Repeat Dress, Interrupted Dressing and Dressing Selection

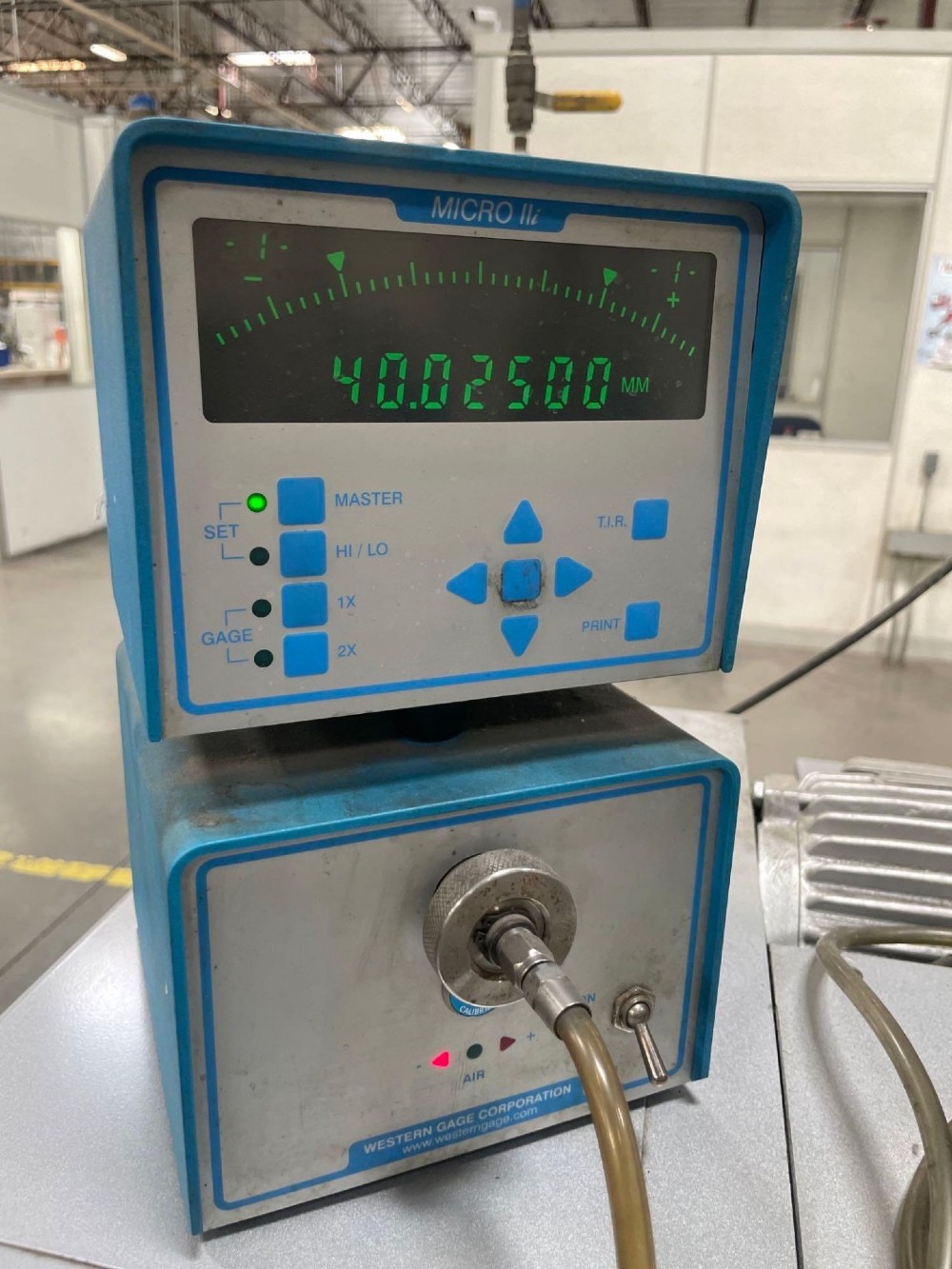

MICRO IIi READOUTS https://www.westerngage.com/dimensional-air-gage-buyers-guide/micro-lli/

VIDEO LINKS:

https://youtu.be/YsmJKr7waac

https://youtu.be/57ooo5kqUMA
