For Sale by CNC Exchange div. Gray Machinery Co.
Surplus Record Dealer Since 1966
Location: Prospect Heights, IL
Contact Glenn Gray
Phone Number: 847...> Show Phone Number 847-537-7700
Let the seller know you found their listing on Surplus Record!
Description

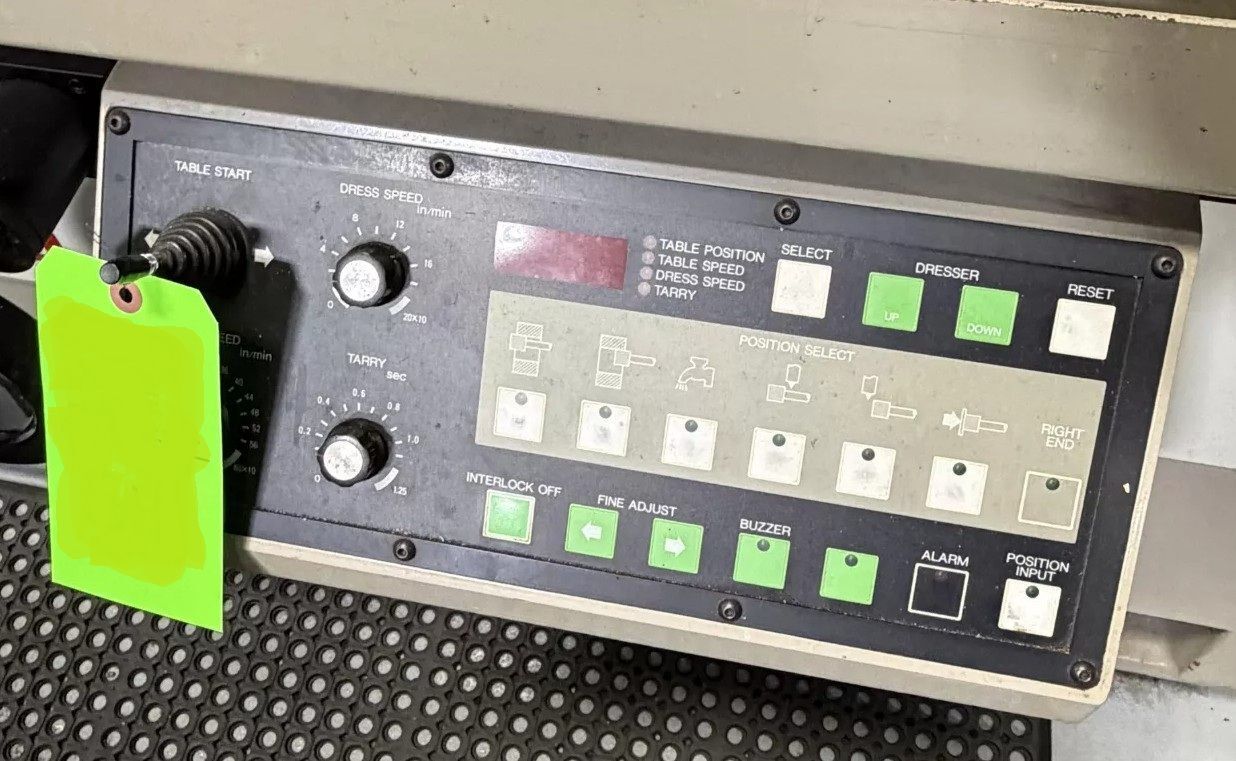

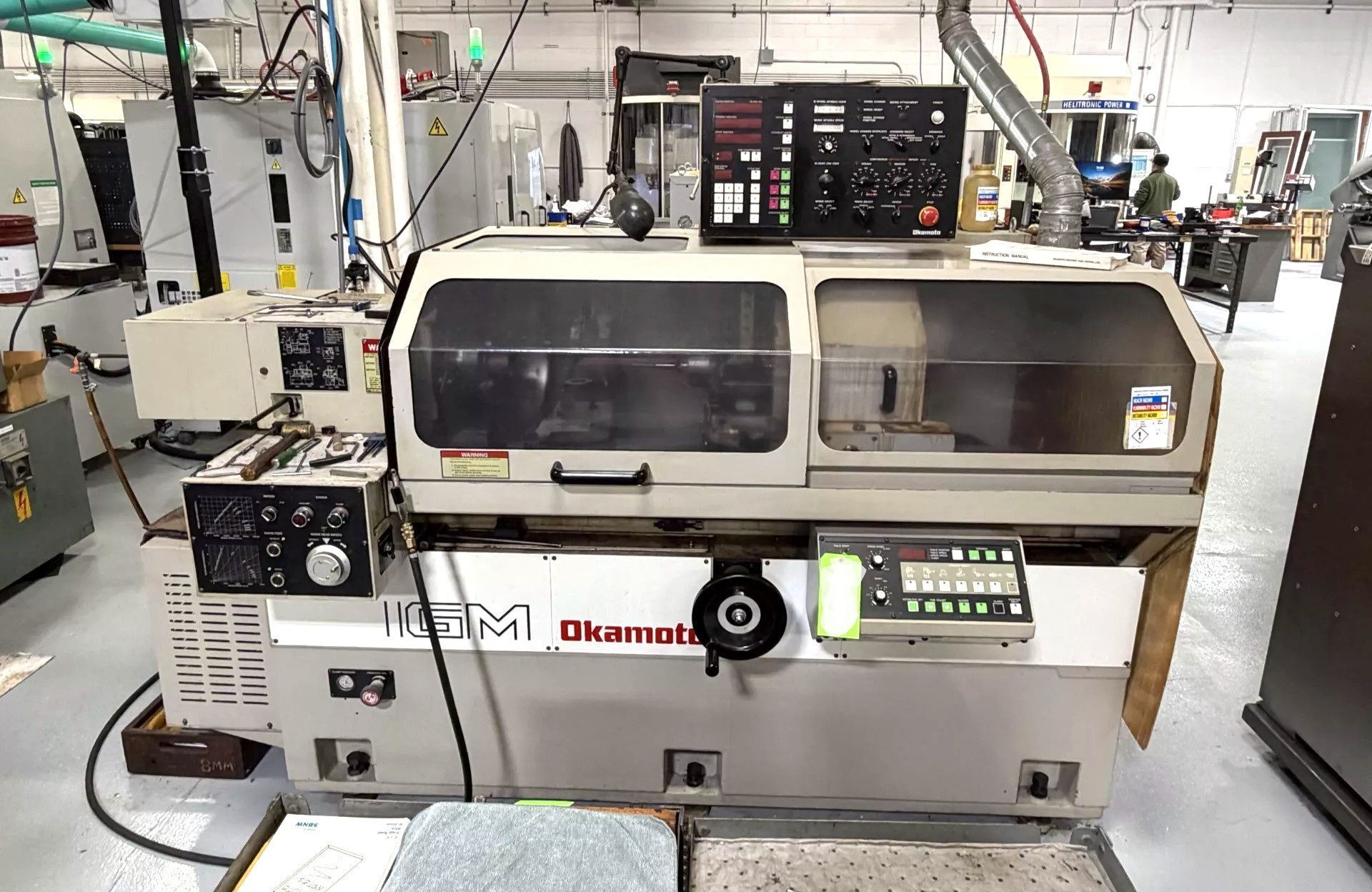

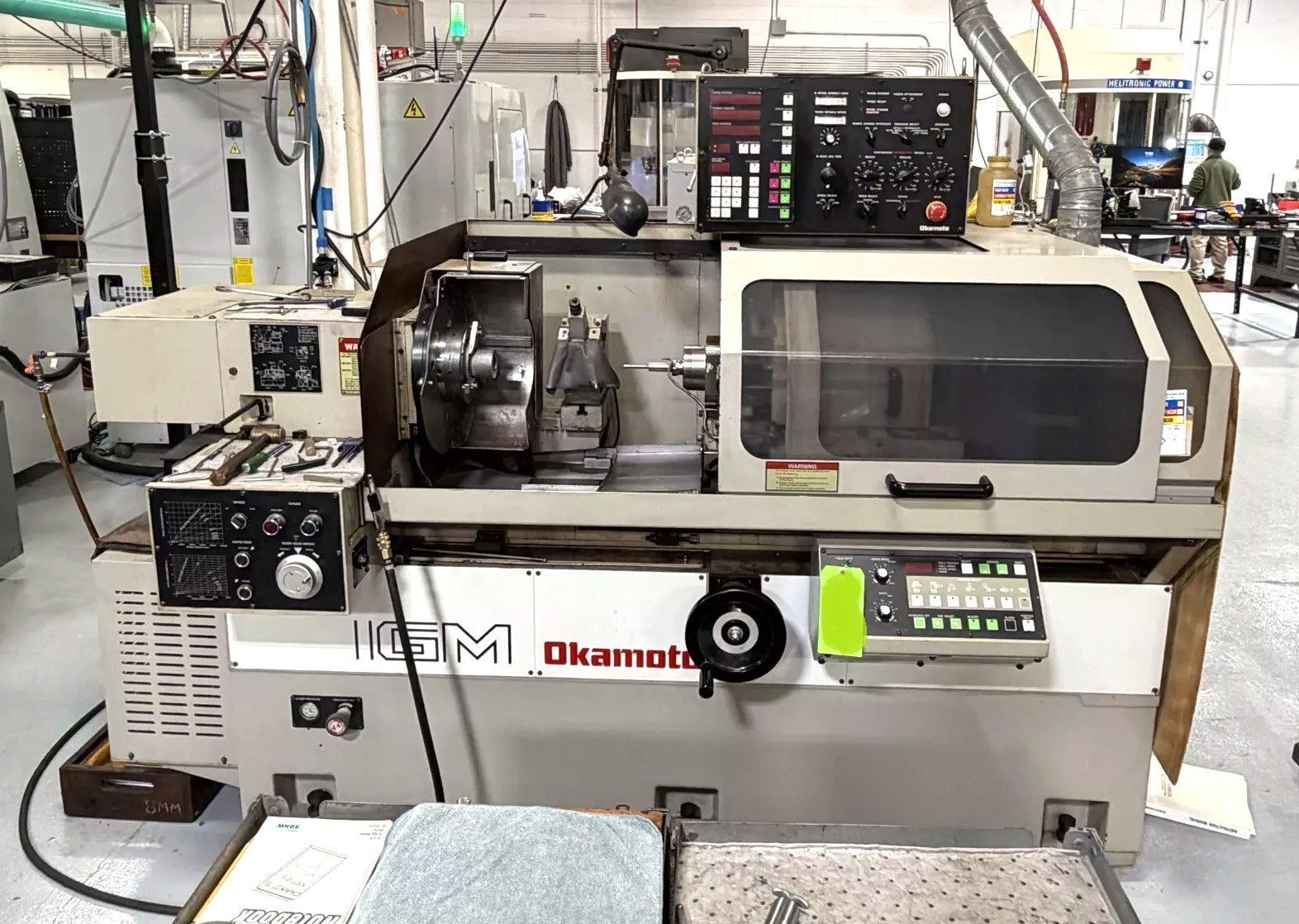

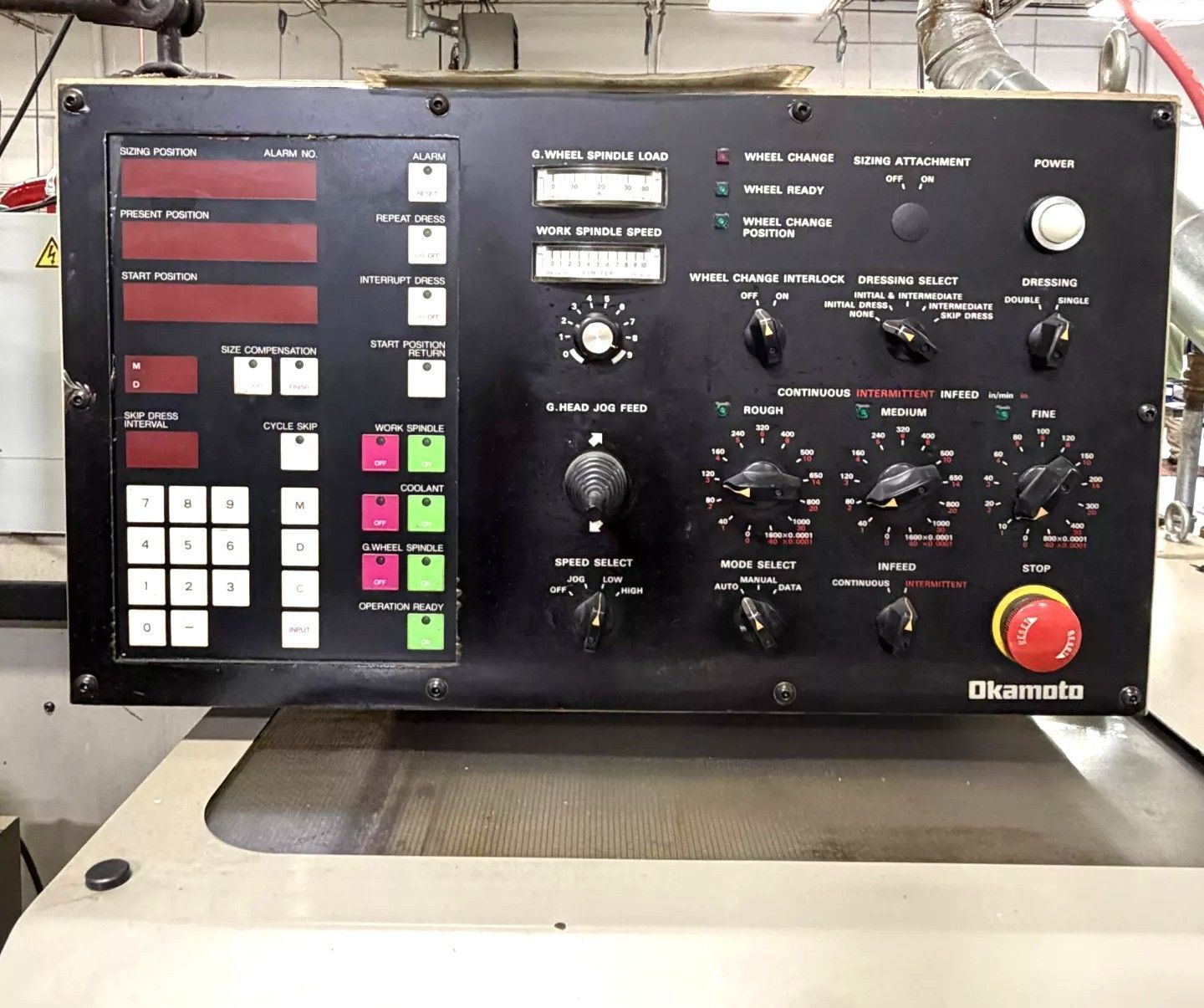

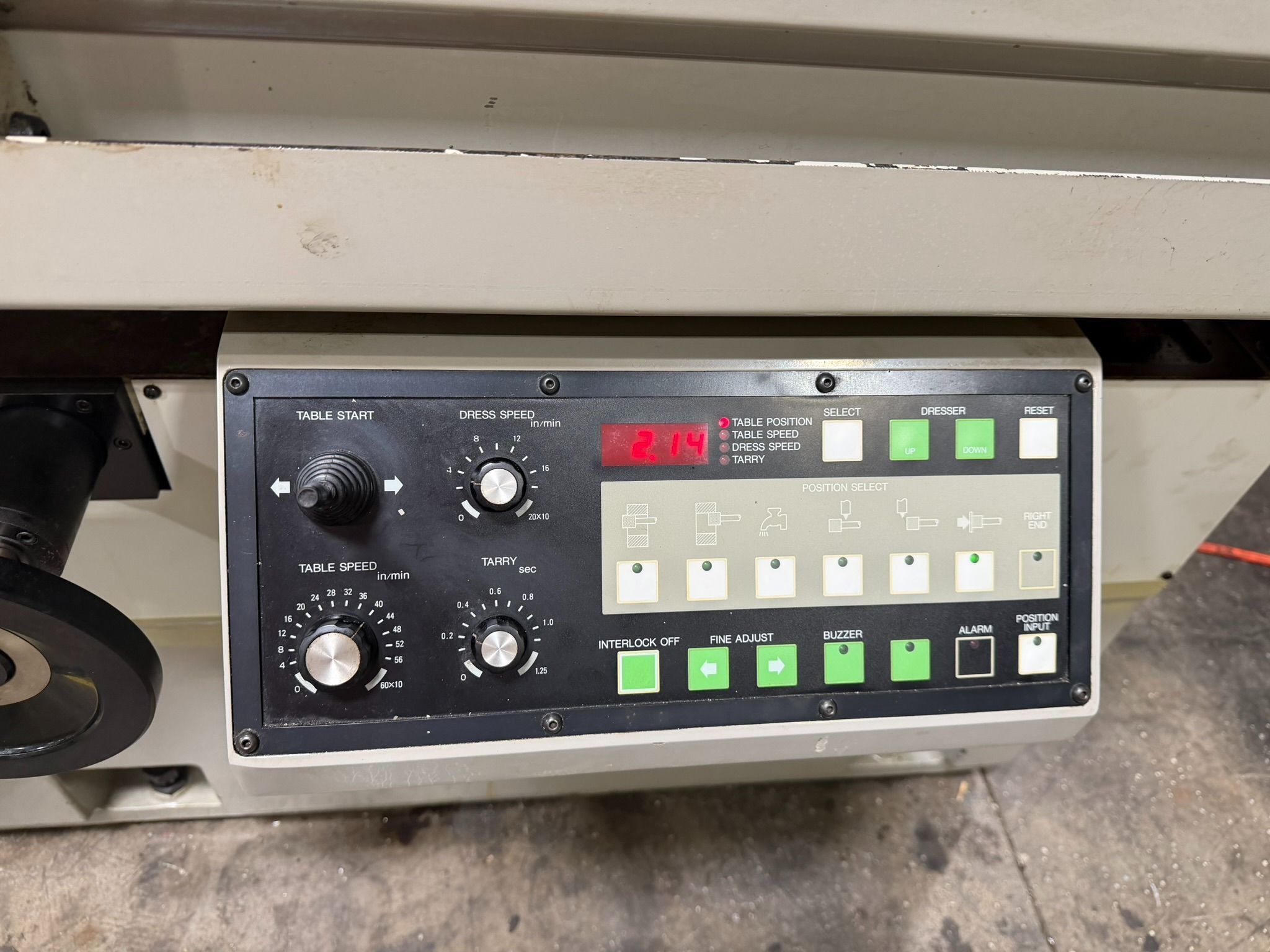

OKAMOTO IGM-2M grinder offers programmable internal grinding with a 2010 build. Equipped with MDI control, automatic cycles, and a 10,000 RPM spindle. Features include 8" grinding stroke, 24" swing, and 600 IPM rapid feed. Ideal for precision tasks.
ID Grinding capacity .24-8"
Grinding stroke 0.08-8"
Reversals at 0.08" stroke 300/pm
Swing over table 24"
Swing inside splash guard 14"
Workhead swivel -5 to +30 deg.
Wheelhead cross feed travel (X-Axis) 9.4"
Max. longitudinal travel 20"
Rapid feed rate 600 IPM
Table speed 20-600 IPM
Workhead spindle speeds 50-850 RPM
Microfeed increment (minimum) 0.0003"
Wheelhead spindle drive 3 HP AC
Workhead spindle drive 2 HP AC
Approx. machine weight 6,160 LBS
Approx. machine dimensions 92"LR x 78"FB x 6
9"H
ID Grinding capacity .24-8"
Grinding stroke 0.08-8"
Reversals at 0.08" stroke 300/pm
Swing over table 24"
Swing inside splash guard 14"
Workhead swivel -5 to +30 deg.
Wheelhead cross feed travel (X-Axis) 9.4"
Max. longitudinal travel 20"
Rapid feed rate 600 IPM
Table speed 20-600 IPM
Workhead spindle speeds 50-850 RPM
Microfeed increment (minimum) 0.0003"
Wheelhead spindle drive 3 HP AC
Workhead spindle drive 2 HP AC
Approx. machine weight 6,160 LBS
Approx. machine dimensions 92"LR x 78"FB x 6
9"H
Get Your Price from CNC Exchange div. Gray Machinery Co.!
