For Sale by KD Machinery
Description

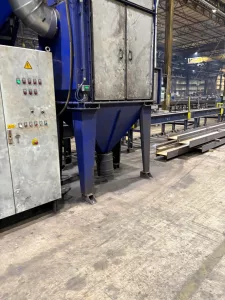

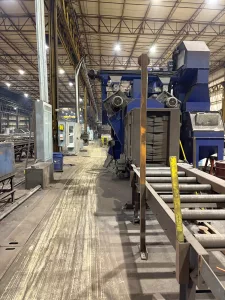

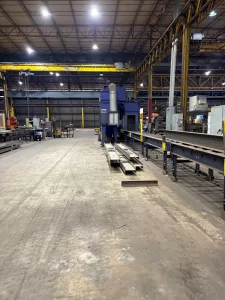

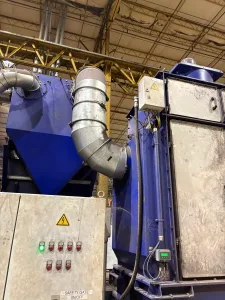

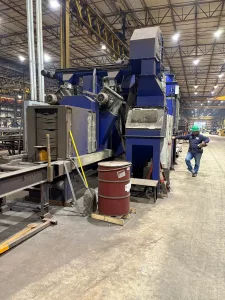

Used Ocean Eliminator (2020) Machine for Sale. This shot blaster handles beams, channel, angle, tube, flat bar and other profiles up to 40″ max profile height and 20″ max profile width, with a 0.5″ minimum workpiece height, 96.5″ minimum workpiece length and 66 lbs/piece max workpiece weight. Four Agtos high-performance direct-drive turbines run 10 HP (7.5 kW) each with 15″ (380 mm) wheels, six blades per wheel at 2.16″ (55 mm) blade width, 300 lbs/min abrasive flow per turbine and approximately 290 ft/sec throwing speed for finishes up to SSPC-SP5 / NACE 1. Includes a manganese steel cabinet, variable-speed chain-driven roller conveyor at 20 FPM forward/reverse, 700 lbs/ft convey capacity, full abrasive recycling and self-cleaning cartridge dust collector. Runs on 3-phase power with 58 to 87 PSI compressed air. Can be seen under power for an inspection. Browse our used beam/drill lines, then
| Max profile height: | 40" |
|---|---|
| Max profile width: | 20" |
| Min workpiece height: | 0.5" |
| Min workpiece length: | 96.5" |
| Max workpiece weight: | 66 lbs/Piece |
| Material type: | Handles Beams, Channel, Angle, Tube, Flat Bar And Other Profiles |
| Wheel diameter: | 15" (380 mm) @ 50 Hz |
| 6 blades per wheel: | 2.16" (55 mm) Blade Width |
| Turbine drive: | 10 HP (7.5 kW) Each |
| Abrasive flow: | 300 lbs/min Per Turbine |
| Throwing speed: | Approx. 290 ft/sec (88 M/Sec) |
| Approx. Shipping Weight (Blaster Only): | 17,622 lbs Net / 18,154 lbs Gross |
| Approx. Dimensions: | 12.4' L X 13.2' W x 23.2' H Overall |
| Heaviest piece: | Main Machine + Turbines, 9,614 lbs, Approx. 18.1' x 6.9' x 8.6' |

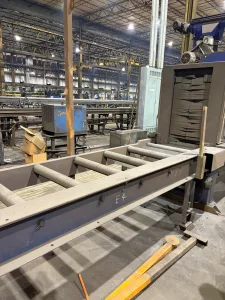

| Powered roller sections | 9' And 4' Lengths (1' Gap Between Sections For Future Cross Transfers) |
| Convey capacity: | 700 lbs/ft |
| Conveyor inverter variable-speed drive | 20 FPM Forward/Reverse |
| Compressed air: | 58 To 87 PSI |
