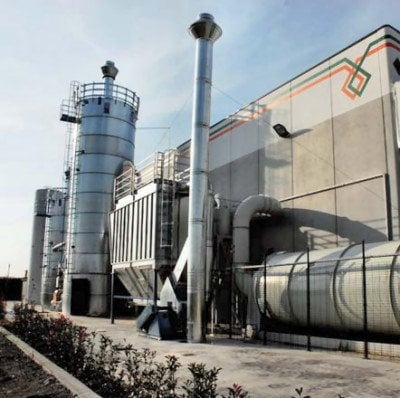

Nova Pellet #N-Midi-Plant, Pellet Plant, 1.3 ton/hr, 335 HP installed, 295 HP average, includes Dryer & Bagging Line, 2026, new

$949,000 USD

Request Formal Quote

Complete Wood Pellet Manufacturing Plant including Dryer and Bagging Line. -- Capacity: 0.9 - 1.3 Tons/Hr (0.8 - 1.2 metric tons/Hr). -- Raw Material: Wood chips, sawdust, wood shavings. -- Power: 335 HP (250 kW) Installed, 295 HP (220 kW) average.The Pellet Plant consists of the following main components: -- (1) Wood Chip Hopper: 706 cu. ft. (20 cbm) volume; includes Discharge Screw, Motor. -- (1) Rotary Drum Dryer: 1.0 - 1.2 tons/Hr (0.9 - 1.1 metric tons/Hr) dry material capacity, moisture reduction from ...25% to 12% (Optional: Dryer for higher moisture contents); includes: Cyclone, Rotative Valve, Electrical Cabinet with PLC (Optional: additional Dust Filter). -- (1) Biomass Burner: Approx. 695 Lbs/Hr (315 kG/Hr) Wood Chips, max. ...45% moisture content. -- (1) Magnetic Separator. -- (1) Hammer Mill: 1.0 - 1.4 Tons/Hr (1 - 1.3 metric tons/Hr) dry material capacity, 100 HP (75 kW) installed power, 1.2" x 0.78" x 0.2" (30 x 20 x 5 mm) max. grain size. -- (1) Dry Chip Silo: 565 cu. ft. (16 cbm) volume, 124" (3,150 mm) diameter, 321" (8,150 mm) height; includes: Dust Filter, Pulse Jet Cleaning System, and Safety System with Spark detection, Rotative Valve. -- (2) Pellet Mills (Type: N-MIDI): Each 1,100 - 1,540 Lbs/Hr (500 - 700 kG/Hr) capacity, 74 HP (55 kW) main drive; includes: (1) x Die, (2) x Rollers, Electrical Cabinet with PLC. -- (2) Vibrating Screens. -- (1) Pellet Cooling Column. -- (1) Packaging Line (Type: N-Pack): Manual operated line includes: Screen, Conveyors, Storage Hopper, Pneumatic Valve, 15 kG Bags, semiautomatic Pallet Wrapping machine. -- Auxiliary Equipment: Conveyors, Ducts for Dedusting, Fan for Silo loading, etc. -- Shipment to US port, Mechanical & Electrical installation, start-up, and training included.
