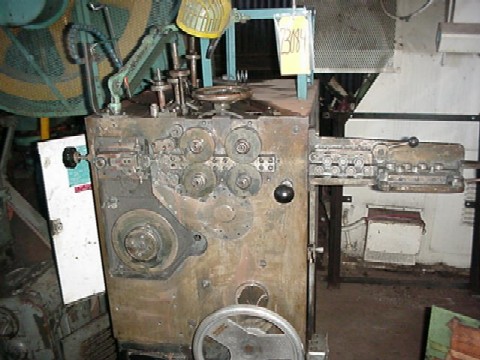

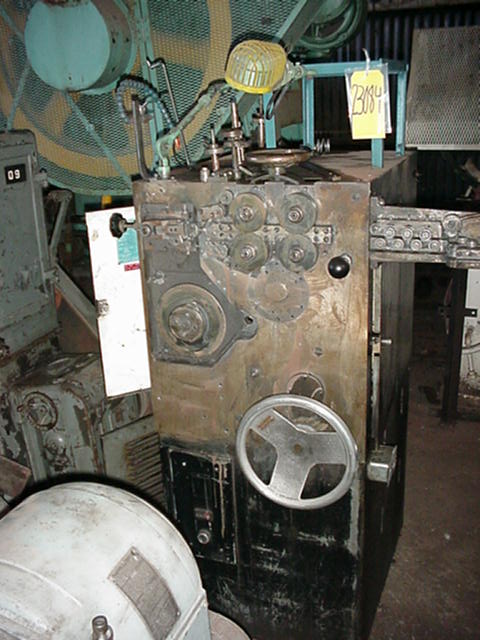

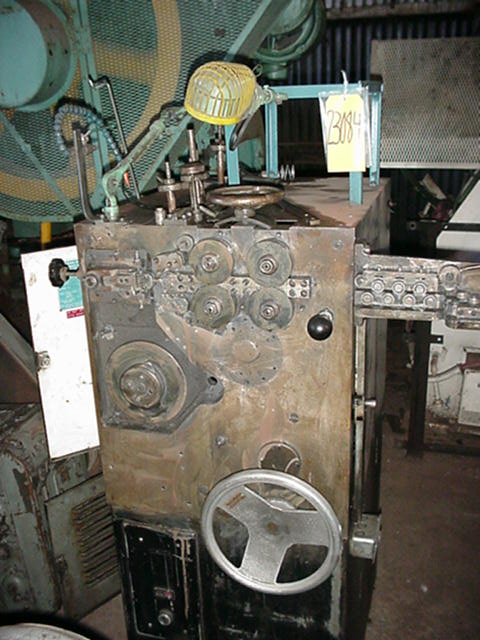

No. W-11A Torrington, Segment Type Spring Coiler, .072" wire, 1.562" coil outside dimension, 200 SPM, 7 roll horiz/vert straightener, torsion attachment

Manufacturer: Torrington
Model: W11A
Stock # 107188

For Sale by National Machinery Exchange

Platinum Level Dealer
Surplus Record Dealer Since 1939

Description


WIRE RANGE.......................... .015" TO .072"
CONST. COIL OD. RANGE............... .093" TO 1.562"
SPEED............................... 25 TO 200 SPRINGS/MINUTE
WIRE LENGTH PER SPRING:
STD STROKES PER MINUTE 20 TO 200
FEED LGTH OF WIRE: FOR DIAMETERS OF:
104" .035"
86" .047"
63" .062
42" .072
COIL OD RANGE GUIDELINE -
3X WIRE DIAMETER TO 1 9/16"
SEGMENT MACHINE
EQUIPPED WITH: 7 ROLL VERTICAL
7 ROLL HORIZONTAL
PLANE STRAIGHTENER
EXTRA CAMS, FEED ROLLS AND GEARS
TORSION ATTACHMENT
MOTOR DATA: 2HP, 230/460V, 3PH, 50 CYC, 1140 RPM VARIDRIVE
VARIDRIVE RPM 300 MIN TO 3000 RPM MAX
WITH CONTROLS
