For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Peter Sonneborn
847-27...> Show Seller's Phone Number 847-276-2761 Let the seller know you found their listing on Surplus Record!
Description
New - 2004
Serial No. 040712
SPECIFICATIONS:
Axes............5
Wire Capacity............2.0 - 5.0 mm
Spring OD - Maximum............70 mm
Feed Length............Unlimited
Feed Speed............77 m/min
Production Speed............100 pcs/min
Spring Index - Minimum............3
Feed Axis............20 kw
OD Axis............3.5 kw
Wedge Pitch Axis............3.5 kw
Cutter Axis............3.5 kw
Push Pitch Axis............1.0 kw
Power Consumption............41 kw
Machine Dimensions - Approximate............2200 mm x 1320 mm x 2020 mm
Machine Weight - Approximate............2600 kg
Electrics............220V/3Ph/50/60Hz
EQUIPPED WITH:
5 Servo Axis

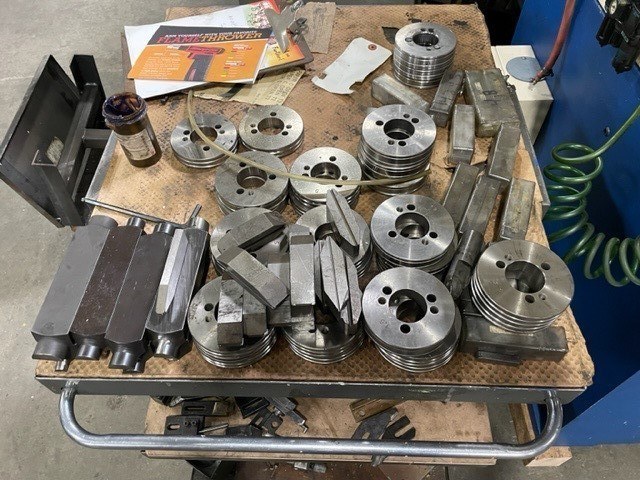

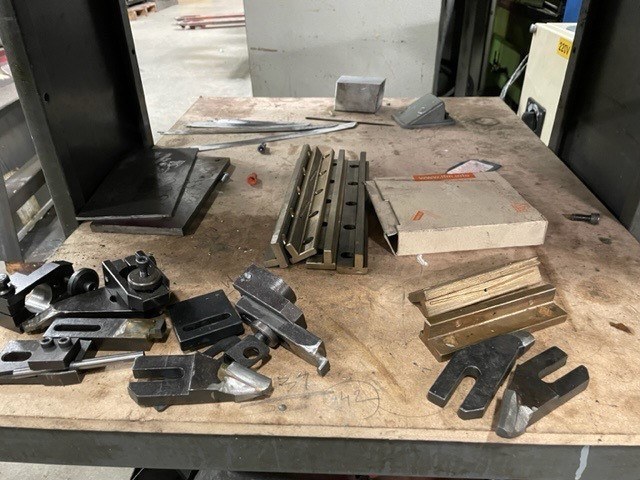

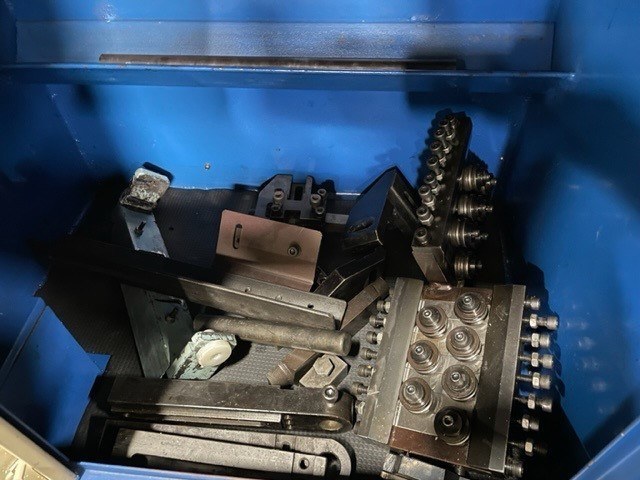

Tooling
2 Plane Straightener
*Preliminary specifications, pending confirmation.
Serial No. 040712
SPECIFICATIONS:
Axes............5
Wire Capacity............2.0 - 5.0 mm
Spring OD - Maximum............70 mm
Feed Length............Unlimited
Feed Speed............77 m/min
Production Speed............100 pcs/min
Spring Index - Minimum............3
Feed Axis............20 kw
OD Axis............3.5 kw
Wedge Pitch Axis............3.5 kw
Cutter Axis............3.5 kw
Push Pitch Axis............1.0 kw
Power Consumption............41 kw
Machine Dimensions - Approximate............2200 mm x 1320 mm x 2020 mm
Machine Weight - Approximate............2600 kg
Electrics............220V/3Ph/50/60Hz
EQUIPPED WITH:
5 Servo Axis
Tooling
2 Plane Straightener
*Preliminary specifications, pending confirmation.
Get Your Price from Liberty Machinery Co!
