For Sale by National Machinery Exchange
Surplus Record Dealer Since 1939
Location: Newark, NJ
Contact Sales / Andreia
Phone Number: 973...> Show Phone Number 973-358-7208
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS:
WIRE DIAMETER: 0.1-0.8 MM
MIN SPRING INDEX: 4
MAX SPRING OD: 20 MM
MAX FEED LENGTH: UNLIMITED
MAX PRODUCTION RATE: 550 PCS/MIN
MAX FEED SPEED: 100M/MIN
MOTORS CAPACITY: 0.75/0.75 KW
MEMORY STEPS: 5000
POWER: 220V, 3 PHASE
DIMENSIONS: 920 x 760 x 1520 MM
WEIGHT: 350 KGS
EQUIPPED WITH:
2 AXIS SERVO CONTROL

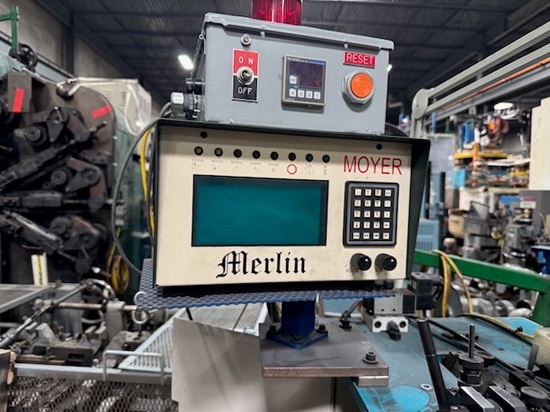

MOYER MERLIN SPRING GAGE (S/N 5856) WITH PROBE AND PITCH CONTROL
AND 2 WAY SORTER
RH AND LH COILING
EXTRA TOOLING
WIRE DIAMETER: 0.1-0.8 MM
MIN SPRING INDEX: 4
MAX SPRING OD: 20 MM
MAX FEED LENGTH: UNLIMITED
MAX PRODUCTION RATE: 550 PCS/MIN
MAX FEED SPEED: 100M/MIN
MOTORS CAPACITY: 0.75/0.75 KW
MEMORY STEPS: 5000
POWER: 220V, 3 PHASE
DIMENSIONS: 920 x 760 x 1520 MM
WEIGHT: 350 KGS
EQUIPPED WITH:
2 AXIS SERVO CONTROL
MOYER MERLIN SPRING GAGE (S/N 5856) WITH PROBE AND PITCH CONTROL
AND 2 WAY SORTER
RH AND LH COILING
EXTRA TOOLING
Get Your Price from National Machinery Exchange!
