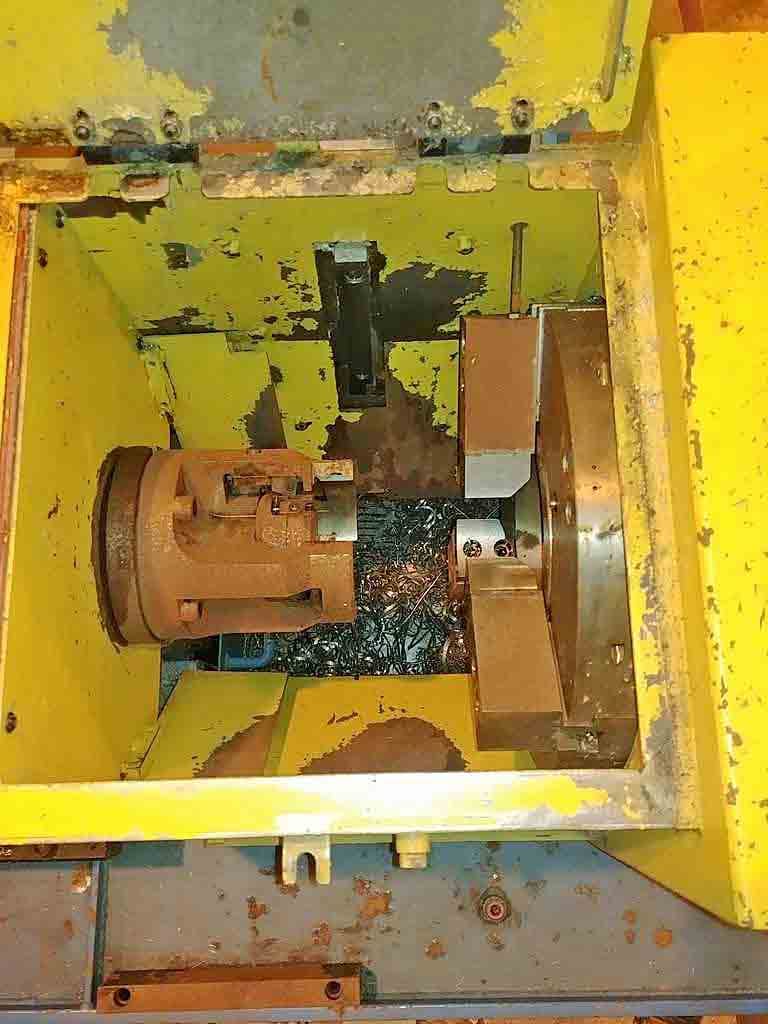

No. C8-HS MSI Chamfermate, 5.0" diameter, heavy duty, hydraulic powered pipe beveler

MSI Pipe Beveling Machine

The Model C8H Chamfermate is a heavy duty hydraulic powered pipe beveling
machine with up to 5.0" O.D. Capacity. With 15 HP, the C8H has the power
to machine weld bevels and other forms on the end of heavy wall pipe and
tubing within its range.

Model: C8-HS

Specifications: (Subject to verification)

-Diameter Range: 1" to 5.0" O.D.
-Pipe Sizes: 1" to 5.0"
-Typical Wall Thickness: 0.625" (5" Pipe - SCH 160)
-Main Drive Motor: 15 HP, 1765 RPM, Baldor Vector Drive
-Voltage: 230/440 - 3PH - 60HZ
-Standard Spindle RPM Range: 150 - 600
-Clamping: Hydraulic
-Spindle Feed: Hydraulic
-Feed Rate: Adjustable
-Spindle Stroke: 6"
-Coolant: Standard
-Pneumatic Requirement: 1 cfm @ 90 psi

-Fast cycle times, normally under 20 seconds.
-Adjustable cutter head with interchangeable carbide inserts set with
digital calipers.
-Interchangeable grips for different sizes of pipe, tubing and solid bar.
-Electronic variable speed drive
-Heavy Duty construction utilizing machine tool type linear rails.
-Hydraulic powered clamping and feed
-Coolant System
-Large Chip Drawer in machine base

PIPE & TUBE BEVELING BENEFITS:
-No more hand grinding or torching of weld bevels.
-Automated pipe beveling machines are many times faster than
portable units.
-Cycle normally in the 15 - 20 second range.
-Safer than hand grinding.
-Accurately machines weld bevel and faces pipe square.
-Sturdy construction and quality materials for years of dependable service.
-Pipe beveling machines have low operating costs.

-Note: Machine is currently tooled for 3.5" O.D. Tubing.

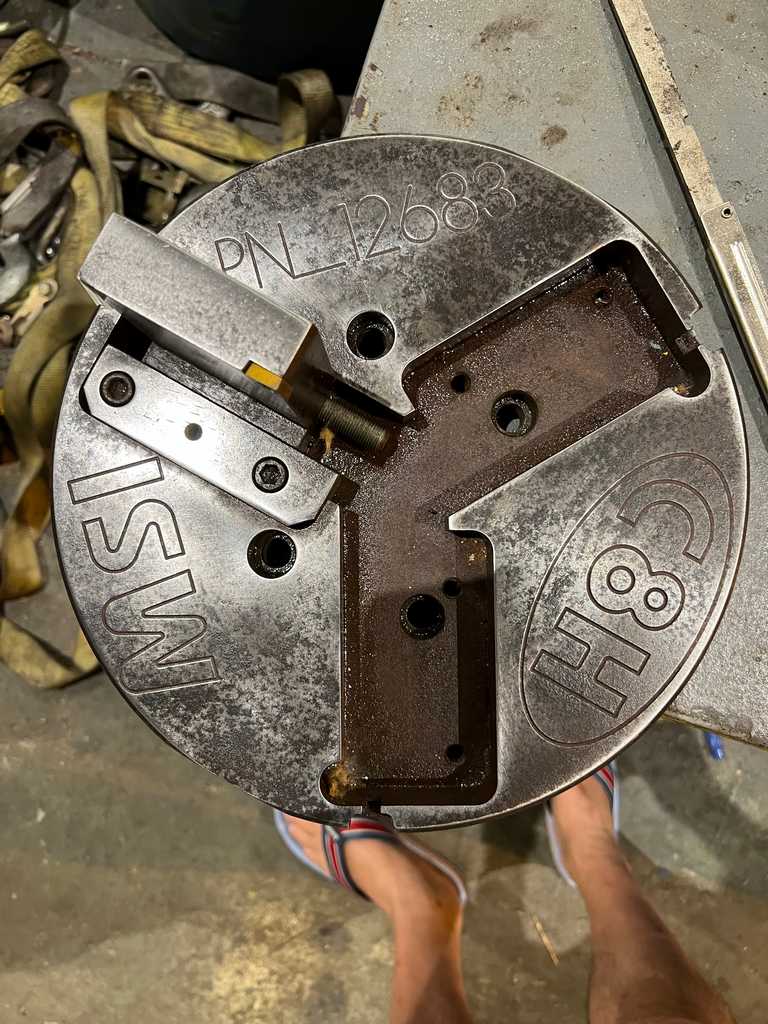

Cutting Heads are included for 5.0" O.D. capacity, but are not installed.

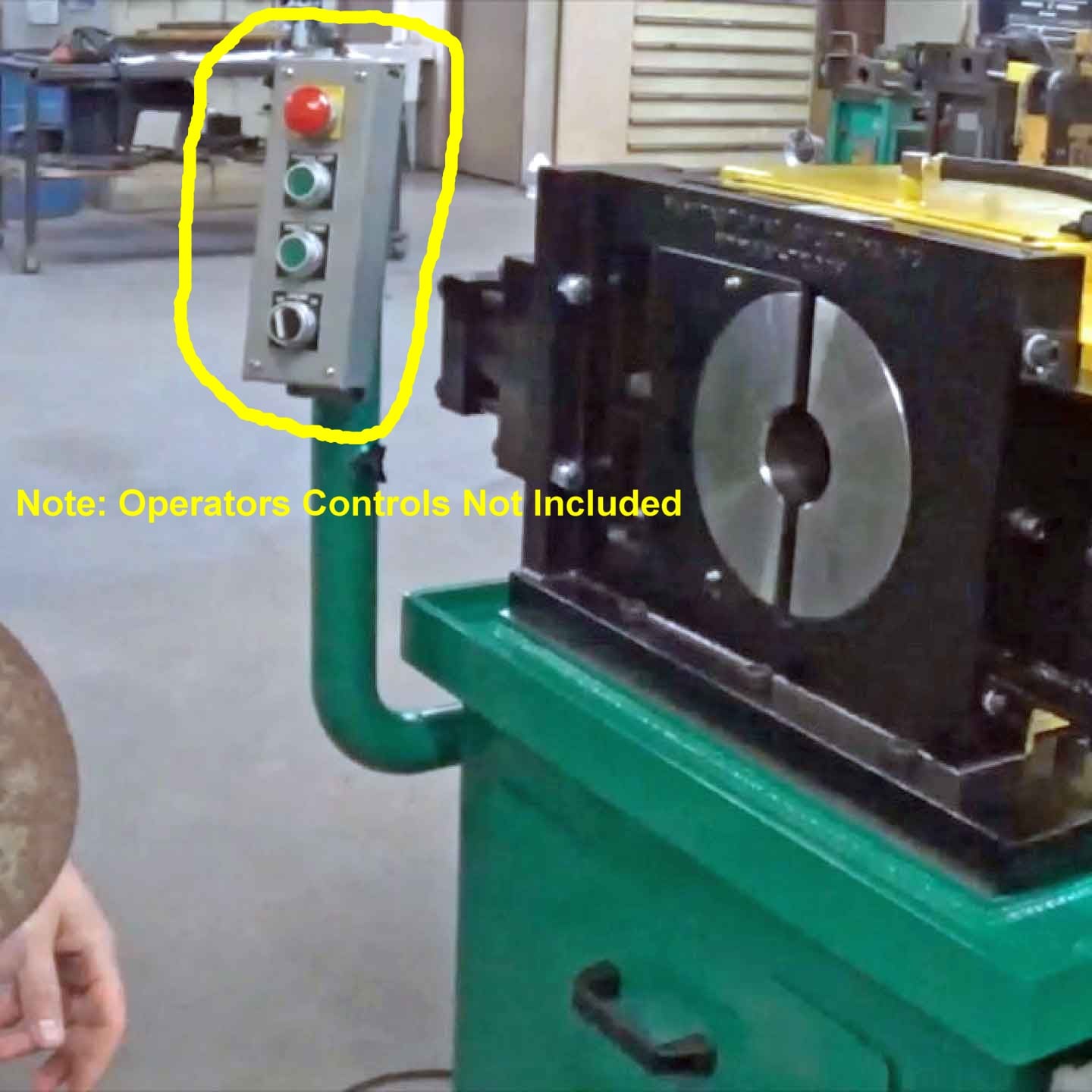

Operator Controls Not Included.

-Overall Size: 77" L x 64" W x 71" High
6,100 lbs.

-In Storage: Toledo, OH
