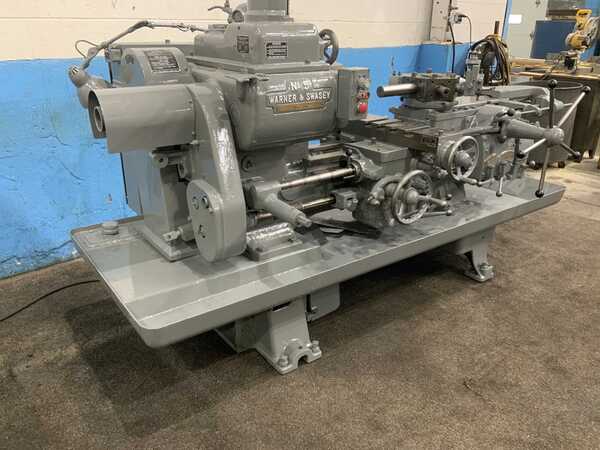

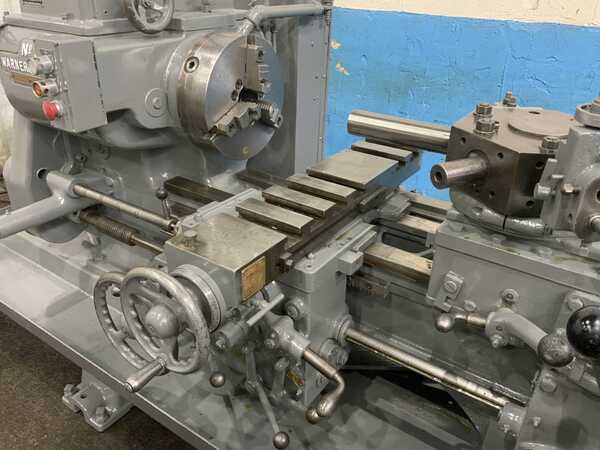

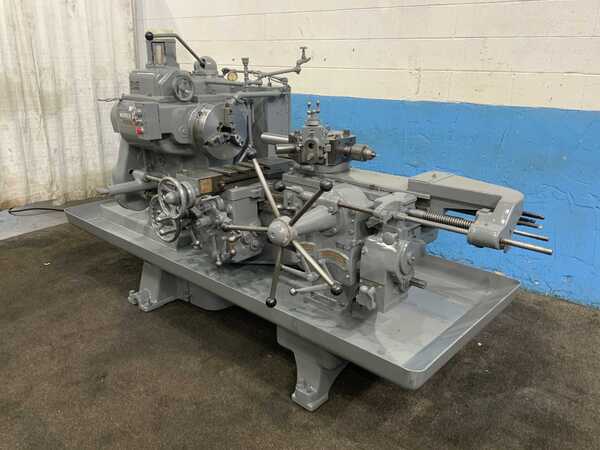

No. 5 Warner & Swasey, M1740, ram type turret lathe, 20" swing, 10-1/4" swing over cross slide, 10 HP, taper attachment

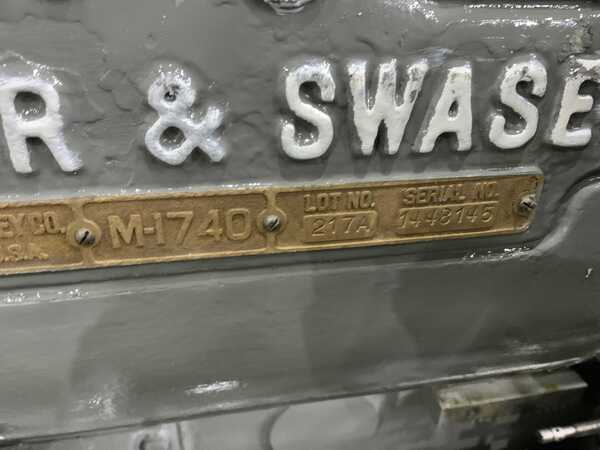

SERIAL ................................... 1448145

MODEL .................................... #5

SERIES ................................... M1740

DIAMETER OF SPINDLE HOLE.................. 2-7/8"

SWING OVER WAYS........................... 20"

SWING OVER CROSS SLIDE.................... 10-1/4"

LONGITUDINAL TRAVEL OF CARRIAGE........... 24-1/2"

CROSS TRAVEL OF CROSS SLIDE............... 10"

SPINDLE FACE TO TURRET.................... 34" MAXIMUM

SPINDLE SPEEDS............................ (24) 26 TO 1316 RPM

TAPER ATTACHMENT ......................... YES

CARRIAGE LONGITUDINAL FEEDS............... (6) .0045 TO .045 IPR

CROSS SLIDE CROSS FEEDS................... (6) .003 TO .027 IPR

TURRET LONGITUDINAL FEEDS................. (6) .005 TO .049 IPR

HORSEPOWER MAIN MOTOR .................... 10 HORSEPOWER
