For Sale by N & R Machine Sales
Surplus Record Dealer Since 1998
Location: Navasota, TX
Contact Randy Nevels
Phone Number: 800...> Show Phone Number 800-245-3194
Let the seller know you found their listing on Surplus Record!
Description

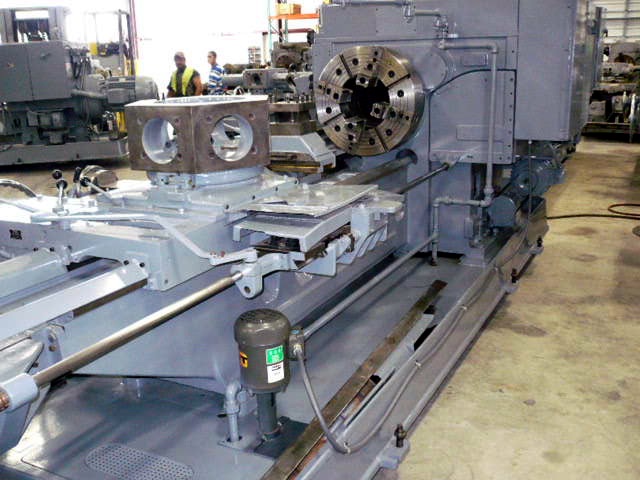

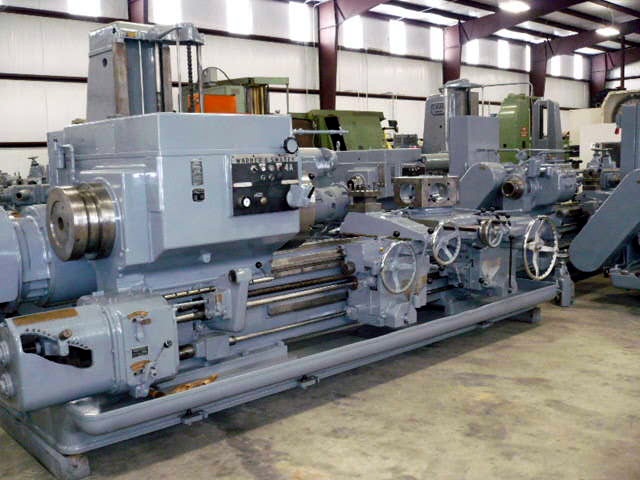

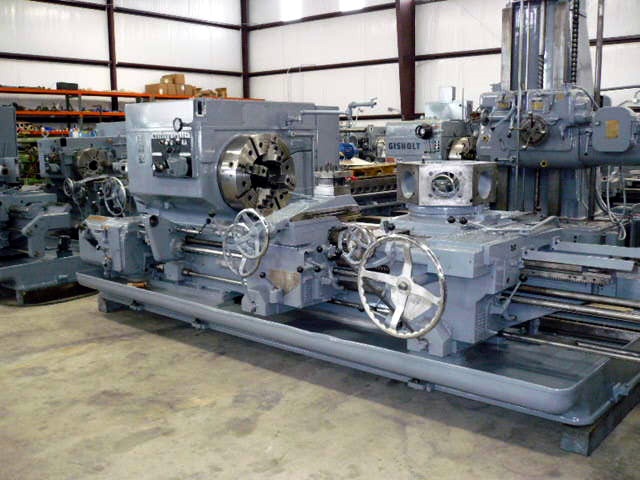

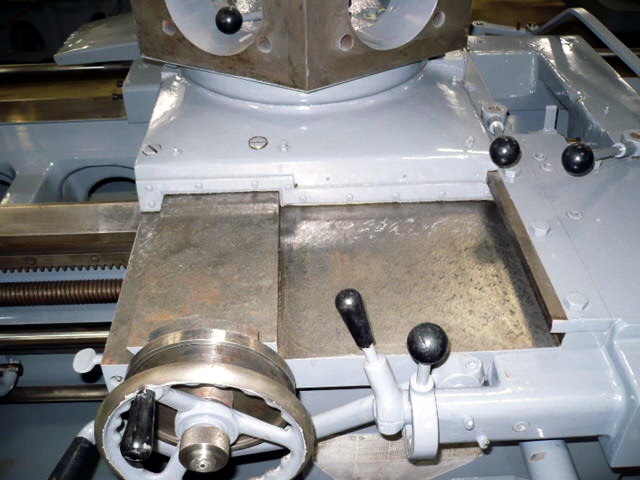

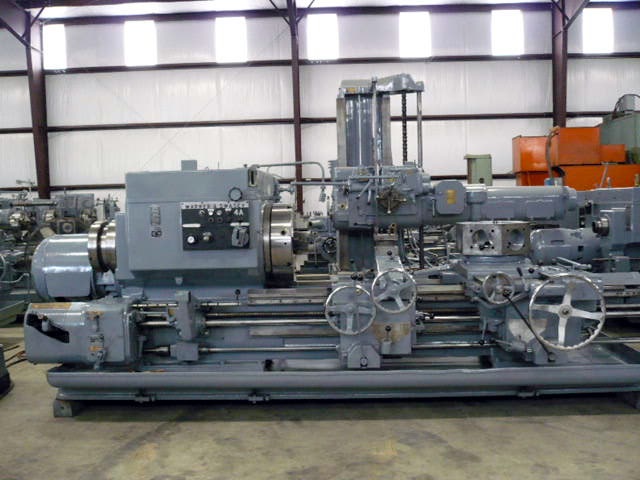

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Ref.#L630462
Model: 4A - 3580
New: 1967
Swing Over Bed Ways-28-1/4"
Swing Over Cross Slide Carriage-22"
Spindle Hole-12-1/2
Center Distance-62"
Spindle Speeds-20 To 526 Rpm's
Spindle Nose-A-20

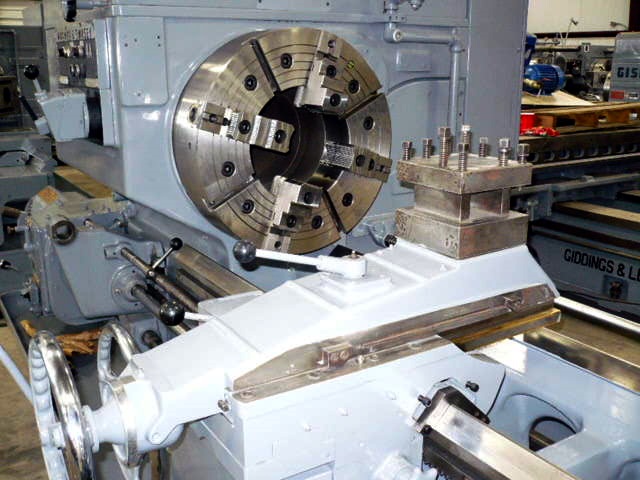

Chuck Size-24" 4 Jaw New
Feeds Cross-.004 To .090 I.P.R.
Feeds Long.-.005 To .167 I.P.R.
Main Motor-60/30 Hp
Weight-22,000 Lbs.
Floor Space Right To Left-20'
Floor Space Front To Back-7'
Machine Height-80"
Short Flange Holder-2
Long Flange Holders-1
Coolant-Yes
Tool Post 4 Way On Front-Yes
Cross Sliding Rear Turret-Yes
Full Chip Pan And Coolant-Yes
Rapids-Yes
Condition: Very Good
Note: Machine Will Have Both Aprons And Rapid Traverse Boxes Reconditioned. New Feed And Rapid Shafts, New Oil And Filters. Machine Will Be Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice.
Ref.#L630462
Model: 4A - 3580
New: 1967
Swing Over Bed Ways-28-1/4"
Swing Over Cross Slide Carriage-22"
Spindle Hole-12-1/2
Center Distance-62"
Spindle Speeds-20 To 526 Rpm's
Spindle Nose-A-20
Chuck Size-24" 4 Jaw New
Feeds Cross-.004 To .090 I.P.R.
Feeds Long.-.005 To .167 I.P.R.
Main Motor-60/30 Hp
Weight-22,000 Lbs.
Floor Space Right To Left-20'
Floor Space Front To Back-7'
Machine Height-80"
Short Flange Holder-2
Long Flange Holders-1
Coolant-Yes
Tool Post 4 Way On Front-Yes
Cross Sliding Rear Turret-Yes
Full Chip Pan And Coolant-Yes
Rapids-Yes
Condition: Very Good
Note: Machine Will Have Both Aprons And Rapid Traverse Boxes Reconditioned. New Feed And Rapid Shafts, New Oil And Filters. Machine Will Be Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice.
Get Your Price from N & R Machine Sales!
