No. 4A Warner & Swasey, M3580, square head, 28-1/4" swg, 62" cc, A2-15 spindle nose, coolant, 1966

Manufacturer:WARNER & SWASEY
Model:4A M-3580 Lot 13
Condition:Used - Good
Year:1966
Stock #:L630466
Status:For Sale
Serial #:2144635

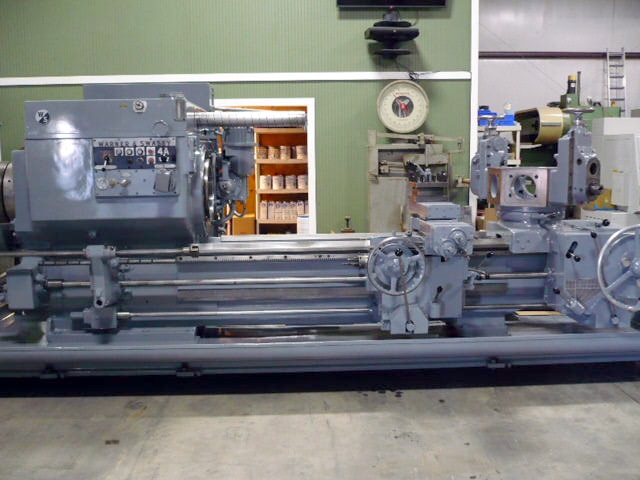

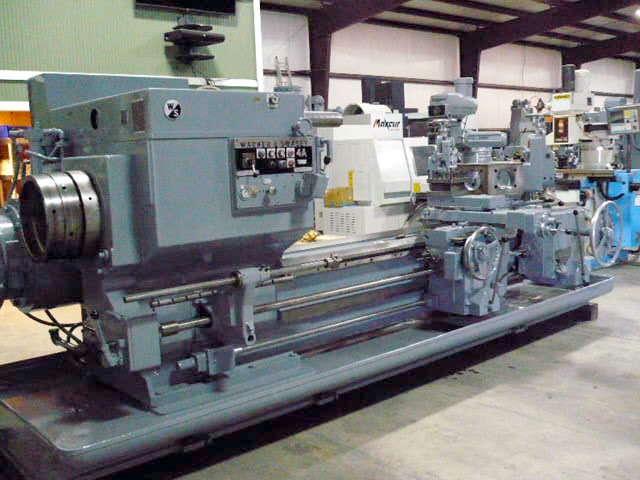

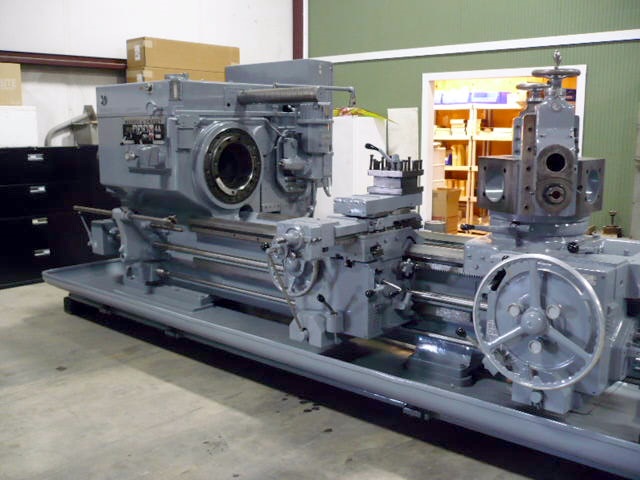

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Model 4A M-3580
Swing 28.25"
Center Distance 62 in
Dimensions 20' Long. X 84" Wide X 84" High
Weight 24,000 Lbs.
Swing Over Ways 28-1/4"
Swing Over Cross Slide Carriage 22"

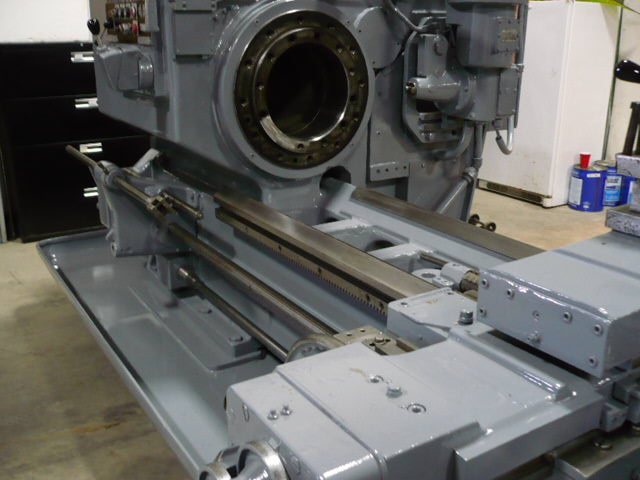

Spindle Hole 12-1/2
Center Distance 62"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size (Heavy Duty Power Wrench) 28" 3-Jaw
Chuck Size (New Heavy Duty) 24" 4-Jaw New Gator
Feeds Cross .004 To .090 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 75 / 37.5 Hp.
Floor Space Right To Left 20'
Floor Space Front To Back 7'
Machine Height 80"
Weight 22,000 Lbs.
Short Flange Holder 2
Long Flange Holders 1
Tool Post 4 Way On Front Yes

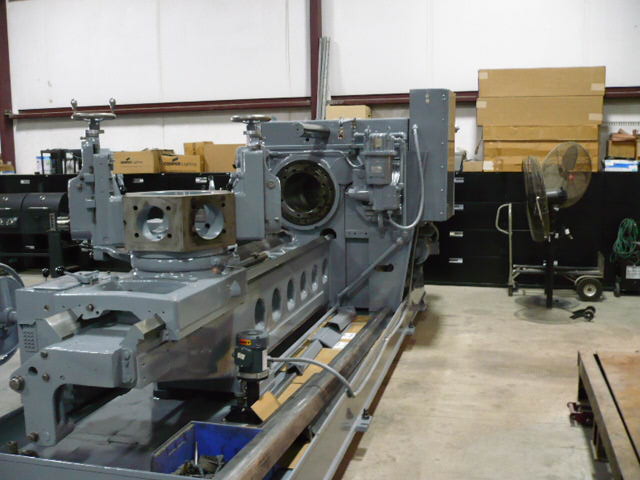

Fixed Rear Turret Yes
Rapids Front & Rear Yes
Power Compound Front Apron Yes
Taper Attachment On Front Apron Yes
Slide Tool Holders 2
Power Wrench Yes
Coolant Yes

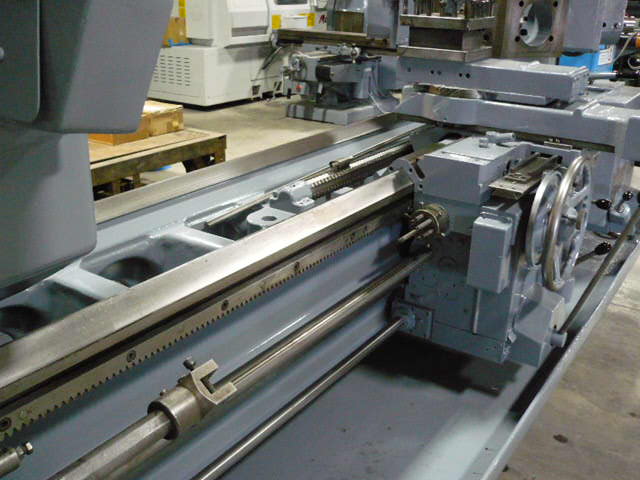

Note: Machine's Front & Rear Aprons And Rapid Traverse Box Reconditioned. Rapid Traverse Drive Box Reconditioned, New Bearings, In Main Motor. New Feed And Rapid Shafts. Headstock Cleaned And Flushed, New Filters And Oil. New Lockdown Pin And Bushing In Hex And Square Turrets, New Nut And Screw In Cross Slide And Hex Turret. Gib's Have Been Reworked And Refitted. New 24"4-Jaw Gator Chuck W/ Reconditioning. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice.
Once machine is in plant and leveled, it is recommend the customer boring the rear turret flange holders to insure they are on center.
