For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description
SERIAL ............................. 1577718

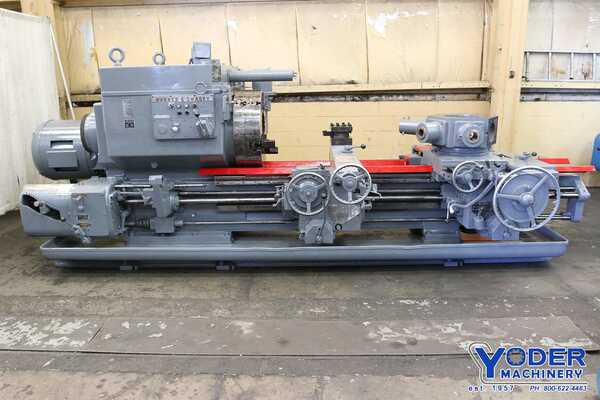

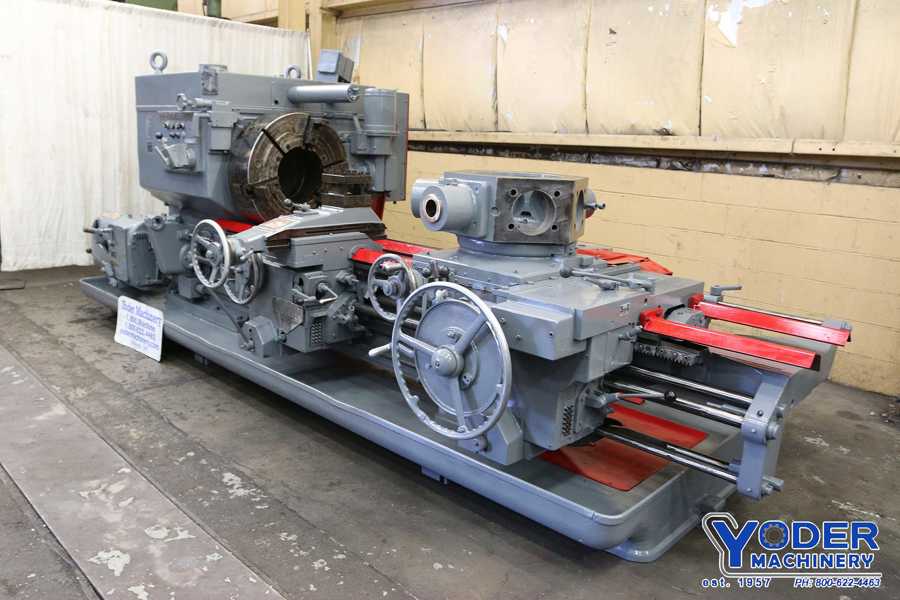

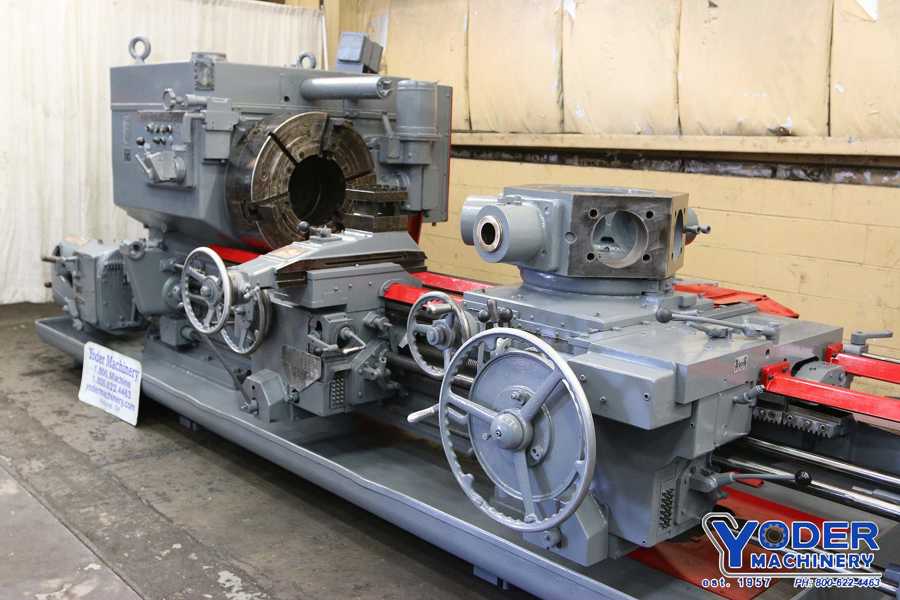

MODEL .............................. 4A M-3550
SWING OVER WAYS .................... 29-1/2"
SWING OVER CARRIAGE ................ 22-7/16"
DISTANCE SPINDLE TO TURRET FACE .... 76-1/4"
SPINDLE SPEEDS ..................... (32) 10 TO 263 RPM
TURRET FEEDS ....................... (16) .005 TO .167 IPR

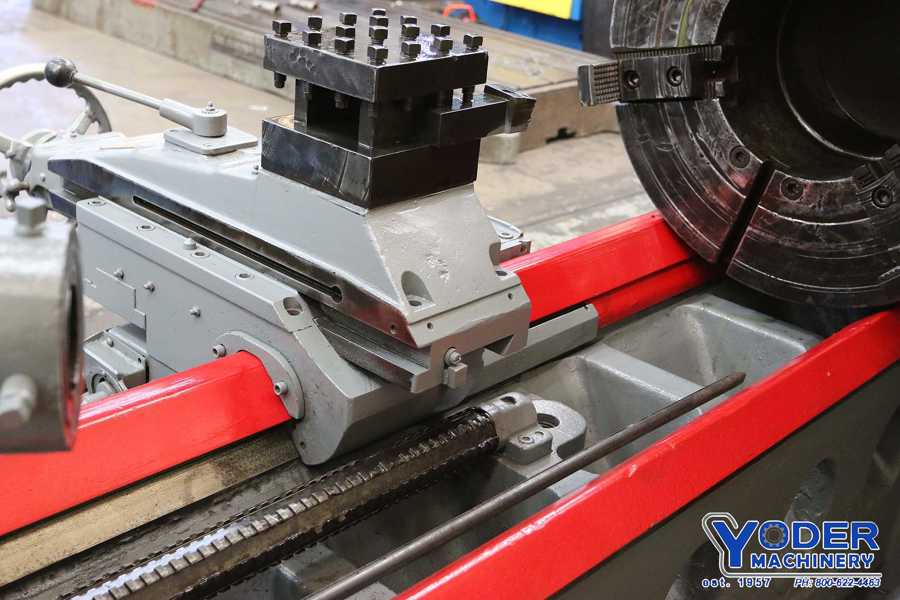

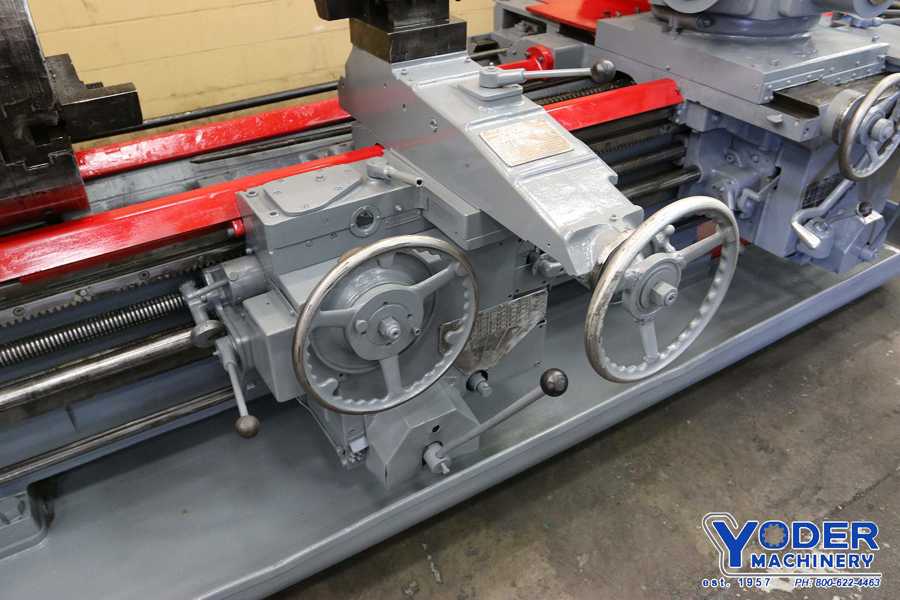

CROSS SLIDE FEEDS .................. (16) .002 TO .077 IPR
DIAMETER OF SPINDLE HOLE ........... **12-1/2"**

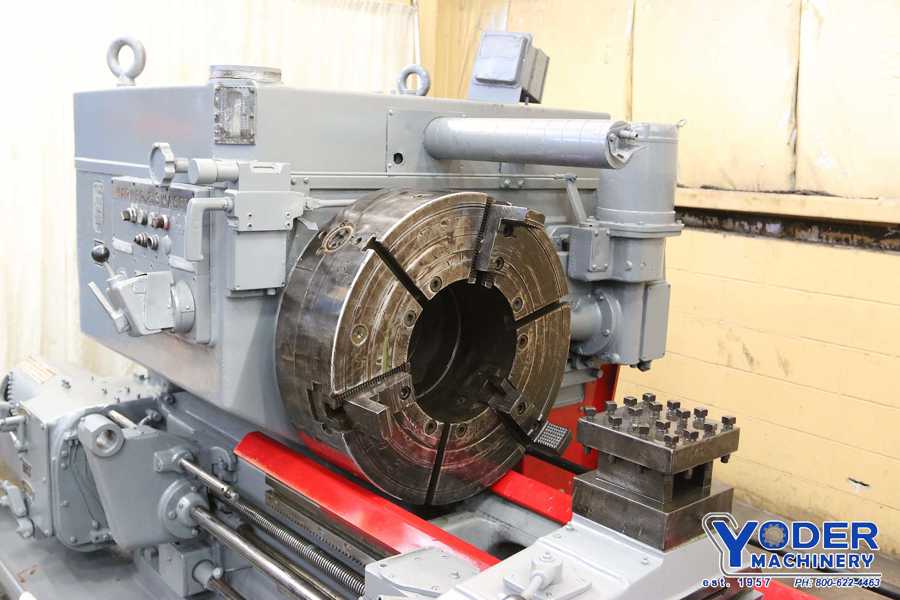

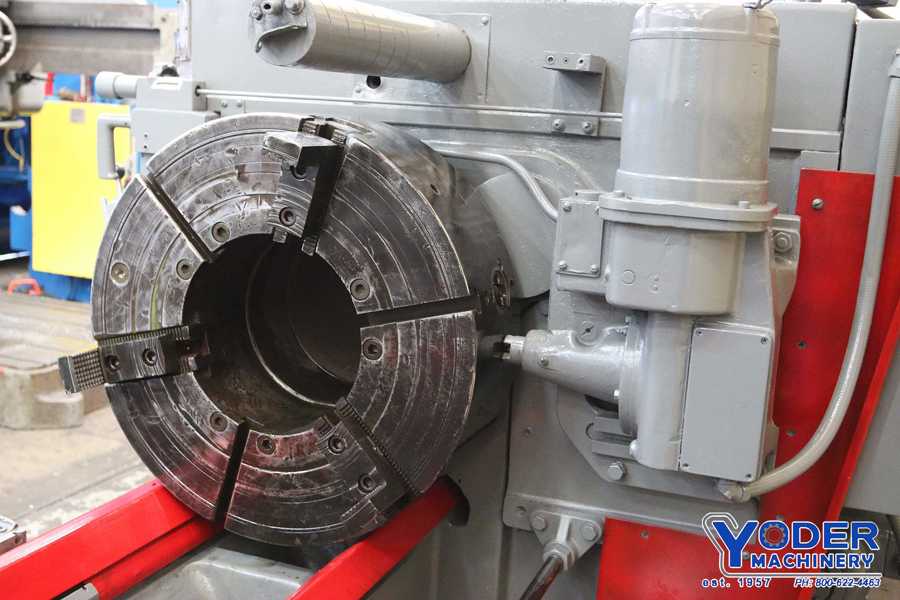

CHUCK .............................. 28" 3 JAW
POWER CHUCK WRENCH ................. YES

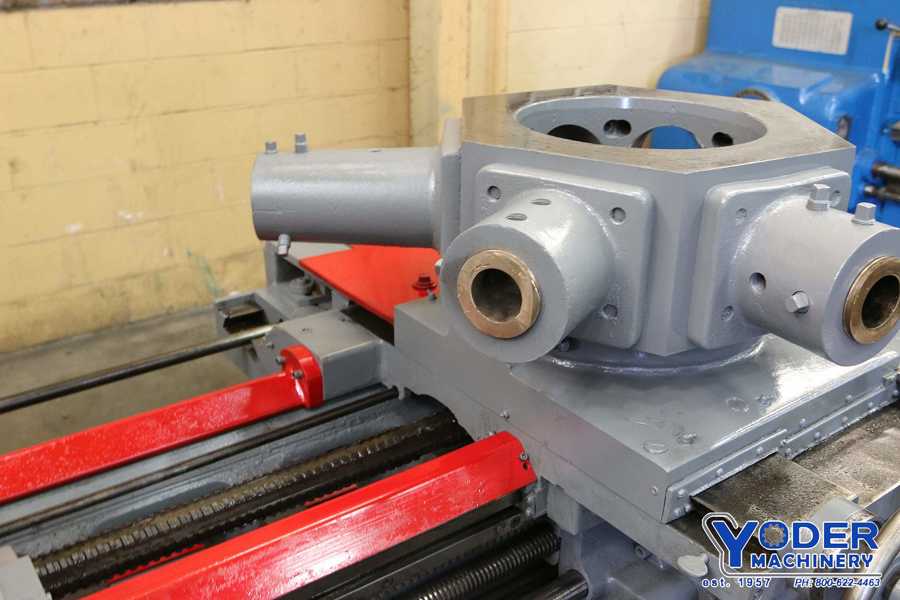

CROSS SLIDING TURRET ............... YES
TAPER ON CROSS SLIDING TURRET ...... YES

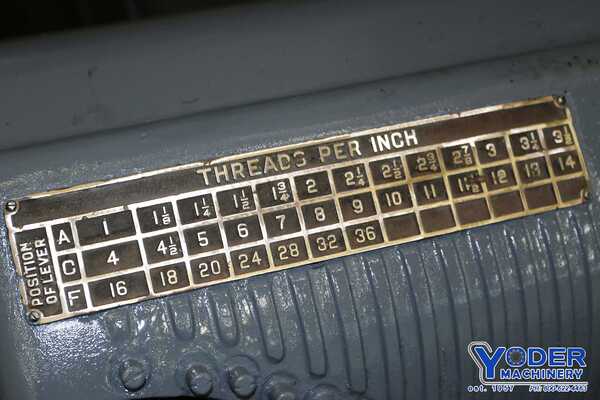

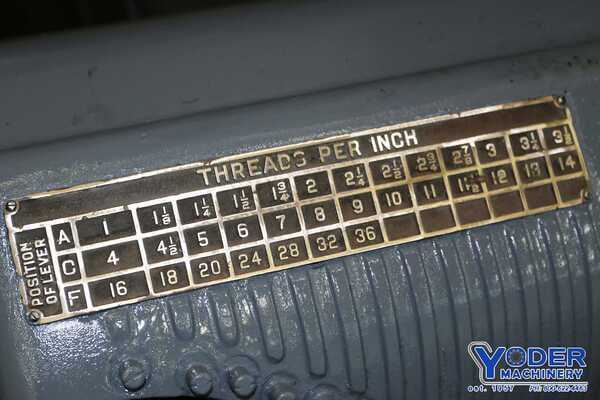

THREADING .......................... FULL LENGTH
RAPID TRAVERSE ..................... YES
FLANGE TOOL HOLDERS ................ 3
CHIP PAN AND COOLANT ............... YES
MAIN MOTOR ......................... 75/37.5 HORSEPOWER
MODEL .............................. 4A M-3550
SWING OVER WAYS .................... 29-1/2"
SWING OVER CARRIAGE ................ 22-7/16"
DISTANCE SPINDLE TO TURRET FACE .... 76-1/4"
SPINDLE SPEEDS ..................... (32) 10 TO 263 RPM
TURRET FEEDS ....................... (16) .005 TO .167 IPR
CROSS SLIDE FEEDS .................. (16) .002 TO .077 IPR
DIAMETER OF SPINDLE HOLE ........... **12-1/2"**
CHUCK .............................. 28" 3 JAW
POWER CHUCK WRENCH ................. YES
CROSS SLIDING TURRET ............... YES
TAPER ON CROSS SLIDING TURRET ...... YES
THREADING .......................... FULL LENGTH
RAPID TRAVERSE ..................... YES
FLANGE TOOL HOLDERS ................ 3
CHIP PAN AND COOLANT ............... YES
MAIN MOTOR ......................... 75/37.5 HORSEPOWER
