For Sale by N & R Machine Sales
Surplus Record Dealer Since 1998
Location: Navasota, TX
Contact Randy Nevels
Phone Number: 800...> Show Phone Number 800-245-3194
Let the seller know you found their listing on Surplus Record!
Description

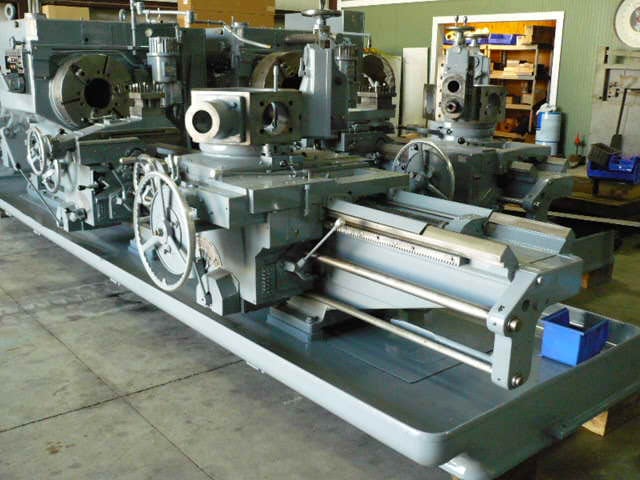

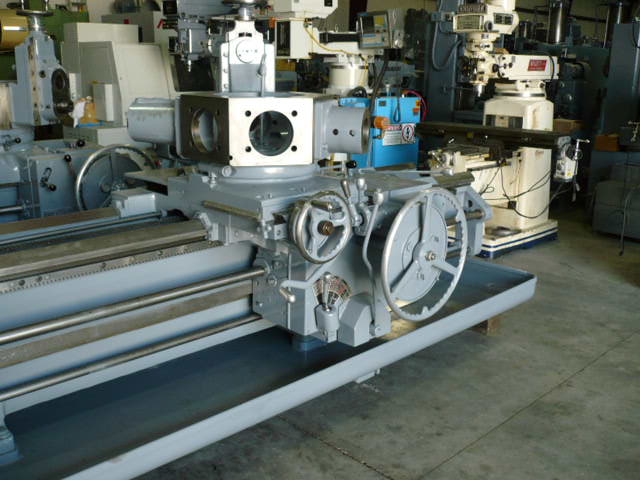

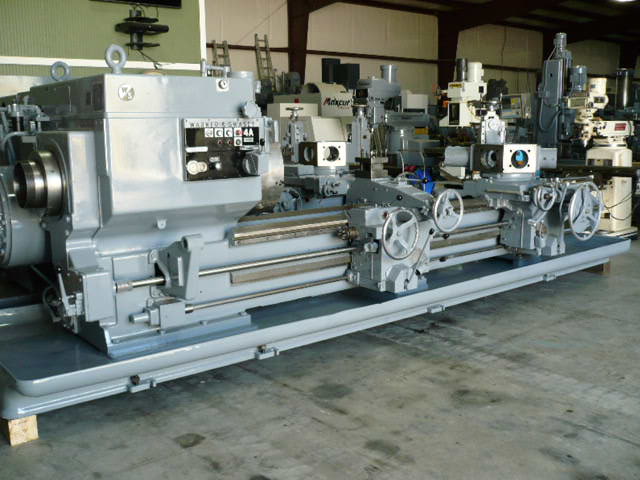

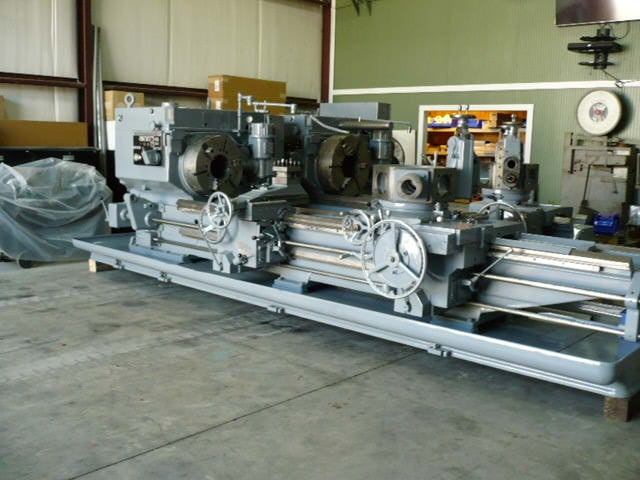

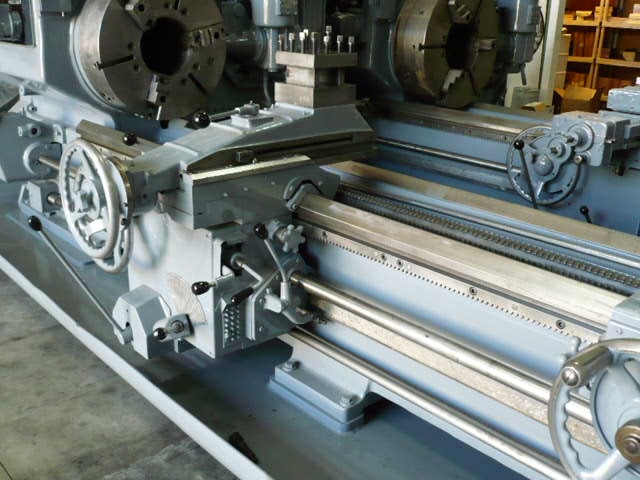

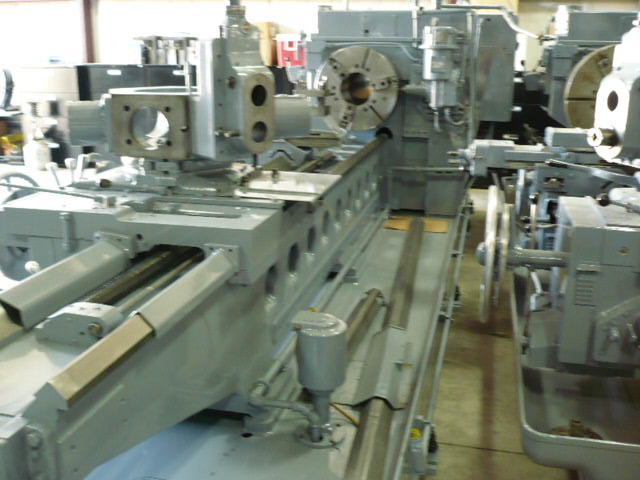

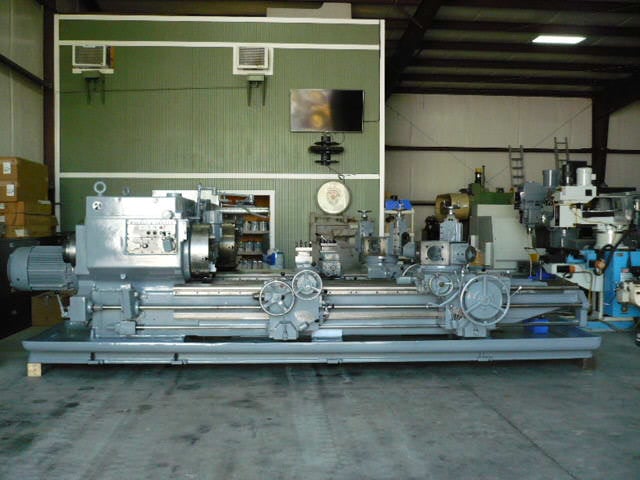

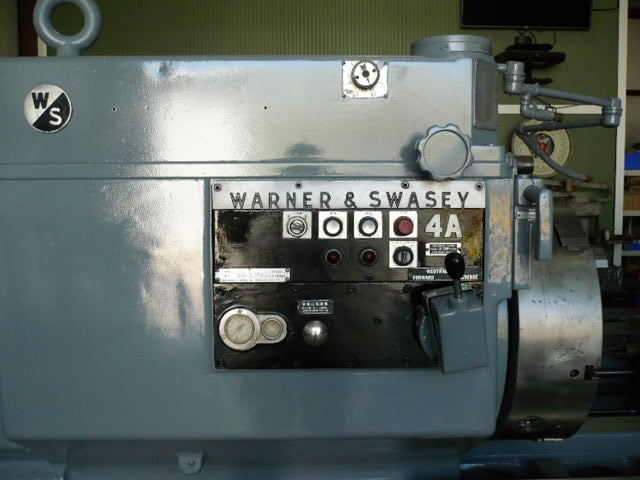

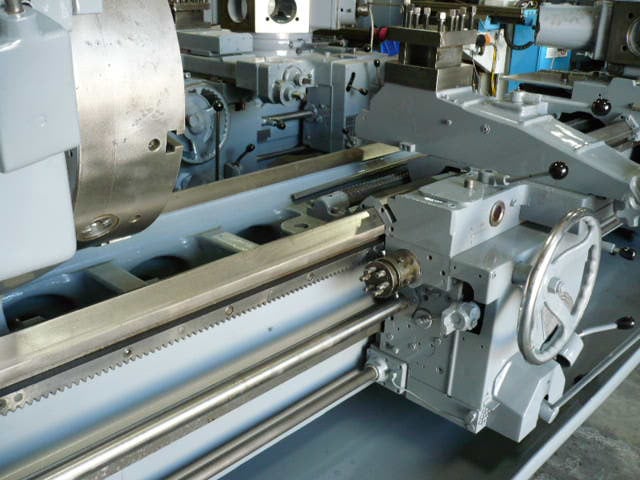

4 A Used Warner & Swasey Square Head Saddle TypeTurret Lathe
Stock Number: L630418
Warner & Swasey 4A - 3550 Lot 24
Serial No. 1845898
Age: 1971
Condition: Very Good
Specification Description
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 65"
Spindle Hole 9-1/4"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 3-Jaw
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 60/30 Hp
Flange Holders 5
Weight 28,000 Lbs.
Floor Space 20' X 7'
Height 80"
Coolant Yes
Tool Post 4 Way On Front Yes
Cross Sliding Rear Turret Yes
Rapid Traverse Front & Rear Carriages Yes
Power Wrench Chuck Yes
Condition Very Good
Stock Number: L630418
Warner & Swasey 4A - 3550 Lot 24
Serial No. 1845898
Age: 1971
Condition: Very Good
Specification Description
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 65"
Spindle Hole 9-1/4"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 3-Jaw
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 60/30 Hp
Flange Holders 5
Weight 28,000 Lbs.
Floor Space 20' X 7'
Height 80"
Coolant Yes
Tool Post 4 Way On Front Yes
Cross Sliding Rear Turret Yes
Rapid Traverse Front & Rear Carriages Yes
Power Wrench Chuck Yes
Condition Very Good
Get Your Price from N & R Machine Sales!
