For Sale by N & R Machine Sales
Surplus Record Dealer Since 1998
Location: Navasota, TX
Contact Randy Nevels
Phone Number: 800...> Show Phone Number 800-245-3194
Let the seller know you found their listing on Surplus Record!
Description

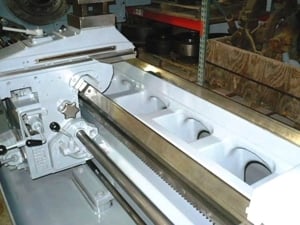

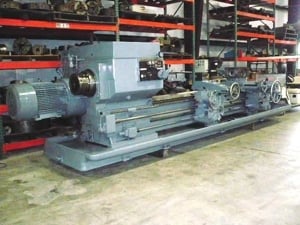

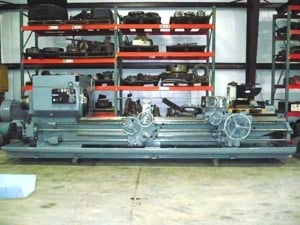

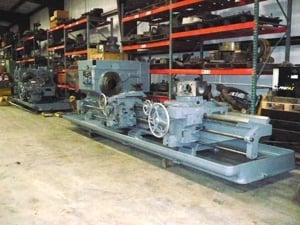

4 A Used Warner & Swasey Square Head Saddle TypeTurret Lathe
Stock Number: L630423
Warner & Swasey 4A - 3550
Serial No. 2393535
Age: 1970
Specification Description
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 65"
Spindle Hole 9-1/4"
Spindle Speeds 15 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24"4 - Jaw New
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 50 / 25 Hp
Flange Holders 5
Weight 28,000 Lbs.
Floor Space 20' X 7'
Height 80"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret Yes
Note: Machine Will Be Cleaned, Painted And
Cycled. Both Aprons And Rapid Traverses Will Be
Reconditioned. New Feed And Rapid Shafts
New Nut And Screw In Front Cross Slide.
Condition Very Good
Stock Number: L630423
Warner & Swasey 4A - 3550
Serial No. 2393535
Age: 1970
Specification Description
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 65"
Spindle Hole 9-1/4"
Spindle Speeds 15 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24"4 - Jaw New
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 50 / 25 Hp
Flange Holders 5
Weight 28,000 Lbs.
Floor Space 20' X 7'
Height 80"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret Yes
Note: Machine Will Be Cleaned, Painted And
Cycled. Both Aprons And Rapid Traverses Will Be
Reconditioned. New Feed And Rapid Shafts
New Nut And Screw In Front Cross Slide.
Condition Very Good
Get Your Price from N & R Machine Sales!
