For Sale by N & R Machine Sales
Surplus Record Dealer Since 1998
Location: Navasota, TX
Contact Randy Nevels
Phone Number: 800...> Show Phone Number 800-245-3194
Let the seller know you found their listing on Surplus Record!
Description

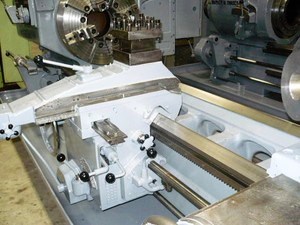

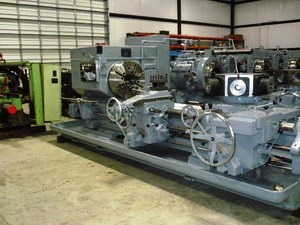

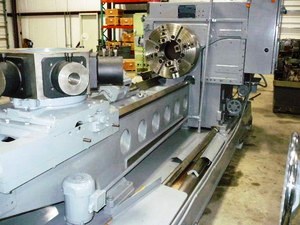

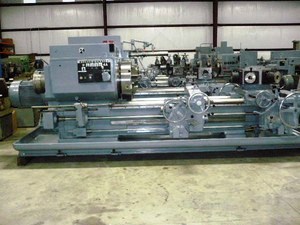

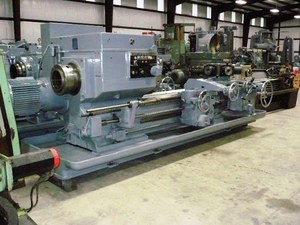

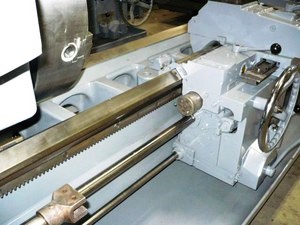

4 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Ref.#L630417
Model: 4A - 3550 Lot 870
Serial No. 3017927
New: 1981
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Spindle Hole 9-1/4"
Center Distance 62"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 4 - Jaw
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 75 Hp.
Flange Holders 4
Weight 28,000 Lbs.
Floor Space 20' X 7'
Height 80"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret Yes
Coolant Yes
Note: Machine Has Been Cleaned, Painted And
Cycled. Ways Have Been Ground And Carriages
Refitted, Carriages Have Been Recondition, New
Feed And Rapid Shafts.
Condition: Very Good
Ref.#L630417
Model: 4A - 3550 Lot 870
Serial No. 3017927
New: 1981
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Spindle Hole 9-1/4"
Center Distance 62"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 4 - Jaw
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 75 Hp.
Flange Holders 4
Weight 28,000 Lbs.
Floor Space 20' X 7'
Height 80"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret Yes
Coolant Yes
Note: Machine Has Been Cleaned, Painted And
Cycled. Ways Have Been Ground And Carriages
Refitted, Carriages Have Been Recondition, New
Feed And Rapid Shafts.
Condition: Very Good
