Description

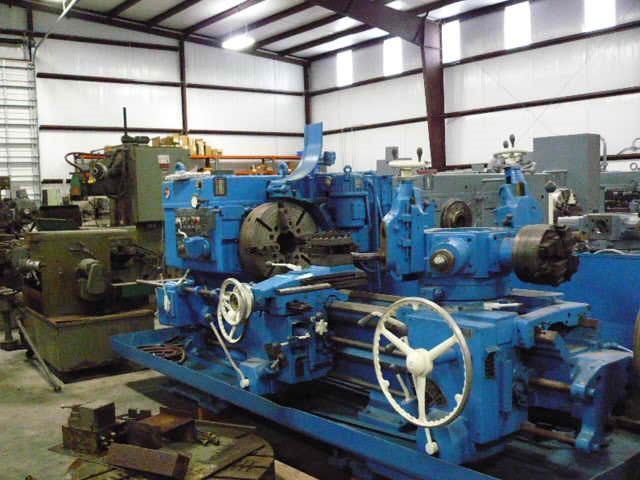

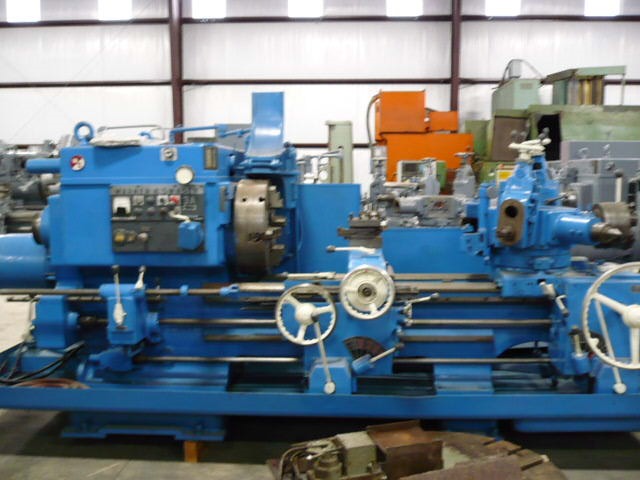

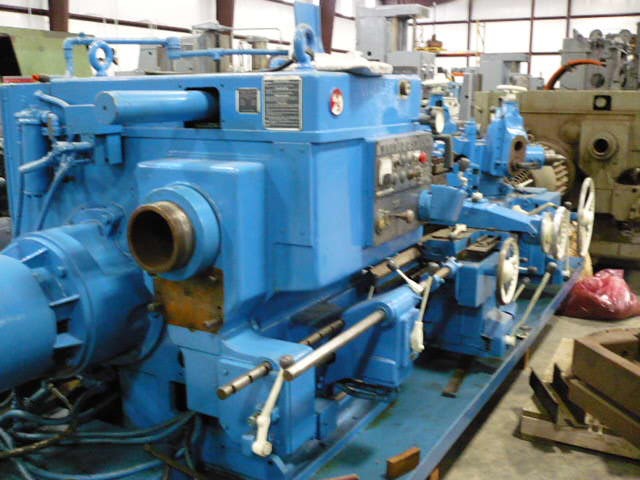

3 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Ref.#L630443
Model: 3500 Lot 21
Serial No. 1595148
New: 1956
Swing Over Bed Ways-23-1/2"
Swing Over Cross Slide Carriage-18"
Center Distance-40"
Spindle Hole-4-3/4"
Spindle Speeds-24 To 628 Rpm's
Spindle Nose-A-11
Chuck Size-21" 4-Jaw New
Feeds Cross-.0025 To .082 I.P.R.
Feeds Long.-.005 To .167 I.P.R.
Main Motor-40 / 20 Hp. 480 Volts
Flange Holders Short-2
Slide Tool-1
Weight-17,50 Lbs.
Floor Space-144" L. X 83" W.
Machine Height-64"
Coolant-Yes
Tool Post 4 Way On Front-Yes
Crossing Rear Turret Rear Turret-Yes
Rapid Traverse On Both Carriages-Yes
Condition:Very Good
Note: Machine Front And Rear Aprons And Rapid Traverse Box Reconditioned. Rapid Traverse Drive Box Reconditioned, New Bearings
In Main Motor. Headstock Cleaned And Flushed, New Filters And Oil. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice. From Government Stand-By.
Ref.#L630443
Model: 3500 Lot 21
Serial No. 1595148
New: 1956
Swing Over Bed Ways-23-1/2"
Swing Over Cross Slide Carriage-18"
Center Distance-40"
Spindle Hole-4-3/4"
Spindle Speeds-24 To 628 Rpm's
Spindle Nose-A-11
Chuck Size-21" 4-Jaw New
Feeds Cross-.0025 To .082 I.P.R.
Feeds Long.-.005 To .167 I.P.R.
Main Motor-40 / 20 Hp. 480 Volts
Flange Holders Short-2
Slide Tool-1
Weight-17,50 Lbs.
Floor Space-144" L. X 83" W.
Machine Height-64"
Coolant-Yes
Tool Post 4 Way On Front-Yes
Crossing Rear Turret Rear Turret-Yes
Rapid Traverse On Both Carriages-Yes
Condition:Very Good
Note: Machine Front And Rear Aprons And Rapid Traverse Box Reconditioned. Rapid Traverse Drive Box Reconditioned, New Bearings
In Main Motor. Headstock Cleaned And Flushed, New Filters And Oil. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice. From Government Stand-By.
Get Your Price from N & R Machine Sales!
