For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description
SERIAL ................................. 2796737

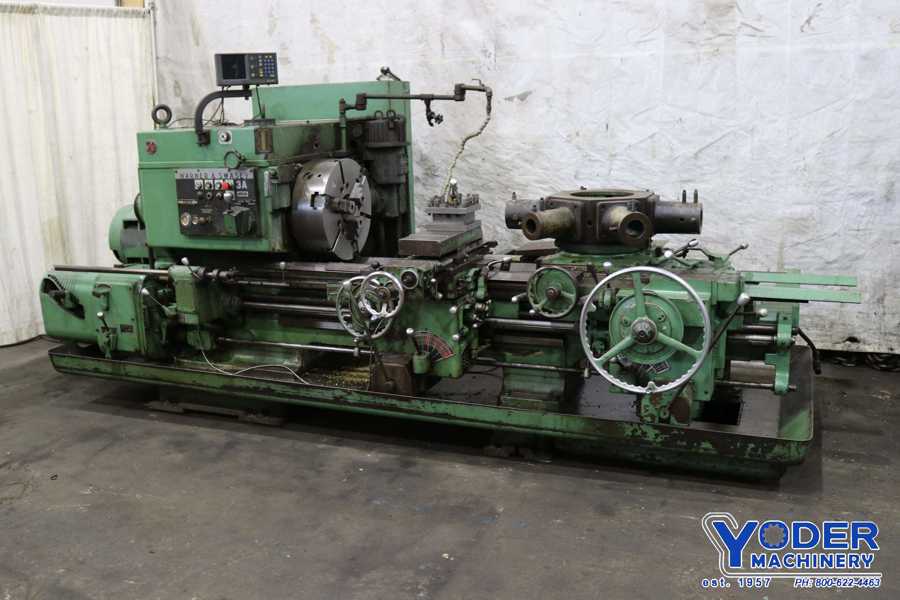

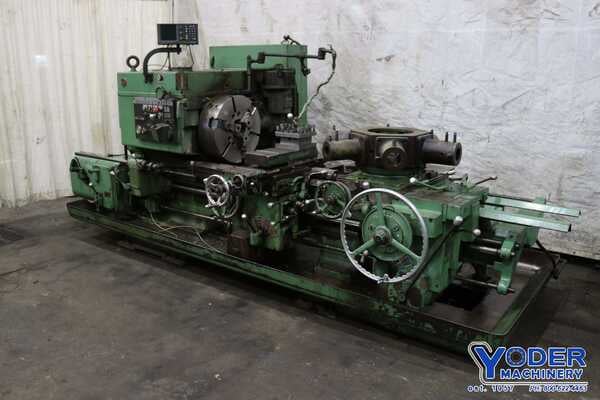

MODEL .................................. 3A (M-3500) SQUARE HEAD
SWING OVER BED ......................... 24-1/2"
SWING OVER CARRIAGE HORN ............... 18"
SPINDLE NOSE TO TURRET ................. 58-3/4"
SPINDLE HOLE ........................... 6-1/8"
SPINDLE SPEEDS ......................... (32) 18 TO 639 RPM

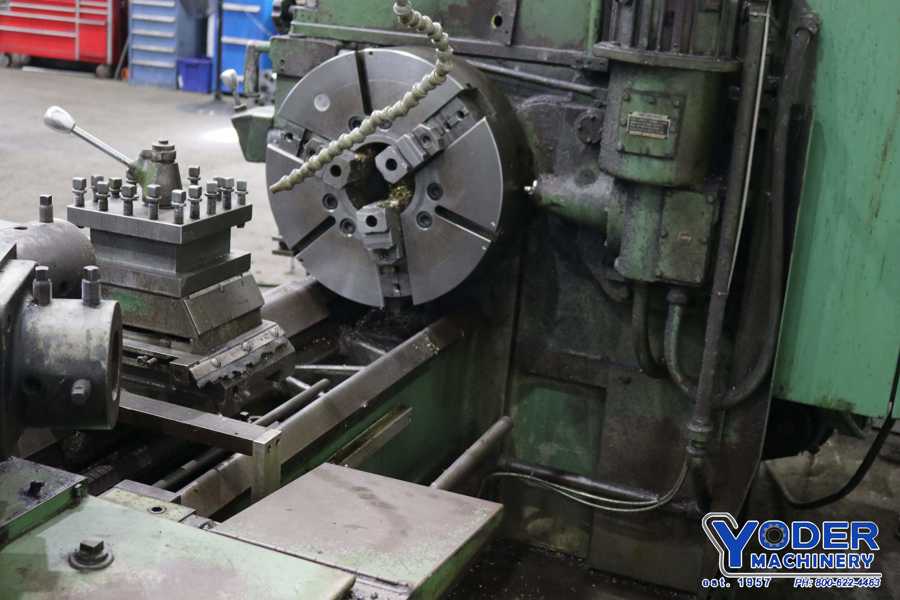

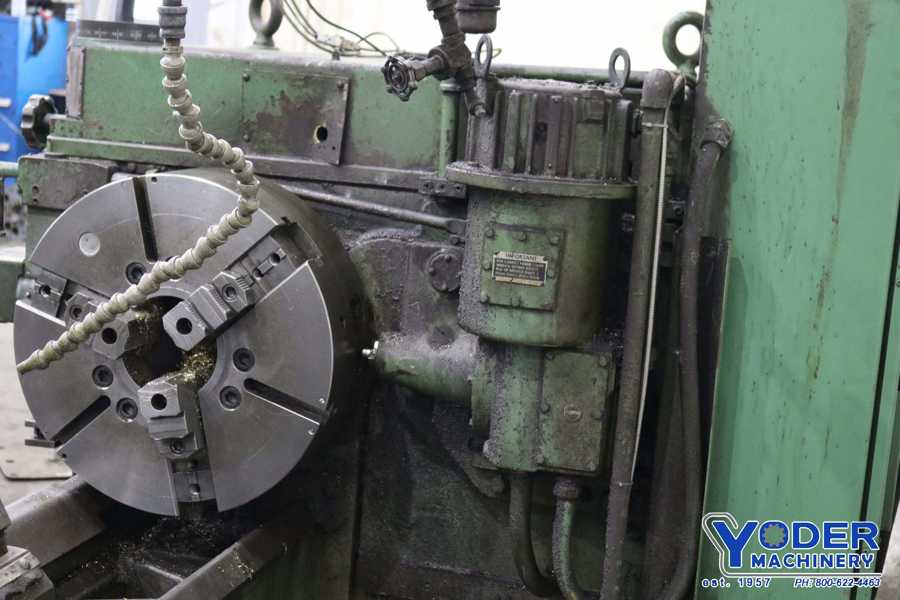

CHUCK WITH POWER WRENCH ................ 21" 3 JAW

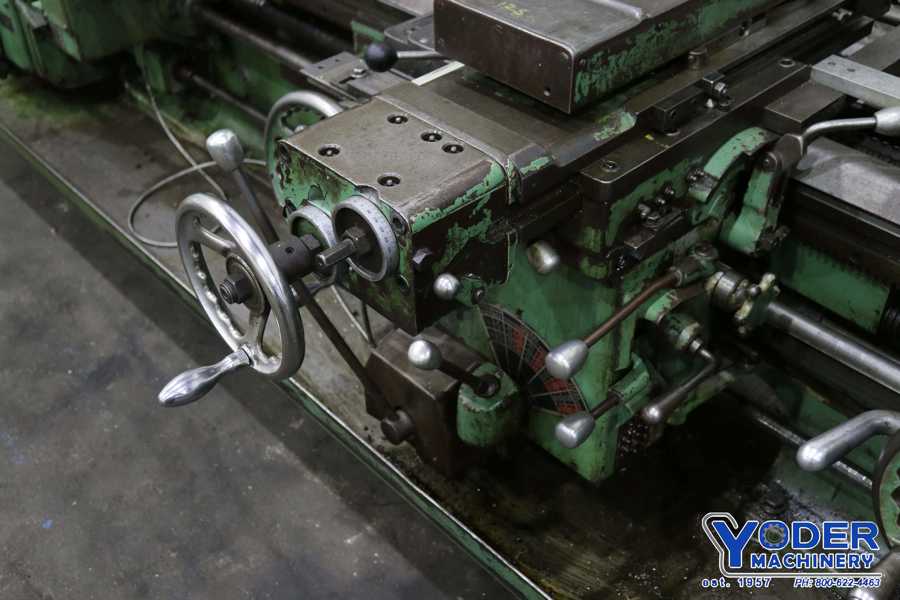

CARRIAGE LONGITUDINAL FEEDS ............ (16) .0029 TO .187 IPR
CARRIAGE CROSS FEEDS ................... (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS .............. (16) .005 TO .167 IPR
TURRET CROSS FEEDS ..................... (16) .003 TO .096 IPR
TAPER ATTACHMENT ON CROSS SLIDE ........ YES
TAPER ATTACHMENT ON TURRET .............. YES

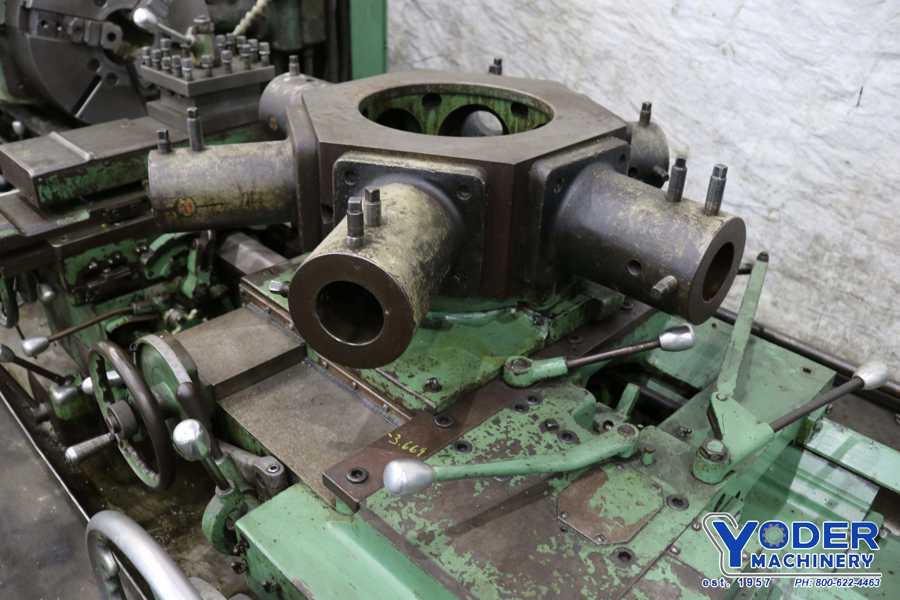

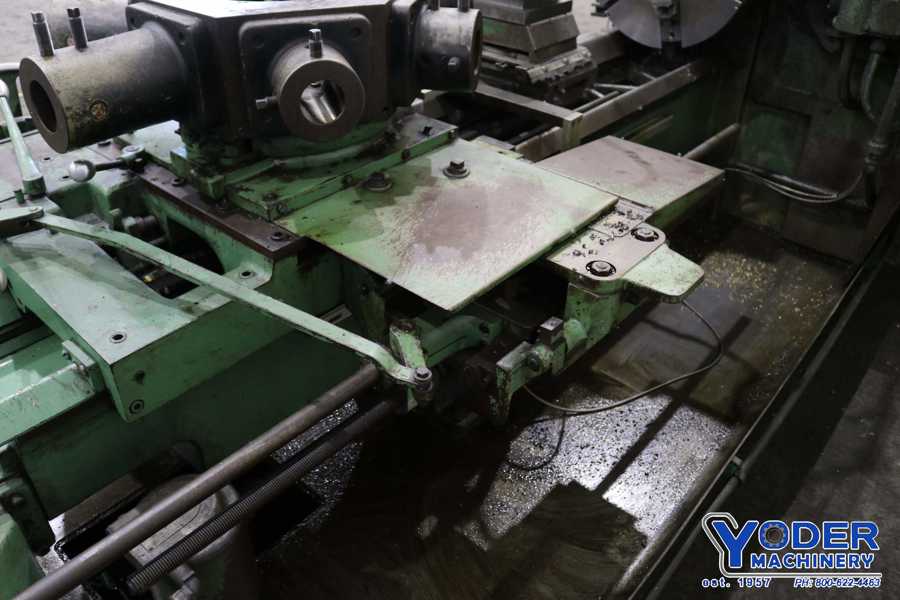

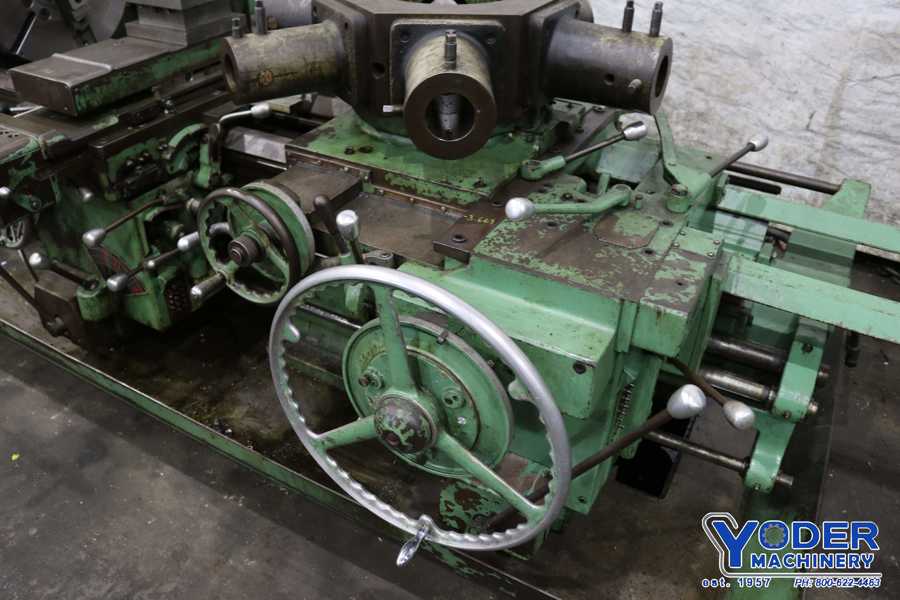

**CROSS SLIDING TURRET** ............... YES

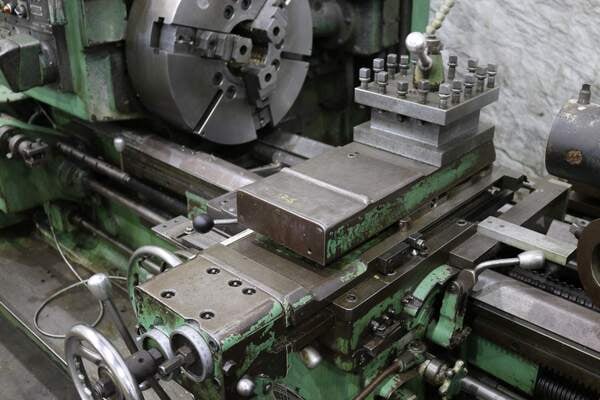

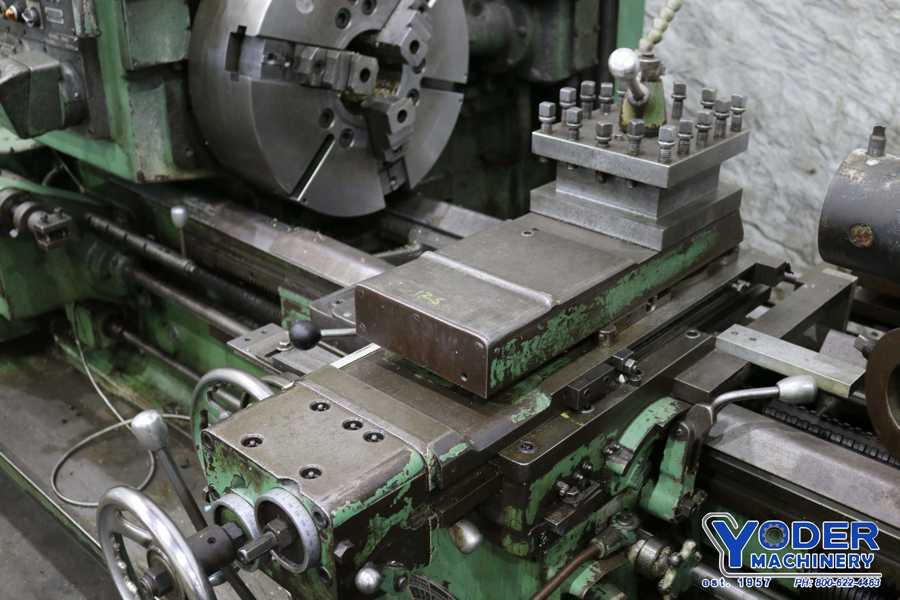

** COMPOUND CROSS SLIDE ** ............. POWERED
FULL LENGTH THREADING .................. YES
3 AXIS DIGITAL READOUTS ................ ACCURITE
CHIP PAN WITH COOLANT .................. YES
MAIN MOTOR ............................. 40 HORSEPOWER
MODEL .................................. 3A (M-3500) SQUARE HEAD
SWING OVER BED ......................... 24-1/2"
SWING OVER CARRIAGE HORN ............... 18"
SPINDLE NOSE TO TURRET ................. 58-3/4"
SPINDLE HOLE ........................... 6-1/8"
SPINDLE SPEEDS ......................... (32) 18 TO 639 RPM
CHUCK WITH POWER WRENCH ................ 21" 3 JAW
CARRIAGE LONGITUDINAL FEEDS ............ (16) .0029 TO .187 IPR
CARRIAGE CROSS FEEDS ................... (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS .............. (16) .005 TO .167 IPR
TURRET CROSS FEEDS ..................... (16) .003 TO .096 IPR
TAPER ATTACHMENT ON CROSS SLIDE ........ YES
TAPER ATTACHMENT ON TURRET .............. YES
**CROSS SLIDING TURRET** ............... YES
** COMPOUND CROSS SLIDE ** ............. POWERED
FULL LENGTH THREADING .................. YES
3 AXIS DIGITAL READOUTS ................ ACCURITE
CHIP PAN WITH COOLANT .................. YES
MAIN MOTOR ............................. 40 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
