Description

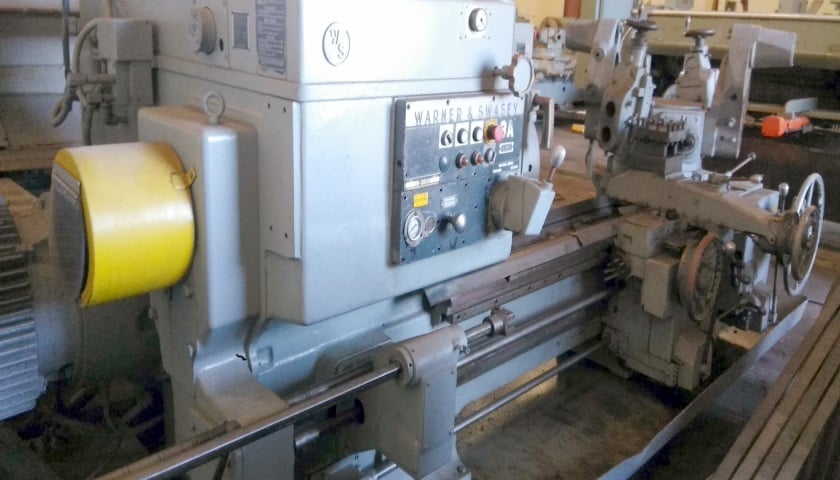

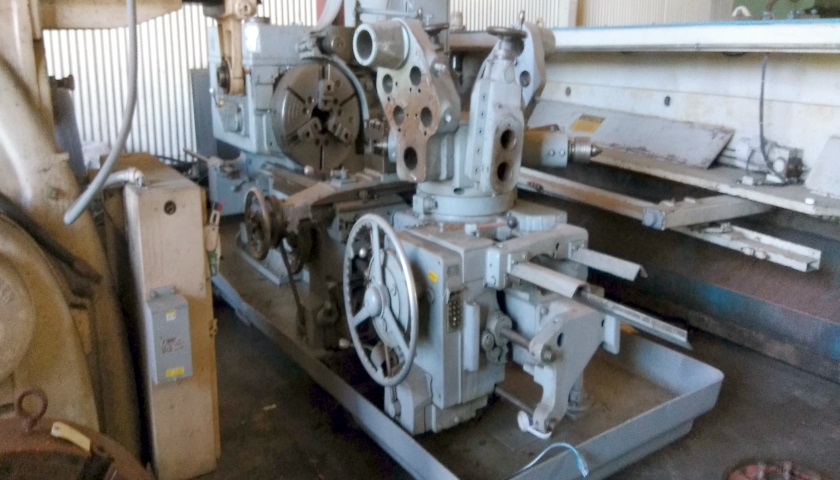

3 A Used Warner & Swasey Square Head Saddle Type Turret Lathe Ref.#L630435
Model: 3500 Lot 703
Serial No. 2668088
New: 1975
Swing Over Bed Ways 23-1/2"
Swing Over Cross Slide Carriage 18"
Center Distance 43"
Spindle Hole 6-1/4"
Spindle Speeds 12 To 829 Rpm's
Spindle Nose A-15
Chuck Size 21" 3 - Jaw
Feeds Cross .0025 To .082 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 40/20 Hp. 480 Volts
Flange Holders 4
Weight 15,000 Lbs.
Floor Space 180" L. X 83" W.
Machine Height 64"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret No
Power Wrench Chuck Yes
Note Machine Is On The Way In.
Machine Will Be Cleaned, Painted And Cycled.
Machine Apron and Rapid Traverses Will Be
Reconditioned. New Feed & Rapid Shafts.
Condition Good
Price: Please Call
Model: 3500 Lot 703
Serial No. 2668088
New: 1975
Swing Over Bed Ways 23-1/2"
Swing Over Cross Slide Carriage 18"
Center Distance 43"
Spindle Hole 6-1/4"
Spindle Speeds 12 To 829 Rpm's
Spindle Nose A-15
Chuck Size 21" 3 - Jaw
Feeds Cross .0025 To .082 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 40/20 Hp. 480 Volts
Flange Holders 4
Weight 15,000 Lbs.
Floor Space 180" L. X 83" W.
Machine Height 64"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret No
Power Wrench Chuck Yes
Note Machine Is On The Way In.
Machine Will Be Cleaned, Painted And Cycled.
Machine Apron and Rapid Traverses Will Be
Reconditioned. New Feed & Rapid Shafts.
Condition Good
Price: Please Call
