Description

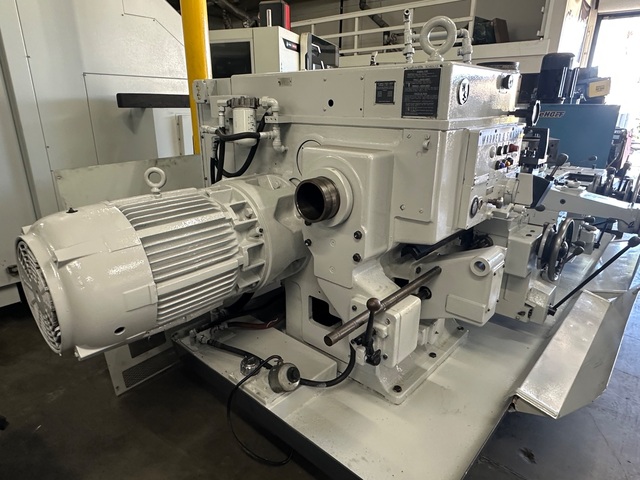

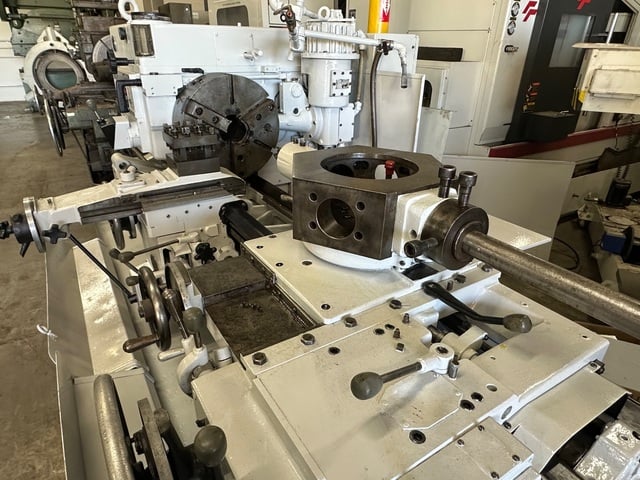

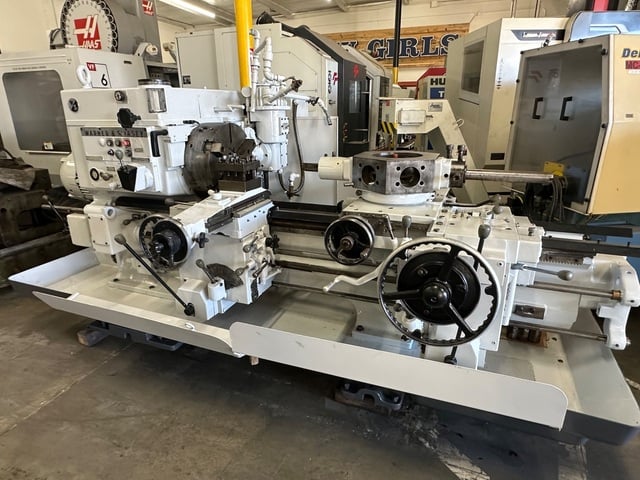

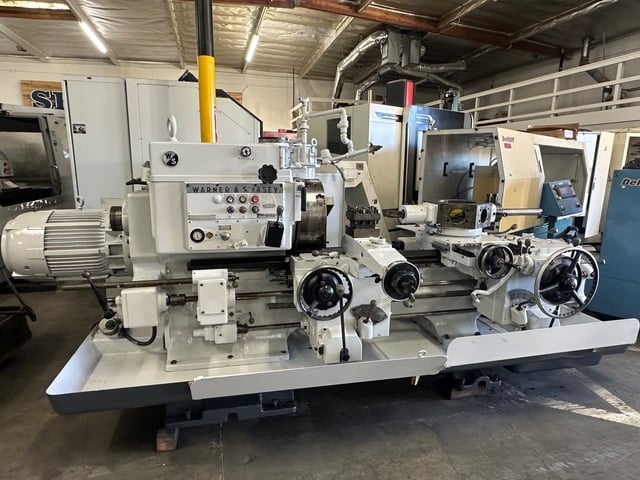

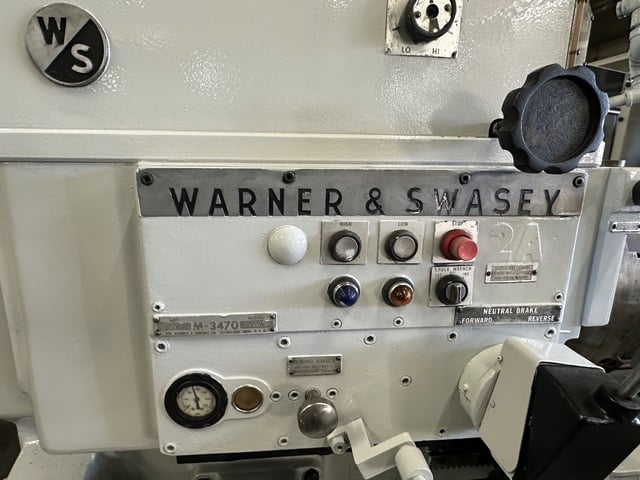

Warner & Swasey 2A Square Head Saddle Type Turret Lathe w/ 3-3/4" Hole #7356 #2 SPECIFICATIONS: Warner & Swasey 2A - M3470 - Lot 69 Swing Over Bed Ways: 20-1/2" Swing Over Cross Slide Carriage: 16" Center Distance: 43" Spindle Hole: 3-3/4" Spindle Nose: A - 11 Spindle Speeds: 32 To 1117 RPM Chuck Size: 18" 3-Jaw Feeds Cross: .0025 To .082 I.P.R. Feeds Long: .005 To .167 I.P.R. Main Motor: 20/40 HP - 440 Volts Weight: 12,500 Lbs. Floor Space: 144" L. X 83" W. Machine Height: 64" Coolant: Yes Tool Post 4 Way On Front Carriages: Yes Rapid Traverse Front & Rear Carriages: Yes Fixed Rear Turret: Yes Weight: 12,500 lbs Approx Dims. : 144" L x 83" W x 64" H
Chuck Diameter 18", Swing over Bed 21-1/2", Swing over Cross Slide 16-3/4", Maximum Distance Spindle to Turret 48", 32 Spindle Speeds 16 - 1117 RPM, Hole Through Spindle 4-3/4", Main Drive Motor 30/15 HP, Electrics 3/60/480 Volt, Approximate Machine Weight 13,000 lbs., Approximate Machine Dimensions 168" LR x 72" FB x ...more
Size 2A Make WARNER & SWASEY Year 1969, ONE USED- 2A WARNER & SWASEY Saddle Type Turret Lathe, Model: M3470, New 1969, with Crossliding Turret, Power Chuck Wrench, 3 Jaw Chuck.
2 A Used Warner & Swasey Square Head Saddle Type Turret Lathe, Stock Number: L630458, Warner & Swasey 3470 Lot 39, Serial No. 1858405 Age: 1961, Condition: Good, Swing Over Bed Ways 20-1/2", Swing Over Cross Slide Carriage 16", Center Distance 43", Spindle Hole 3-3/4", Spindle Nose A - 11, Spindle Speeds 32 To ...more
