For Sale by Adams Machinery
Description
SPECIFICATIONS: | |
Capacity in Steel, 1 Cut | 6 DP (4.2 Mod) |
Rated Work Diameter Max | 16” |
Travel of Hob Carriage Max | 36.5” |
Distance Work Spindle Face to Tail Center Max | 64” |
Work Spindle to C/L of Hob Spindle Max | 39.5” |
Work Spindle to C/L of Hob Spindle Min | 3.5” |
C/L of Work Spindle to C/L of Hob Spindle Max | 9.5” |
C/L of Work Spindle to C/L of Hob Spindle Min | 0.5” |
C/L of Work Spindle to Bottom of Overarm | 8” |
Maximum Hob Diameter | 5” |
Diameter of Work Spindle Bore | 4.125” |
Maximum Swivel Angle Setting (Left or Right) | 45° |
Hob Speeds | 59 – 246 RPM |
Hob Arbor (Straight) | 1.25” |
Maximum Index Worm Speed | 1500 RPM |
Approximate Weight | 7000 lbs |
EQUIPPED WITH:

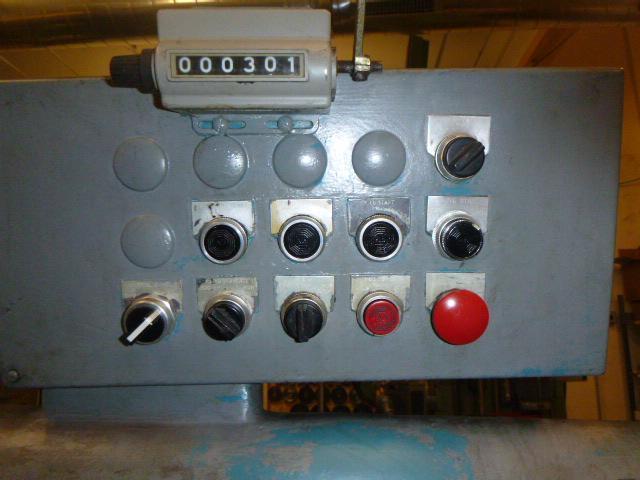

Motor Driven With 5 HP, 3 Phase, 60 Cycle AC Main Drive Motor. 2 HP, 3 Phase, 60 Cycle AC Rapid Traverse Motor. 1 HP, 3 Phase, 60 Cycle AC Hydraulic Pump Motor. 3 Phase, 60 Cycle AC Motor For The Lube Pump and Coolant Pump. With Electrical Control Cabinet, Dwell Timer, Hob Rotation Selector And Operators Control Panel. Presently Wired For 3/60/480V Operation.

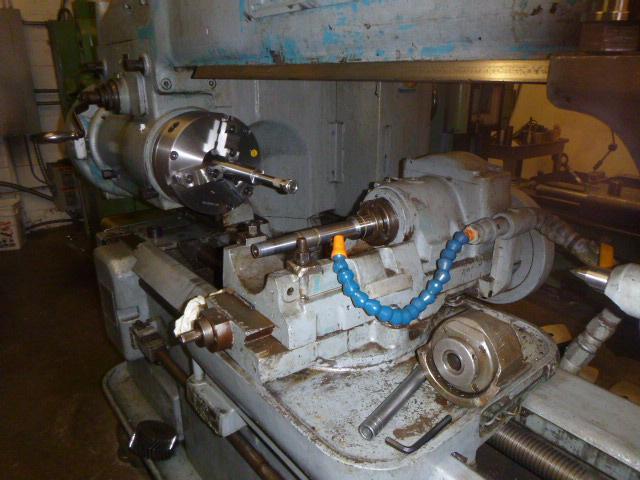

Double Thread Index. 10" 3-Jaw Chuck. Lever Operated Tailstock. Pneumatically Controlled Collet Chuck. Rapid Traverse Hob Slide. Hob Jog. Trabon Lubrication System. Coolant.Get Your Price from Adams Machinery!
