Nikom #PSA20, hi-speed impact, 2.7mm, 2-plane straightener, 100 PPM @ 2" lgth, 19955

12.7mm NIKOM High Speed Impact Shear, 2-Plane Straightener, 100 PPM @ 2 Length
AGE: 1995
MODEL NUMBER: PSA20
SPECIFICATIONS:
Machine designed to shear at a high rate of speed, greatly
reducing plastic deformation, resulting in clean, burr-
free, square and scrap-free cuts. Machine is currently set-
up to be fed from coil or could be made to feed bars.
Diameter, Max.: 12.7mm (.500") Mild Steel
12mm (.472") Steel
15mm (.591") Copper, Brass and Aluminum
Can Cut Shapes With Custom Tooling
Feed Length, Min.: 1/2" (1) Die Thickness
Feed Length, Per Stroke, Max.: 15.75"
Feed Length, (3) Strokes, Max.: 47-1/4"
Production Rate: Approching 100 Pcs./Min. at 2" Length (See
Manufactures PDF Output Chart)
Cutting Length Deviations, Standard: +/- .002mm
Impact Cylinder Provides 196 Nm of Energy (1,735 in./lbsF)
At a Piston Speed Maximum of 10 Meters/Sec.
Operating Air Pressure Required: 120 PSI
EQUIPPED WITH:

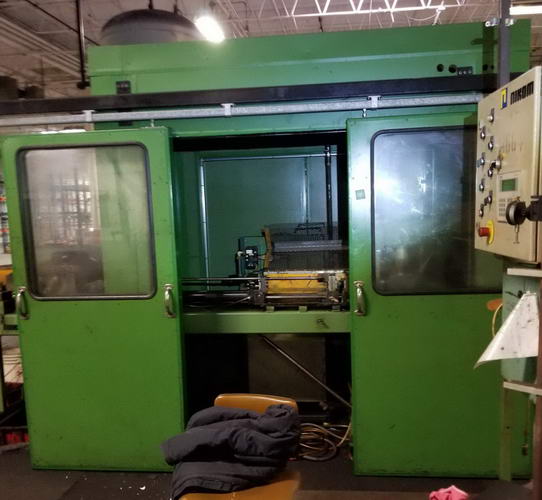

Sound Enclosure

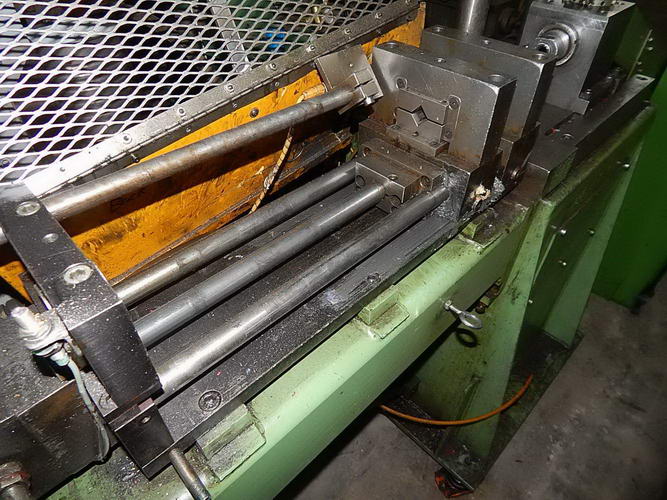

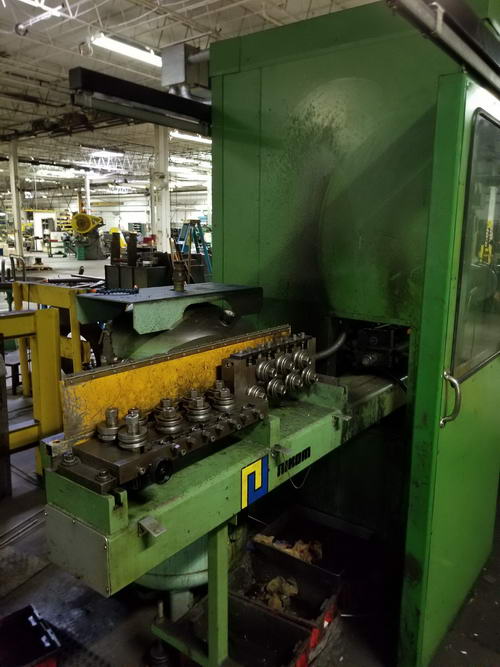

Two Plane Straightener, 3 Over 4 Rolls Each Plane

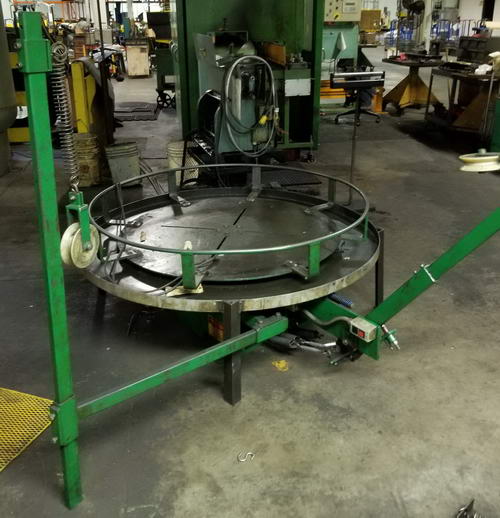

for Feeding Wire From Coils
Cutting Dies For (14) Different Diameters:
From 3/32" to 17/32" Diameter
Dies Are 2-1/4" Sq. x 1" And Are Reversible -
They Can Be Used As Many As (8) Times Between
Sharpenings
CONDITION: Good, Taken Directly from Service
Original Prints, Manual and Software Diskettes Included
