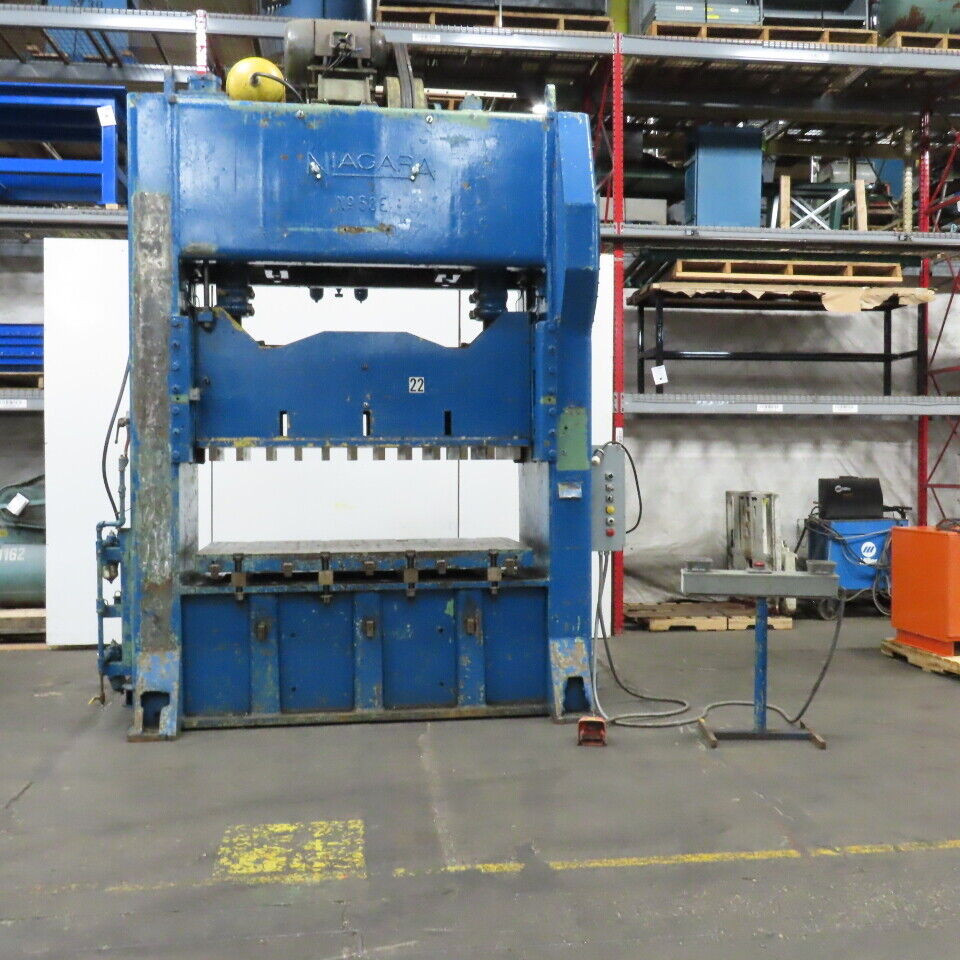

Description
CLICK HERE TO SEE A VIDEO OF THE PRESS
Voltage: 480
Phase: 3
Press Rating Ton: 130
Stroke (inches): 8"
Ram Open Height w/adjustment up (Inches): 21-1/2"
Ram Shut Height w/Adjustment up (Inches): 15"
Ram Adjustment Length (Inches): 5"
Bed Size (Front to back x Wide) (Inches): 36" x 72"
Tested and works as it should. Motor is 480V only 3Ph

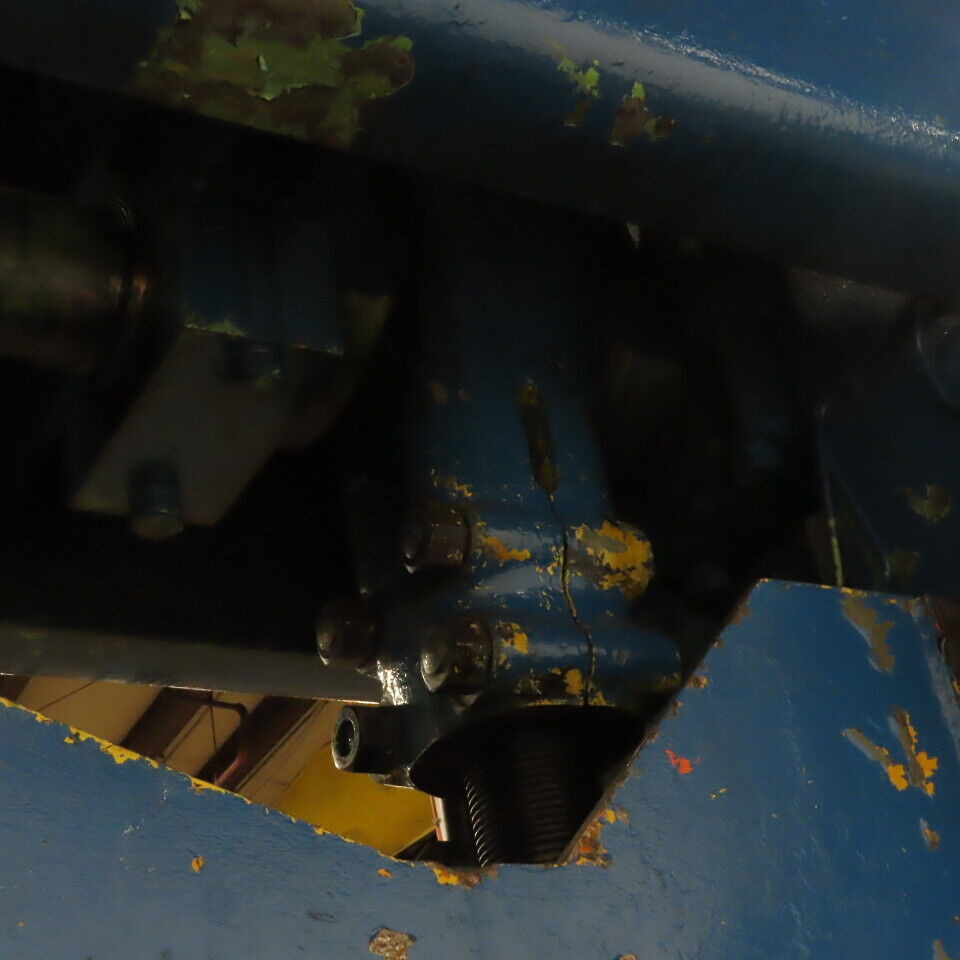

Both counterbalance cylinders have been rebuilt, press has been inspected and serviced. A small air pressure tank was added for the counterbalance.
Could not find original serial number tag.

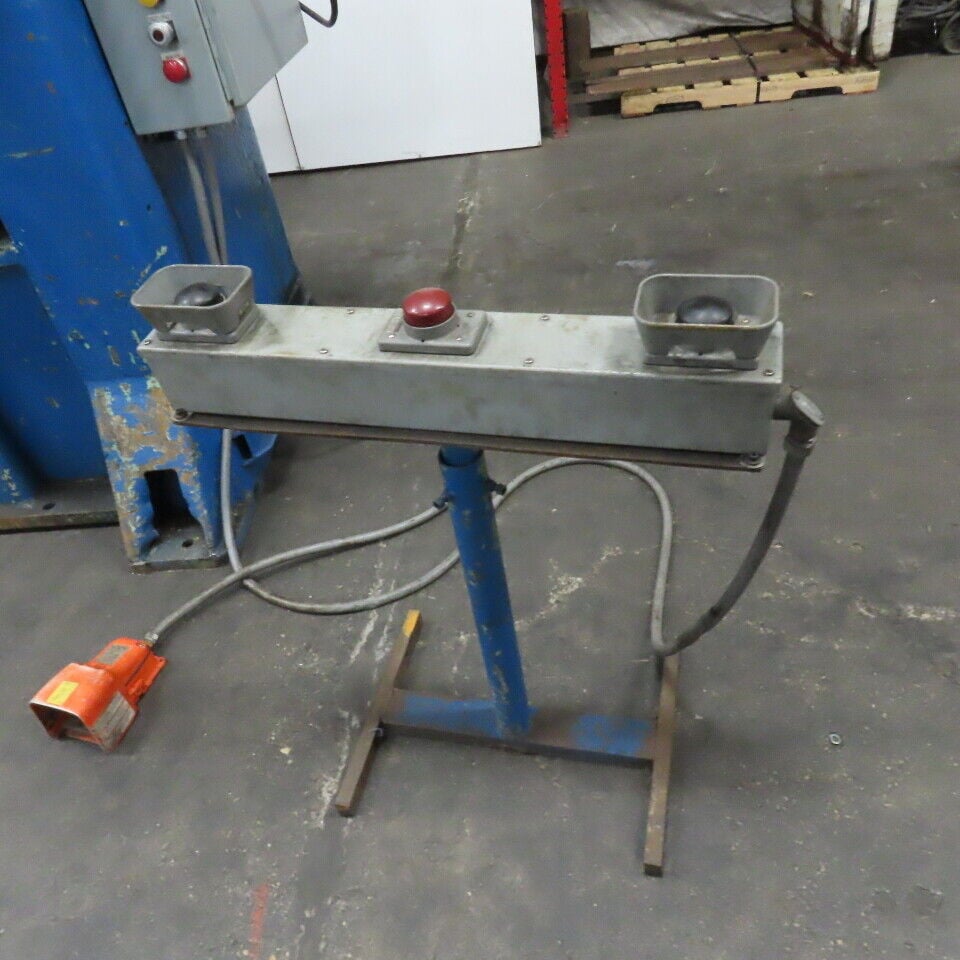

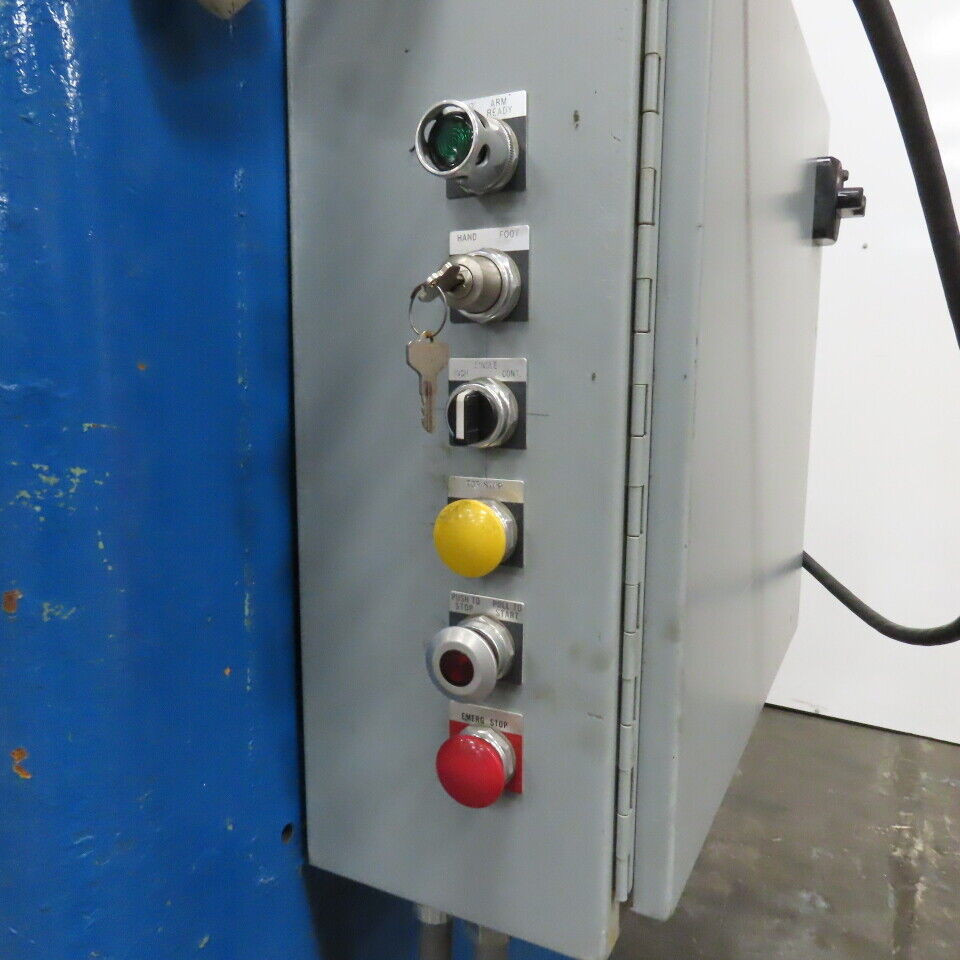

Two hand control, or foot control chosen by a selector switch

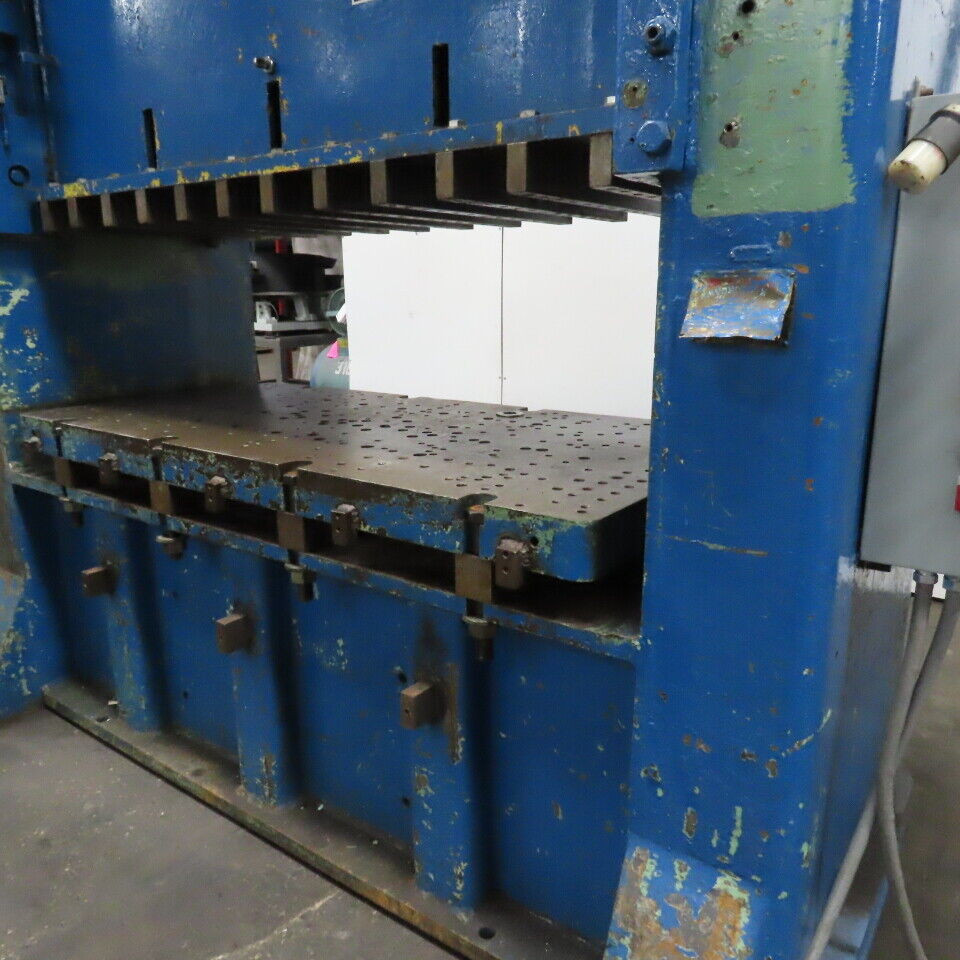

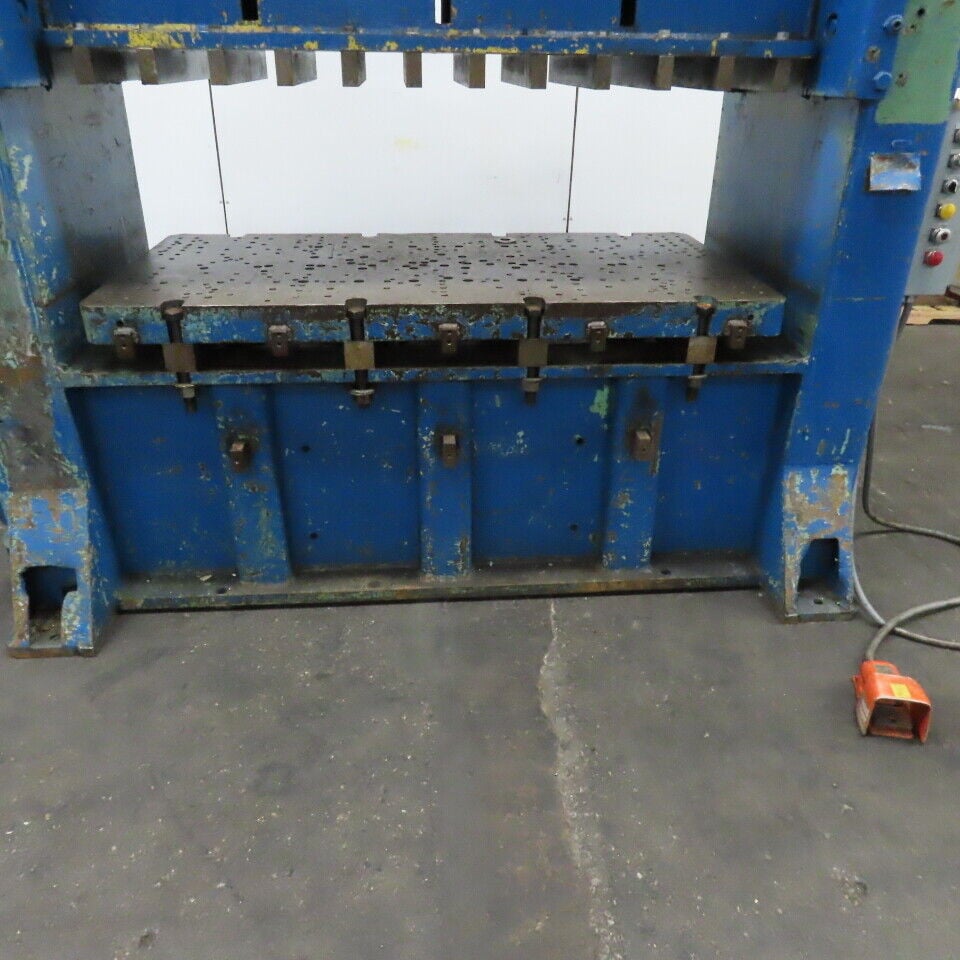

Includes solid bolster plate 36" x 72" x 4"
Inside width between frames is 78"
Will need adjustments prioir to use.
Motor will be removed for shipping and palletized separately
Will need to ship on Lowboy double drop trailer (Height of the machine without the motor is 11' 10" tall, it is 13' 5" tall with the motor attached to the top of the machine)
Inquire Further with Bullseye Industrial Sales LLC!
Niagara Mechanical Press Brake, Capacity: 120 Tons, Bed Length: 12′, Distance Between Columns: 126″, Throat: 14.5″, Stroke: 4″, Ram Adjustment: 5″, Shut Height: 18″, Manual Back Gauge, Air accuated mech clucth, Approx. Shipping Dimensions: 145″ L x 80″ W x 126″ H.
Model #B58-120-PB. Serial #17216. 10' bed length. 3" stroke; 5" adjustment; 30 SPM. 102" between housings. Air clutch. Foot pedal operation. 40" operator height. Back gage: PROGAGE model MG204; Serial #9698. 10 HP (208-220/440 volt; 1800 RPM). 1.5 HP (220/440 volt; 1200 RPM). 60amp 480 volt disconnect. Cycle ...more

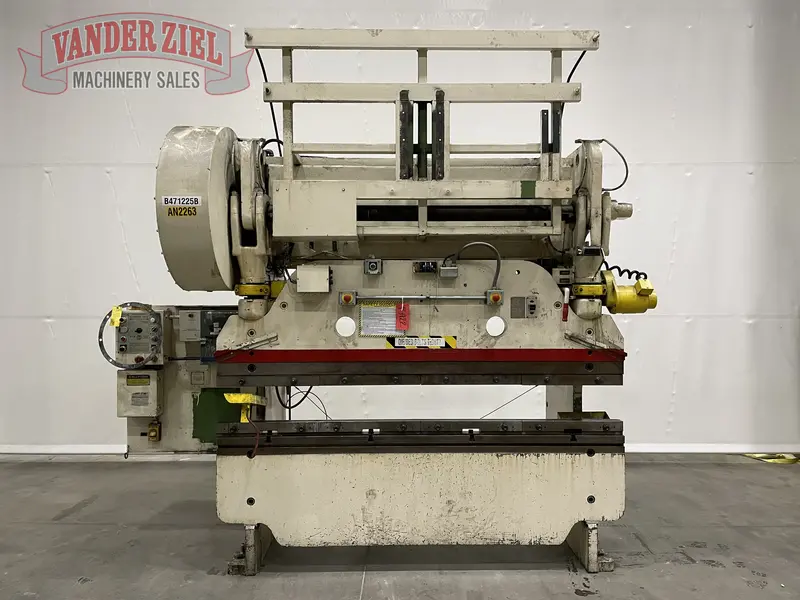

Cincinnati 8' x 135 Ton Mechanical Press Brake, Series 5 x 6, Serial # 41536, Asset # 15922, Overall Die Length 8", Distance between Housings 8' 6", Tonnage at Bottom of Stroke 135 Tons, Tonnage at Mid Stroke 90 Tons, Bending Capacity with Standard Stroke 5/16" x 4', 1/4" x 6' ...more
