Description
Specifications

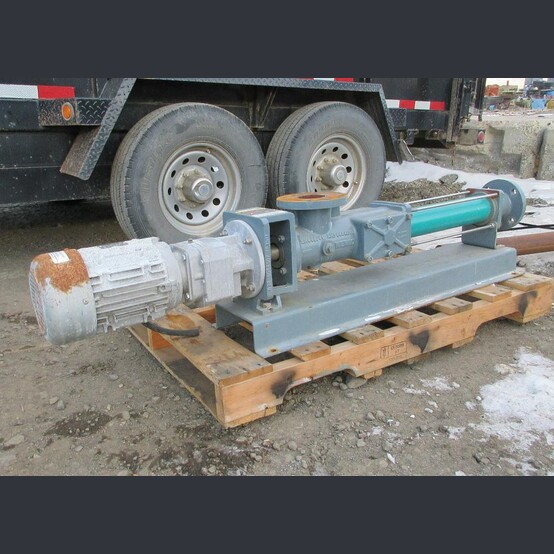

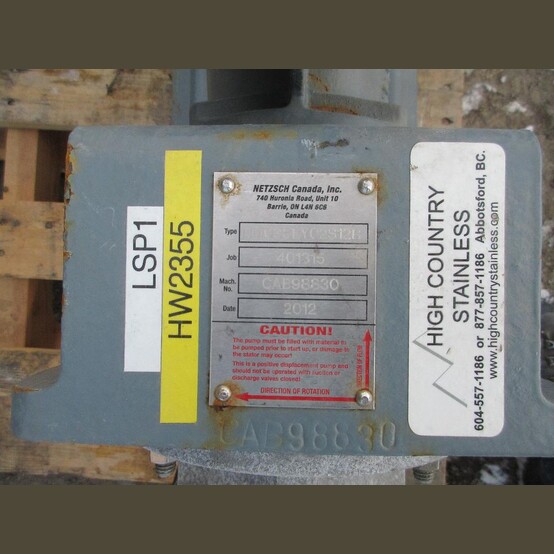

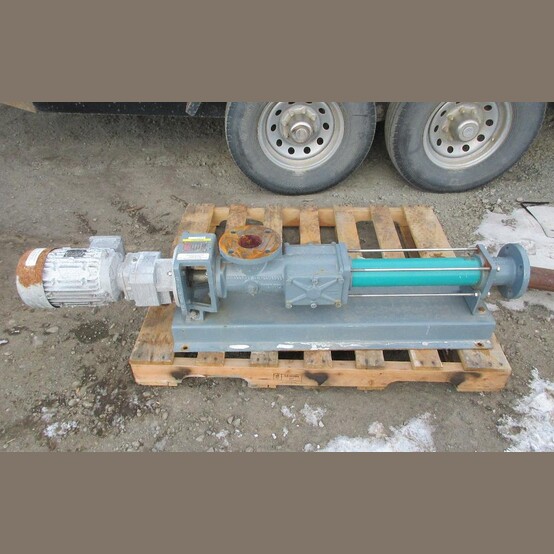

Netzsch 3HP Progressive Cavity Pump
- Make: Netzsch
- Model: NM038BY02S12B
- Serial: 401315
- Style: NEMO BY
- Type: Positive Displacement Pump
- Pressure: 75 PSI
- Max Pressure: 24 bar (350 PSI)
- Flow Rate: 17.2 GPM
- Max Flow: Up To 18m³/hr (5.78GPM/100 RPM)
- Max Particle Size: 0.28in (7mm)
- Max Solid Size: 1.1in (28mm)
- Max Speed: 600 RPM
- Flanged Inlet: 3in
- Flanged Outlet: 2.5in

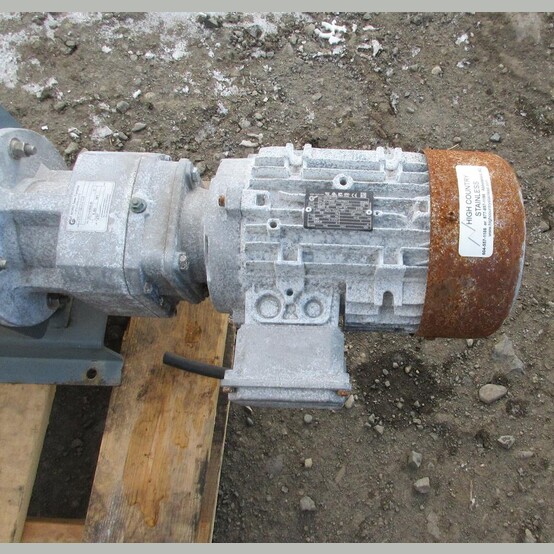

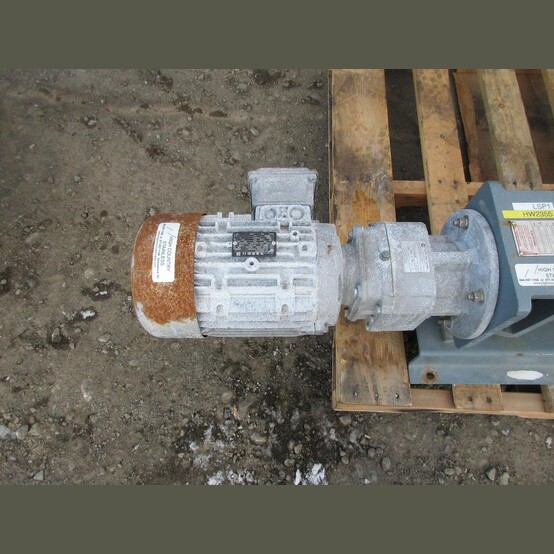

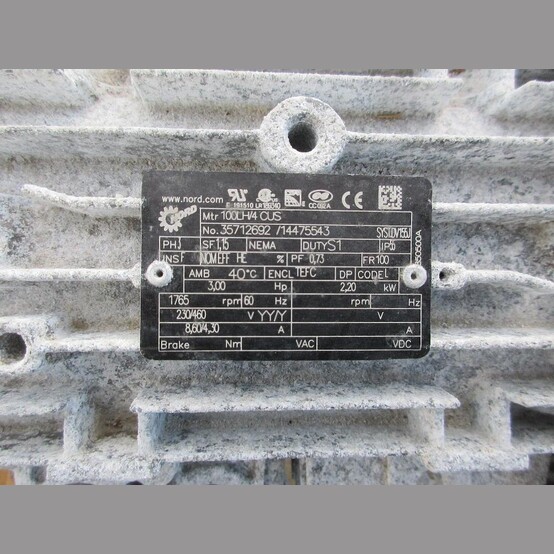

- Drive: Nord Electric Motor
- Model: 100LH/4 CUS
- Power Output: 3HP
- Speed: 1765 RPM
- Voltage: 230/460 Volt
- Frequency: 60Hz
- Phase: 3-Phase

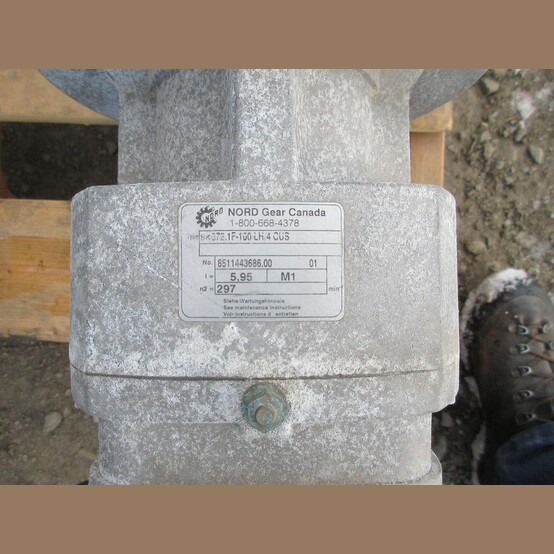

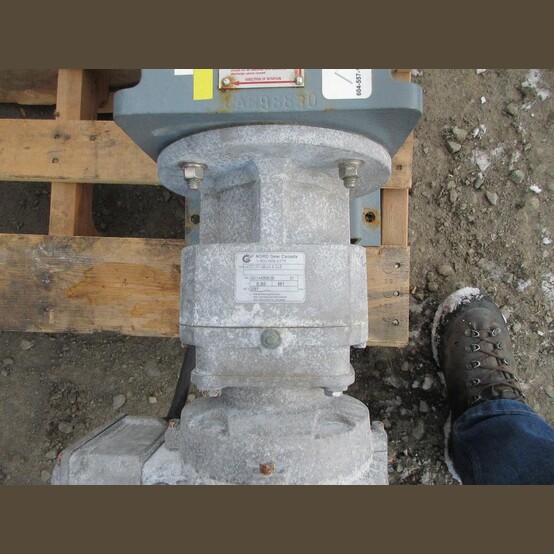

- Reducer: Nord Gear
- Type: SK372.1F-100LH/4 CUS
- Ratio: 5.95-1
- Output Speed: 297 RPM
- Overall Dimensions:
- Length: 61in
- Width: 12in
- Height: 14in
- Location: Savona, British Columbia, Canada
