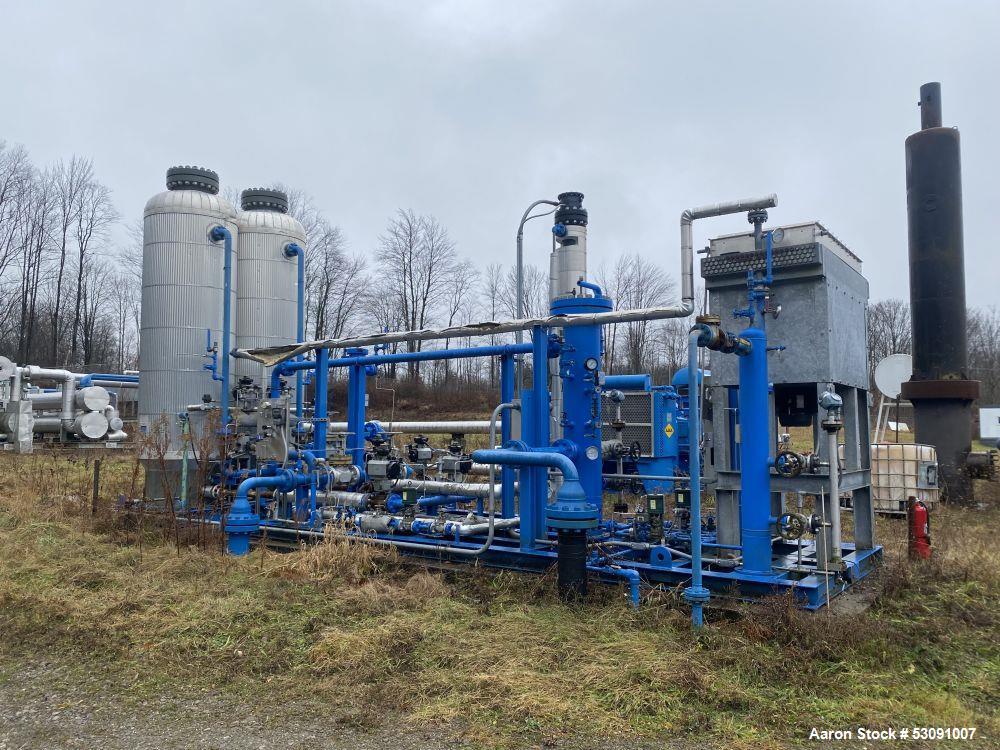

Natural Gas Liquids Extraction, refrigerated joule thomson effect, 15000M, skids

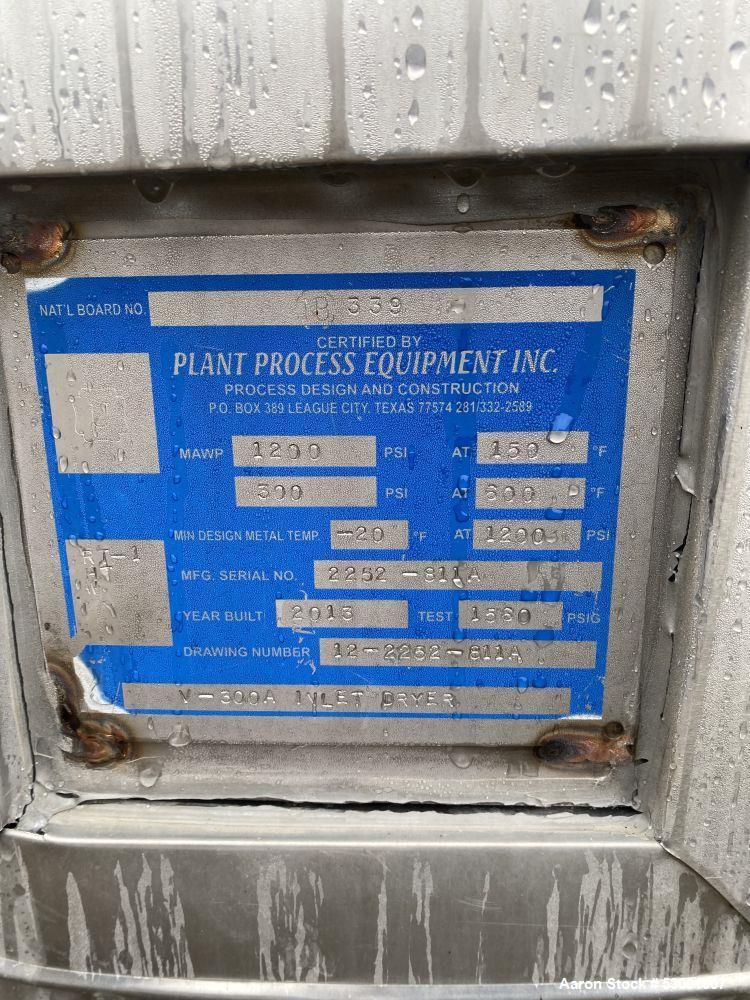

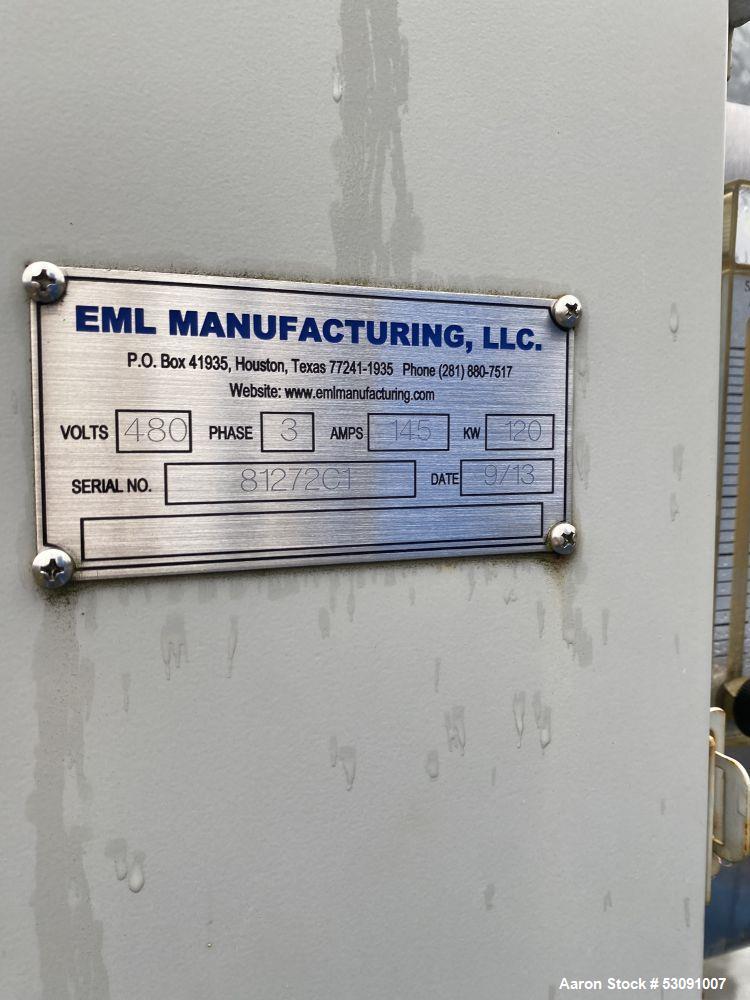

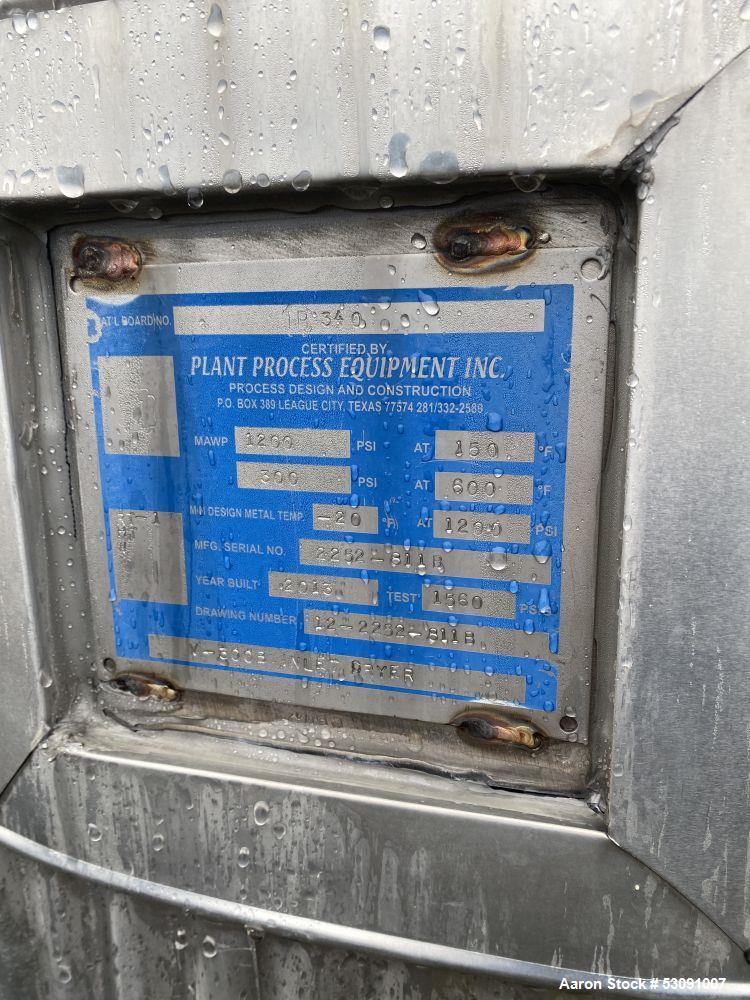

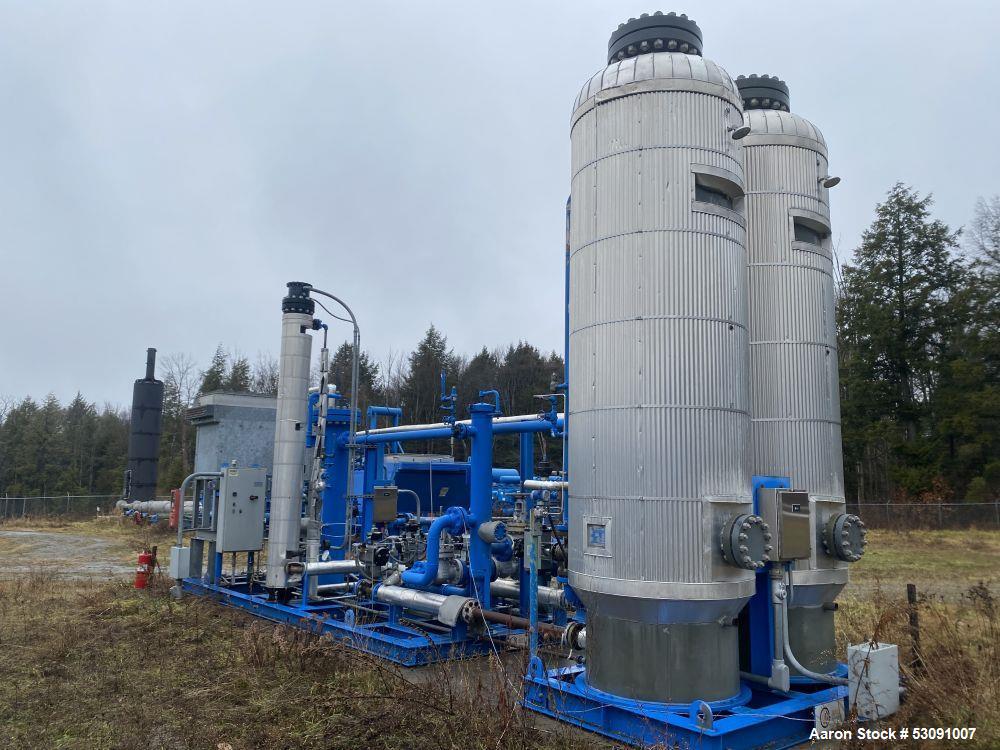

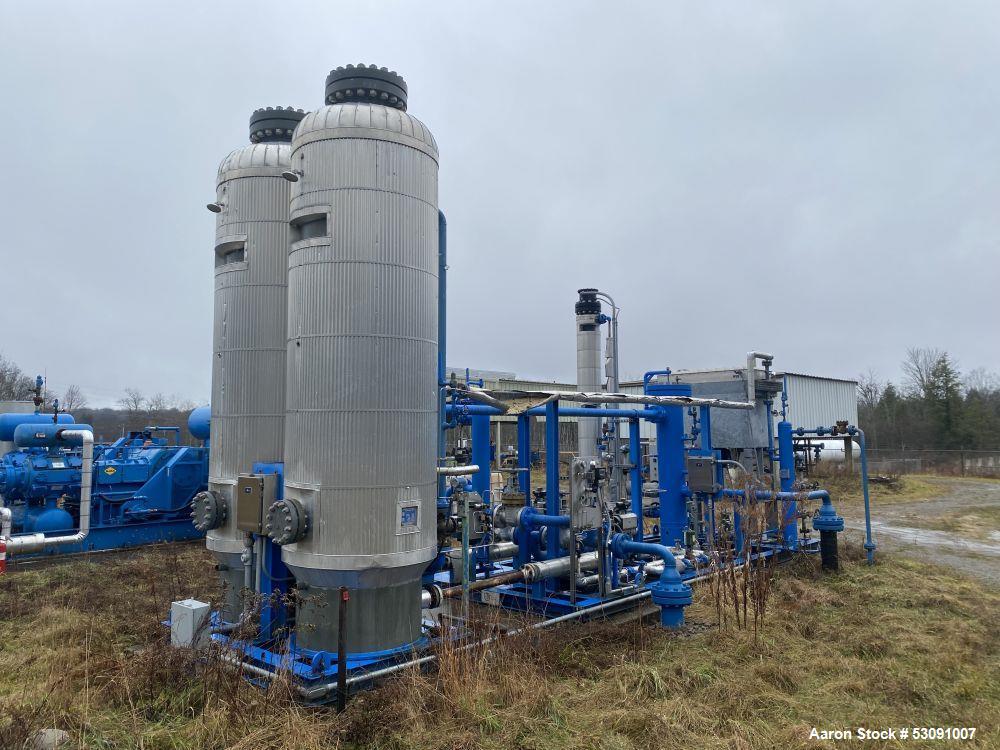

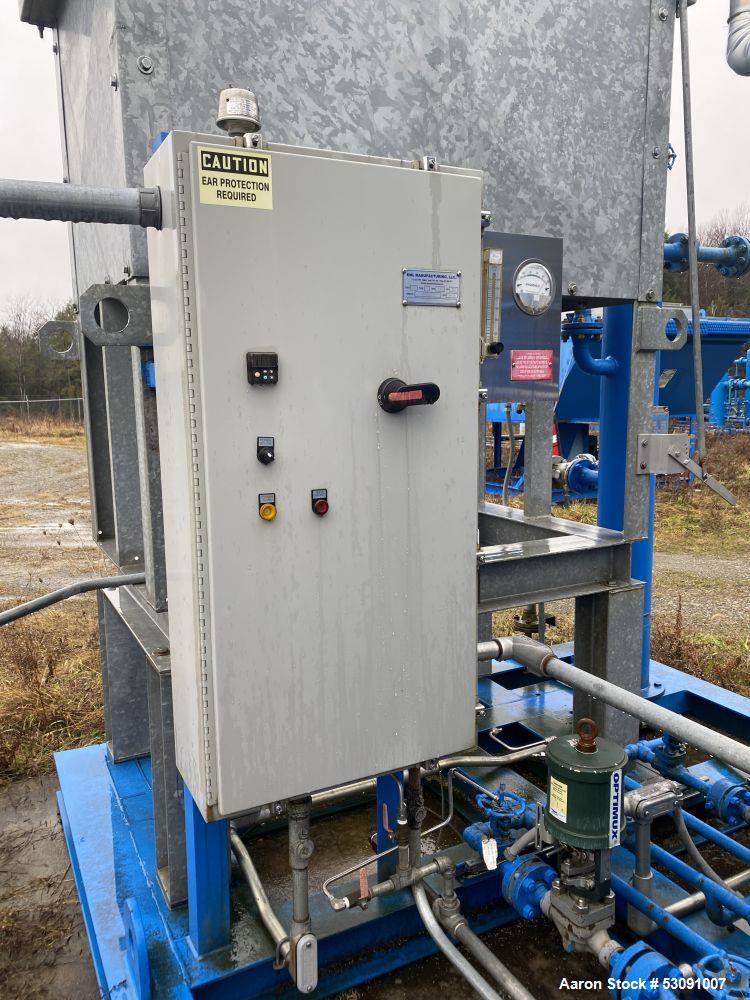

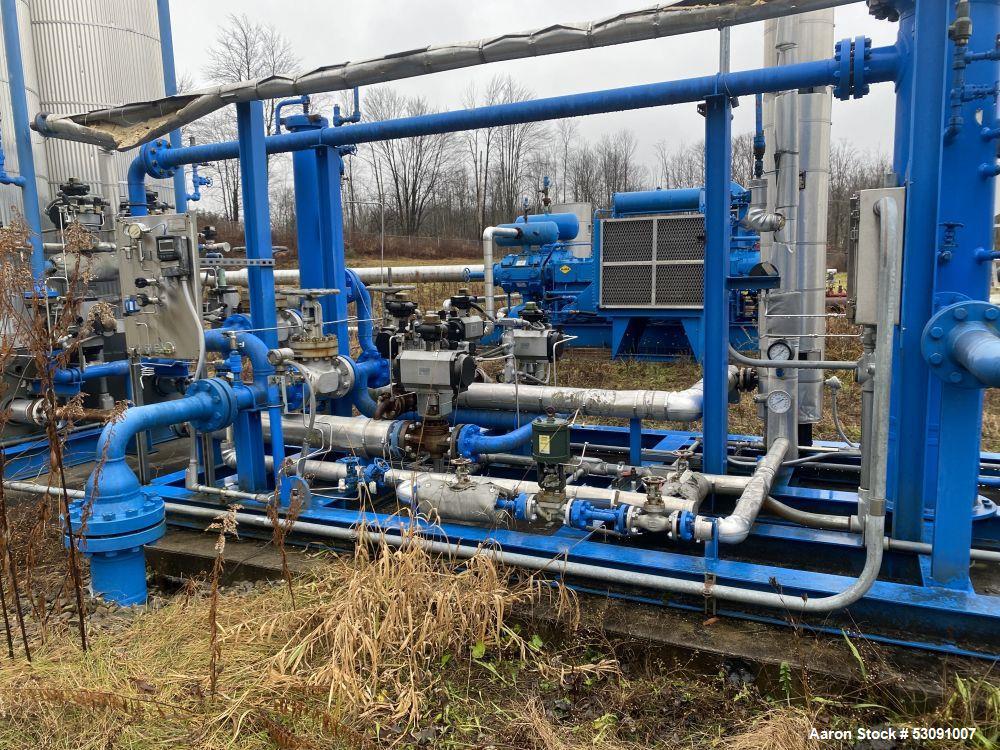

used- joule thomson effect, refrigerated joule thomson effect (j-t) natural gas liquids extraction plant" consisting of: mol sieve dryer skid and accumulator/economizer skid: and jt skid with liquid separators: - 1,535 mbtu/hr cold gas/ gas exchanger, 1200 psig tube 720 psig shell - high pressure cold separator, 24" x 8, 1200 psig- low pressure cold separator, 30" x 10, 720 psig - optimux 4 20 ma controllers, rosemount guided wave level transmitters, foxboro pressure and temperature transmitters - accumulator, 36" x 8 300 psig - economizer, 24" x 8 300 psig - optimux 4 20 ma controllers, rosemount guided wave level transmitter, foxboro pressure transmitters - 15,000 mcfd at = 10 lbs/mmscf water inlet for 1 ppm water outlet - inlet coalescer: 16" x 76", 1200 psig, - inlet dryers: 42" x 116", 1200 psig - on skid plc controlled 120 kw regeneration gas heater- 10 micron dust filter, 1200 psig - regeneration gas cooler and separator, 301 mbtu/hr, 250 psig - optimux 4 20 ma controllers, rosemount guided wave level transmitters, foxboro pressure and flow transmitters-electronic controlled, pneumatically operated ae switching valves and chiller kid - 2,119 mbtu/hr warm gas/ gas exchanger, 1200 psig tube 720 psig shell- 949 mbtu/hr chiller, 1200 psig tube 300 psig shell- vaporizer, 300 psig - optimux 4 20 ma controllers, rosemount guided wave level transmitter, foxboro pressure transmitter. also includes skid mounted gas compressor 800 hp, 15 foot bore x 16 " stroke, 300 to 400 rpm, with harsco model ajax 108h gas cooler and dcl model rcz2110v14 exhaust muffler and accessories. delivery and metering system to include: eci battery cabinet (2013) hydra-cell model d10c9300002 , explosion proof pump (2014), micro motion midel cmf50m314n6baezzz mass flow meter (2014) micro motion model cmf300m356n6baezzz mass flow meter (2014) with assorted piping nd valves and holding tank, liquid controls model esar/sp3 flow meters, (2014) each with digital readouts and accessories; (readouts are located in office), explostion proof pump, (2013) 20 hp. explosion proof pump (2013) 20 hp, etc.
