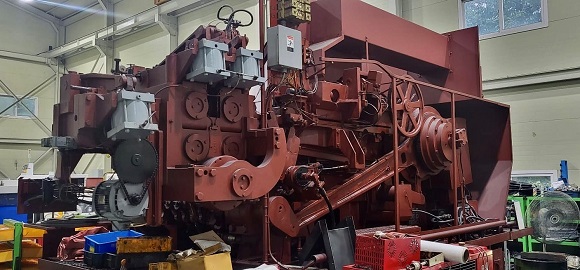

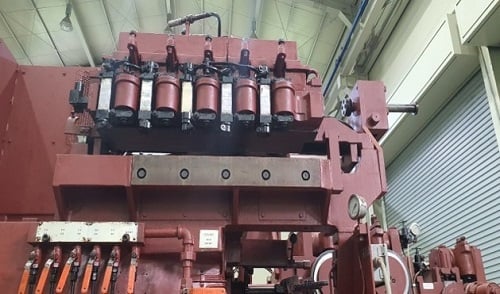

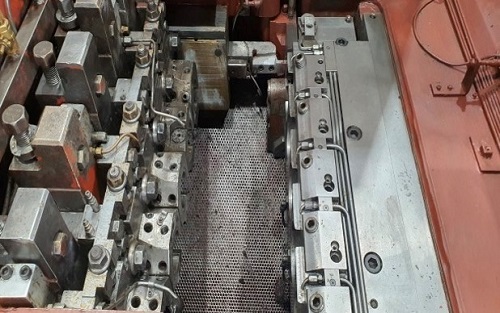

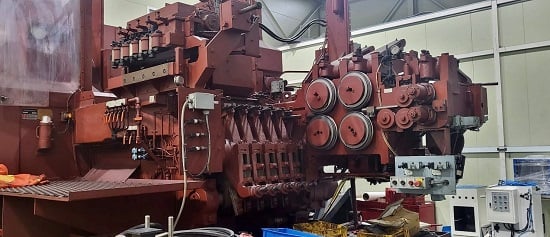

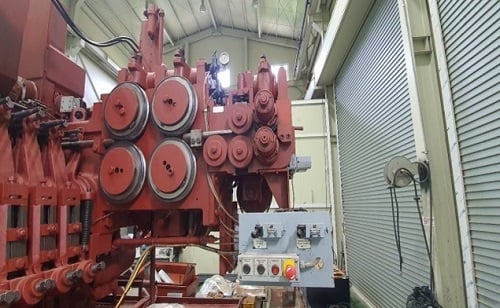

7/8" x 3-1/2" National #245, hi-speed 6 station 5 die, cold parts former, universal transfer system, overtop TKO

Specifications Metric Standard
Max. Cutoff diameter............24.0 mm.........0.950"
Max Length kick.......................170.0mm.......6.700"
Min. Length kick.......................19.0mm.........0.750"
Max. Blank Length....................170.0mm.......6.700"
Length of Die block..................184.15mm..... 7.250"
Forging Tonnage.....................275tons..........275tons
Max Load per station................67.5%.............67.5%
Punch diameter...........................75mm............3.000"
Die diameter.................................120.65mm.....4.750"
Die length.......................................241mm..........9.488"

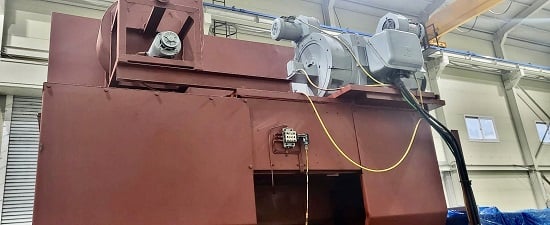

Main Motor.................................55.0 kw..........75.0 HP
Net weight (approx.) .....................55,000.0 kgs...122,000.0lbs
Floor Space
Length...............................................5.83m............. 19'2"
Width................................................3.41m............. 11'3"
Height...............................................3.44m............. 11'4"
Complete with:
5 Full forming dies
Universal transfer system
Finished & Scrap conveyors
Overtop TKO
Pneumatic clamping
Dual feed rolls
Transfer lift/rotate Transfer fixture at operator station
Condition: ..............Excellent - In production for approx.. 6yrs after
full rebuild.
