Description

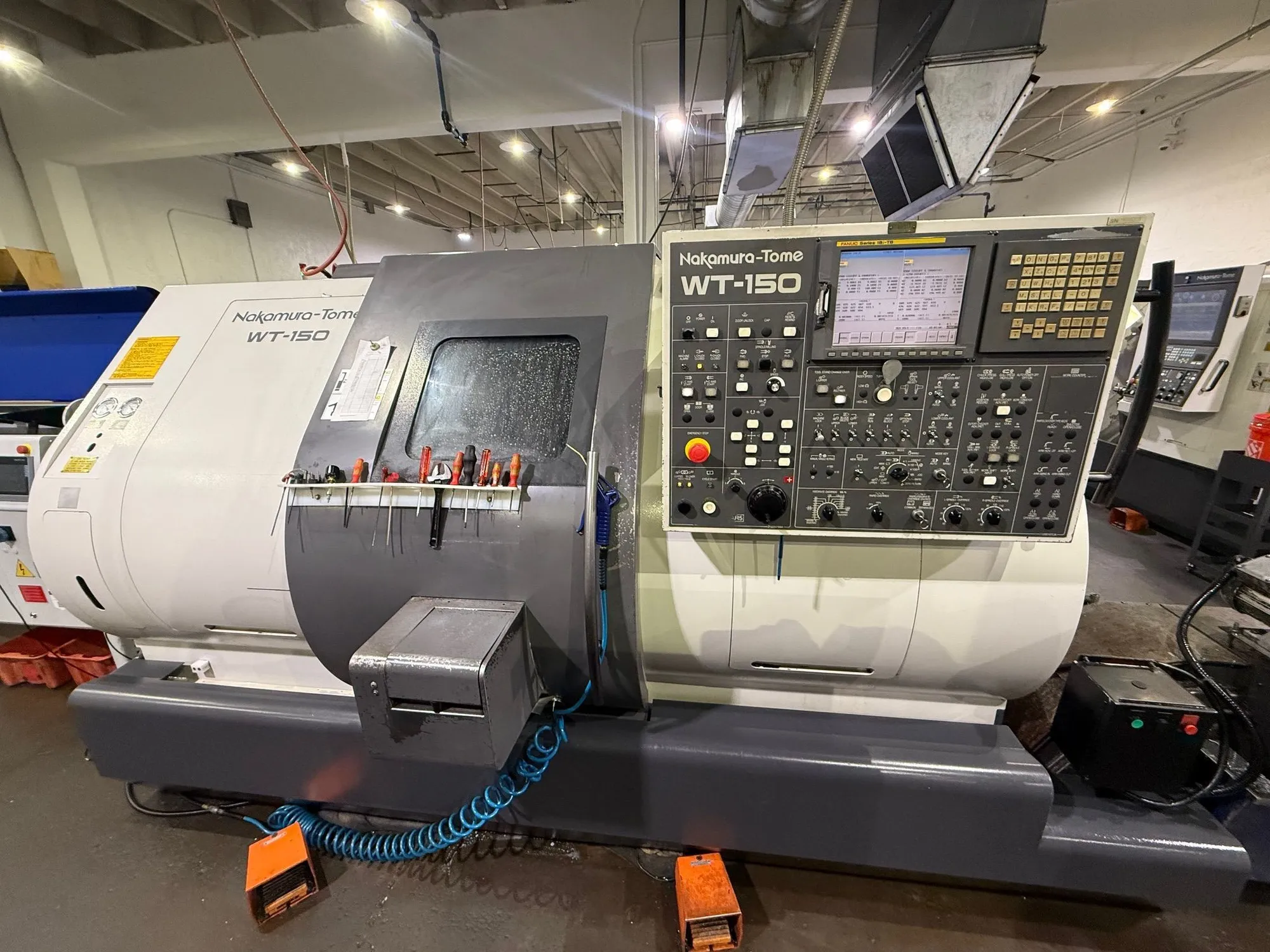

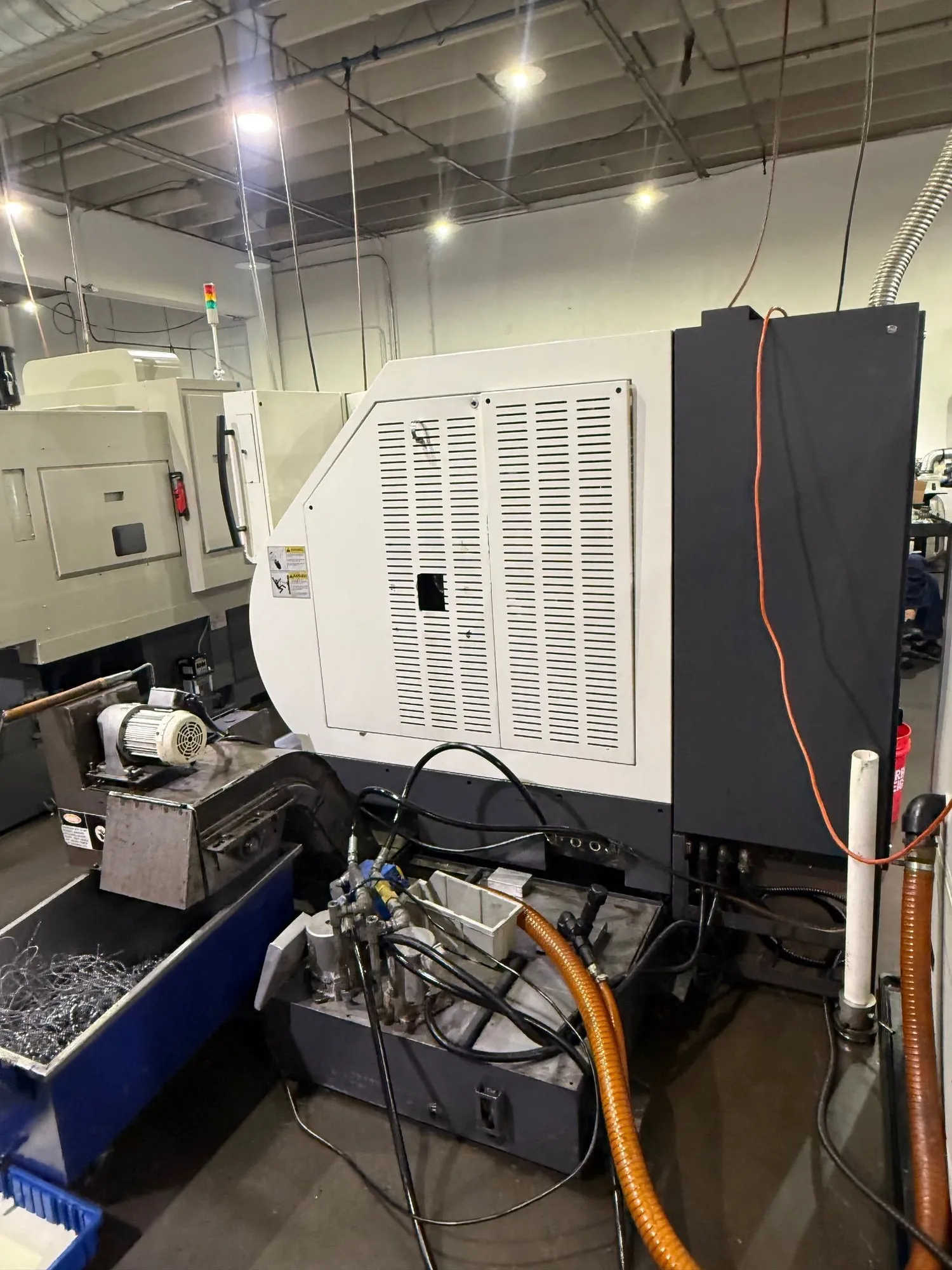

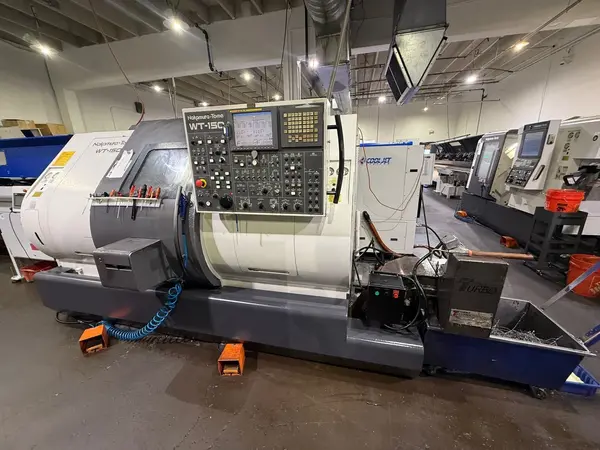

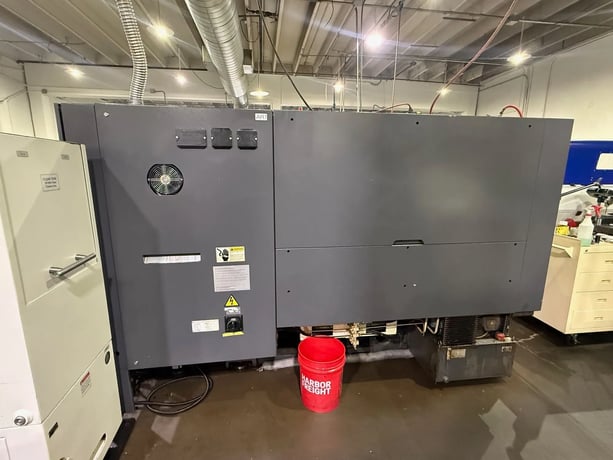

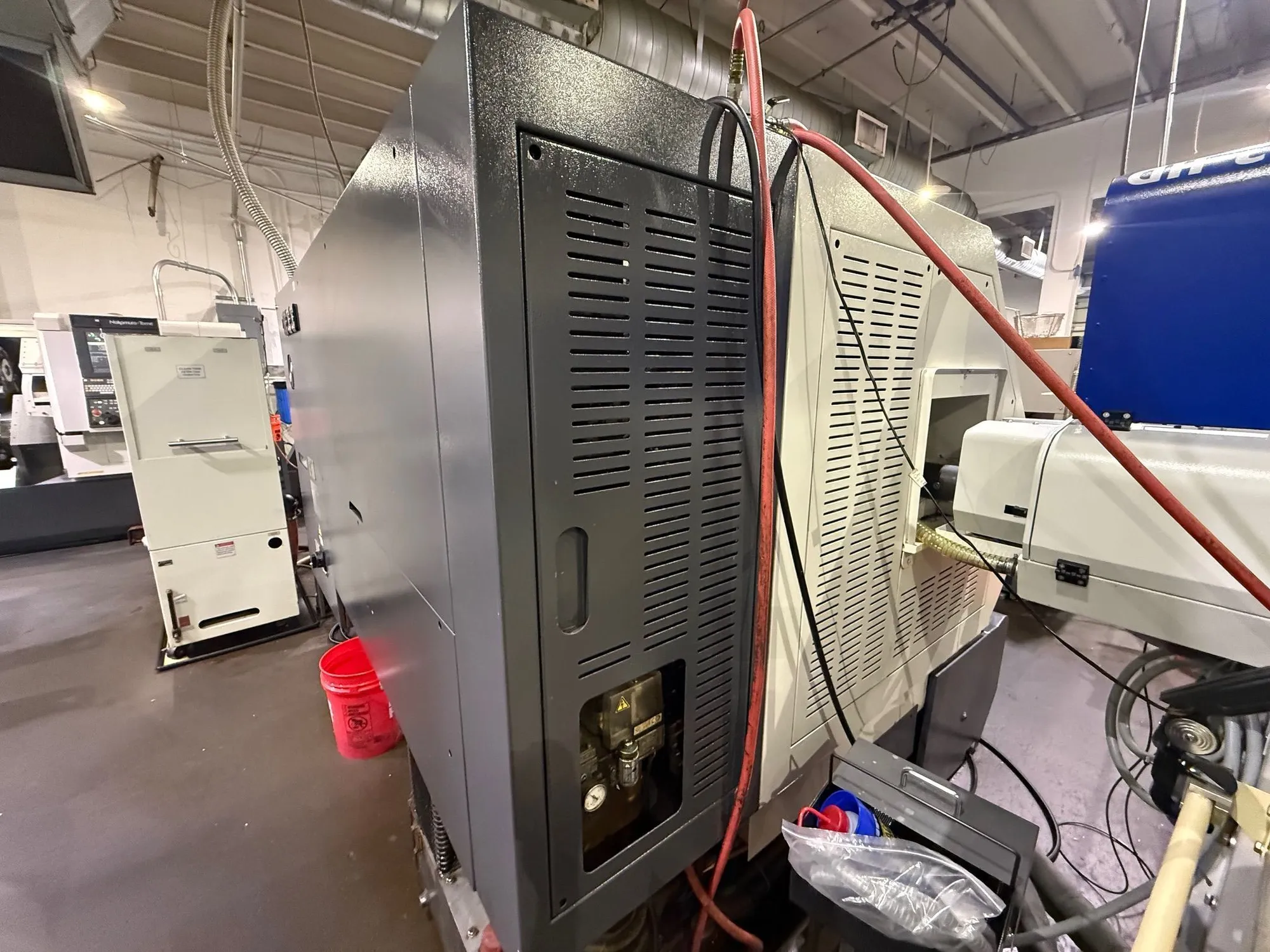

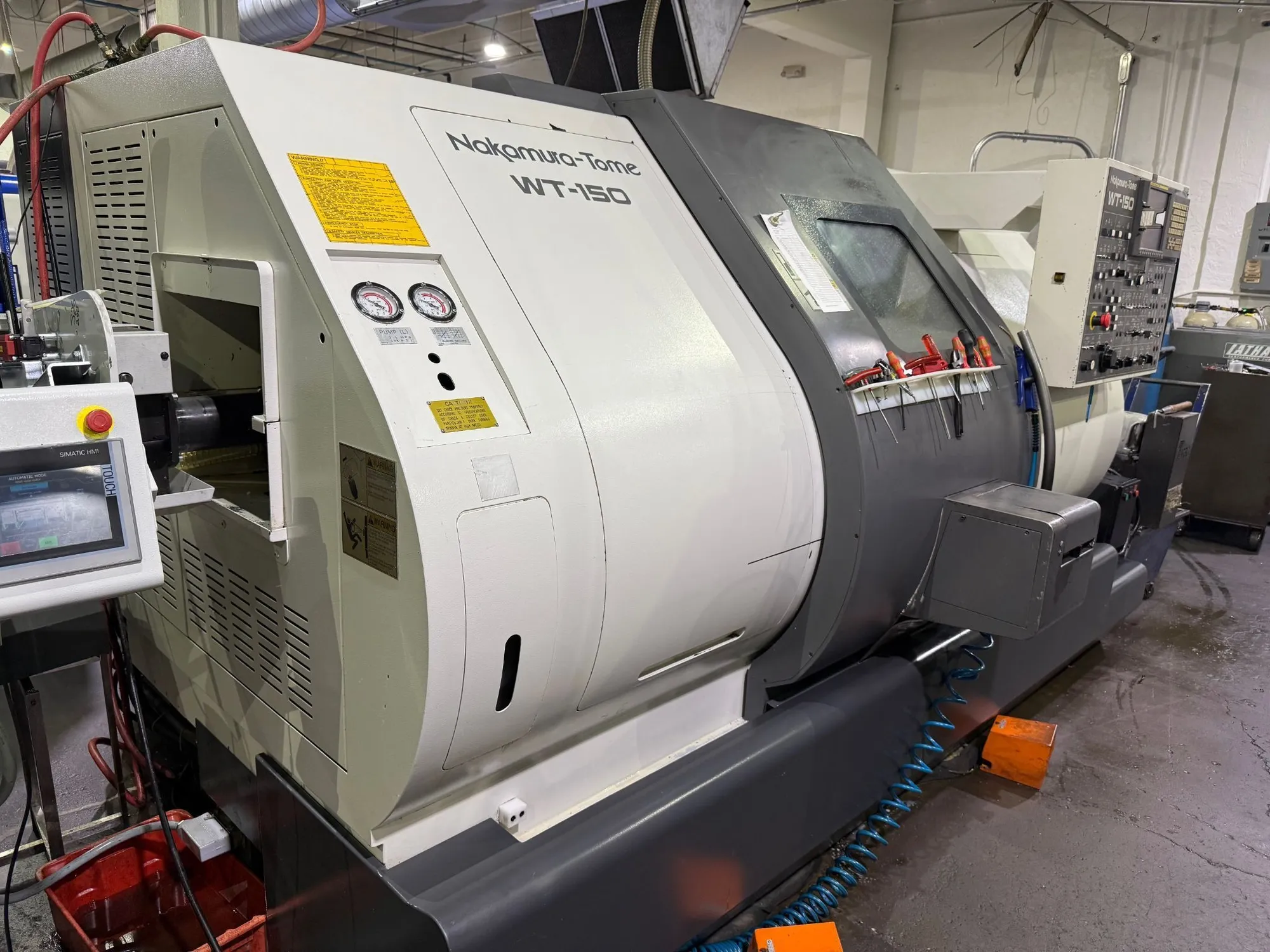

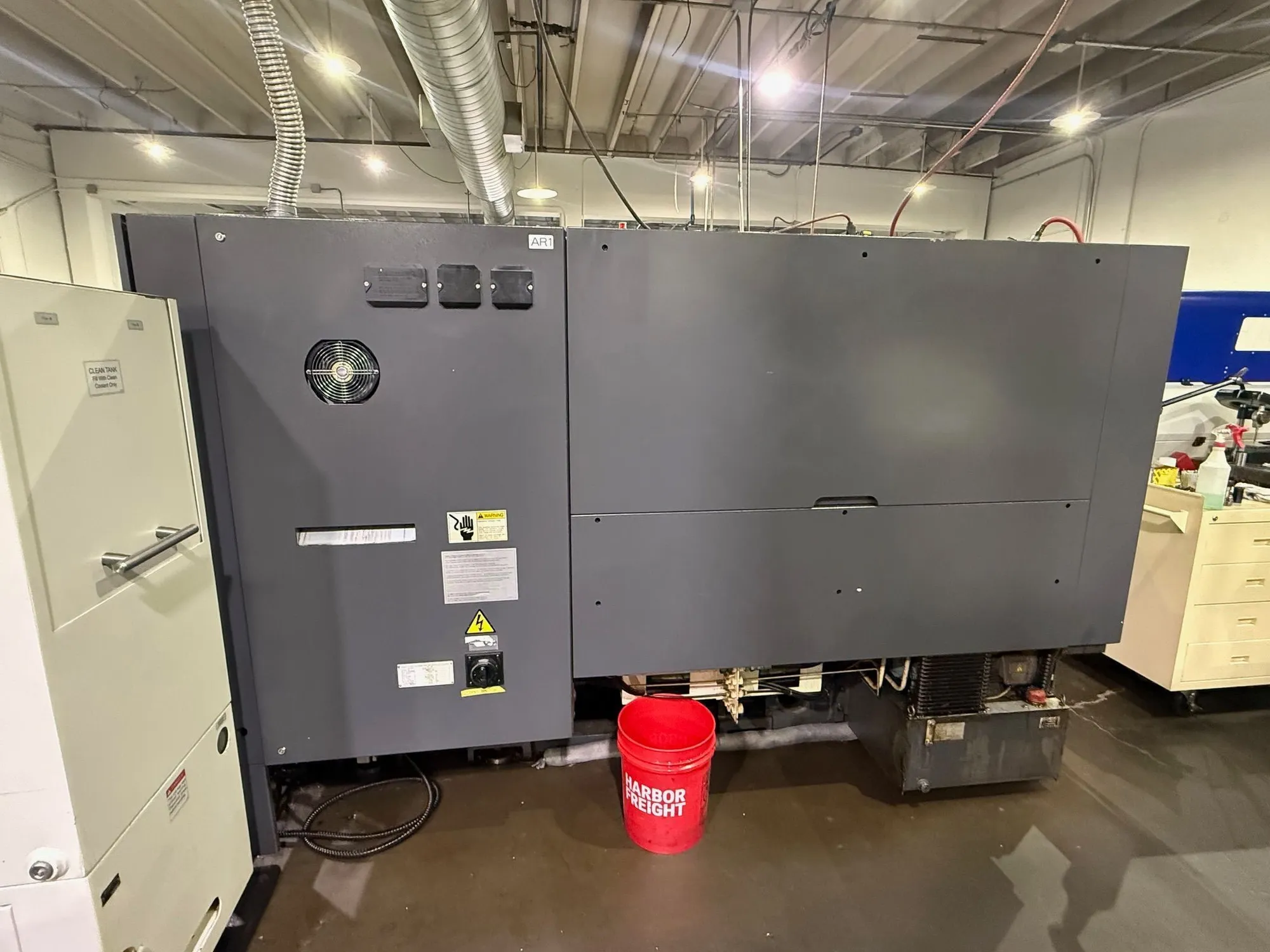

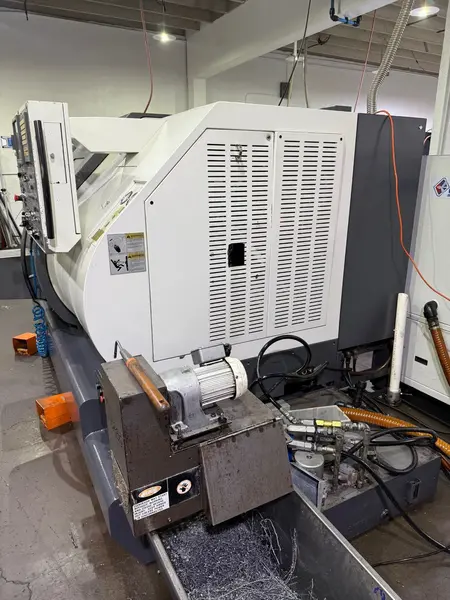

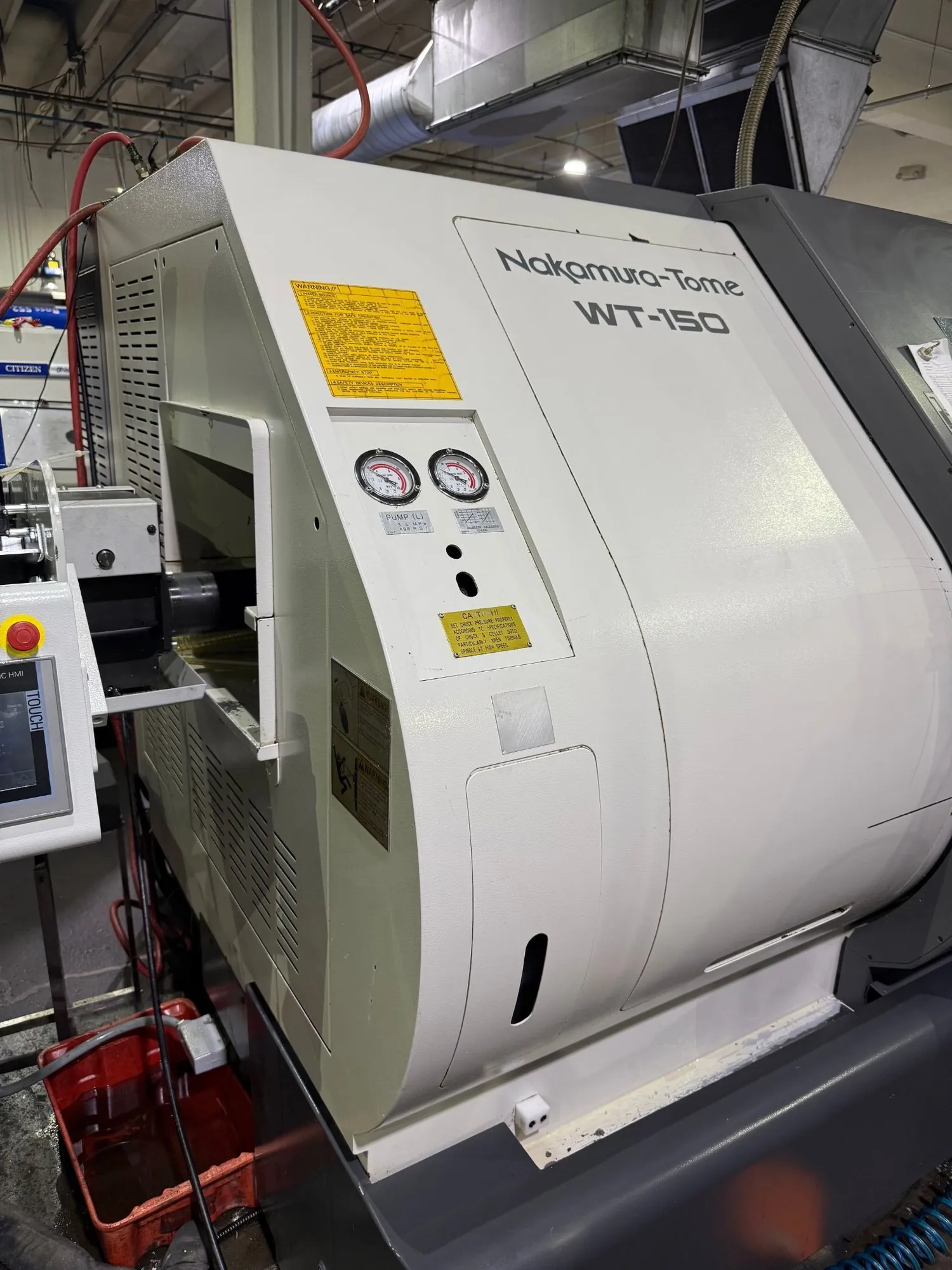

Description NAKAMURA TOME WT-150 Multi Axis CNC Lathe Y 2008’ #7992 Specifications

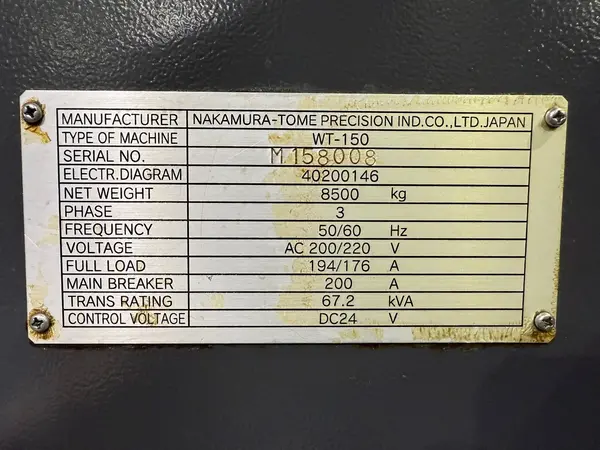

NAKAMURA TOME WT-150 Multi Axis CNC Lathe Y 2008’ #7992 Reference #7992 Model # WT-150 Serial # M152008 Year of manufacture- 2007’ installed 2008’ X-axis travel- 6.2” Y-axis travel- 1.377” Z-axis travel- 18.299” B-axis travel- 23.62” C-axis: 360° (0.001°) Turning length- 15.70 Turning diameter- 7.48” Distance between spindle centers-29.52” Bar working capacity- 2.04” Upper turret Tool positions: 12 Driven tool speed RPM: 6,000 Driven tool power kW: 5.5 / 3.7 Number of upper turrets: 1 Lower turret Tool positions: 12 Driven tool speed RPM: 6,000 Driven tool power kW: 5.5 / 3.7 Milling function: Both turrets Number of lower turrets: 1 Main spindle Spindle speed rpm: 5,000 Spindle drive power kW: 15 / 11 Sub-spindle Spindle speed rpm: 4,500

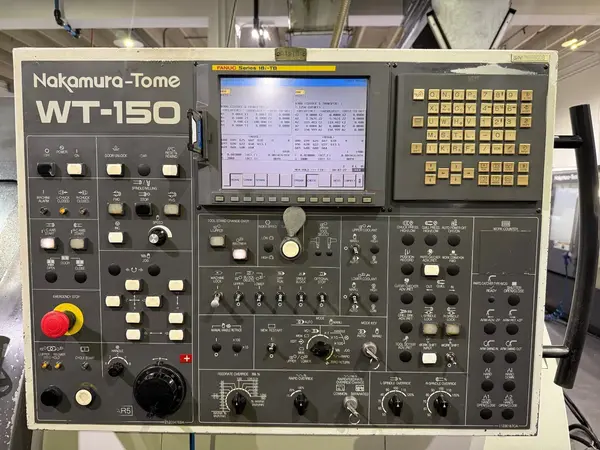

Equipped With ***Please note, no live tool holders are included with the unit, the machine comes with several block tool holders and (2) 3 Jaw CNC Chucks, the Collect chucks are not included*** ***Bar feeder & High Pressure coolant pump is not included*** FANUC 18i-TB CNC Control Machine Hours- Operating time 7,136, Cutting time- 15,888 Cycle time- 32,808 Dual head pre-setter Turbo chip conveyor Coolant pump Dual foot pedals Machine is wired for 220 volt / 3 phase / 60 H.Z. Machine weight- 19,000 Lbs. Machine location- F.O.B. Sarasota, Florida
